Dell PowerEdge T630 — Product Overview & Specifications
Product Overview

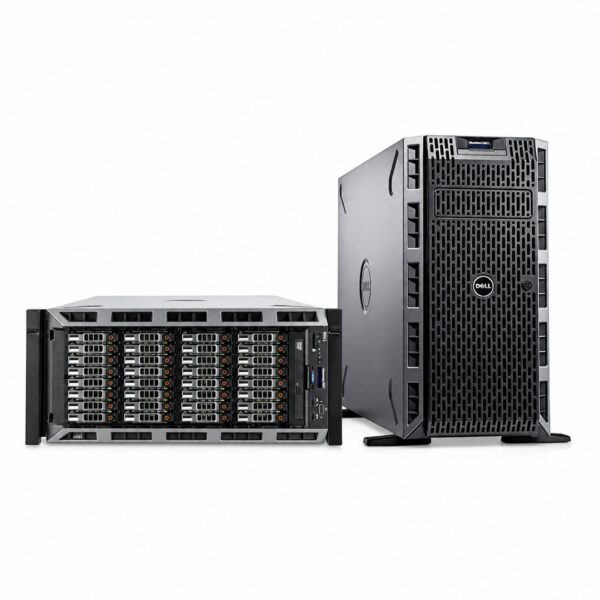

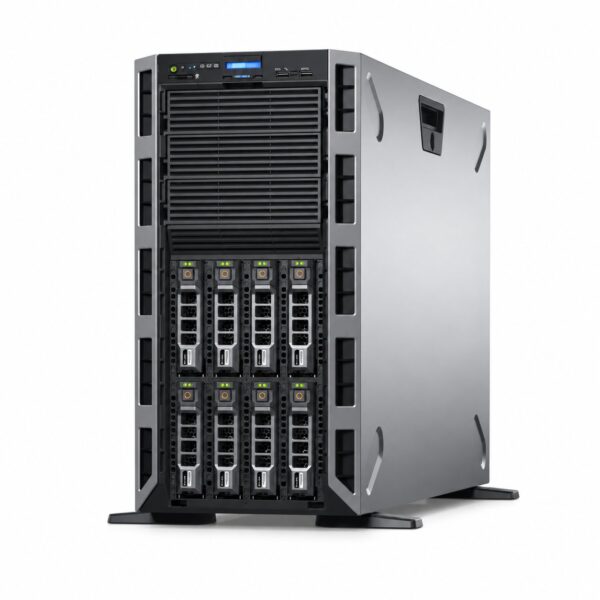

The Dell PowerEdge T630 is a versatile 5U tower server (rack-mountable) designed for small-to-medium business environments and remote office deployments. It delivers balanced dual-socket performance, massive internal storage capacity, and flexible I/O expansion within a quiet, office-friendly chassis. The T630 supports up to two Intel Xeon E5-2600 v4 or v3 processors, up to 1.5TB of DDR4 memory, and up to 32 x 2.5″ or 18 x 3.5″ internal drives. It is well-suited for virtualization, database workloads, file/print serving, and general business applications requiring high storage density and expandability.
Specifications
Processor
| Item | Detail |
|---|---|
| Supported CPU Series | Intel Xeon E5-2600 v4 product family; Intel Xeon E5-2600 v3 product family |
| Processor Sockets | 2 |
| Internal Interconnect | 2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s, 8.0 GT/s, 9.6 GT/s |
| Cache | 2.5 MB per core |
| Core Options | 4, 6, 8, 10, 12, 16, 18, 22 cores |
| Chipset | Intel C610 series |
Memory
| Item | Detail |
|---|---|
| DIMM Slots | 24 x 288-pin DDR4 |
| Memory Types | DDR4 Registered DIMM (RDIMM); DDR4 Load-Reduced DIMM (LRDIMM) |
| Supported DIMM Capacities | 4 GB, 8 GB, 16 GB, 32 GB, 64 GB |
| Memory Speed | 1866 MT/s, 2133 MT/s, 2400 MT/s (depending on DIMM type and population) |
| Maximum RAM | 1.5 TB (with dual processors, 24 DIMM slots populated) |
| Minimum RAM | 4 GB (single processor); 8 GB (dual processors) |
Storage / Hard Drives
| Item | Detail |
|---|---|
| Drive Types Supported | SAS, SATA, Nearline SAS, SSD, PCIe SSD (Express Flash) |

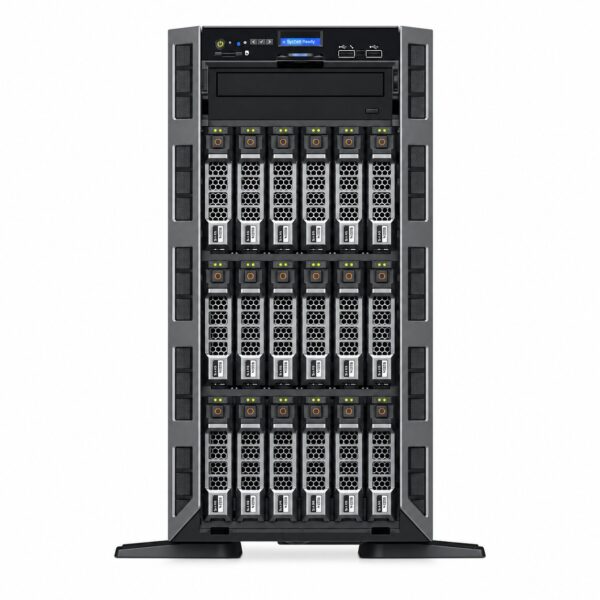

| 3.5″ Drive Configurations | Up to 18 x 3.5″ hot-swappable drives; or 8 x 3.5″ + 4 x PCIe SSD |
| 2.5″ Drive Configurations | Up to 32 x 2.5″ hot-swappable drives; or 16 x 2.5″ drives |
| Maximum Internal Storage | Up to 144 TB (18 x 8 TB 3.5″ HDD) |
| Optional PCIe SSD | Up to 4 x Dell PowerEdge Express Flash PCIe SSDs |
| Optical Drive | Optional SATA DVD-ROM or DVD+/-RW drive (slim or standard) |
| RAID Controllers (Internal) | PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P |
| RAID Controllers (External) | PERC H830; 12 Gbps SAS HBA (non-RAID) |
PCIe Expansion Slots
| Slot | Processor Connection | Height | Length | Link Width | Slot Width |
|---|---|---|---|---|---|
| 1 (Gen3) | Processor 1 | Standard Height | Full Length | x16 | x16 |
| 2 (Gen2) | Platform Controller Hub | Standard Height | Full Length* | x4 | x8 |
| 3 (Gen3) | Processor 1 | Standard Height | Full Length | x16 | x16 |
| 4 (Gen3) | Processor 2 | Standard Height | Half Length | x8 | x8 |
| 5 (Gen2) | Processor 2 | Standard Height | Full Length* | x4 | x8 |
| 6 (Gen3) | Processor 2 | Standard Height | Full Length | x16 | x16 |
| 7 (Gen3) | Processor 2 | Standard Height | Full Length | x16 | x16 |
| 8 (Internal PERC) | Processor 1 | Standard Height | Half Length | x8 | x8 |
*PCIe Generation 2 expansion card.
Note: To use PCIe slots 4, 5, 6, and 7, both processors must be installed. Expansion card slots are not hot-swappable.
Expansion Card Support Priority (Key Types)
| Card Type | Slot Priority (CPU1 only) | Slot Priority (Dual CPU) | Max Allowed (Dual CPU) |
|---|---|---|---|
| Express Flash (PCIe SSD) Bridge | 1, 3 | 1, 3 | 1 |
| GPU (single/double width) | 3, 1 | 3, 6, 7, 1 | 4 |
| RAID (H330/H730/H730P/H830) | 8 / 3, 1 | 8 / 3, 4, 6, 7 | Varies by model |
| 40 Gb NICs | 3, 1 | 3, 4, 6, 7, 1 | 5 |
| 10 Gb NICs | 3, 1 / 1, 3 | 3, 4, 6, 7, 1 | 5 |
| 1 Gb NICs | 1, 3, 2 | 3, 4, 6, 7, 1, 5, 2 | 7 |
Source: Dell PowerEdge T630 Owner’s Manual — Expansion Card Installation Guidelines
GPU Support
| Item | Detail |
|---|---|
| GPU Capacity | Up to 4 optional 300W internal GPU accelerators |
Embedded Networking
| Item | Detail |
|---|---|
| LOM | Intel dual-port 1GbE LOM |
| Rear NIC Ports | 4 x 10/100/1000 Mbps |
Ports & Connectors
| Location | Ports |
|---|---|
| Front Panel | 2 x USB Hi-Speed (1 x USB 2.0, 1 x USB 3.0); 1 x VGA (rack configuration only) |

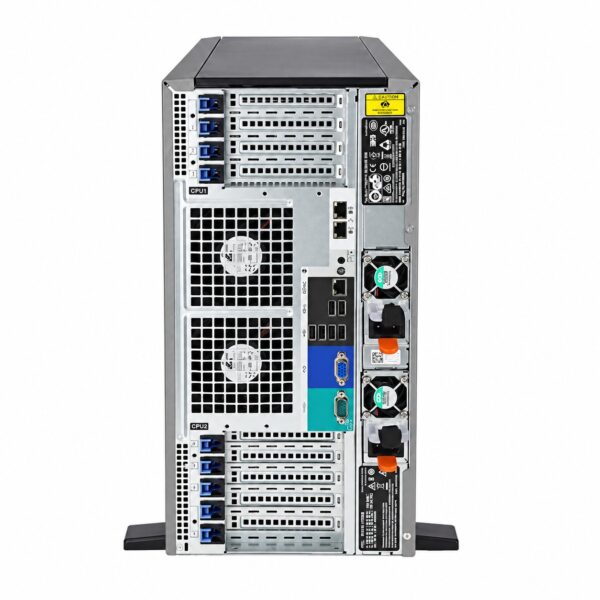

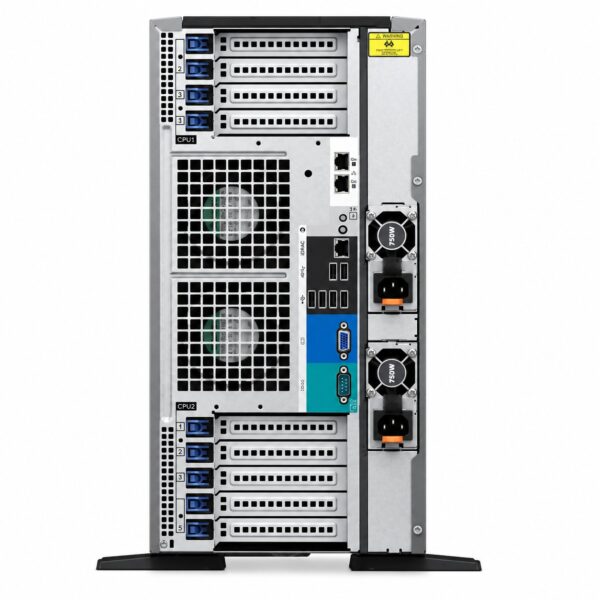

| Rear Panel | 6 x USB (4 x USB 2.0, 2 x USB 3.0); 1 x VGA; 1 x DB-9 Serial |
| Internal | 1 x USB 3.0 (4-pin); Dual SD Module (optional, with one slot dedicated for redundancy) |
Chassis & Form Factor
| Item | Detail |
|---|---|
| Form Factor | 5U Tower (Rack-mountable) |
| Height | 443.5 mm (17.5 in) with feet; 430.5 mm (16.95 in) without feet |
| Width | 304.5 mm (11.98 in) with open feet; 217.9 mm (8.57 in) with closed feet |
| Depth | 692.8 mm (27.27 in) without bezel |
| Maximum Weight | Up to 49.65 kg (109.36 lb) with 18 x 3.5″ HDD configuration |
Power Supplies
| Item | Detail |
|---|---|
| Options | Titanium 750W AC; Gold 1100W DC; Platinum 495W / 750W / 1100W AC |
Video
| Item | Detail |
|---|---|
| Controller | Matrox G200 integrated with iDRAC8 |
| Video Memory | 16 MB application memory |
Management
| Item | Detail |
|---|---|
| Systems Management | Dell OpenManage portfolio; iDRAC8 with Lifecycle Controller |
