Huawei CloudEngine CE6857S-48S6CQ Product Documentation

Name: Huawei CloudEngine CE6857S-48S6CQ - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6857S-48S6CQ

Product Overview

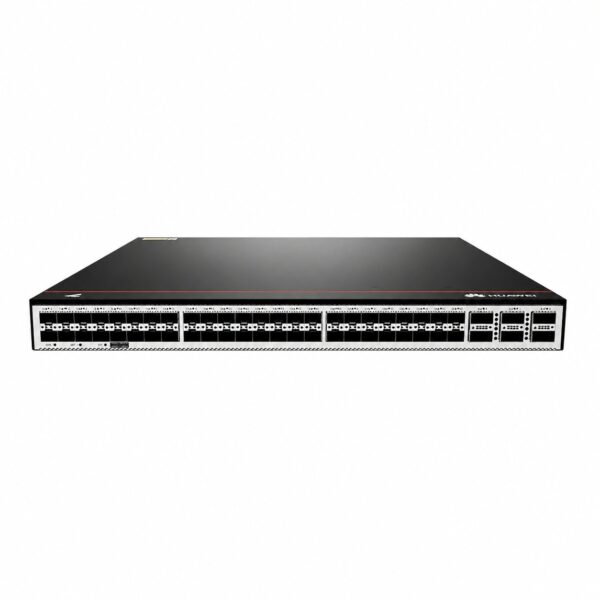

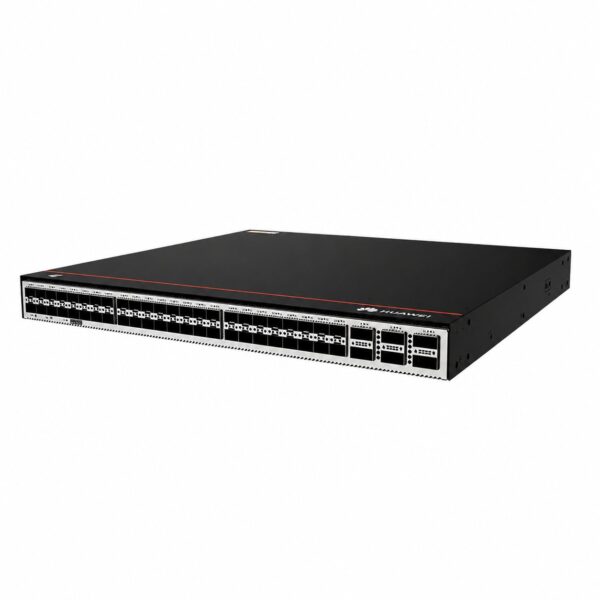

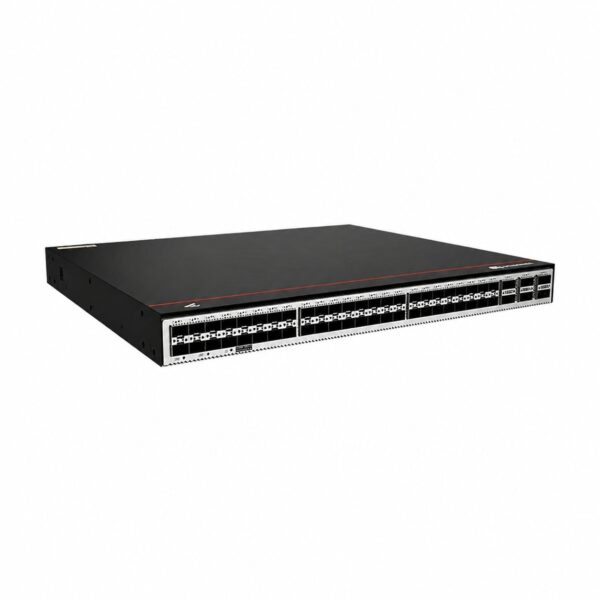

The Huawei CloudEngine CE6857S-48S6CQ is a next-generation, high-performance, high-density, low-latency 10GE Top-of-Rack (TOR) data center switch . Designed for cloud computing and virtualization environments, this 1U form-factor switch delivers wire-speed L2/L3 forwarding to meet the demanding requirements of modern data centers .

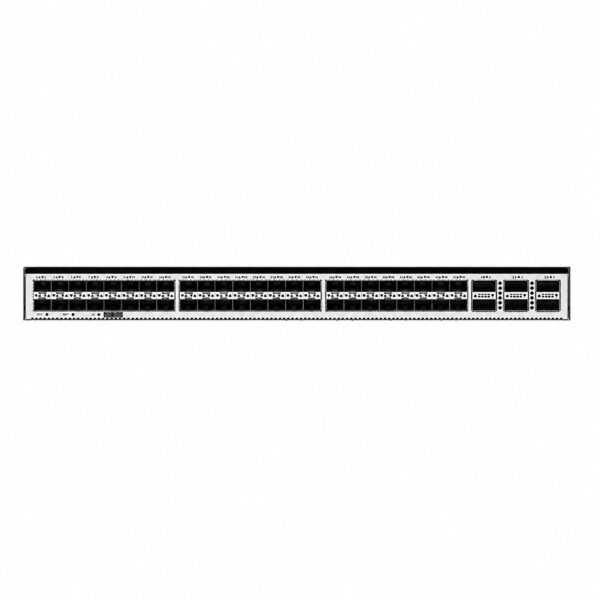

The switch provides 48 x 10GE SFP+ downlink ports for server access and 6 x 100GE QSFP28 uplink ports for interconnectivity with the data center core network . Powered by Huawei’s VRP8 operating system, it supports advanced data center features including VXLAN-EVPN, M-LAG (Multi-chassis Link Aggregation), and service port-based stacking . The platform offers flexible programmability through Open APIs, enabling seamless integration with mainstream cloud platforms and third-party controllers for automated network orchestration .

With flexible front-to-back or back-to-front airflow designs, the CE6857S-48S6CQ adapts to various data center cooling architectures, providing efficient thermal management for 7×24 operations .

Product Specifications

Category	Item	Specification
Model	Product Model	CloudEngine CE6857S-48S6CQ / CE6857S-48S6CQ-B / CE6857S-48S6CQ-F / CE6857-48S6CQ-EI
	Product Type	Data Center Switch
	Application Level	Layer 3
Performance	Switching Capacity	4.8 Tbps / 76.8 Tbps
	Forwarding Rate	2000 Mpps
	Processor	1.4 GHz, four-core
	DRAM Memory	4 GB
	NAND Flash	2 GB
	NOR Flash	64 MB
	Packet Buffer	32 MB
Ports	Port Structure	Non-modular
	Total Ports	54
	Downlink Ports	48 x 10GE SFP+ (compatible with GE SFP, auto-sensing to 1 Gbit/s)
	Uplink Ports	6 x 100GE QSFP28 (also supports 40GE mode)
	Management Ports	1 x Console Port (RJ45), 1 x ETH Management Port (RJ45), 1 x USB Port
Stacking	Stack Capability	Up to 16 units via service ports (10GE/40GE/100GE ports)
	Stack Distance	Long-distance stacking supported
VLAN Features	VLAN Modes	Access, Trunk, Hybrid
	VLAN Functions	Default VLAN, QinQ, MUX VLAN, GVRP
QoS	Traffic Classification	Layer2/Layer3/Layer4 protocol header-based classification
	Actions	ACL, CAR, Remark, Schedule
	Queue Scheduling	PQ, WRR, DRR, PQ+WRR, PQ+DRR
	Congestion Management	WRED, Tail Drop
	Traffic Shaping	Supported
Multicast	Protocols	IGMP, PIM-SM, MSDP, MBGP
	Features	IGMP Snooping, IGMP Proxy, Fast Leave, Multicast VLAN, Multicast VxLAN
Security	Authentication	802.1x, AAA, Radius, HWTACACS
	Protection	Command-line hierarchy, DOS/ARP/ICMP attack prevention
	Port Security	Port isolation, Port security, Sticky MAC
	Binding	IP, MAC, Port, VLAN combination binding
Management	Protocols & Interfaces	Console, Telnet, SSH, SNMPv1/v2c/v3
	File Transfer	FTP, TFTP
	Deployment	ZTP (Zero Touch Provisioning) via USB or file server
	Automation	Ansible support, Open API, OPS (Open Programmability System)
	Maintenance	Remote upgrade, Hot patch, User operation logs, Configuration rollback
Power	Power Supply Types	AC: 90 V ~ 290 V, DC: -38.4 V ~ -72 V, HVDC: 190 V ~ 400 V
	Rated AC Input	100 V AC ~ 240 V AC, 50/60 Hz
	Rated DC Input	-48 V DC ~ -60 V DC
	Maximum Power Consumption	287 W
	Typical Power Consumption	152 W (100% throughput, cables), 195 W (100% throughput, optical modules)
	Maximum Heat Dissipation	979 BTU/Hr
	Power Redundancy	1+1 backup
Cooling	Cooling Method	Air cooling
	Airflow Direction	Front-to-back or back-to-front (selectable via fan/power modules)
	Fan Configuration	4 fan modules, 3+1 backup, hot-swappable
	Noise Level (27°C)	Back-to-front: < 53 dBA, Front-to-back: < 52 dBA
Physical	Dimensions (W x D x H)	442.0 mm x 420.0 mm x 43.6 mm (1U)
	Weight (fully configured)	7.6 kg ~ 8.05 kg
Environmental	Operating Temperature	0°C to 40°C (altitude 0-1800 m)
	Storage Temperature	-40°C to +70°C
	Relative Humidity	5% RH to 95% RH, non-condensing
	Altitude	< 5000 m
Reliability	MTBF	45.3 years
	MTTR	1.68 hours
	Availability	0.99999576002
	Surge Protection (AC)	6 kV common mode, 6 kV differential mode
	Surge Protection (DC)	4 kV common mode, 2 kV differential mode
