Huawei CloudEngine CE6857F-48T6CQ – Product Documentation
Product Overview

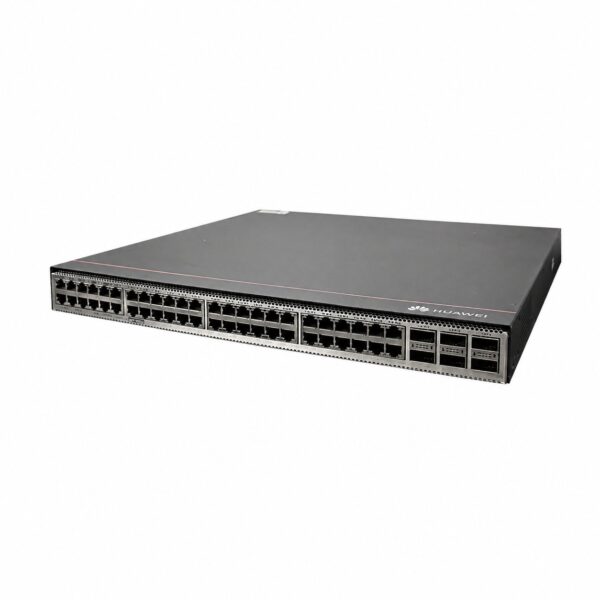

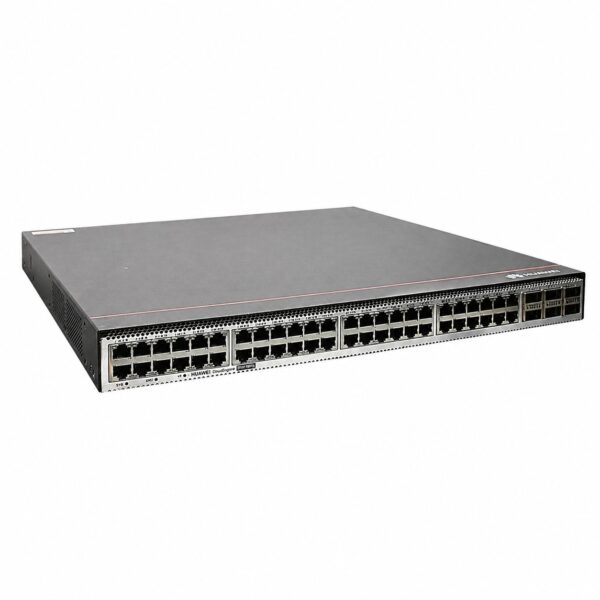

The Huawei CloudEngine CE6857F-48T6CQ is a high-performance, next-generation top-of-rack (ToR) data center switch designed for high-density 10GE server access and flexible 100GE uplink connectivity. As part of the CloudEngine 6800 series, this 1U switch delivers low-latency, high-throughput switching for enterprise and cloud data center environments, as well as high-end campus network core or aggregation deployments.

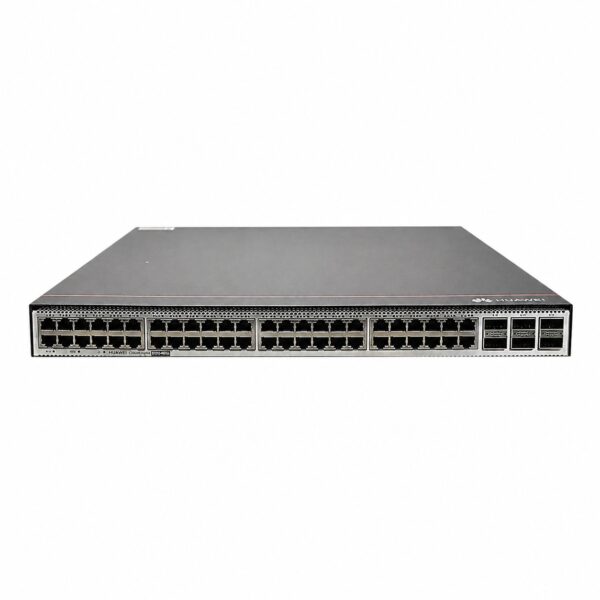

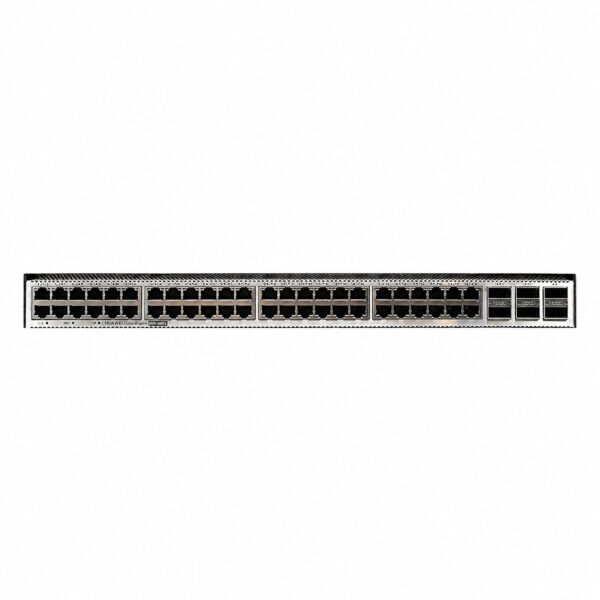

The switch provides 48 x 10GBASE-T copper ports for server access, supporting compatibility with GE (1000BASE-T) while operating in full-duplex mode (100M/10M not supported), and 6 x 100GE QSFP28 uplink ports that are backward-compatible with 40GE. Its QSFP28 ports can also be flexibly configured for 4x25GE or 4x10GE breakout modes (specific to ports 3 and 4), offering versatile deployment options.

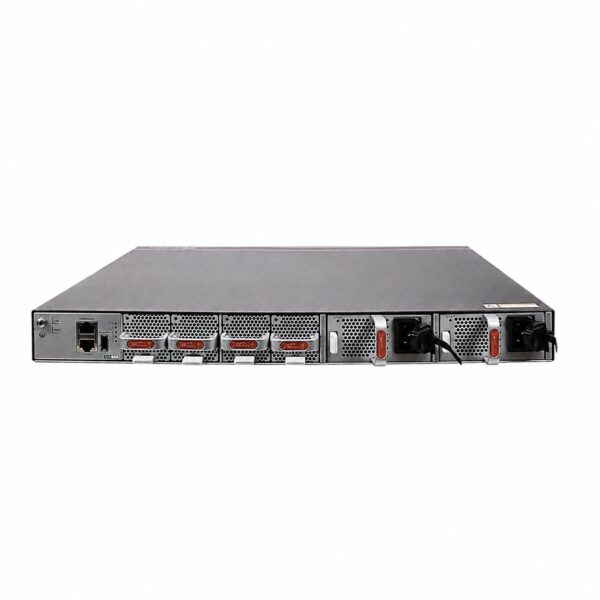

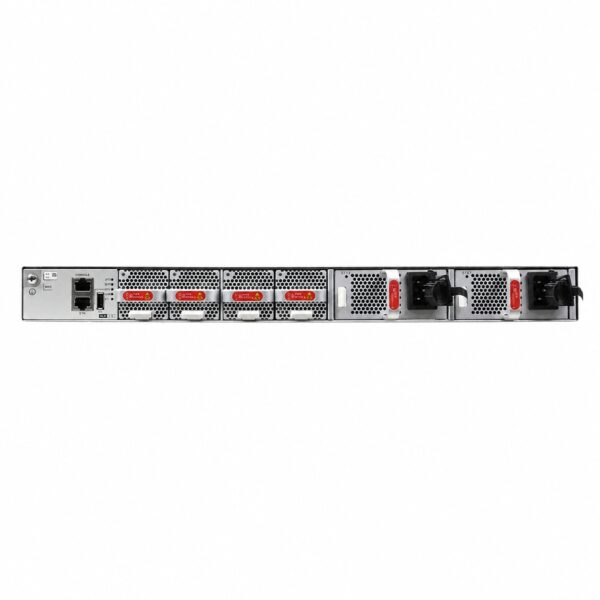

Built on Huawei’s VRP8 operating system, the CE6857F-48T6CQ supports advanced data center features including VXLAN routing and bridging, BGP-EVPN, M-LAG (Multichassis Link Aggregation) for cross-device link redundancy, and comprehensive QoS capabilities. The switch features a modular design with redundant, hot-swappable power supply and fan modules, supporting both front-to-back and back-to-front airflow configurations to align with data center cooling requirements.
Product Specifications
| Category | Specification |
|---|---|
| Model | CE6857F-48T6CQ |
| Product Type | Data Center Switch |
| Form Factor | 1U Rack-mountable |
Performance & Capacity
| Category | Specification |
|---|---|
| Switching Capacity | 4.8 Tbps / 76.8 Tbps |
| Packet Forwarding Rate | 2000 Mpps |
| CPU | 4-core, 1.4 GHz |
| Memory | DRAM: 4 GB; Cache: 32 MB; NOR Flash: 64 MB; NAND Flash: 4 GB |
| RTC | Supported |
Ports & Interfaces
| Category | Specification |
|---|---|
| Downlink Ports | 48 x 10GBASE-T RJ45 (compatible with 1000BASE-T; full-duplex only; 100M/10M not supported) |
| Uplink Ports | 6 x 100GE QSFP28 (compatible with 40GE; ports 3 and 4 support 4x25GE or 4x10GE breakout) |
| Console Port | RJ45 |
| USB | Supported |
Power Specifications
| Category | Specification |
|---|---|
| Power Supply Type | Modular, 2 slots, hot-swappable |
| Redundancy | 1+1 backup |
| AC Input Voltage | 90V – 290V |
| DC Input Voltage | -38.4V – -72V |
| 240V HVDC | 190V – 290V |
| 380V HVDC | 190V – 400V |
| Maximum Power Consumption | 363 W |
| Static Power Consumption | 136 W |
| Static Heat Dissipation | 464 BTU/hr |
| Maximum Heat Dissipation | 1239 BTU/hr |
Cooling System
| Category | Specification |
|---|---|
| Fan Modules | 4 hot-swappable, pluggable fan modules |
| Redundancy | 3+1 backup |
| Airflow Direction | Front-to-back or back-to-front (configurable via fan and power module selection) |
| Cooling Type | Air cooling |
Physical Specifications
| Category | Specification |
|---|---|
| Dimensions (W x D x H) | 442 x 420 x 43.6 mm |
| Weight | 7.6 kg |
Environmental Specifications
| Category | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity (Operating) | 5% – 95%, non-condensing |
Key Features & Protocols
| Category | Specification |
|---|---|
| Data Center Features | VXLAN routing and bridging, BGP-EVPN, M-LAG, DCBX, PFC, ETS |
| Reliability | LACP, Micro-segmentation, Hardware BFD (minimum interval 3.3ms) |
| O&M | Telemetry, NetStream, sFlow, ERSPAN-enhanced |
| VLAN | Access, Trunk, Hybrid, default VLAN, QinQ, MUX VLAN, GVRP |
| QoS | Layer 2/3/4 flow classification, ACL, CAR, Remark, Schedule, PQ/DWRR/PQ+DWRR queuing, WRED, tail drop, traffic shaping |
| Multicast | IGMP Snooping, IGMP Proxy, IGMP, PIM-SM, MBGP, multicast traffic suppression, multicast VLAN, multicast VXLAN |
| Security | 802.1x authentication, command-line hierarchical protection, DoS/ARP/ICMP attack protection, port isolation, port security, Sticky MAC, AAA, RADIUS, HWTACACS, IP-MAC-port-VLAN binding, RMON |
| Stacking | Supported (max 16 switches stacked) |
