Huawei CloudEngine CE6810-48S-LI Switch
Product Overview

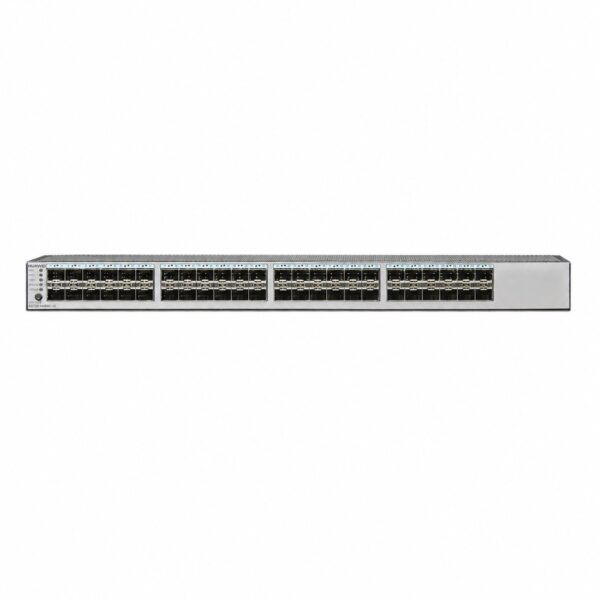

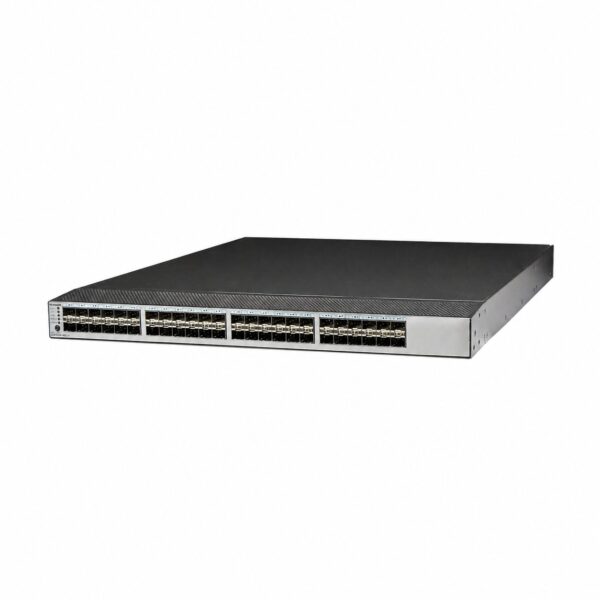

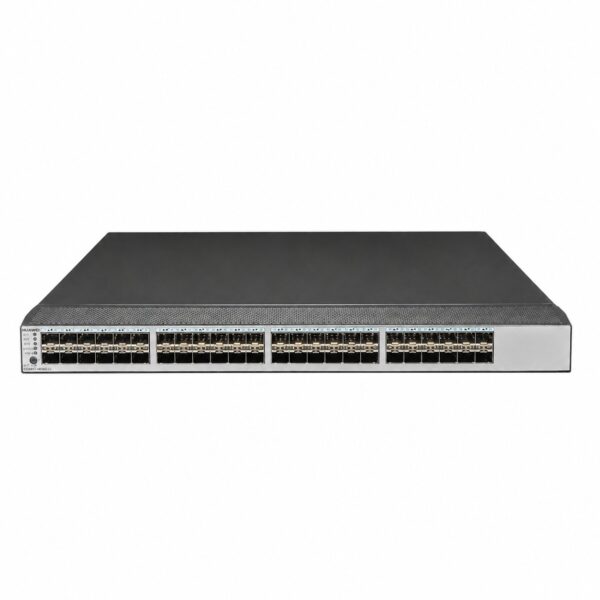

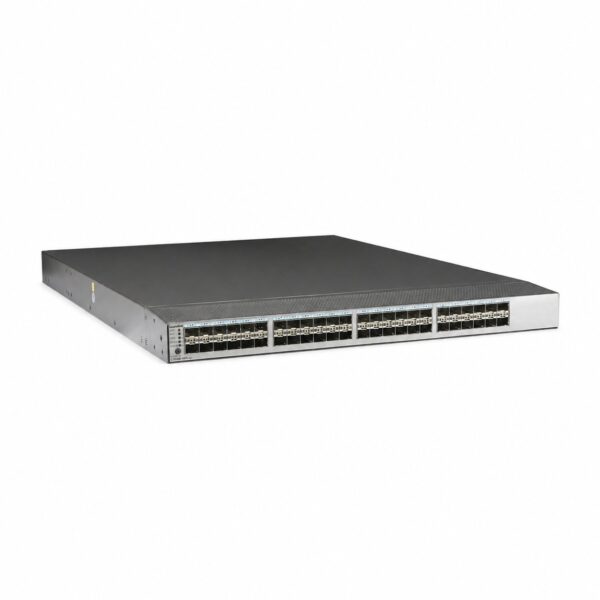

The Huawei CloudEngine CE6810-48S-LI is a next-generation 10GE Top-of-Rack (ToR) switch designed for high-performance data centers and cloud computing environments . As part of the CE6800 series, this model delivers 48 x 10GE SFP+ ports in a compact 1U form factor, providing dense fiber connectivity for server access and aggregation layers .
Built on Huawei’s VRP8 software platform, the switch supports advanced data center features including TRILL, M-LAG, and Super Virtual Fabric (SVF) for network virtualization and scalability . The CE6810-48S-LI integrates with Huawei’s Agile Controller to enable dynamic network policy deployment, online VM migration awareness, and automated service provisioning . With support for FCoE and data center bridging (DCBX, PFC, ETS), the switch enables converged network and storage traffic on a single infrastructure .

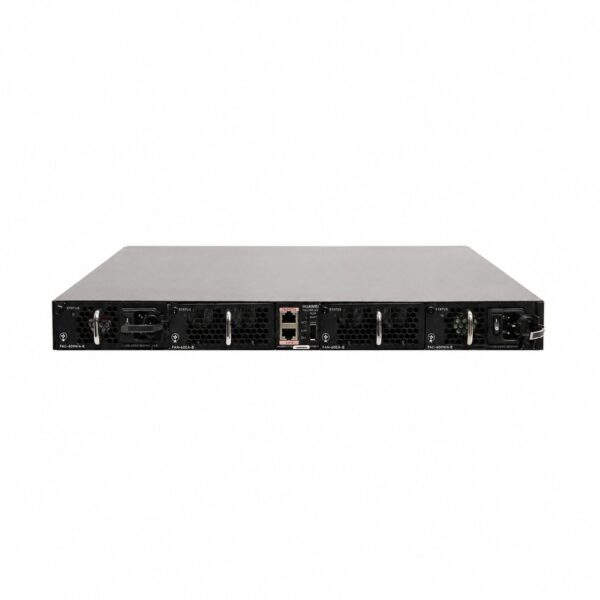

The device features modular, hot-swappable power and fan units with field-replaceable airflow direction options (front-to-back or back-to-front), allowing flexible thermal design for different rack configurations . Zero Touch Provisioning (ZTP) via USB or network server simplifies large-scale deployment and automated maintenance .
Product Specifications
| Category | Specification |
|---|---|
| Model Code | CE6810-48S-LI / CE6810-LI-B01 |
| Part Number | 02350AQC (with PSU & FAN) / 02350AQA (without PSU & FAN) |
| Form Factor | 1U Rack-mountable |
Ports & Interfaces
| Category | Specification |
|---|---|
| Fixed 10GE Ports | 48 x 10GE SFP+ (supports 1G/10G speeds) |
| Fixed 40GE Ports | None (CE6810-48S4Q-LI variant includes QSFP+) |
| Console Port | 1 x RJ45 console port |
| Management Port | 1 x ETH management port (RJ45) |
| USB Port | 1 x USB port for ZTP, log backup, and system software upload |
Performance
| Category | Specification |
|---|---|
| Switching Capacity | 960 Gbit/s |
| Forwarding Rate | 720 Mpps |
| MAC Address Table | Maximum 128k entries |
| ARP Entries | Maximum 1.5k |
| IPv4 FIB | Maximum 1.5k |
| ACL | Ingress: 1,250 / Egress: 500 |
Physical Specifications
| Category | Specification |
|---|---|
| Dimensions (W x D x H) | 442.0 x 600.0 x 43.6 mm (17.4 x 23.6 x 1.72 in.) |
| Weight (fully loaded) | 10.2 – 11.35 kg (22.49 – 25.02 lb) |
Power Specifications
| Category | Specification |
|---|---|
| Power Source Type | AC / DC |
| AC Input (Rated) | 100–240 V AC, 50/60 Hz |
| AC Input (Max) | 90–290 V AC, 47–63 Hz |
| DC Input (Rated) | -48 V to -60 V DC |
| DC Input (Max) | -38.4 V to -72 V DC |
| Max Power Consumption | 178 W |
| Typical Power Consumption | 89 W (100% throughput, 48 ports) |
| Max Heat Dissipation | 607 BTU/hr |
| Power Module Backup | 1+1 redundant, hot-swappable |
Cooling & Environment
| Category | Specification |
|---|---|
| Cooling Design | Air cooling, modular fan boxes |
| Airflow Direction | Front-to-back or back-to-front (field-replaceable) |
| Fan Slots | 2 x hot-swappable fan modules |
| Fan Redundancy | Not supported |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) at 0-1800m altitude |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating Humidity | 5% RH to 95% RH, noncondensing |
| Operating Altitude | < 5000 m (16404 ft.) |
| Noise (Sound Pressure @ 27°C) | < 48–56 dBA (depending on airflow direction) |
Software Features
| Category | Specification |
|---|---|
| Device Virtualization | iStack (up to 16 units), Super Virtual Fabric (SVF) |
| Network Virtualization | M-LAG, TRILL |
| Network Convergence | FCoE, DCBX, PFC, ETS |
| Programmability | OpenFlow, OPS, Puppet/OVSDB plugins |
| Traffic Analysis | NetStream, sFlow |
| IP Routing (IPv4) | RIP, OSPF, BGP, IS-IS |
| IP Routing (IPv6) | RIPng, OSPFv3, IS-ISv6, BGP4+ |
| Multicast | IGMP snooping |
| VLAN Features | QinQ, MUX VLAN, GVRP |
| VM Awareness | Agile Controller integration for online VM migration |
Reliability
| Category | Specification |
|---|---|
| Power Module Backup | 1+1 redundancy, hot-swappable |
| Fan Module | Hot-swappable |
| Hot Swap Support | All power and fan modules |
| MTBF | 56.88 years |
| MTTR | 1.8 hours |
| Availability | 0.9999963861 |
| Surge Protection (AC) | 6 kV common mode, 6 kV differential mode |
| Surge Protection (DC) | 4 kV common mode, 2 kV differential mode |
Supported Optics & Cables
| Category | Specification |
|---|---|
| GE SFP Optical | Multi-mode (850nm, 0.55km), Single-mode (1310nm, 10/40km, 1550nm, 40km) |
| 10G SFP+ Optical | Multi-mode (850nm, 0.1/0.3km) |
| GE Copper | SFP electrical module (100m, RJ45) |
| Cables | SFP+ AOC cables, SFP+ high-speed DAC cables |
