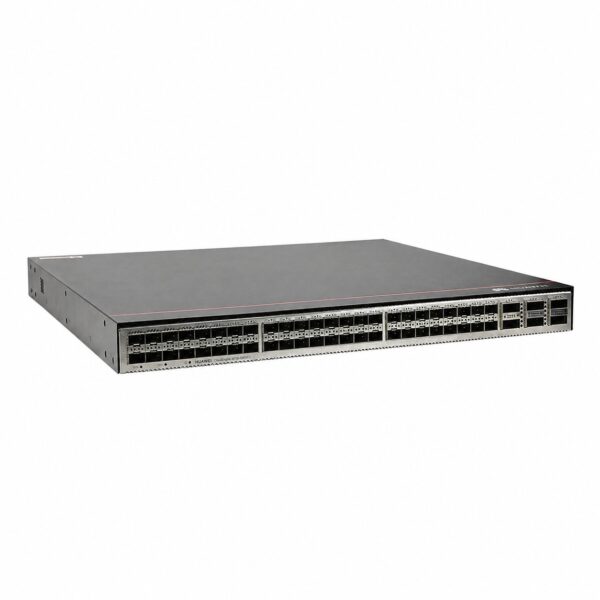

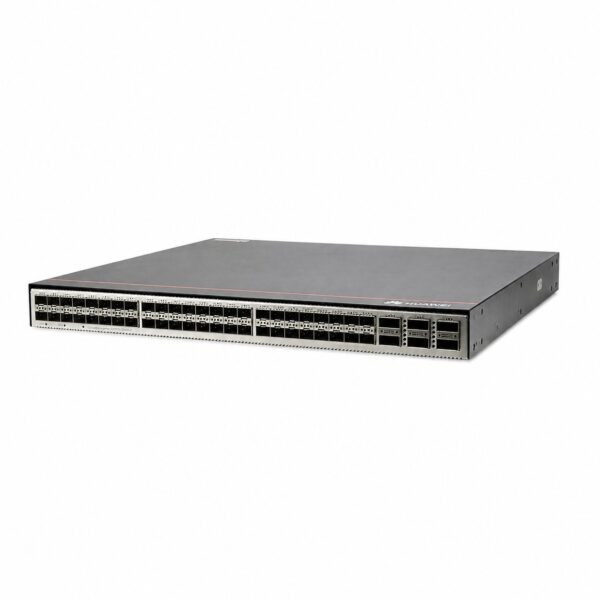

Huawei CloudEngine CE6820-48S6CQ
CE6820-48S6CQ
Enterprise stock · tested · export documentation available
Product Overview
The Huawei CloudEngine CE6820-48S6CQ is a next-generation, high-performance fixed-configuration data center switch. Designed for high-density 10GE server access, it serves as an ideal Top-of-Rack (ToR) solution for modern cloud data centers and can also function as a core or aggregation switch in high-end campus networks .

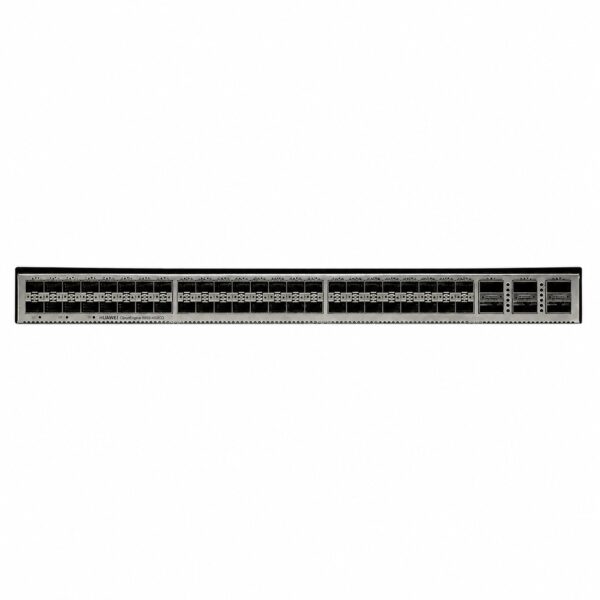

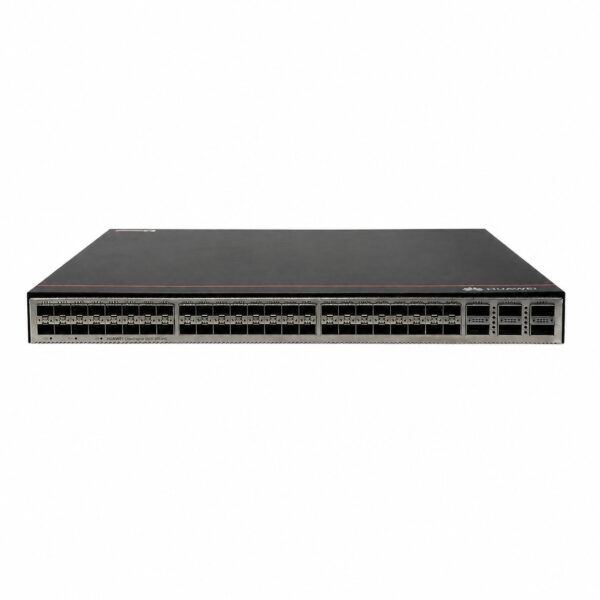

This 1RU switch provides 48 x 10GE SFP+ downlink ports and 6 x 100GE QSFP28 uplink ports, with the 100GE ports backward compatible with 40GE for flexible network design . It delivers a switching capacity of 2.16 Tbps and a forwarding rate of 470 Mpps, ensuring non-blocking performance for demanding workloads .

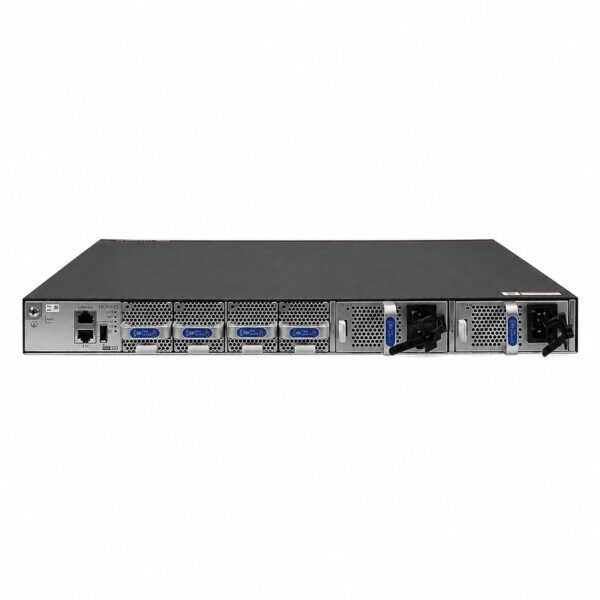

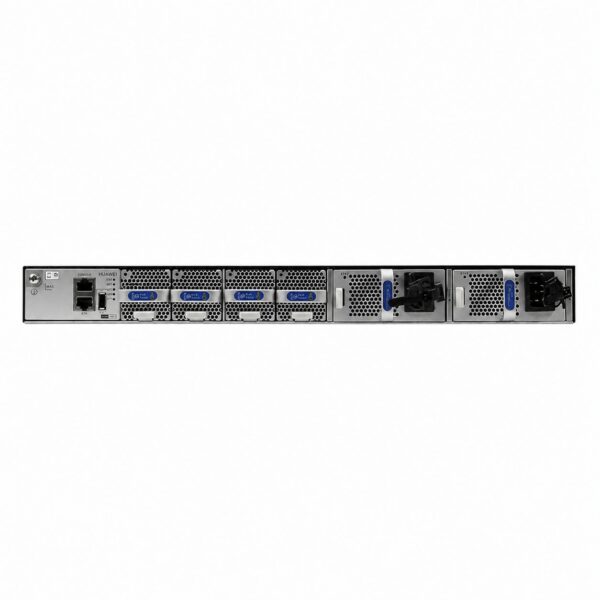

Built on Huawei’s VRP8 software platform, the CE6820-48S6CQ supports advanced data center features such as VXLAN, BGP-EVPN, and M-LAG for multi-device link aggregation, enhancing reliability and scalability . It also integrates RoCE (RDMA over Converged Ethernet), Priority Flow Control (PFC), and Explicit Congestion Notification (ECN), making it suitable for high-performance computing and storage traffic . The switch supports flexible airflow designs (front-to-back or back-to-front) with hot-swappable, redundant power supplies and fan trays, simplifying deployment and maintenance .
Product Specifications
| Category | Parameter | Specification |
|---|---|---|
| Model | Model Name | CloudEngine CE6820-48S6CQ |
| Ports | Downlink Ports | 48 x 10GE SFP+ (backward compatible with GE) |
| Uplink Ports | 6 x 100GE QSFP28 (backward compatible with 40GE) | |
| Performance | Switching Capacity | 2.16 Tbps |
| Forwarding Rate | 470 Mpps | |
| Packet Buffer | 21 MB | |
| Processor & Memory | CPU | Quad-core, 1.4 GHz |
| DRAM | 4 GB | |
| Flash | 64 MB NOR + 4 GB NAND | |
| Key Features | Virtualization | VXLAN, BGP-EVPN, M-LAG, Stacking (up to 16 switches) |
| High-Performance Networking | RoCE v1/v2, PFC, ECN, AI-ECN | |
| Automation & Management | Zero Touch Provisioning (ZTP), iMaster NCE-Fabric, Ansible, Open Programmability System (OPS) | |
| QoS | ACL, CAR, WRED, PQ, DWRR | |
| Hardware | Power Supply | 2 x 600 W AC hot-swappable (or DC/HVDC options) |
| Cooling | 4 x hot-swappable fan trays | |
| Airflow Direction | Front intake / rear exhaust (reversible) | |
| Dimensions (W x D x H) | 442.0 x 420.0 x 43.6 mm (1RU) | |
| Weight | 7.7 kg (with 2 PSUs and 4 fans) | |
| Environmental | Operating Temperature | 0°C to 40°C (at altitude 0-1800 m) |
| Storage Temperature | -40°C to +70°C | |
| Operating Humidity | 5% to 95% RH, non-condensing | |
| Power | Typical Power Consumption | 162 W (100% throughput with cables) |
| Maximum Power Consumption | 282 W | |
| Input Voltage (AC) | 90 V to 290 V | |
| Input Voltage (DC) | -38.4 V to -72 V | |
| Regulatory | Safety & EMC Standards | UL, CE, FCC, RoHS, EMC compliant |
