Huawei CloudEngine CE6857E-48T6CQ Switch – Product Documentation

Name: Huawei CloudEngine CE6857E-48T6CQ - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6857E-48T6CQ

Product Overview

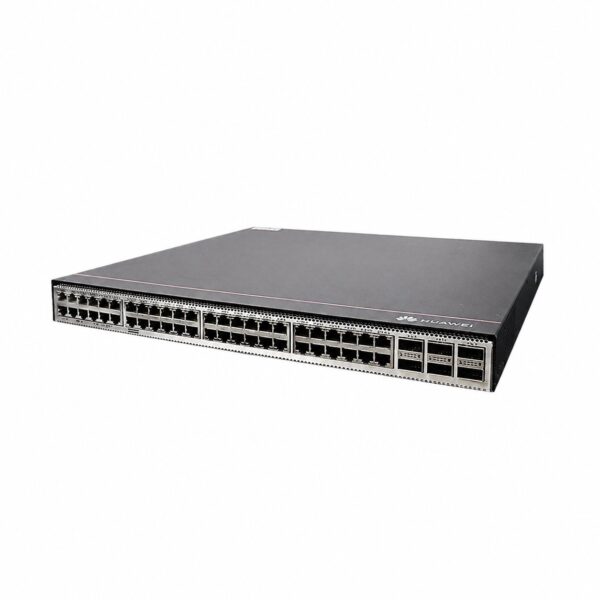

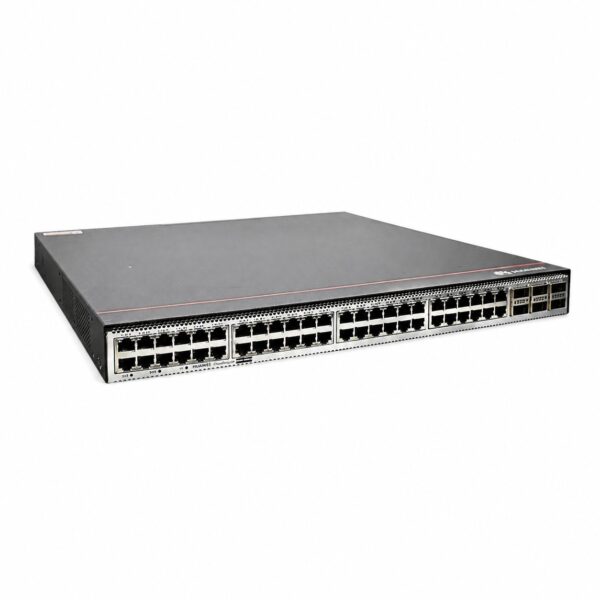

The Huawei CloudEngine CE6857E-48T6CQ is a high-performance, 1U top-of-rack (TOR) data center switch designed for high-density 10GE server access and 100GE uplink connectivity. It belongs to the CloudEngine 6800 series, which is positioned for data center access layers and can also serve as a campus network core or aggregation switch .

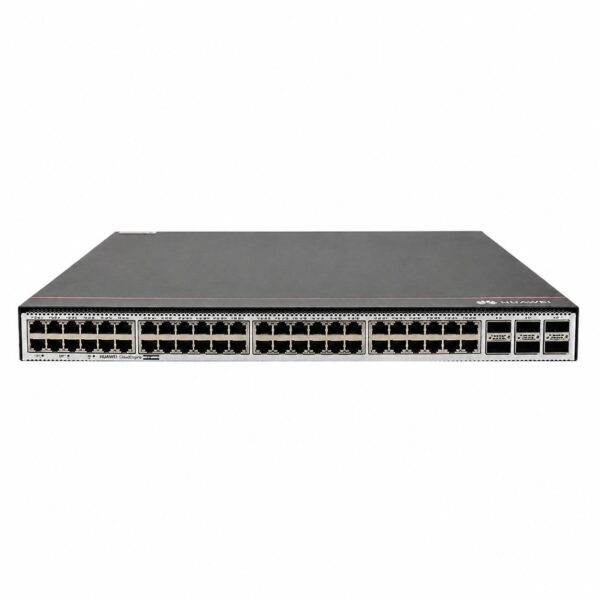

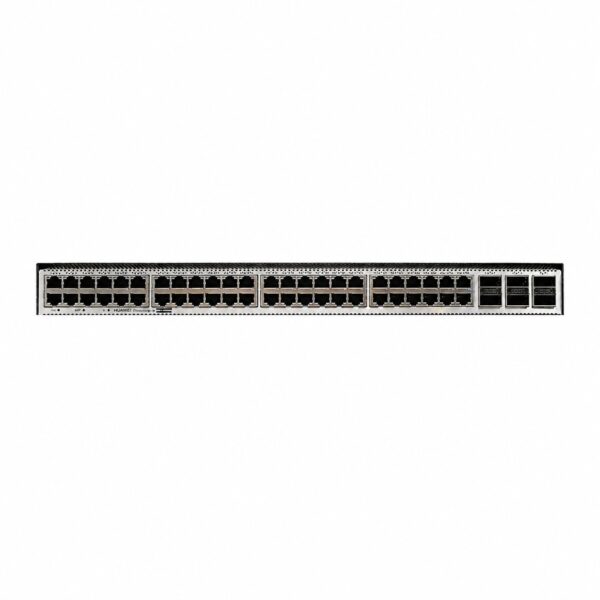

The switch features 48 x 10GBASE-T RJ45 downlink ports that are backward compatible with 1GE, and 6 x 100GE QSFP28 uplink ports that also support 40GE mode . The 10GE copper ports comply with IEEE 802.3an and 802.3az standards and require Category 6A shielded Ethernet cables or higher for optimal performance, with a maximum transmission distance of 100 meters .

The CE6857E-48T6CQ supports flexible port breakout capabilities dependent on the software release. In V200R020C10, 40G/100G uplink ports do not support splitting. In V2R21C00 and later versions, only uplink ports 3 and 4 can be split into 4x25GE or 4x10GE interfaces .

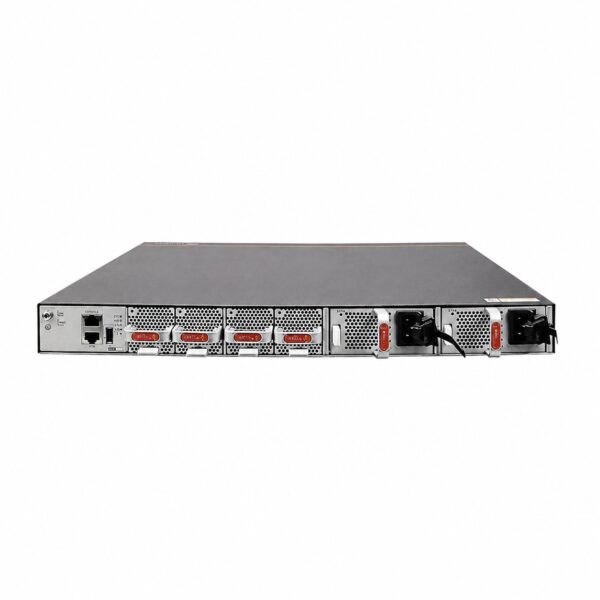

The switch employs a modular cooling system with four pluggable fan modules and two power supply slots. The airflow direction (front-to-back or back-to-front) must be consistent across fan and power modules and is determined by the selected modules .

Product Specifications

Category	Item	Specification
Basic Information	Model	CE6857E-48T6CQ
	Part Number	02353VWQ (Bare switch without power and fan modules)
	Alternate Part Numbers	02353VWR (with AC power, port-side intake fans)
		02353VWT (with AC power, port-side exhaust fans)
	First Supported Version	V200R020C10
	Chassis Height	1 U
Physical Specifications	Dimensions (W x D x H, without packaging)	Basic: 442.0 x 420.0 x 43.6 mm (17.40 x 16.54 x 1.72 in.)
		Maximum: 442.0 x 446.1 x 43.6 mm (17.40 x 17.56 x 1.72 in.)
	Dimensions (with packaging)	650 x 550 x 175 mm (25.59 x 21.65 x 6.89 in.)
	Weight (bare, no packaging)	5.75 kg (12.7 lb)
	Weight (full config, no packaging)	8.05 kg (17.7 lb)
	Weight (full config, with packaging)	11.4 kg (25.1 lb)
Processor & Memory	CPU	4-core, 1.6 GHz
	DRAM	4 GB
	NOR Flash	128 MB
	SSD Flash	8 GB
Ports & Interfaces	Downlink Ports	48 x 10GBASE-T RJ45 electrical ports (Compatible with 1GE; does not support 10M/100M; full-duplex only)
	Uplink Ports	6 x 100GE QSFP28 optical ports (Supports 40GE mode; ports 3 & 4 support 4x25GE/4x10GE breakout from V2R21C00)
	Console Port	1 x RJ45 (RS232, baud rate 9600–115200 bit/s)
	Management Port	1 x ETH management port (RJ45, 10/100/1000 Mbit/s auto-sensing)
	USB Port	1 x USB 2.0 port
Power Specifications	Power Supply Slots	2 (1+1 redundancy)
	Supported Power Modules	600W AC & 240V DC (PAC-600WB); 1000W DC (PDC-1K2WCA); 1200W HVDC
	Rated Input Voltage	AC: 100V–240V, 50/60Hz; DC: -48V–-60V; HVDC: 240V–380V
	Input Voltage Range	AC: 90V–290V, 45–65Hz; DC: -38.4V–-72V; HVDC: 190V–400V
	Maximum Input Current	AC: 8A (100–240V); DC: 30A; HVDC: 8A
	Rated Output Power	600W (AC/240V DC); 1000W (DC); 1200W (HVDC)
	Power Consumption (Typical)	252W–270W (50% throughput, dual power modules)
	Power Consumption (Static)	136W
	Power Consumption (Maximum)	363W
Cooling Specifications	Fan Slots	4 (3+1 redundancy, hot-swappable)
	Fan Module Series	FAN-060A series
	Airflow Direction	Port-side air intake or port-side air exhaust (selected by fan/power module type)
	Heat Dissipation (Typical)	860–921 BTU/hour
	Heat Dissipation (Maximum)	1239 BTU/hour
	Noise (@27°C)	Front-to-back: avg. 50 dB(A); Back-to-front: avg. 53 dB(A)
	Noise (@40°C)	Front-to-back: avg. 69 dB(A); Back-to-front: avg. 72 dB(A)
Environmental Specifications	Operating Temperature	0°C to 40°C (up to 1800m); derates 1°C per 220m above 1800m up to 5000m
	Storage Temperature	-40°C to +70°C
	Operating Humidity	5% to 95% RH, non-condensing
	Storage Humidity	5% to 95% RH, non-condensing
	Operating Altitude	Up to 5000m
Reliability	MTBF	46.59 years
	MTTR	1.56 hours
	Availability	0.999996178
