Huawei CloudEngine CE6820H-48S6CQ
CE6820H-48S6CQ
Enterprise stock · tested · export documentation available
Huawei CloudEngine CE6820H-48S6CQ – Product Documentation
Product Overview

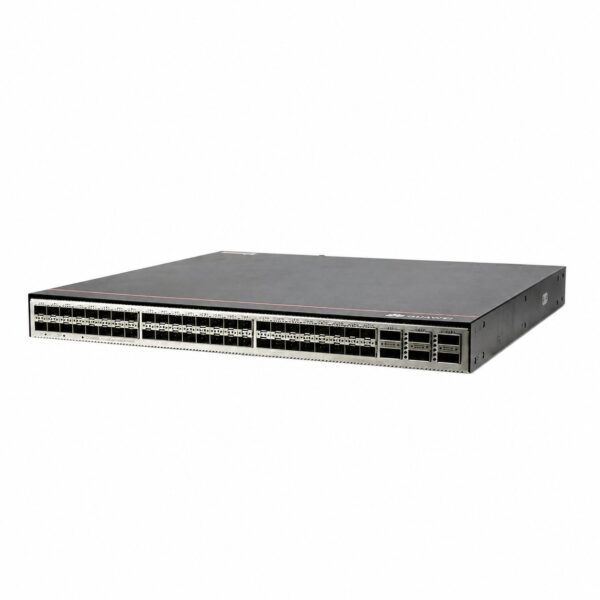

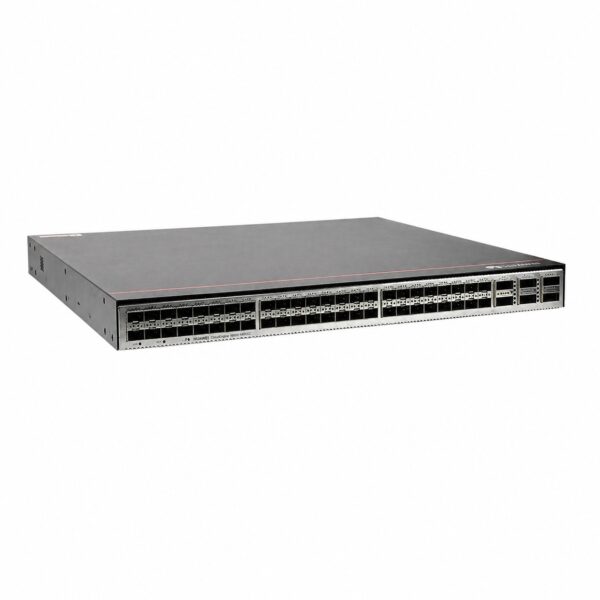

The Huawei CloudEngine CE6820H-48S6CQ is a next-generation, high-performance top-of-rack (ToR) data center switch designed for high-density 10GE server access. It is part of the CloudEngine 6800 series and is built to meet the demanding requirements of cloud computing data centers and enterprise networks.

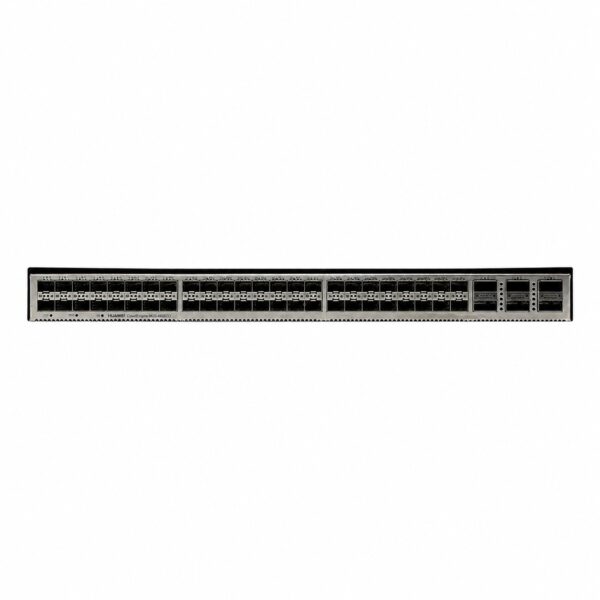

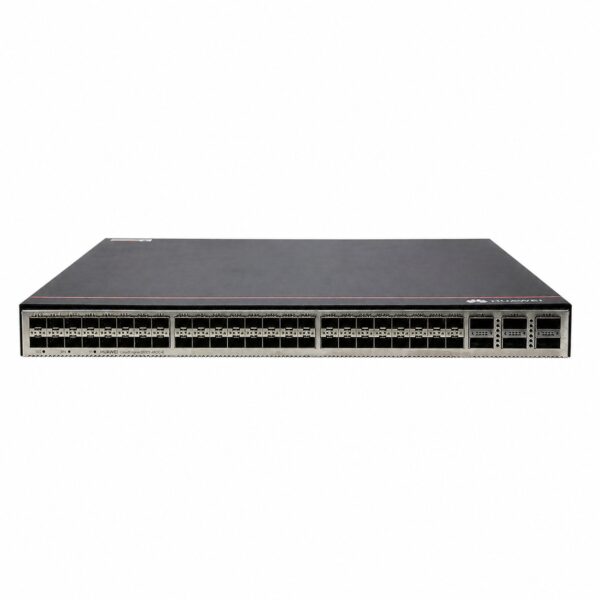

This fixed 1RU switch provides 48 x 10GE SFP+ downlink ports for server connectivity and 6 x 40/100GE QSFP28 uplink ports for high-bandwidth aggregation to the core network. It is engineered with a powerful hardware architecture that delivers high throughput and low latency. The switch supports a comprehensive suite of data center features, including VXLAN with BGP-EVPN for network virtualization, M-LAG for multi-device link aggregation and high availability, and advanced congestion management with PFC and ECN for lossless RoCE (v1/v2) traffic. The CE6820H-48S6CQ series is designed for flexible deployment with front-to-back or back-to-front airflow options, making it suitable for various data center cooling architectures. It also supports intelligent automation and operations with features like Zero Touch Provisioning (ZTP) and telemetry-based network analysis.
Product Specifications
| Category | Parameter | Specification |
|---|---|---|
| Model | Part Number | CE6820H-48S6CQ |
| Ports | Downlink Ports | 48 x 10GE SFP+ |
| Uplink Ports | 6 x 40/100GE QSFP28 (can be configured as 40GE QSFP+ or 100GE QSFP28) | |
| Management Ports | 1 x Gigabit Ethernet (out-of-band), 1 x Console (RJ-45), 1 x USB | |
| Performance | Switching Capacity | 2.16 Tbit/s (2.56 Tbps / 40.96 Tbps) |
| Forwarding Rate | 470 Mpps (1080 Mpps) | |
| Packet Buffer | 21 MB | |
| Hardware | CPU | Quad-core, 1.4 GHz |
| Memory | RAM: 4 GB, NOR Flash: 64 MB, NAND Flash: 2 GB | |
| Power | Power Supply | 2 x Hot-swappable, 600 W AC (Redundant 1+1) |
| Operating Voltage | AC: 90 V to 290 V | |
| Typical Power Consumption | 162 W – 196 W | |
| Maximum Power Consumption | 282 W | |

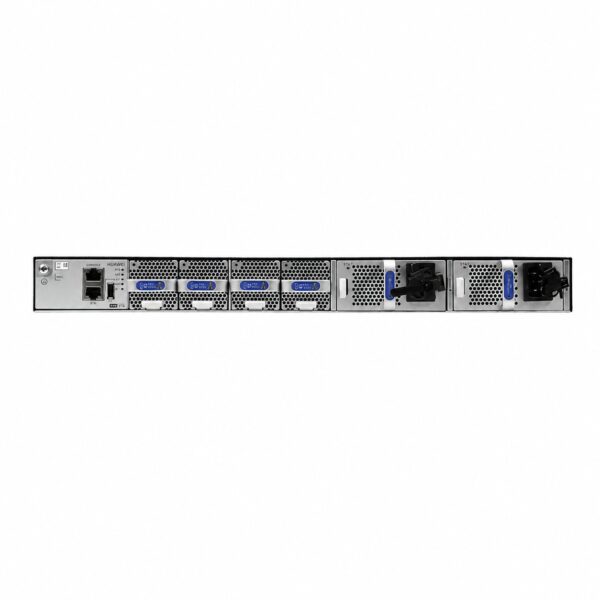

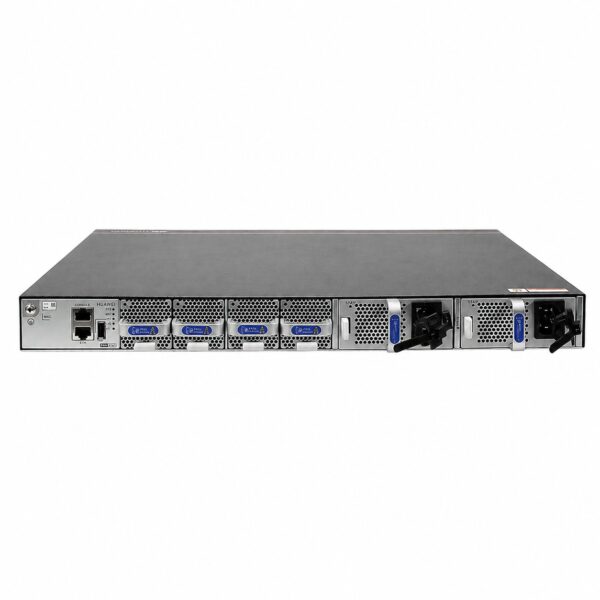

| Cooling | Cooling System | 4 x Hot-swappable fan trays (N+1 redundancy) |
| Airflow Direction | Front-to-back (or Back-to-front, depending on variant) | |
| Physical | Dimensions (W x D x H) | 442 x 420 x 43.6 mm (1RU) |
| Weight (Fully-loaded) | Approx. 7.7 kg | |
| Environment | Operating Temperature | 0°C to 40°C (at altitudes ≤ 1800 m) |
| Storage Temperature | -40°C to 70°C | |
| Operating Humidity | 5% to 95% (non-condensing) | |
| Max Operating Altitude | Up to 5000 m | |
| Software & Features | Layer 2/3 Protocols | VLAN, QinQ, RIP, OSPF, IS-IS, BGP |
| Data Center Features | M-LAG, VXLAN, VXLAN-EVPN, RoCE v1/v2 | |
| QoS & Congestion Control | PFC, ECN, WRED, Traffic Shaping | |
| Management & Automation | ZTP, NetConf/YANG, Telemetry, gRPC, sFlow, Ansible, OPS (Open Programmability System) | |
| Security | ACL (IPv4/IPv6), MACsec, 802.1x, DHCP Snooping, IP Source Guard |
