Huawei CloudEngine S5736-S24T4XC Product Documentation

Name: Huawei CloudEngine S5736-S24T4XC - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S5736-S24T4XC

Product Overview

The Huawei CloudEngine S5736-S24T4XC is a next-generation standard full-gigabit Ethernet switch designed for enterprise campus access, data center edge, and Small-to-Medium Business (SMB) network deployments. Built on Huawei’s Versatile Routing Platform (VRP) with新一代 high-performance hardware, this switch delivers enhanced Layer 3 routing capabilities, flexible Ethernet networking, and mature IPv6 feature support .

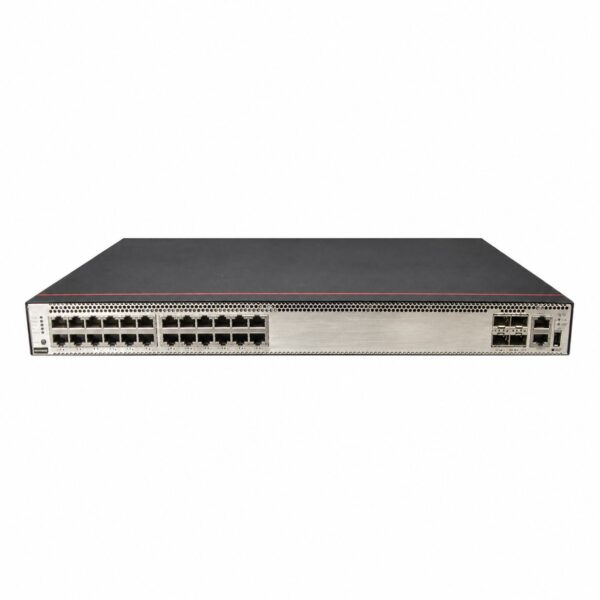

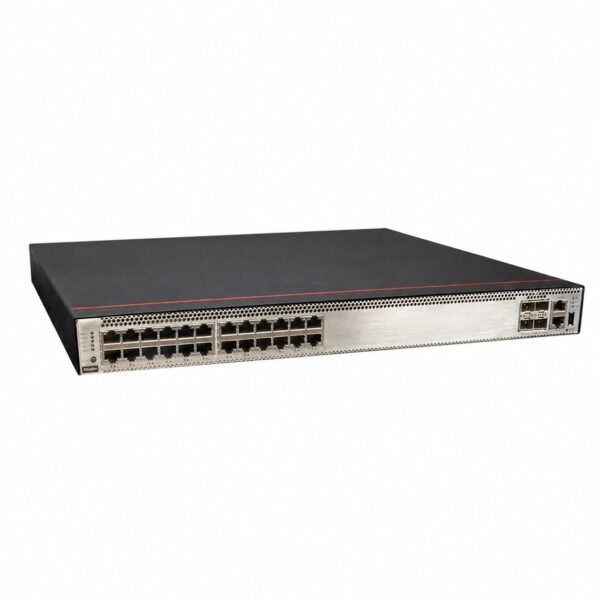

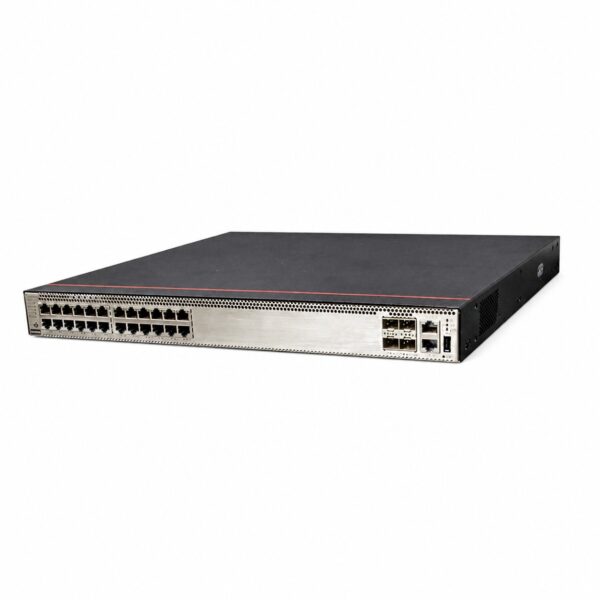

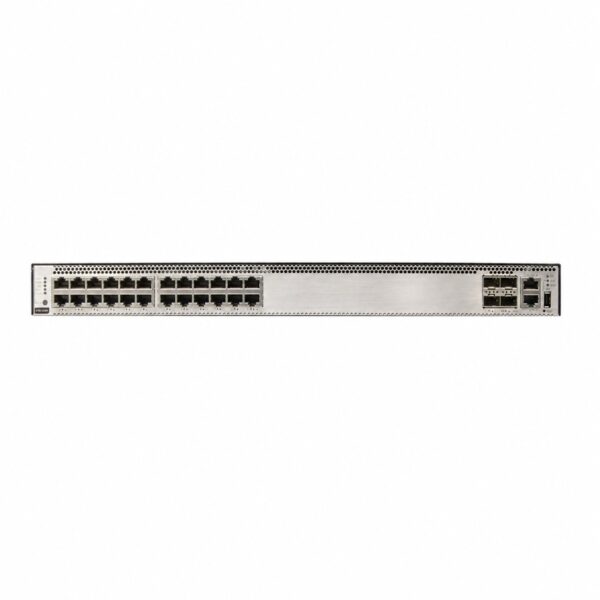

The S5736-S24T4XC provides 24 x 10/100/1000Base-T downlink ports and 4 x 10 GE SFP+ uplink ports, offering high-density Gigabit access with robust 10-Gigabit uplink connectivity for business-critical applications . The switch also features one extended slot that supports various uplink card options including 4 x 40GE QSFP+, 2 x 40GE QSFP+, and 8 x 10GE SFP+ cards, enabling flexible network scaling .

This model supports 1+1 power supply redundancy with both AC and DC power options, ensuring carrier-grade reliability for continuous operations. It features comprehensive Layer 3 protocols including OSPF, IS-IS, BGP, and VRRP, making it suitable for voice, video, and data service convergence . The switch also incorporates intelligent network O&M capabilities through Telemetry data collection and integration with network analyzers for proactive issue detection .

With MACsec-256 encryption support, advanced DoS attack prevention, and multi-level user authentication mechanisms, the device delivers robust security for enterprise data protection .

Product Specifications

Category	Specification
Model	CloudEngine S5736-S24T4XC
Device Type	Enterprise Layer 3 Switch
Switching Capacity	448 Gbit/s / 1.28 Tbit/s
Forwarding Performance	240 Mpps
Fixed Ports	• 24 x 10/100/1000Base-T Ethernet ports • 4 x 10 GE SFP+ uplink ports
Extended Slot	1 slot supporting: • 4 x 40GE QSFP+ card • 2 x 40GE QSFP+ card • 8 x 10GE SFP+ card • 2 x 25GE card
MAC Address Table	32K entries
VLAN Features	• 4K VLANs • Guest VLAN and Voice VLAN • GVRP protocol • MUX VLAN • VLAN assignment based on MAC, protocol, IP subnet, policy, and port • 1:1 and N:1 VLAN mapping
IP Routing	• Static route • RIPv1/v2, RIPng • OSPF, OSPFv3 • ECMP • IS-IS, IS-ISv6 • BGP, BGP4+
Multicast	• PIM DM, PIM SM, PIM SSM • IGMP v1/v2/v3 and IGMP Snooping • MLD v1/v2 and MLD Snooping
QoS	• 8 queues per port • WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling • Rate limiting on ingress/egress • Traffic policing and shaping
Security	• MACsec-256 encryption • MAC authentication, 802.1x, Portal authentication • DoS attack prevention • DHCP Snooping • ARP anti-spoofing • IP Source Guard • SSH v2.0, HTTPS • CPU protection
Management	• SNMP v1/v2c/v3 • CLI, Web GUI • RMON, sFlow • iStack stacking support • Netconf/YANG cloud management
SVF (Super Virtual Fabric)	Supports SVF Client with: • Zero-touch plug-and-play • Automatic software and patch loading • One-click service configuration delivery • Independent client operation
Interoperability	• VBST (compatible with PVST/PVST+/RPVST) • LNP (similar to DTP) • VCMP (similar to VTP)
Dimensions (H x W x D)	43.6 mm x 442 mm x 420 mm (1U chassis)
Chassis Weight	8 kg (including packaging)
Power Supply Type	• 150 W AC • 180 W DC • 1+1 redundant backup support
Rated Voltage Range	• AC: 100 V to 240 V, 50/60 Hz • DC: -48 V to -60 V
Maximum Voltage Range	• AC: 90 V to 290 V, 45 Hz to 65 Hz • DC: -38.4 V to -72 V
Maximum Power Consumption	55 W
Heat Dissipation	Air-cooled with intelligent speed adjustment
Operating Temperature	Long-term: -5°C to +45°C (0–1800 m altitude) Short-term: -5°C to +50°C
Storage Temperature	-40°C to +70°C
Relative Humidity	5% to 95% (non-condensing)
Surge Protection (Service Port)	±6 kV common mode
Surge Protection (Power Port)	AC: ±6 kV differential mode, ±6 kV common mode DC: ±2 kV differential mode, ±4 kV common mode
Noise	Normal temperature (sound power): 47.4 dB(A) High temperature (sound power): 73.9 dB(A)
