Huawei S5700-52C-PWR-EI – Product Information

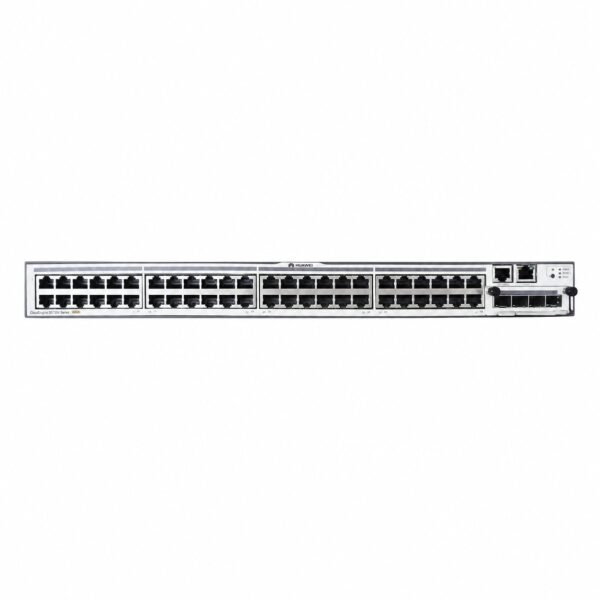

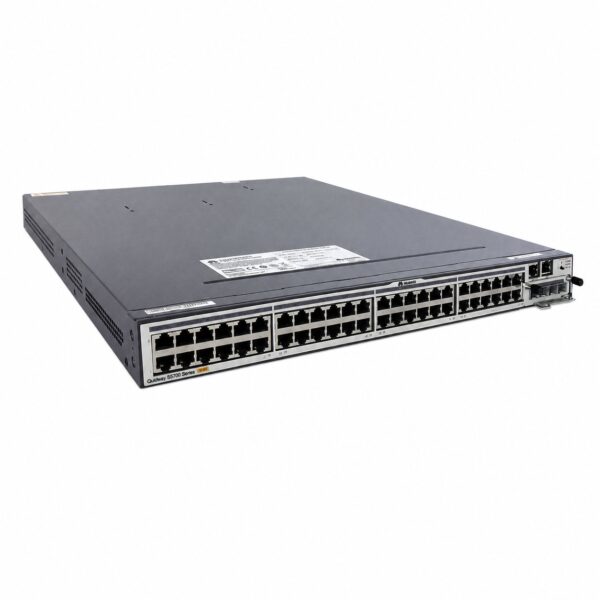

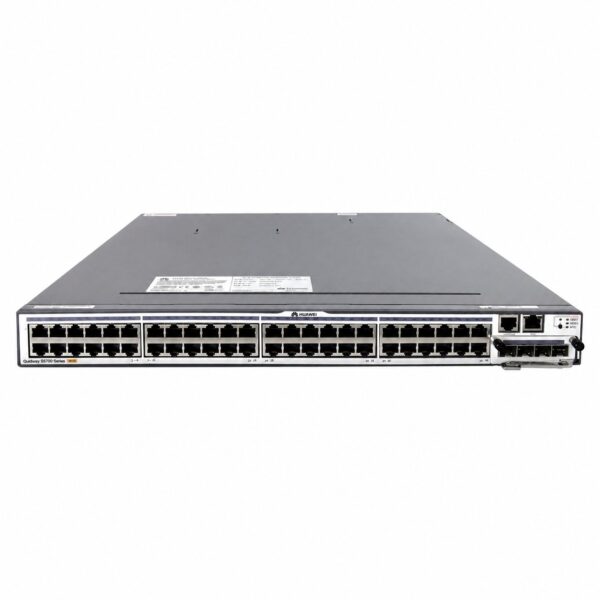

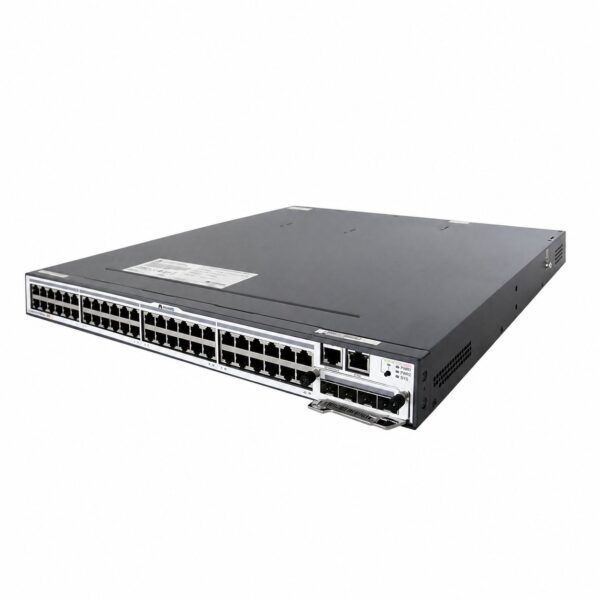

Name: Huawei S5700-52C-PWR-EI Switch - SunSpike
SKU: S5700-52C-PWR-EI

Product Overview

The Huawei S5700-52C-PWR-EI is a next-generation Layer 3 Gigabit Ethernet switch that provides highly scalable gigabit access for terminals in enterprise campus networks, and is also ideal for resilient server support and aggregation in large-scale data centers. It belongs to Huawei’s S5700-EI (Enhanced Image) series, designed for enterprise-class access and aggregation layers.

As a Power over Ethernet (PoE) switch, the S5700-52C-PWR-EI features 48 PoE+ 10/100/1000BASE-T ports that can power IP phones, wireless access points, IP cameras, and other powered devices (PDs) directly through Ethernet cables, simplifying deployment and reducing cabling costs.

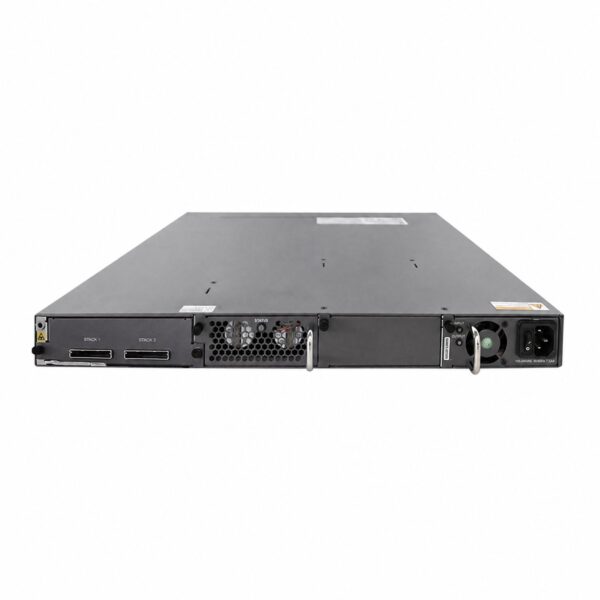

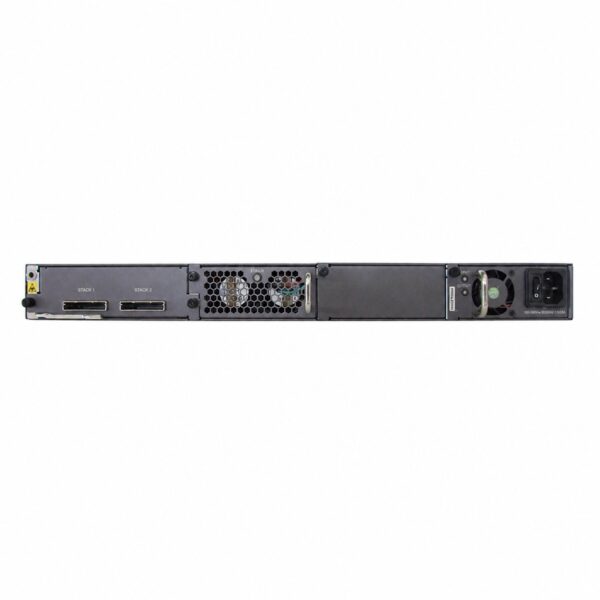

The switch supports dual hot-swappable AC power modules for maximum uptime and redundancy, with each power module slot accommodating either a 500 W or 250 W power module. It offers advanced Layer 3 routing protocols including OSPF, IS-IS, BGP, and VRRP, comprehensive security features, and intelligent traffic management through robust QoS capabilities.

Key advantages include redundant power architecture ensuring high availability, energy-efficient PoE+ support, advanced QoS for prioritized traffic handling, and robust security with ACLs and port isolation. The switch supports Intelligent Stack (iStack), which virtualizes multiple switches into one logical switch for linear performance improvement and efficient resource utilization.

Technical Specifications

Category	Specification
General
Model	S5700-52C-PWR-EI
Product Type	Gigabit Ethernet Switch, PoE Switch
Application Layer	Layer 3
Switching Capacity / Backplane Bandwidth	256 Gbps
Forwarding Rate	132 Mpps
MAC Address Table	16K
Switching Mode	Store-and-Forward
Ports & Interfaces
Fixed Ports	48 × 10/100/1000BASE-T ports (PoE+ capable)
Uplink Ports	4 × 1000BASE-X SFP ports
Extension Slots	2 expansion slots
Console Port	1 × RJ45 console port
ETH Management Port	1 × RJ45 ETH management port (10/100 Mbit/s auto-sensing)
Stack Ports	Two stack ports available on each stack card
PoE (Power over Ethernet)
PoE Support	PoE+ (IEEE 802.3af / 802.3at)
Maximum PoE Power	930 W (system power consumption: 190 W, PoE: 740 W at 100% throughput and 100% PoE loads)
Power Module Slots	2 slots, each supporting 500 W or 250 W power modules
Power Supply
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Power Supply Surge Protection	2 kV differential mode, 4 kV common mode
Redundant Power Supply (RPS)	Not supported
Physical Specifications
Dimensions (W × D × H)	442.0 mm × 420.0 mm × 43.6 mm (1U)
Weight	≤ 5 kg
Flash Memory	32 MB
RAM (Memory)	256 MB
Environmental
Operating Temperature	0°C to 50°C (32°F to 122°F)
Relative Humidity	5% to 95%, noncondensing
Operating Altitude	0 – 5000 m (0 – 16404 ft.)
Noise (normal temperature, 27°C, sound power)	< 45 dB(A)
VLAN
VLAN Quantity	Supports up to 4K VLANs
VLAN Features	Guest VLAN, Voice VLAN, VLAN based on MAC/IP/Subnet/Protocol/Ports, 1:1 and N:1 VLAN switching, MUX VLAN, GVRP
QoS
Queue Scheduling	WRR, DRR, SP, WRR+SP, DRR+SP
Traffic Policing	Dual-rate three-color CAR, port-based rate limiting
Priority Marking	802.1p and DSCP priority re-marking
Packet Filtering	L2–L4 packet filtering based on source/destination MAC, source/destination IP, port, protocol, VLAN
Multicast
Multicast Protocols	IGMP v1/v2/v3 Snooping, fast-leave mechanism
Multicast Routing	IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM
Network Management
Stacking	iStack (Intelligent Stack) supported
Management Protocols	SNMP v1/v2/v3, RMON, WEB-based management, Telnet, HGMP cluster management
Maintenance Features	Virtual Cable Test, port mirroring, RSPAN (Remote Switched Port Analyzer)
Security
Security Features	DoS attack defense (SYN flood, Land, Smurf, ICMP flood)
Access Control	User privilege management and password protection
Port Security	Port isolation, port security, Sticky MAC, blackhole MAC addresses
Authentication	IEEE 802.1X, AAA, RADIUS, TACACS+, NAC
Secure Management	SSH v2.0, HTTPS
Binding	IP, MAC, port, VLAN combination binding
