Huawei S1720-28GWR-4X-AC – Product Datasheet

Name: Huawei S1720-28GWR-4X-AC Switch - SunSpike
SKU: S1720-28GWR-4X-AC

Product Overview

The Huawei S1720-28GWR-4X-AC is a high-performance managed Gigabit Ethernet switch from the Huawei S1700 series, designed primarily for access layer deployment in enterprise networks. It delivers cost-effective packet switching capabilities with multi-service access, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security.

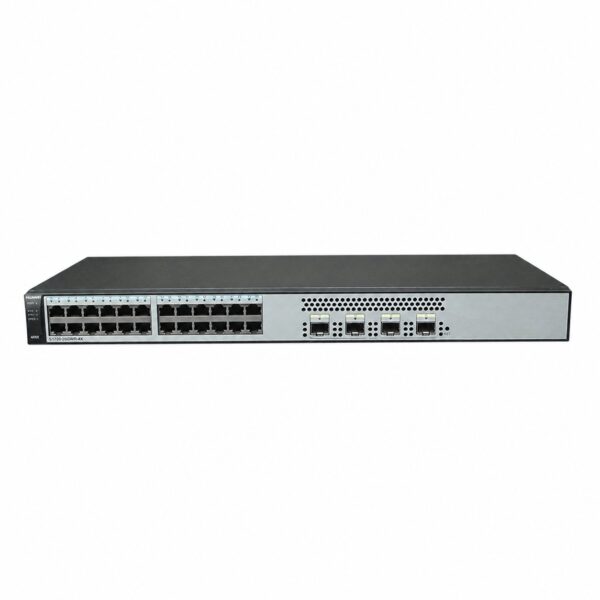

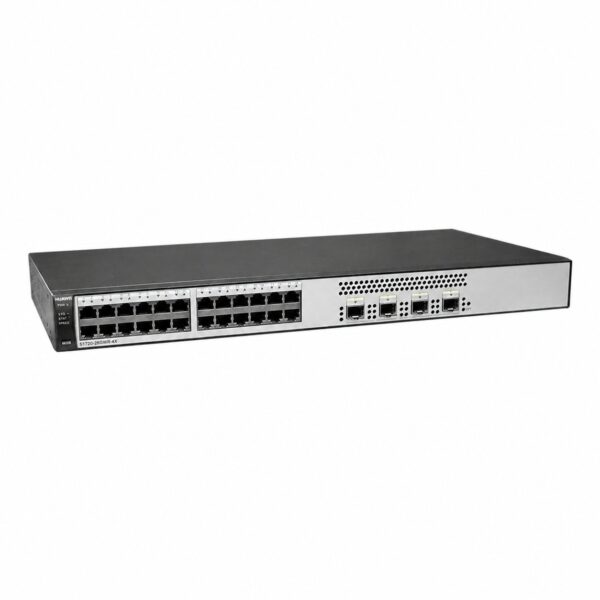

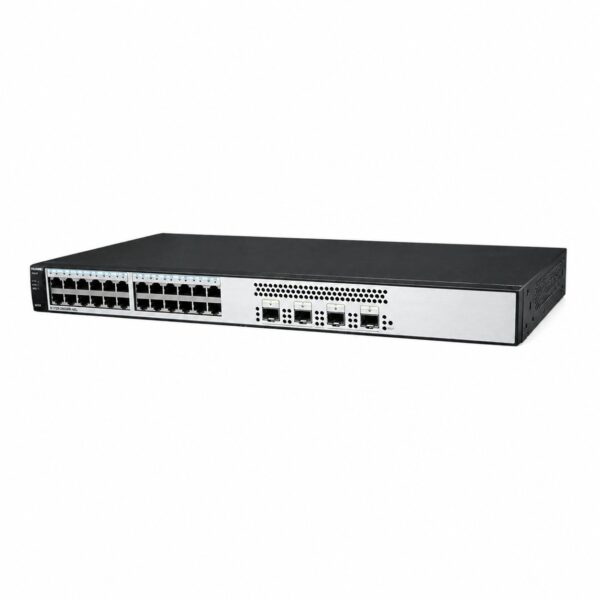

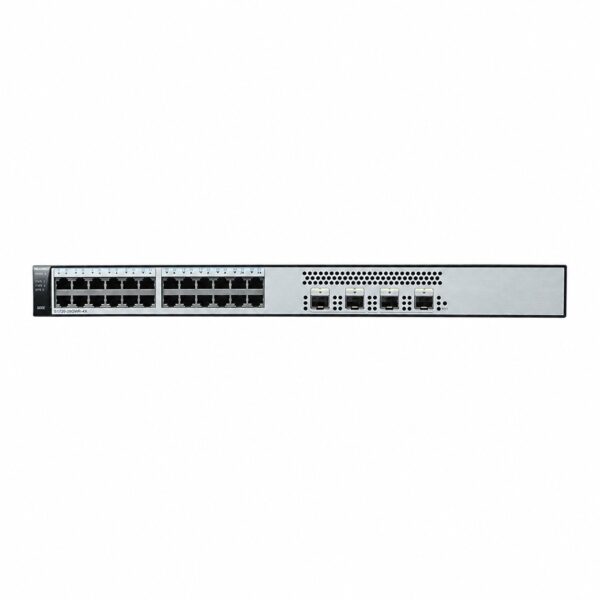

The switch is equipped with 24× 10/100/1000BASE-T Gigabit Ethernet ports for edge device connectivity and 4× 10GE SFP+ uplink ports for high-bandwidth fiber backbone connections. With a switching capacity of 168 Gbit/s and forwarding performance of 96 Mpps, it provides exceptional throughput for demanding network environments.

The S1720-28GWR-4X-AC supports Layer 2 managed switching with advanced features including VLAN (up to 4K VLANs), QoS, STP/RSTP/MSTP, IGMP snooping, static routing (IPv4 and IPv6), link aggregation (up to 64 LAGs), port mirroring, and comprehensive security features such as 802.1x authentication, RADIUS, and MAC-based packet filtering. It can be managed via a web-based GUI, SNMP, or CLI. The web-managed model can also be upgraded to a fully-managed model with a license.

The switch features a fanless, passively cooled design (non-PoE model) for silent and energy-efficient operation, supports Energy Efficient Ethernet (EEE) to reduce power consumption based on cable length, and accepts a wide-range AC power input (100V–240V, 50/60Hz) with a maximum power consumption of just 27.9W. Its compact 1U rack-mountable form factor (320 × 220 × 43.6 mm) makes it ideal for small-to-medium enterprises, campus networks, branch offices, and data-intensive 24×7 operating environments.

Technical Specifications

Category	Specification
Model	S1720-28GWR-4X-AC
Product Series	Huawei S1700 Series
Product Type	Managed Gigabit Ethernet Switch
Switching Layer	Layer 2 Managed (with Layer 3 static routing support)
Downlink Ports	24 × 10/100/1000BASE-T Gigabit Ethernet (RJ45) ports
Uplink Ports	4 × 10GE SFP+ slots
Switching Capacity	168 Gbit/s
Forwarding Performance	96 Mpps
MAC Address Table	16K
Memory (RAM)	512 MB
Flash Memory	240 MB
VLANs	Up to 4K VLANs; VLAN assignment based on access, trunk, and hybrid ports; Management VLAN; Voice VLAN
Jumbo Frame Support	—
Spanning Tree Protocol	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Link Aggregation	Up to 64 Link Aggregation Groups (LAGs); maximum of 8 ports per LAG; Static LACP
Port Mirroring	Port-based bi-directional flow mirroring
Bandwidth Control	Rate limiting for ingress and egress packets with 64 kbit/s granularity
Broadcast Storm Suppression	Interface rate-based suppression; alarm notification upon traffic threshold
Multicast	IGMP snooping; maximum 1K multicast groups; Fast Leave
Routing	IPv4 and IPv6 static routing
Security Features	MAC address-based packet filtering; MAC address authentication; Port-based 802.1x authentication; RADIUS authentication; Portal authentication; Port isolation; Storm suppression; DHCP snooping
QoS	PQ and WRR; Eight queues per port; Queue scheduling based on 802.1p or DSCP priorities
Management	Web-based GUI; SNMP (NMS); CLI; DHCP client; One-key restoration
Energy Efficiency	Energy Efficient Ethernet (EEE) support
Power Supply	Fixed AC power input
Input Voltage	100V–240V AC, 50/60Hz
Maximum Power Consumption	27.9W
Cooling	Fanless, passive cooling (non-PoE model)
MTBF	45 years
MTTR	2 hours
Dimensions (W × D × H)	320 × 220 × 43.6 mm (1U rack-mountable)
Operating Temperature	0°C to 45°C
Operating Humidity	5% to 95% (non-condensing)
