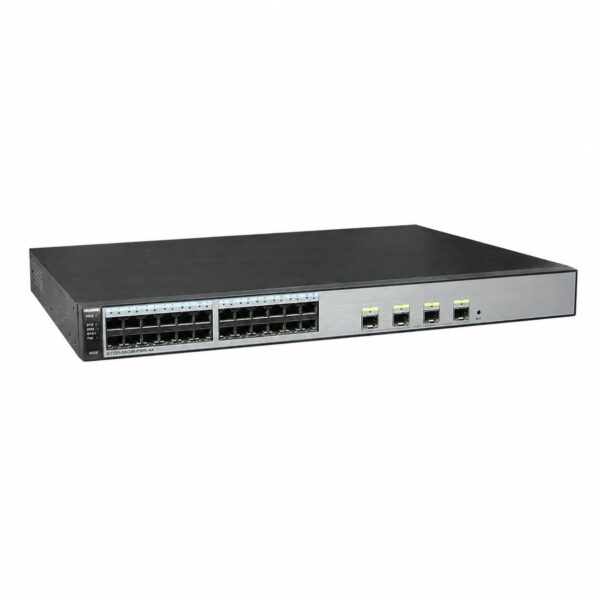

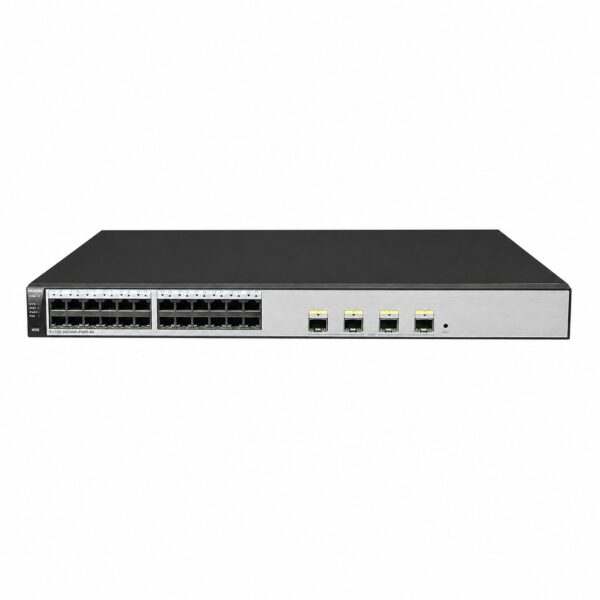

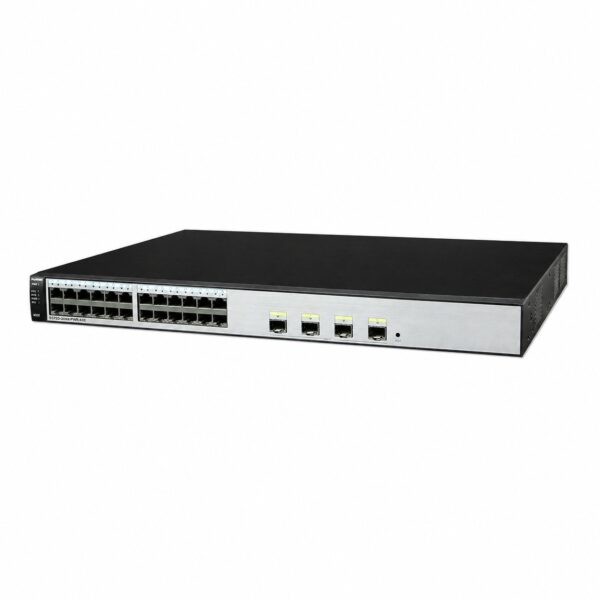

Huawei S1720-28GWR-PWR-4X-E-AC Switch – Product Information

Name: Huawei S1720-28GWR-PWR-4X-E-AC Switch - SunSpike
SKU: S1720-28GWR-PWR-4X-E-AC

Product Overview

The Huawei S1720-28GWR-PWR-4X-E-AC is a next-generation, energy-efficient fully-managed enterprise switch designed for deployment at the access layer of enterprise networks. It delivers cost-effective packet switching capabilities while providing multi-service access, excellent extensibility, Quality of Service (QoS) guarantees, powerful multicast replication, and carrier-class security.

The switch features 24 PoE+ 10/100/1000BASE-T ports and 4 10GE SFP+ uplink ports, offering high-density Gigabit Ethernet access with 10 Gigabit uplink connectivity. With a built-in power module capable of delivering 370W PoE power, it can provide full PoE power on all 24 ports in compliance with IEEE 802.3af, or on 12 ports in compliance with IEEE 802.3at (PoE+).

Designed with energy efficiency in mind, the S1720-28GWR-PWR-4X-E-AC allows ports to enter low-power idle states to significantly reduce power consumption. It adopts a fan-free design for silent operation and low overall power consumption. The switch supports multiple management methods including web-based management, SNMP, and command-line interface (CLI), making it ideal for small to medium-sized businesses, Internet cafes, hotels, schools, and similar environments.

Specifications

Item	Specification
Model	S1720-28GWR-PWR-4X-E-AC
Part Number	98010749
Product Type	Fully-managed enterprise switch, PoE switch
Fixed Ports	24 × 10/100/1000BASE-T PoE+ Ethernet ports; 4 × 10GE SFP+ Ethernet ports
Switching Capacity	168 Gbit/s
Forwarding Performance	96 Mpps
Memory (RAM)	512 MB
Flash Memory	512 MB total, 240 MB available for customers
VLANs	4K VLANs; VLAN assignment based on access, trunk, and hybrid ports; Management VLAN; Voice VLAN
Routing Feature	IPv4 and IPv6 static routing
Spanning Tree Protocol	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Multicast	IGMP snooping; maximum of 1K multicast groups; Fast leave
Link Aggregation	64 LAGs with a maximum of eight ports in each LAG; Static LACP
Port Mirroring	Port-based bi-directional flow mirroring; Configuring a trunk as a mirrored interface
Bandwidth Control	Rate limiting for incoming and outgoing packets, granularity of 8 kbit/s
Broadcast Storm Suppression	Supported
Quality of Service (QoS)	PQ and WRR; Eight queues on each port; Queue scheduling based on 802.1p or DSCP priorities
Security Features	Hardware ACL; Packet filtering based on MAC addresses; MAC address authentication; Port-based 802.1x authentication; RADIUS authentication; Portal authentication; Port isolation; Storm suppression; Attack defense (prevents broadcast traffic, ARP attacks, ICMP attacks, TCP attacks, worm viruses, and DoS attacks); DHCP snooping
PoE Power	Built-in power module provides 370W PoE power
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption	Without PoE: 42.7 W; 100% PoE loads: 448.5 W (system: 78.9 W, PoE: 369.6 W)
Typical Power Consumption	29.5 W (30% traffic load, ATIS standard, EEE enabled, no PoE)
Operating Temperature	0°C to 45°C (32°F to 113°F) at 0–1800 m altitude
Short-term Operating Temperature	-5°C to +55°C (23°F to 131°F) at 0–1800 m altitude
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 95%, noncondensing
Noise (27°C, sound power)	< 49.1 dB(A)
Operating Altitude	0–5000 m (0–16404 ft.)
Dimensions (H × W × D)	Basic: 43.6 × 442.0 × 314.8 mm (1.72 × 17.40 × 12.39 in.); Max: 43.6 × 442.0 × 323.8 mm (1.72 × 17.40 × 12.75 in.)
Weight (including packaging)	5.2 kg (11.45 lb)
Service Port Surge Protection	Common mode: ±7 kV
Power Supply Surge Protection	±6 kV in differential mode, ±6 kV in common mode
