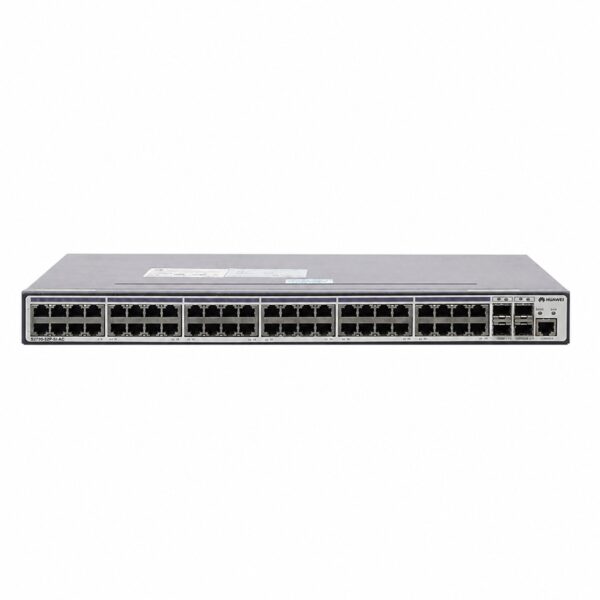

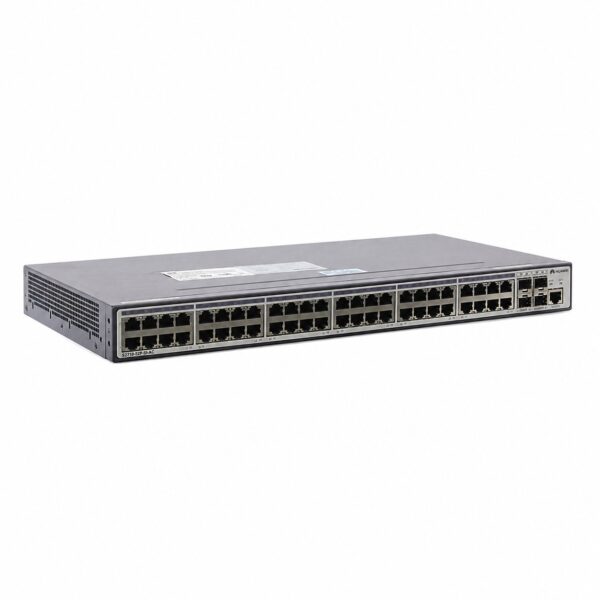

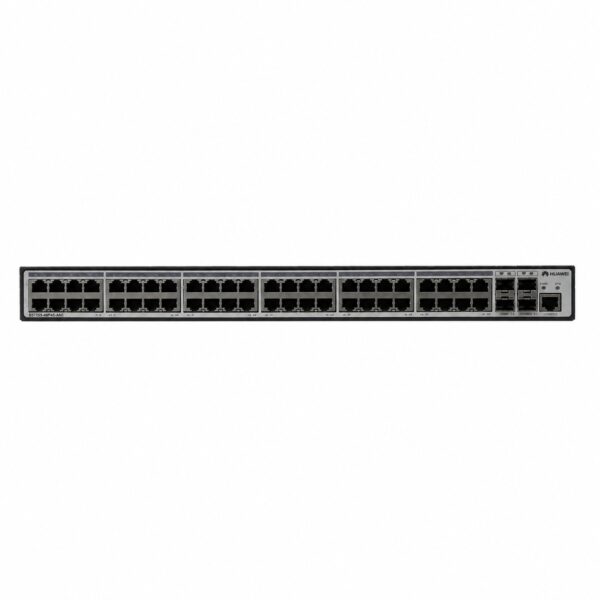

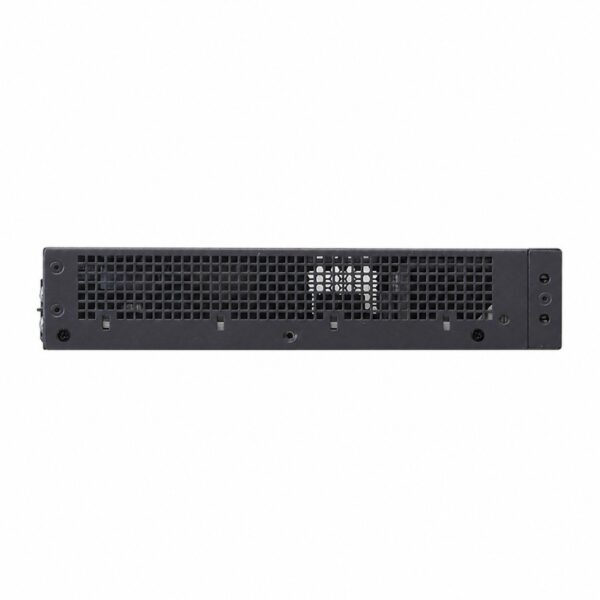

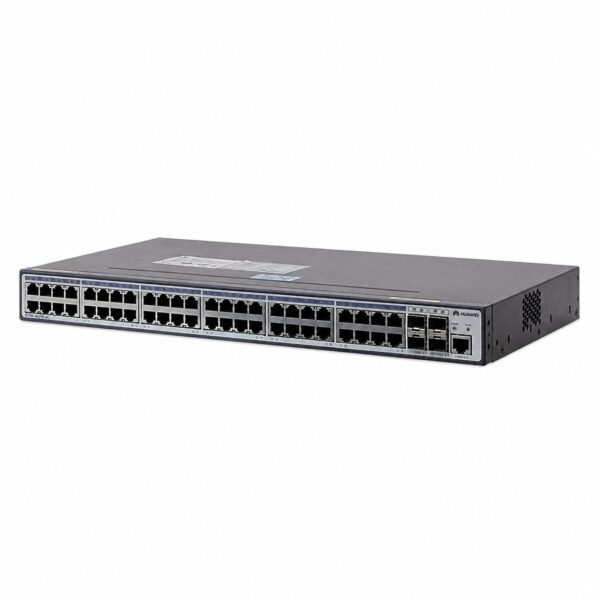

Name: Huawei S2710-52P-SI-AC Switch - SunSpike
SKU: S2710-52P-SI-AC

Product Overview

The Huawei S2710-52P-SI-AC is a 48-port intelligent Fast Ethernet access switch designed for small and medium-sized enterprises. Operating at Layer 2, it is built on next-generation switching technology and the Huawei VRP (Versatile Routing Platform) software platform. The switch delivers simple and convenient installation and maintenance, while integrating flexible network deployment, comprehensive security and QoS control policies, and green energy-saving technologies. It supports a wide range of management interfaces including CLI, Telnet, SNMP, and WEB-based management. With a fanless design, the S2710-52P-SI-AC reduces mechanical failure points and protects against condensation corrosion and dust intrusion, effectively lowering the failure rate. It is an ideal access solution for enterprises building future-ready IT networks capable of multi-service bearer and access requirements.

Product Specifications

Category	Specification
Model	S2710-52P-SI-AC
Product Type	Intelligent Switch / Fast Ethernet Switch
Application Hierarchy	Layer 2
Switching Capacity	32 Gbps
Packet Forwarding Rate	17.7 Mpps
MAC Address Table	8K entries
Switching Mode	Store-and-forward
Port Structure	Non-modular
Total Ports	52 ports
Downlink Ports	48 × 10/100Base-TX Ethernet ports (RJ45)
Uplink Ports	4 × Gigabit SFP ports (2 × 1000BASE-X + 2 × 100/1000BASE-X)
Console Port	1 × console port
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN Features	Supports IEEE 802.1Q VLAN, up to 4K VLANs; supports port-based VLAN
QoS	Outbound port rate limiting; 4 or 8 priority queues per port; 802.1p priority mapping; SP, WRR, and SP+WRR scheduling algorithms
Multicast Management	IGMP v1/v2/v3 Snooping; port-based multicast flow rate limiting
Network Management	Stacking support (S2710-SI, S2700-52P-EI); Auto-Config; CLI configuration; Telnet remote configuration; SNMP V1/V2/V3; RMON; SSH V2; WEB-based management
Security Features	AAA authentication; RADIUS/HWTACACS+ support; 802.1X authentication; MAC authentication; MAC bypass authentication; DHCP Snooping; port isolation; Sticky MAC; MAC address filtering; multicast/broadcast/unknown unicast storm suppression; CPU protection
IPv6 Features	IPv6 protocol support; static IPv6 route configuration
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Surge Protection	Service port surge protection: 6 kV to 7 kV
Power Supply	AC: Rated voltage 100-240V, 50/60Hz; Max voltage 90-264V, 50/60Hz
Maximum Power Consumption	< 38W
Dimensions (W × D × H)	442 × 220 × 43.6 mm
Weight	< 3 kg
Cooling Method	Fanless, natural heat dissipation
Long-term Operating Temperature	0°C to 45°C (some sources: –5°C to 50°C)
Operating Humidity	5% to 95% (non-condensing)
Storage Temperature	–5°C to 55°C
Storage Humidity	10% to 90% (non-condensing)
