Huawei OceanStor 5800 V3
Huawei OceanStor 5800 V3
Enterprise stock · tested · export documentation available
Product Overview

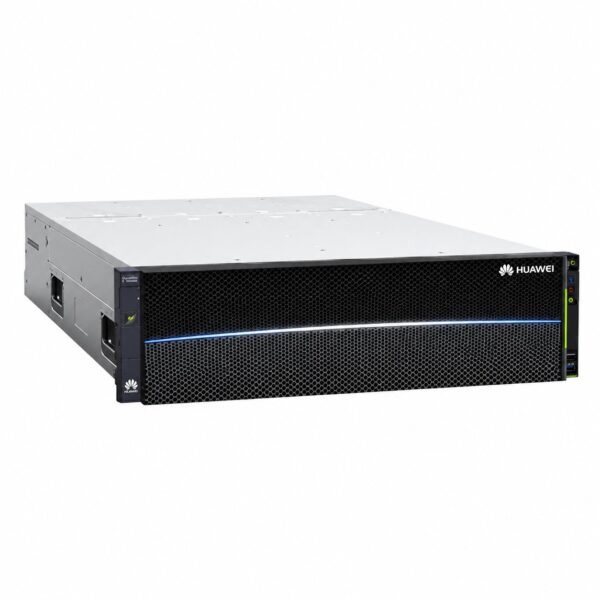

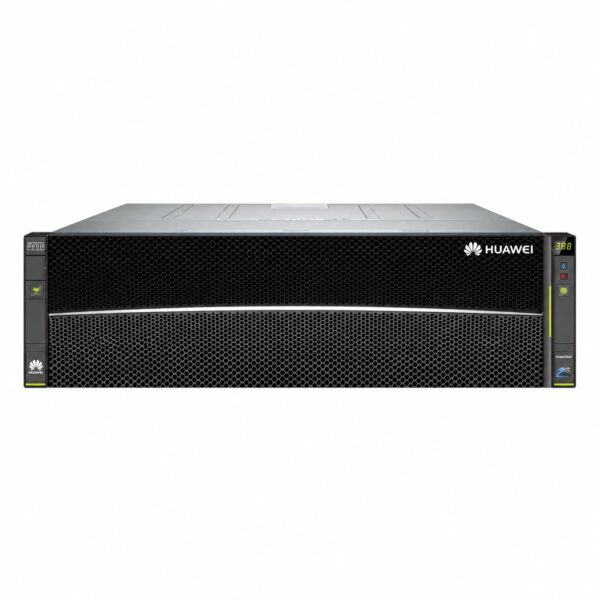

The Huawei OceanStor 5800 V3 is a mid-range, enterprise-class unified storage system designed for cloud-oriented architectures. It combines a high-performance hardware platform with the OceanStor OS, a storage operating system that enables seamless convergence across multiple dimensions: SAN and NAS, performance and capacity, primary and backup, and heterogeneous storage environments .
Powered by next-generation Intel multi-core processors and PCIe 3.0 internal bus architecture, the 5800 V3 delivers sub-millisecond latency when fully configured with SSDs. The system scales horizontally to a maximum of eight controllers, supporting up to 1,250 disks per dual-controller configuration and a maximum storage capacity of 12 PB .
Targeted at large OLTP/OLAP databases, file sharing, and cloud computing workloads, the OceanStor 5800 V3 is widely deployed across government, finance, telecom, energy, and media industries . Its SmartIO card technology enables software-defined networking interfaces, supporting 16 Gbit/s Fibre Channel, 10 Gbit/s FCoE, and 10 Gbit/s TOE through a single card with configurable protocols .
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | OceanStor 5800 V3 |
| Maximum Controllers | 8 |
| Processor | Multi-core multi-processor group |
| Cache Capacity | 64 GB – 1,024 GB |
| Maximum Disks (per 2 controllers) | 1,250 |
| Disk Types | SSD, SAS, NL-SAS |
| Supported RAID Levels | 0, 1, 3, 5, 6, 10, 50 |
| Front-End Port Types | 1 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 16 Gbit/s Fibre Channel, 56 Gbit/s InfiniBand |
| Back-End Port Type | SAS 3.0 (4 × 12 Gbit/s per port) |
| Max Front-End Ports per Controller | 28 |
| Max I/O Modules per Controller | 8 |
| Supported Storage Protocols | FC, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, FTP |
| Max Snapshots (LUN) | 2,048 |
| Max LUNs | 8,192 |
| Max Snapshots per File System | 2,048 |
| Max Capacity of a Single File | 256 TB |
| Power Supply | AC: 100 V – 127 V or 200 V – 240 V; DC: 192 V – 288 V |
| Dimensions (H × W × D) | 3U control enclosure: 130.5 mm × 447 mm × 750 mm |
| Weight | ≤ 50 kg |
| Data Protection Software | HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), HyperReplication (remote replication), HyperLock (WORM) |
| Mission-Critical Protection | SmartQoS, SmartPartition, SmartCache |
| Resource Efficiency Software | SmartTier, SmartThin, SmartMotion, SmartMulti-Tenant, SmartMigration, SmartCompression, SmartDedup, SmartQuota, SmartErase |
| Storage Management Software | UltraPath (multipathing), Cloud Service (remote maintenance), ReplicationDirector (DR management), DeviceManager, eSight |
| Virtualization Support | VMware VAAI, vSphere/vCenter integration, Citrix, Hyper-V |
