Name: Dell PERC H740P 8GB NV Cache RAID Controller 01M71J, 3JH35, DPNHJ - Refurbished & Tested - SunSpike
Brand: DELL EMC
SKU: 01M71J

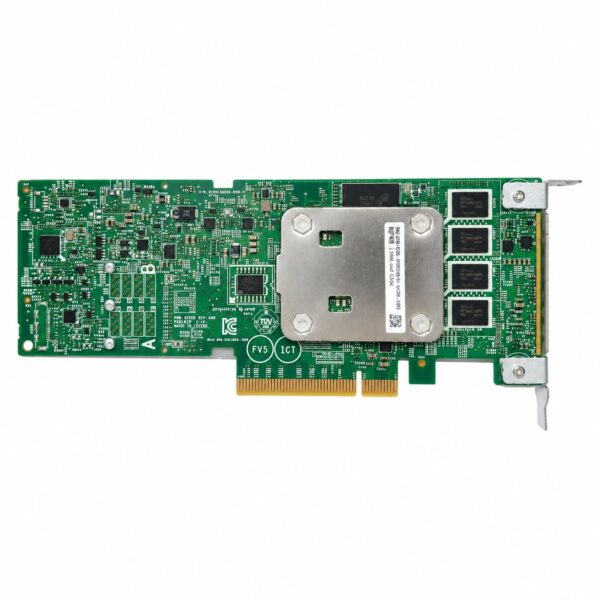

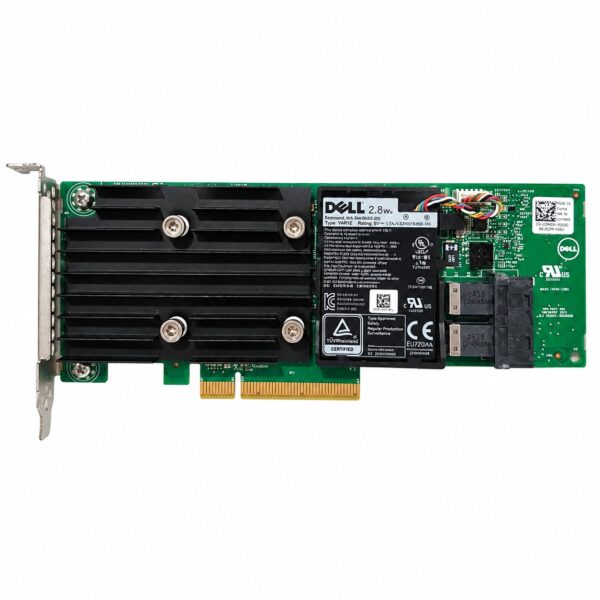

Dell PERC H740P 8GB NV Cache RAID Controller

Parameter	Specification
Dell Part Numbers	01M71J, 3JH35, DPNHJ
Form Factor	Plug-in Card (Low Profile & Full Height available)
Host Interface	PCIe 3.0 x8 (also cited as PCIe 3.1 x8)
Data Transfer Rate	12 Gb/s SAS, 6 Gb/s SATA
Internal Ports	8-Port (2 x Mini SAS HD SFF-8643)
Cache Memory	8 GB DDR4 2133 MHz Non-Volatile Cache
Processor	LSI 3508 Dual-Core RAID-on-Chip
Battery Backup	Yes (Battery Backup Unit supported)

Parameter	Specification
RAID Levels	0, 1, 5, 6, 10, 50, 60
Non-RAID / eHBA Mode	Yes (Enhanced HBA mode supported via firmware)
Max Virtual Disks	64 (RAID Mode)
Max Disks (eHBA Mode)	240 (Combination of VD and non-RAID disks)
Max Virtual Disks per Disk Group	16
Max Disk Groups	64
Controller Queue Depth	4096 (RAID), 5120 (eHBA)
Cache Function	Write-back, Write-through, No Read Ahead, Read Ahead
Drive Types Supported	3Gbps SATA, 6Gbps SATA/SAS, 12Gbps SAS
VD Stripe Sizes	64 KB, 128 KB, 256 KB, 512 KB, 1 MB
Hardware XOR Engine	Yes
Online Capacity Expansion	Yes
Dedicated & Global Hot Spare	Yes
Security Features	LKM Security, Enterprise Key Manager, Self-Encrypting Drive (SED) support

Parameter	Specification
Server Generation	Dell PowerEdge 14th Generation
Compatible Models (Examples)	R440, R540, R640, R740, R740xd, R840, R940, R6415, R7415
