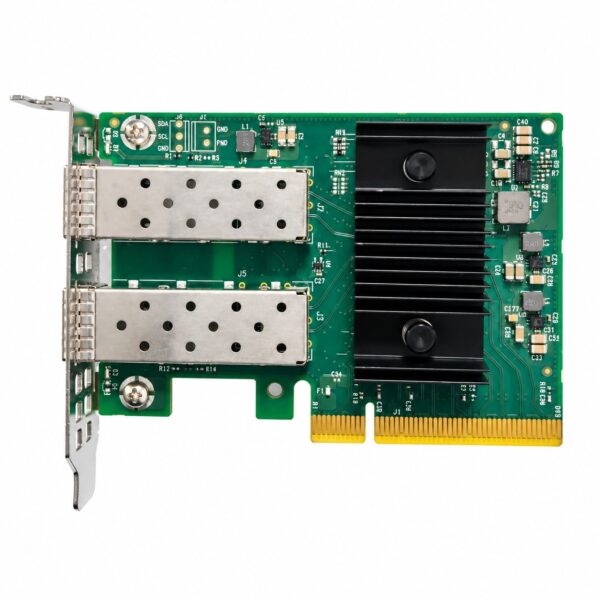

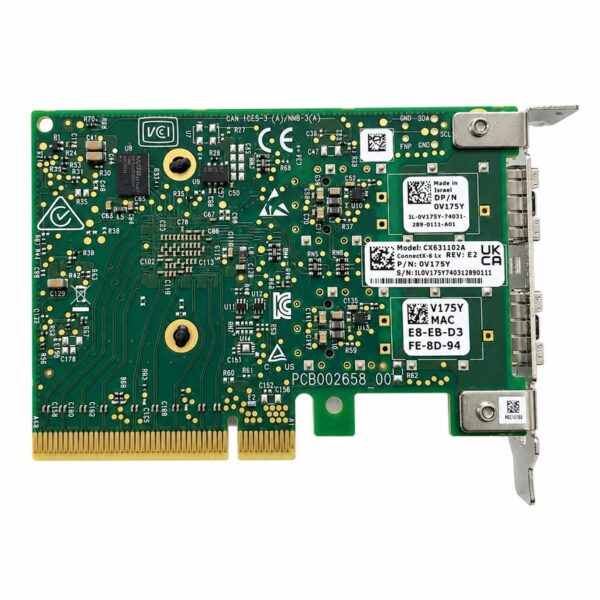

Mellanox ConnectX-6 Lx Dual-Port 25GbE SFP28 Ethernet Adapter (DP/N: 0V175Y, Mellanox P/N: MCX631102A)

Product: Dell OEM NVIDIA Mellanox ConnectX-6 Lx Dual-Port 25GbE SFP28 Ethernet Adapter (DP/N: 0V175Y, Mellanox P/N: MCX631102A)

Detailed English Specifications:

General

• Product Type: Network Adapter

• Manufacturer: NVIDIA (Mellanox)

• OEM: Dell

• Model: ConnectX-6 Lx

• Part Number: MCX631102A (Vendor P/N), 0V175Y (Dell DP/N)

Network & Connectivity

• Data Rate: 1/10/25 Gb/s per port

• Number of Ports: Dual-port

• Connector Type: SFP28 (Supports copper and optical transceivers)

• Protocol Support: Ethernet: 25GBASE-R, 10GBASE-LR, 10GBASE-ER, 10GBASE-CR, SGMII, 1000BASE-KX, etc.

Host Interface & Architecture

• Bus Type: PCI Express Gen 3.0/4.0

• Bus Width: x8 lanes

• Data Rate: SERDES @ 16.0 GT/s

Features & Offloads

• RDMA: RoCE (RDMA over Converged Ethernet)

• Virtualization: SR-IOV, VirtIO

• Tunneling & Overlay: GENEVE, VXLAN, NVGRE

• Storage Offload: NVMe over Fabric (NVMe-oF) target offload

• Security: Hardware-based IPsec, Secure Boot

Power & Environmental

• Power Consumption (Typical): 11.53W (Passive Cables, PCIe Gen 4.0)

• Power Consumption (Max): 12.94W

• Operating Temperature: 0°C to 55°C

• Operating Humidity: 10% to 85% relative humidity

• Airflow Requirement: 300 LFM (Hot Aisle, Passive Cables)

Physical Form Factor

• Dimensions: 96.30mm x 68.90mm (3.79in. x 2.71in.)

• Bracket: Half-Height (Low Profile) and Full-Height (includes both brackets)

• Compliance: RoHS Compliant
