Huawei OceanStor 5500 V5 – Product Documentation
Product Overview
The Huawei OceanStor 5500 V5 is a next-generation mid-range hybrid flash storage system designed for enterprises that demand high performance, scalability, and intelligent data management. As part of the OceanStor 5000 V5 series, this unified storage platform converges SAN and NAS capabilities, eliminating the need for separate gateway solutions and simplifying data center infrastructure .
The system is built on a cloud-ready operating system with flash-accelerated performance, delivering million-level IOPS to support demanding workloads such as large-database OLTP/OLAP, virtualization (VMware, Hyper-V, OpenStack), cloud computing, high-performance computing (HPC), and AI/ML applications . It is an ideal choice for sectors including government, finance, telecommunications, and manufacturing.
Key advantages include multi-level convergence (SAN/NAS, heterogeneous storage, and primary/backup storage), intelligent service optimization through features like SmartQoS and SmartCache, and comprehensive data protection capabilities. The system supports gateway-free active-active configuration (HyperMetro) to ensure 24/7 business continuity. With scalability to up to 16 controllers and 2,400 disk drives, the OceanStor 5500 V5 grows seamlessly with evolving business needs .
Technical Specifications
| Category | Specification |
|---|---|
| Model | Huawei OceanStor 5500 V5 |
| Product Type | Hybrid Flash Storage (Unified SAN/NAS) |

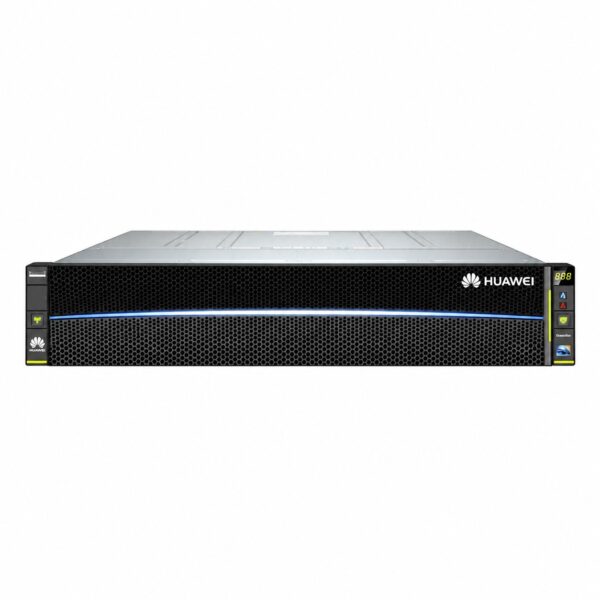

| Chassis Form Factor | 2U control enclosure |
Controller & Processor
| Category | Specification |
|---|---|
| Controller Configuration | Dual active-active controllers (scale to 16 controllers) |
| Processor | Multi-core processors (Intel Xeon Gold 4109T 2.0GHz, 8-core per controller) |
| System Cache | 384 GB to 4 TB (expands with number of controllers) |
Performance
| Category | Specification |
|---|---|
| SPEC SFS2014 Benchmark | 200 Builds, 0.58 ms overall response time |
| Max IOPS | Million-level IOPS |
| Max Raw Capacity | 8 PB (with expansion enclosures) |
Drive Support
| Category | Specification |
|---|---|
| Maximum Disk Drives | 1,200 drives (dual-controller configuration) |
| Supported Drive Types | SAS SSDs (480GB – 15.36TB), NL-SAS HDDs (4TB – 18TB) |

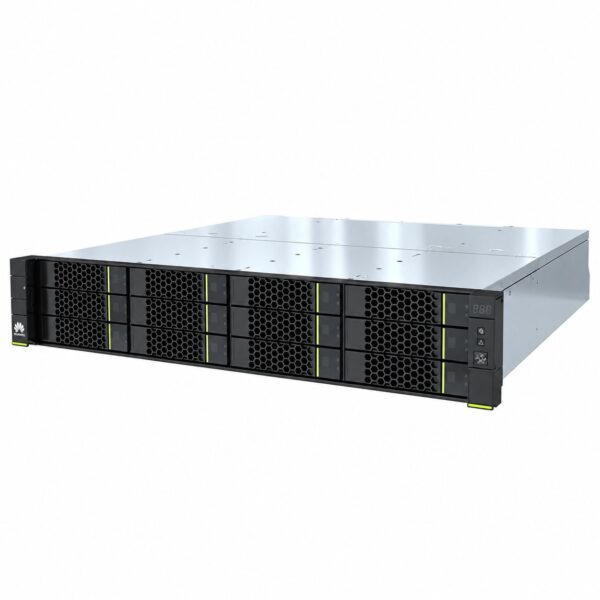

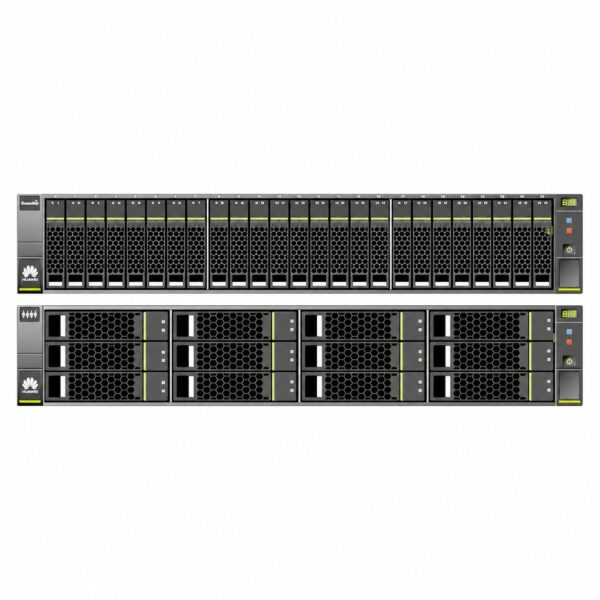

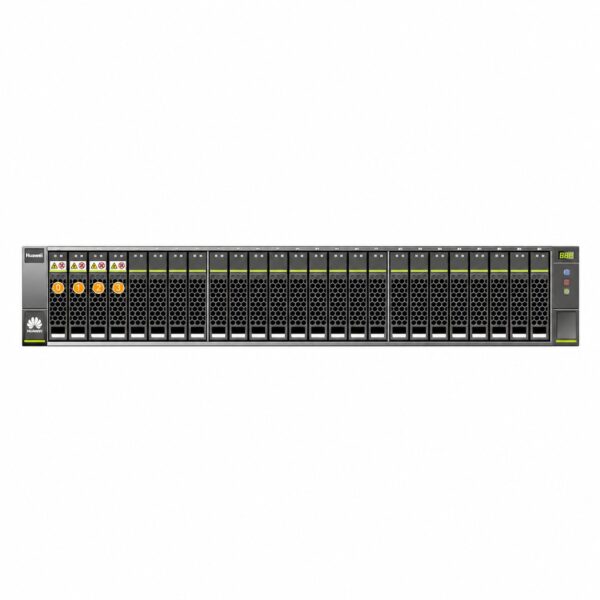

| Drive Enclosures | 2U (25 x 2.5″), 4U (24 x 3.5″), 4U High-Density (75 x 3.5″) |

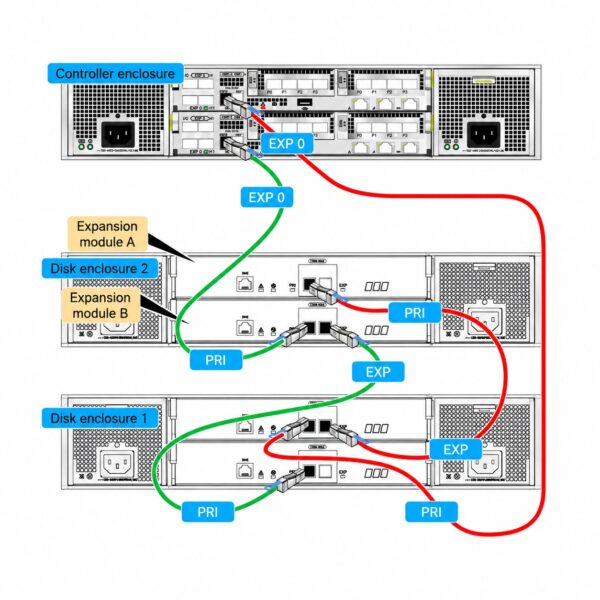

| Back-End Port Type | SAS 3.0 (single port 4 x 12 Gbit/s) |
Host Interfaces
| Category | Specification |
|---|---|
| Supported Protocols | FC, iSCSI, NFS, CIFS, HTTP, FTP |
| Front-End Port Types | 8/16/32 Gbit/s FC, 1/10/25/40/100 Gbit/s Ethernet, 56 Gbit/s InfiniBand |

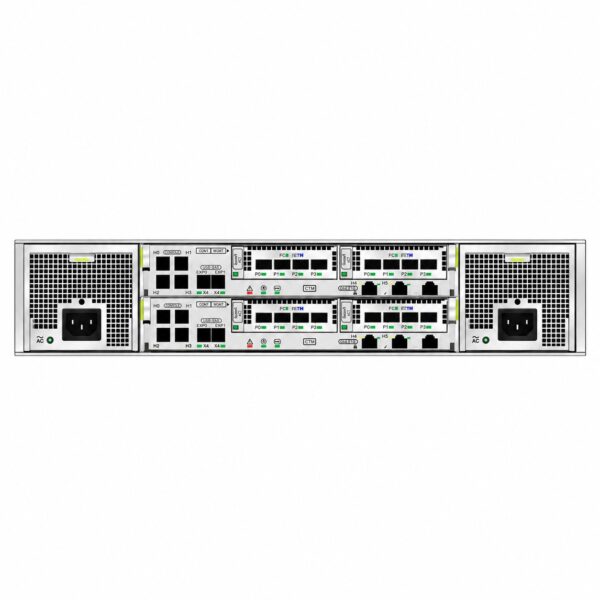

| Standard Ports (per controller) | 4 x SmartIO ports, 2 x Mini SAS HD expansion ports, Management port, Maintenance port, Serial port |
| Interface Module Options | 4 x 1GE (BASE-T), 4 x 10GE, 4/8 x 8Gb FC, 8 x 16Gb FC, 4 x Smart I/O (10Gb iSCSI/FC), 4 x 12Gb SAS, 2 x 10Gb FCoE, 2 x 56Gb InfiniBand, 2 x 40Gb Ethernet, 2 x 100Gb Ethernet |
RAID & Data Protection
| Category | Specification |
|---|---|
| RAID Levels | 0, 1, 5, 6, 10, 50 |
| Data Protection Software | HyperSnap (snapshot), HyperClone (clone), HyperCopy (copy), HyperMirror (volume mirroring), HyperMetro (active-active arrays), HyperReplication (remote replication), HyperLock (WORM), HyperVault (all-in-one backup) |
Software & Management
| Category | Specification |
|---|---|
| Resource Efficiency | SmartThin (thin provisioning), SmartDedupe (deduplication), SmartCompression (compression), SmartTier (data tiering), SmartMigration (LUN migration), SmartVirtualization (heterogeneous virtualization), SmartMulti-tenant, SmartQuota, SmartMotion, SmartErase |
| Mission-Critical Protection | SmartQoS (quality of service), SmartPartition (partitioning), SmartCache (SSD caching), SmartEncryption |
| Management Tools | DeviceManager, eService (intelligent lifecycle management), REST API, host multipathing, disaster recovery management |
| Max Snapshots | 4,096 per system |
| Max LUNs | 8,192 |
| Single File Max Size | 256 TB |
Physical & Environmental
| Category | Specification |
|---|---|
| 2U Control Enclosure Dimensions | 86.1 x 447 x 750 mm |
| 2U Disk Enclosure Dimensions | 86.1 x 447 x 490 mm |
| 4U Disk Enclosure Dimensions | 175 x 447 x 490 mm |
| 4U High-Density Enclosure Dimensions | 176.5 x 446 x 790 mm |
| Weight (2U Control Enclosure) | ≤ 37 kg |
| Weight (2U Disk Enclosure) | ≤ 20 kg |
| Weight (4U Disk Enclosure) | ≤ 40 kg |
| Power Supply | AC: 100V–240V, DC: 192V–288V, -48V to -60V |
| Operating Temperature | 5°C to 40°C (below 1800m altitude), 5°C to 35°C (1800m–3000m) |
| Operating Humidity | 5% RH to 90% RH |
Certifications
| Category | Specification |
|---|---|
| Certifications | CE, UL, EAL4+, ISO 27001 |
