Huawei OceanStor 5300 V5 – Product Documentation
Product Overview
The Huawei OceanStor 5300 V5 is a next-generation mid-range hybrid flash storage system that delivers enterprise-class data services with a balanced combination of flash performance and HDD capacity economics. Part of the OceanStor 5000 V5 series, it features a cloud-ready operating system, flash-optimized performance, and intelligent management software, achieving leading capabilities in functionality, performance, efficiency, reliability, and ease of use.
Designed to satisfy the data storage requirements of large-database Online Transaction Processing (OLTP)/Online Analytical Processing (OLAP), cloud computing, virtualization, and various other applications, the OceanStor 5300 V5 is a natural fit for government, finance, telecommunications, manufacturing, and other sectors with mid-range storage requirements.
The system delivers multi-level convergence through a gateway-free converged active-active solution that guarantees 24/7 stable operations for services, while system efficiency is doubled thanks to the convergence of Storage Area Network (SAN) and Network-Attached Storage (NAS) alongside heterogeneous systems, with primary and backup storage. The flash system design ensures rapid response to core services, with outstanding scalability that supports up to 16 controllers, enabling million-level IOPS performance.
Huawei’s OceanStor 5300 V5 employs the eService intelligent management system throughout the entire lifecycle (planning, design, operation, and maintenance), accelerating cloud transformation of enterprises with hybrid cloud solutions.
Product Specifications
| Category | Specification |
|---|---|
| Model | OceanStor 5300 V5 |
| Product Type | Hybrid Flash Storage |
Hardware Specifications
| Category | Specification |
|---|---|
| Processor | Multi-core processors |
| System Cache | 64 GB to 512 GB (expands with number of controllers) |
| Maximum Number of Controllers | Up to 16 |
| Maximum Disk Drives | Up to 1,000 disk drives (dual controllers) |

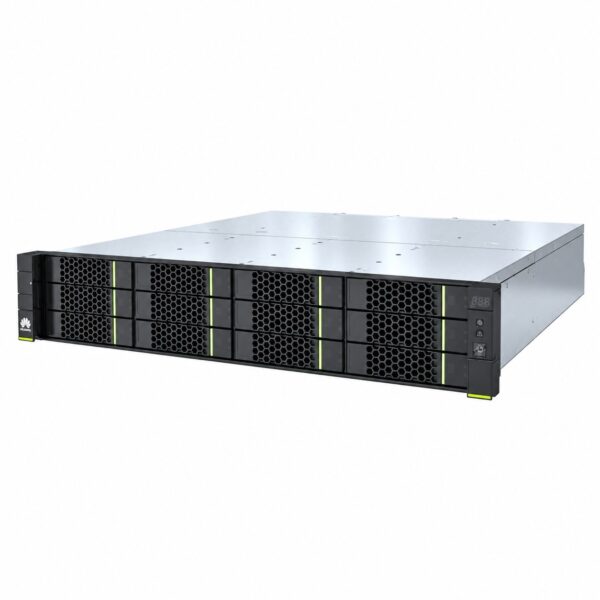

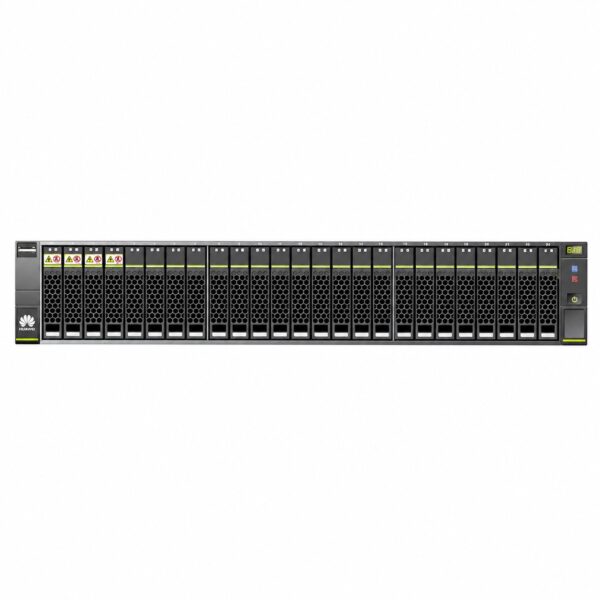

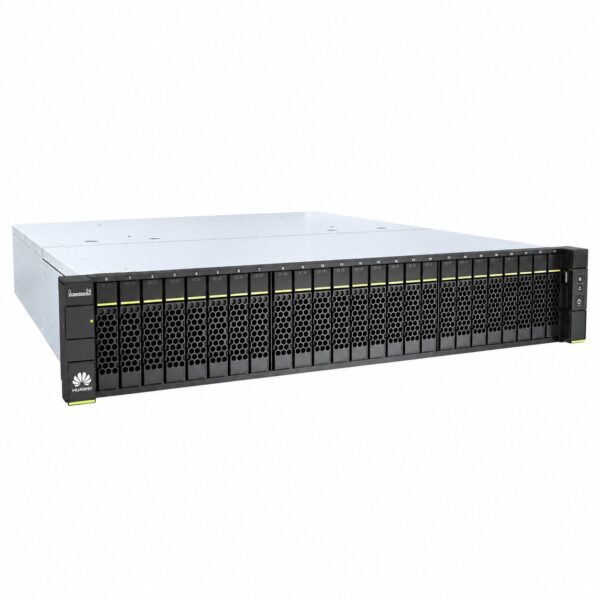

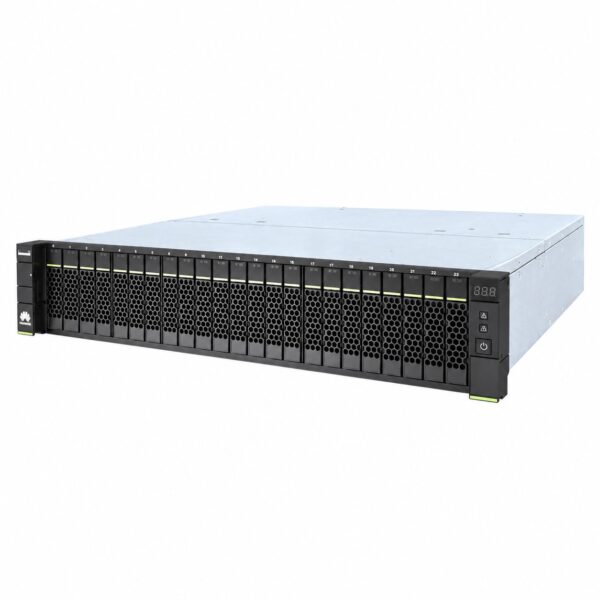

| Disk Enclosure Options | 12 x 3.5-inch HDDs, 25 x 2.5-inch HDDs |
| Supported Storage Protocols | FC, iSCSI, NFS, CIFS, HTTP, FTP, FCoE |
| Front-End Port Types | 8/16/32 Gbps FC, 1/10/25/40/100 Gbps Ethernet |
| Back-End Port Types | SAS 3.0 (single port 4 x 12 Gbps) |
| RAID Levels Supported | RAID 0, 1, 5, 6, 10, 50 |
| Supported Drive Types | NVMe SSDs (1.92 TB – 30.72 TB), SAS SSDs (480 GB – 15.36 TB), HDDs (4 TB – 18 TB) |
| Independent Gateway Mode | Supported |
Capacity & Performance Specifications
| Category | Specification |
|---|---|
| Maximum System Cache (Scaled) | Up to 2 TB (16 controllers) |
| Maximum Snapshots | 2,048 |
| Maximum LUNs | 4,096 |
| Maximum Single File Size | 256 TB |
| Performance | Up to 600,000 IOPS, <1 ms latency (flash tier), 16 GB/s throughput |
| Maximum Raw Capacity | Up to 3.2 PB |
| Availability | 99.9999% with redundant components |
Value-Added Software Features
| Category | Software |
|---|---|
| Data Protection | HyperSnap (Snapshot), HyperClone (Clone), HyperCopy (Copy), HyperMirror (Volume Mirroring), HyperMetro (Active-Active Arrays), HyperReplication (Remote Replication), HyperLock (WORM), HyperVault (All-in-One Backup) |
| Mission-Critical Business Protection | SmartQoS (Intelligent Service Quality Control), SmartPartition (Intelligent Partitioning), SmartCache (Intelligent SSD Caching), SmartEncryption (Intelligent Data Encryption) |
| Resource Efficiency | SmartMigration (Intelligent LUN Migration), SmartVirtualization (Intelligent Heterogeneous Virtualization), SmartMulti-tenant (Intelligent Multi-Tenant), SmartQuota (Quota Management), SmartDedupe (Intelligent Deduplication), SmartCompression (Intelligent Compression), SmartThin (Intelligent Thin Provisioning), SmartTier (Intelligent Data Tiering), SmartMotion (Intelligent Data Motion), SmartErase (Intelligent Data Destruction) |
| Heterogeneous Virtualization | Integrates storage resources from mainstream vendors for unified management and flexible allocation |
| Block-Level Virtualization | Balanced data distribution and fast fault recovery |
| Virtualization Platform Support | FusionSphere, VMware, XenServer, Hyper-V; supports VMware VAAI/VASA/SRM |
Physical Specifications
| Category | Specification |
|---|---|
| 2U Control Enclosure Dimensions | 86.1 × 447 × 448 mm |
| 2U Disk Enclosure Dimensions | 86.1 × 447 × 490 mm |
| 4U Disk Enclosure Dimensions | 175 × 447 × 490 mm |
| 4U High-Density Enclosure Dimensions | 176.5 × 446 × 790 mm |
| 2U Control Enclosure Weight | ≤ 37 kg |
| 2U Disk Enclosure Weight | ≤ 20 kg |
| 4U Disk Enclosure Weight | ≤ 40 kg |
| 4U High-Density Enclosure Weight | ≤ 91 kg |
| Power Supply | AC: 100V – 240V; DC: 192V – 288V, -48V to -60V |
| Operating Temperature | Altitude < 1800 m: 5°C to 40°C; 1800 m – 3000 m: 5°C to 35°C |
| Operating Humidity | 5% RH – 90% RH |
| Power Supply Efficiency | 2000 W redundant PSUs (80Plus Platinum) |
| Management Interfaces | DeviceManager, eSight, REST API |
| Certifications | CE, UL, ISO 27001 |
