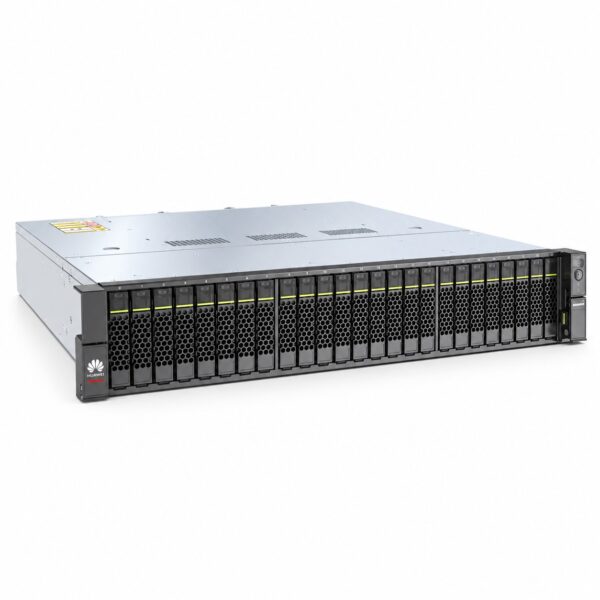

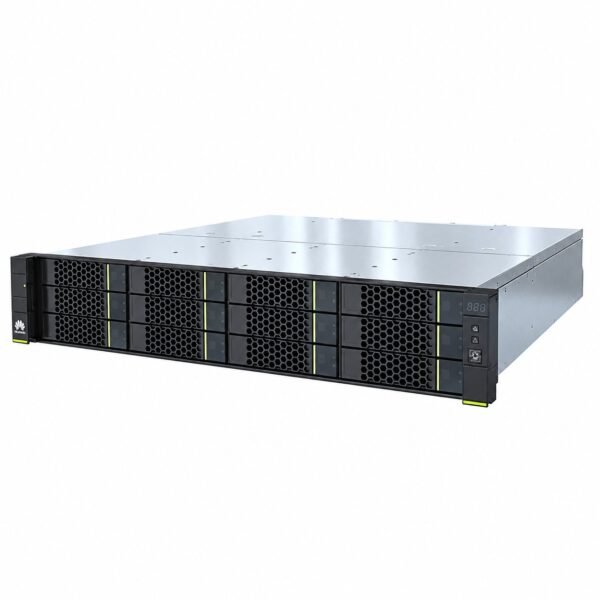

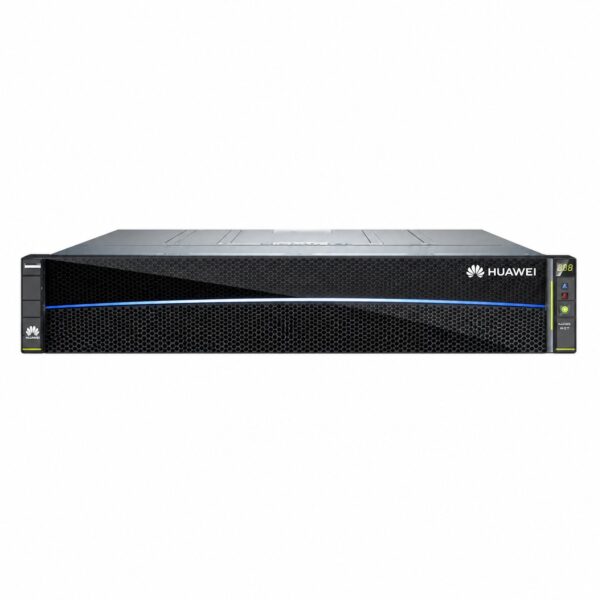

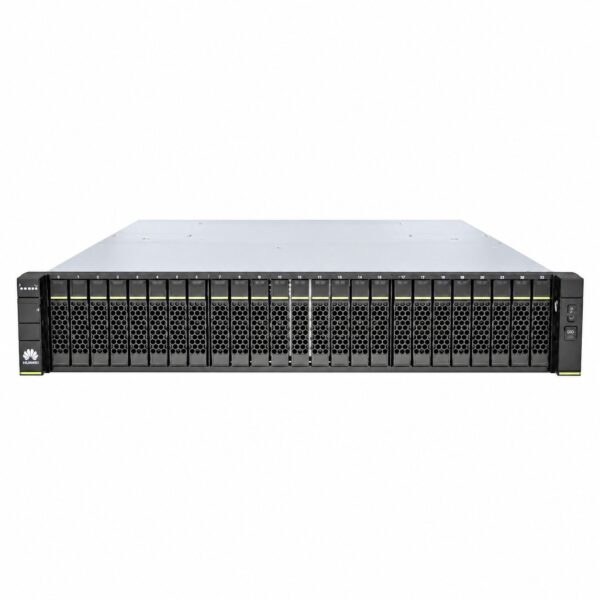

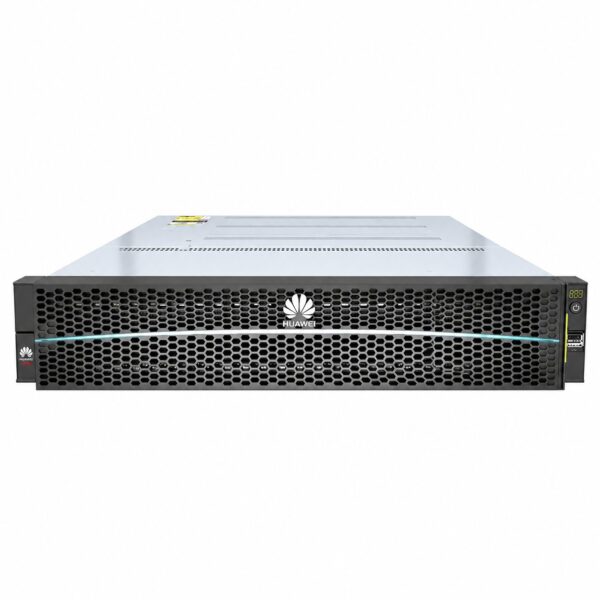

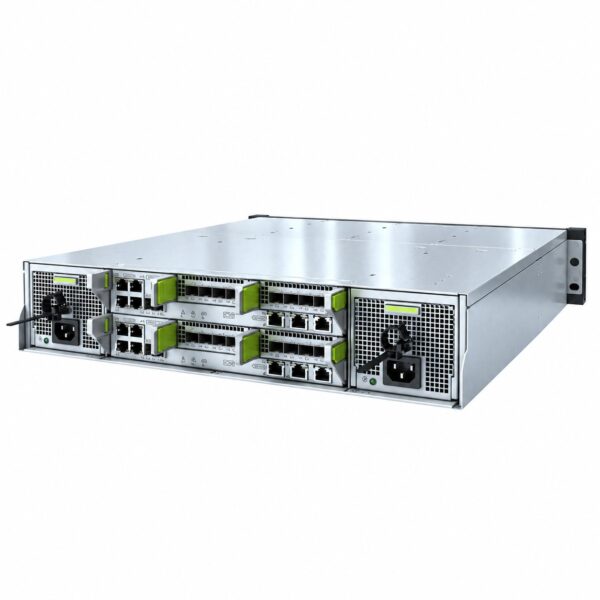

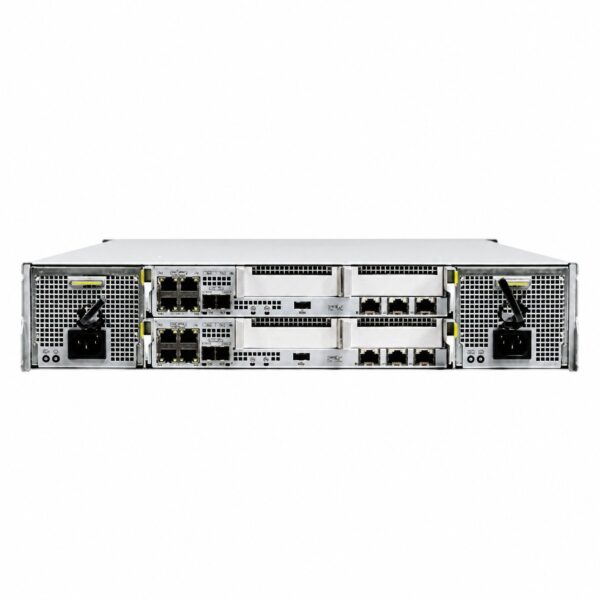

Huawei OceanStor 5110 V5
OceanStor 5110 V5
Enterprise stock · tested · export documentation available
Huawei OceanStor 5110 V5 – Product Documentation
Product Overview
The Huawei OceanStor 5110 V5 is a mid-range enterprise hybrid flash storage system designed to deliver a balanced combination of performance, reliability, and cost-efficiency for mixed workload environments . Built on Huawei’s self-developed Kunpeng multi-core processors, this system integrates NVMe SSD acceleration with high-capacity NL-SAS HDDs to achieve optimal performance and capacity benefits .
The system features an active-active dual-controller architecture with a 2U chassis, supporting both SAN and NAS protocols to enable multi-service convergence . It delivers up to 500,000 IOPS with sub-0.8ms latency when utilizing the NVMe tier, making it suitable for enterprise database OLTP/OLAP, file sharing, and virtualization workloads . With comprehensive data protection capabilities including snapshots, clones, replication, and RAID protection, the OceanStor 5110 V5 ensures high availability with up to 99.9999% reliability . Management is streamlined through DeviceManager GUI, eSight centralized management, and REST API support for automation .
Technical Specifications
| Category | Specification |
|---|---|
| System Architecture | |
| Form Factor | 2U chassis, dual active-active controllers |
| Storage Processor | Huawei Kunpeng multi-core processors |
| Maximum System Cache | Up to 1TB (512GB per controller) |
| Maximum Controllers | 8 |
| Maximum Drive Bays | Dual-controller maximum: 500 disk drives |
| Drive Support | |
| SSD Types | NVMe SSDs (800GB – 15.36TB), SAS SSDs (480GB – 7.68TB) |
| HDD Types | NL-SAS HDDs (4TB – 16TB) |
| Drive Enclosures | 12 x 3.5-inch drives or 25 x 2.5-inch drives per enclosure |
| Maximum Raw Capacity | 2PB (with expansion enclosures) |
| Host Interface | |
| Front-End Port Types | 8/16/32Gbps Fibre Channel, 1/10/25/100Gbps Ethernet |
| Back-End Port Type | SAS 3.0 |
| Supported Protocols | FC, iSCSI, NFS, CIFS, SMB, HTTP, FTP, S3 (Object) |
| Performance | |
| Maximum IOPS | Up to 500,000 IOPS |
| Latency | < 0.8ms (NVMe tier) |
| Throughput | Up to 12GB/s |
| RAID & Data Protection | |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Data Protection Software | HyperSnap (snapshots), HyperClone (cloning), HyperCopy (copy), HyperMirror (volume mirroring), HyperMetro (array active-active), HyperReplication (remote replication), HyperLock (WORM), HyperVault (unified backup) |
| Data Services & Efficiency | |
| Quality of Service | SmartQoS (intelligent QoS control) |
| Caching | SmartPartition (cache partitioning), SmartCache (SSD intelligent caching) |
| Efficiency Features | SmartThin (thin provisioning), SmartDedupe (deduplication), SmartCompression (compression), SmartTier (auto-tiering), SmartMigration (LUN migration), SmartVirtualization (heterogeneous virtualization), SmartMulti-tenant (multi-tenancy), SmartQuota (quota management), SmartMotion (data motion), SmartErase (data destruction) |
| Management | |
| Management Tools | DeviceManager (single-device GUI), eSight (centralized management), REST API, CLI |
| Host Integration | UltraPath (host multipathing) |
| Disaster Recovery | BCManager (disaster recovery management) |
| Remote Management | eService (remote maintenance) |
| Hardware Specifications | |
| Power Supply | Hot-swappable redundant 800W PSUs |
| Power Input | 220V–240V AC ±10% |
| Control Enclosure Dimensions | 86.1 × 447 × 488 mm (2U) |
| Drive Enclosure Dimensions | 2U: 86.1 × 447 × 490 mm; 4U: 175 × 447 × 490 mm |
| Control Enclosure Weight | ≤ 33 kg |
| Drive Enclosure Weight | ≤ 30 kg (2U), ≤ 41 kg (4U) |
| Certifications | CE, FCC, UL, RoHS |
| Environment | |
| Operating Temperature | 5°C to 40°C (below 1800m altitude); 5°C to 35°C (1800m–3000m altitude) |
| Operating Humidity | 5% RH – 90% RH |
