Lenovo ThinkSystem SR650 V2 Rack Server

Product Overview

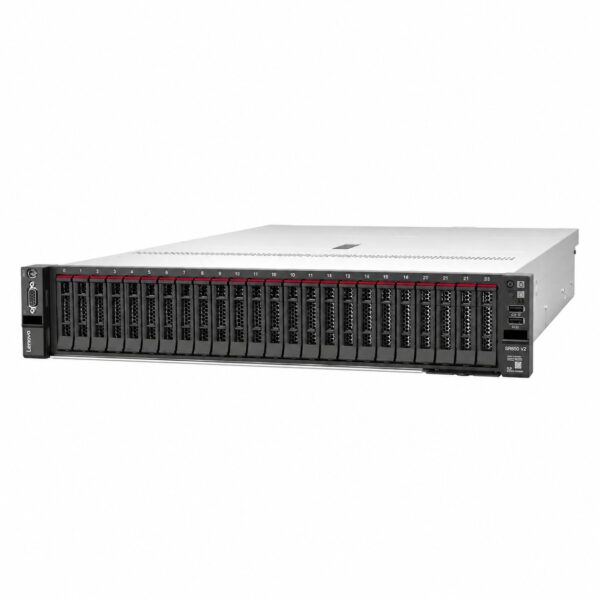

The Lenovo ThinkSystem SR650 V2 is a 2U, two-socket rack server designed for medium to large enterprises, managed service providers, and cloud service providers. It is engineered to deliver high performance for compute-intensive workloads including databases, virtualization, cloud computing, virtual desktop infrastructure (VDI), enterprise applications, and high-performance computing (HPC).

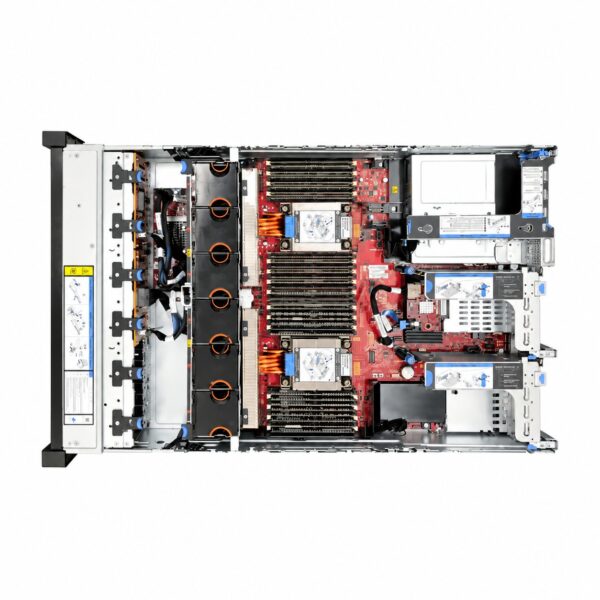

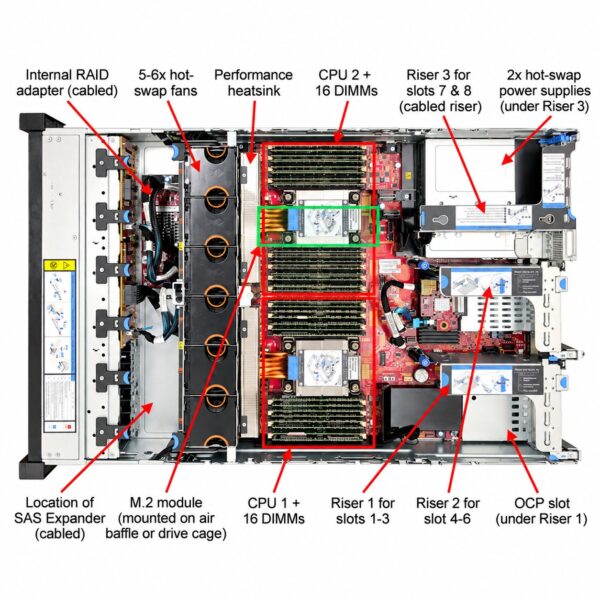

Built on the 3rd Gen Intel Xeon Scalable processor platform, the SR650 V2 supports up to two processors with up to 40 cores each and thermal design power up to 270W. The system offers exceptional memory capacity with 32 DDR4 DIMM slots, supporting up to 8TB with 3DS RDIMMs or up to 12TB when combined with Intel Optane Persistent Memory 200 Series.

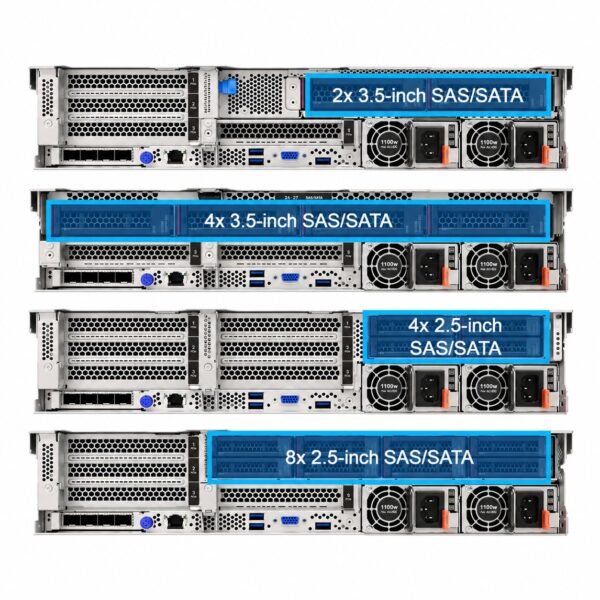

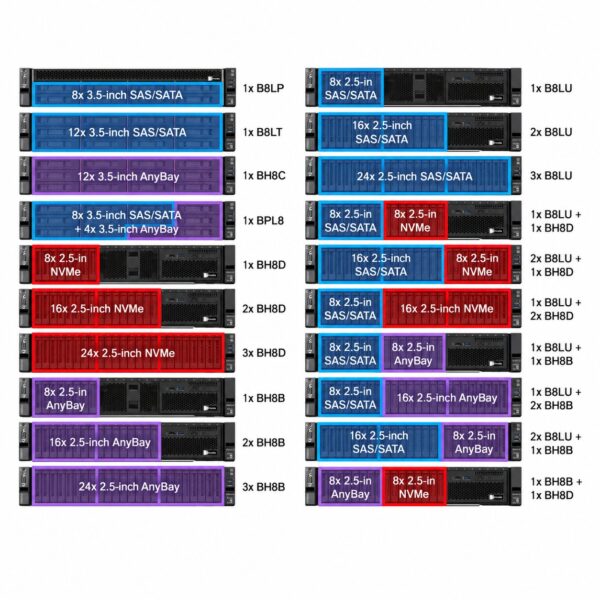

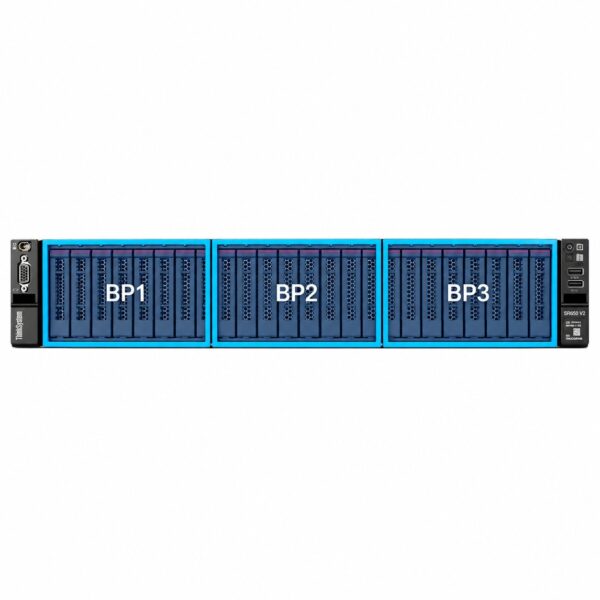

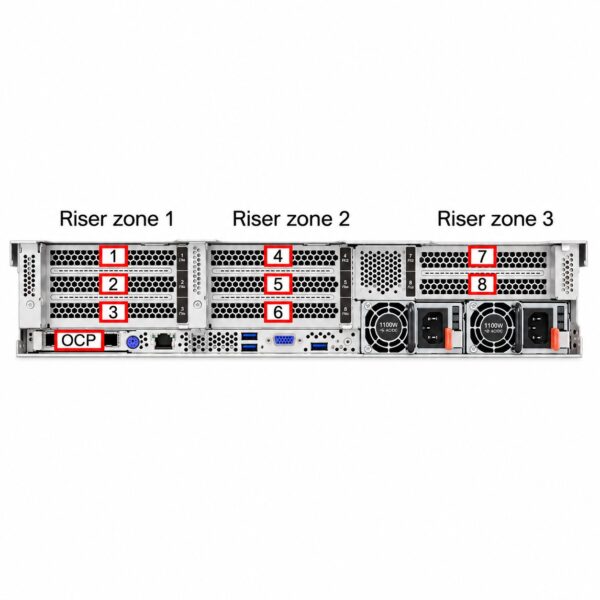

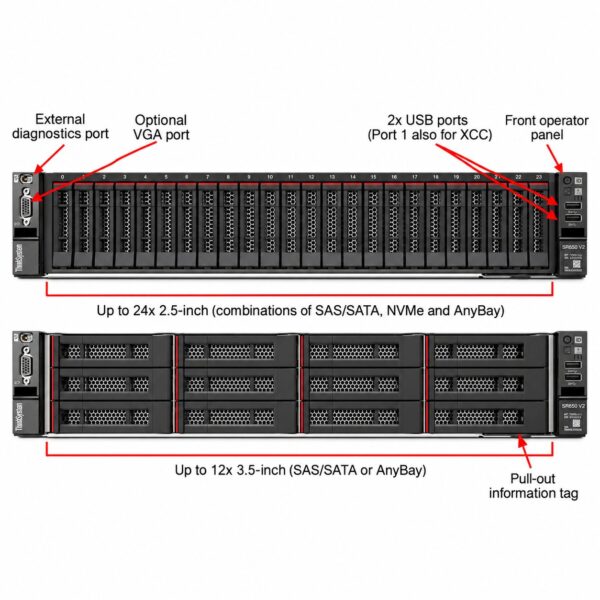

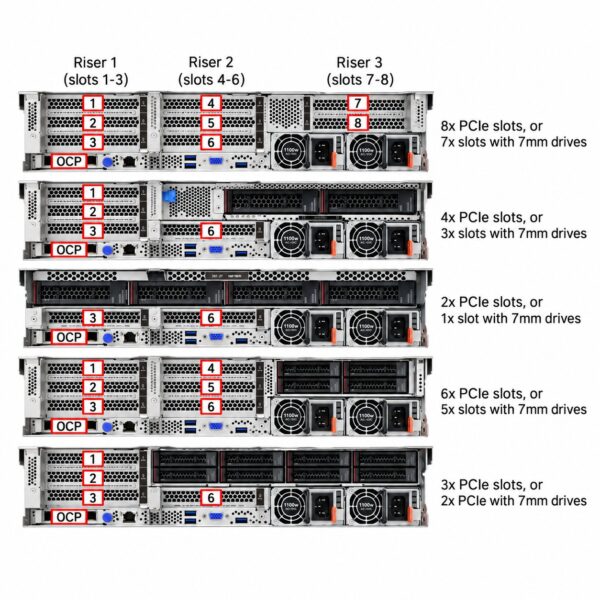

The server features industry-leading Lenovo AnyBay technology, enabling flexible mixing of SAS/SATA and NVMe drives within the same bays. With support for up to 40x 2.5-inch drives or 20x 3.5-inch drives, plus up to 32x NVMe drives via switch adapters, the SR650 V2 provides extensive storage configurability. Expansion capabilities include up to 8 PCIe 4.0 slots and support for up to 8 single-width or 3 double-width GPUs.

Management is handled through Lenovo XClarity Controller, which provides Redfish-compliant REST APIs for streamlined provisioning and maintenance. The system is protected by Lenovo ThinkShield, a comprehensive end-to-end security approach covering development, supply chain, and the full device lifecycle.
