Huawei FusionServer 2288H V5 – Product Documentation & Specifications

Product Overview

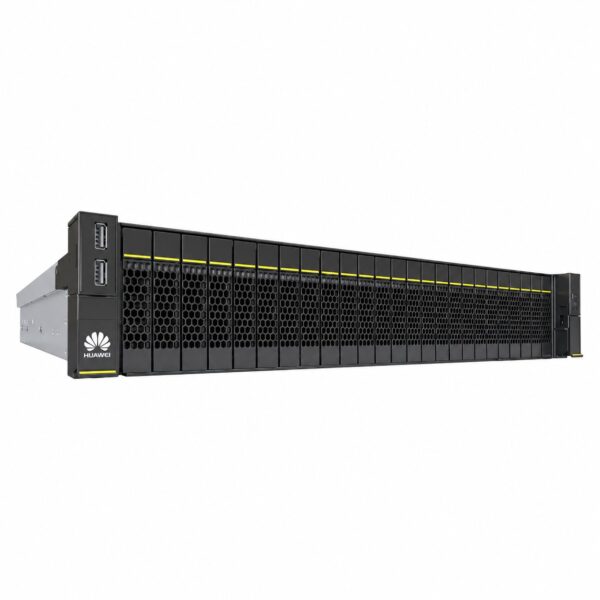

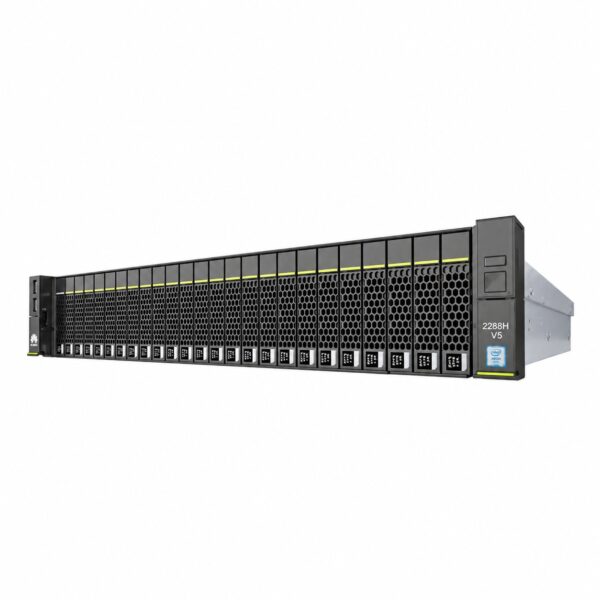

The Huawei FusionServer 2288H V5 is a high-performance 2U rack server designed for enterprise data centers and demanding computing workloads. It supports two Intel® Xeon® Scalable Processors (up to 28 cores per processor) and features 24 DDR4 DIMM slots with memory speeds up to 2,666 MT/s, making it suitable for virtualization, cloud computing, database applications, high-performance computing (HPC), and big data analytics .

The server offers flexible storage configurations, supporting up to 31 x 2.5-inch drives or 20 x 3.5-inch drives, with optional NVMe SSD support for high-speed data access . Network connectivity is provided by dual 10GE and dual GE onboard ports, with additional flexible NIC options available .

Key management features include the integrated iBMC intelligent management system with Redfish, SNMP, and IPMI 2.0 support, providing remote KVM access and comprehensive fault diagnosis with up to 93% accuracy for core component failures . The server also incorporates Dynamic Energy Management Technology (DEMT) to improve performance per watt by up to 16% .

Documentation List

Document Category Description
Hardware Installation Guide Physical installation procedures, rack mounting instructions, and hardware setup guidance
Technical Specifications Sheet Detailed product specifications and configuration options
User Manual Operating instructions, component identification, and basic operations
Maintenance and Service Guide Component replacement procedures and system maintenance
iBMC Management Guide Remote management configuration and usage via the intelligent management system
RAID Configuration Guide RAID setup, management, and configuration procedures
OS Installation Guide Supported operating systems and installation procedures
Safety and Compliance Guide Safety instructions and regulatory compliance information
FusionDirector Management Guide Advanced management features including stateless computing and batch OS deployment (optional)
Technical White Paper Architectural overview and performance optimization guidance

Technical Specifications

Category Specification
Form Factor 2U rack server
Processor 1 or 2 Intel® Xeon® Scalable Processors (Gold/Platinum series), up to 28 cores per CPU, up to 205W TDP
Chipset Intel® C622
Memory 24 DDR4 DIMM slots, up to 2,666 MT/s (2933 MT/s support available), max 3TB (LRDIMM)
Internal Storage • 8 x 2.5-inch SAS/SATA/SSD  • 12/16/20 x 3.5-inch SAS/SATA HDDs  • 4/8/12/24/28 x NVMe SSDs  • 31 x 2.5-inch SAS/SATA/SSD  • 2 x M.2 SSD
RAID Support RAID 0, 1, 10, 1E, 5, 50, 6, 60 (optional); supercapacitor cache protection; RAID level migration and web-based remote configuration

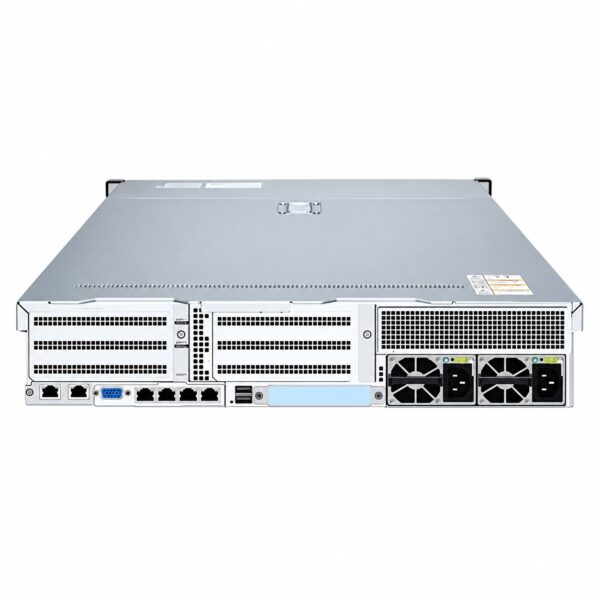

Network Ports Onboard: 2 x 10GE + 2 x GE ports ; FlexibleLOM options: 2 GE / 4 GE / 2 x 10GE / 2 x 25GE / 1 or 2 x 56G FDR IB
PCIe Expansion Up to 10 PCIe 3.0 slots (including 1 RAID controller slot and 1 flexible LOM slot)
Cooling 4 hot-swappable counter-rotating fans, N+1 redundancy support
Power Supply 2 x hot-swappable redundant PSUs, 1+1 redundancy; 550W / 900W / 1200W / 1500W options; AC Platinum/Titanium, HVDC, or DC options
Management iBMC intelligent management system; Redfish, SNMP, IPMI 2.0 support; HTML5/VNC KVM; fault diagnosis (up to 93% accuracy); optional FusionDirector for advanced automation
Dimensions (H x W x D) 3.5-inch chassis: 86.1 x 447 x 748 mm (3.39 x 17.17 x 29.45 in); 2.5-inch chassis: 86.1 x 447 x 708 mm (3.39 x 17.17 x 27.87 in)
Operating Temperature 5°C to 45°C (41°F to 113°F), ASHRAE A3 and A4 compliant
Certifications CE, UL, FCC, CCC, RoHS
Model Variants 8-drive, 12-drive, 25-drive, and 24-drive configurations ; H22H-05 model designation
