Dell PowerEdge R650 Rack Server — Product Overview & Specifications

Product Overview

The Dell PowerEdge R650 is a hyper-dense, dual-socket 1U rack server designed to optimize workload performance and data center density. Powered by up to two 3rd Generation Intel Xeon Scalable processors with up to 40 cores per socket, the R650 delivers exceptional performance for the most demanding workloads .

The system supports up to 32 DDR4 DIMM slots with speeds reaching 3200 MT/s, accommodating RDIMM, LRDIMM, NVDIMM, and Intel Optane Persistent Memory 200 series. Maximum memory capacity reaches 2 TB with RDIMM, 4 TB with LRDIMM, and up to 8 TB with Intel Persistent Memory .

Storage flexibility is achieved through support for up to 10 × 2.5-inch or 4 × 3.5-inch front drives, with additional rear drive options. The R650 supports PCIe Gen4 and up to 24 NVMe drives, delivering substantial throughput improvements for data-intensive applications .

With up to 3 PCIe Gen4 expansion slots, iDRAC9 management, and optional Direct Liquid Cooling, the R650 is ideal for mixed workload standardization, database and analytics, VDI, and AI/ML environments requiring performance and GPU support in a dense 1U form factor .

Technical Specifications

Category Specification
Form Factor 1U rack server
Processors Up to 2 × 3rd Generation Intel Xeon Scalable processors; up to 40 cores per processor
Memory 32 × DDR4 DIMM slots; RDIMM: max 2 TB; LRDIMM: max 4 TB; NVDIMM: max 128 GB; Intel Persistent Memory 200 series: max 8 TB; speeds up to 3200 MT/s; supports registered ECC DDR4 DIMMs only
Drive Bays (Front) Up to 10 × 2.5-inch SAS/SATA/NVMe (max 153 TB); Up to 8 × 2.5-inch SAS/SATA/NVMe (max 122.88 TB); Up to 4 × 3.5-inch SAS/SATA (max 64 TB)
Drive Bays (Rear) Up to 2 × 2.5-inch SAS/SATA/NVMe (max 30.7 TB)
Storage Controllers Internal: PERC H745, H345, H755, H755N, HBA355i; External: PERC H840, HBA355E; Software RAID: S150; Boot Optimized: BOSS-S2 (HWRAID 2 × M.2 SSD, 240 GB or 480 GB)
PCIe Expansion Up to 3 × PCIe Gen4 slots (low profile, all x16 except one x8) or 2 × PCIe Gen4 slots (full height)
Power Supply Up to 2 × hot-plug redundant PSUs: 800 W Platinum AC/240 V DC; 1100 W Titanium AC/240 V DC; 1400 W Platinum AC/240 V DC
Networking 2 × 1 GbE LOM; 1 × OCP 3.0 (optional, x8 PCIe)
Management iDRAC9; Quick Sync 2 wireless module; iDRAC Service Module
Front Ports 1 × iDRAC Direct Micro-USB; 1 × USB 2.0; 1 × VGA

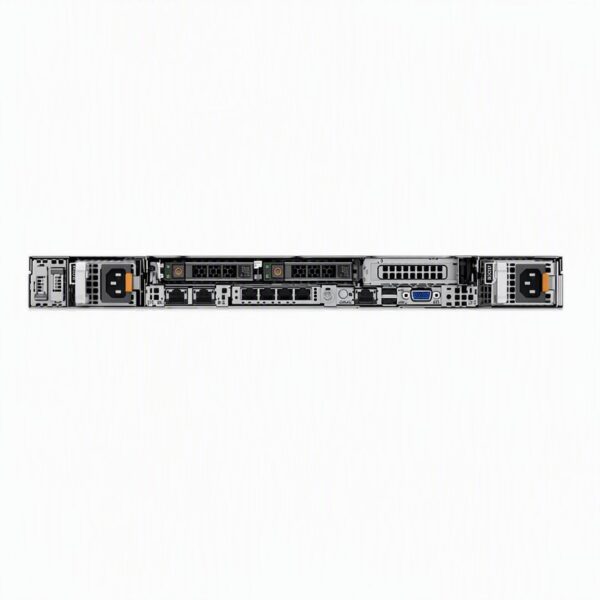

Rear Ports 1 × USB 2.0; 1 × USB 3.0; 1 × VGA (optional for liquid cooling); 1 × serial (optional)
Internal Ports 1 × USB 3.0
Operating Systems Canonical Ubuntu Server LTS; Citrix Hypervisor; Microsoft Windows Server with Hyper-V; Red Hat Enterprise Linux; SUSE Linux Enterprise Server; VMware ESXi
Security Cryptographically signed firmware; Secure Boot; Secure Erase; Silicon Root of Trust; System Lockdown (requires iDRAC9 Enterprise/Datacenter); TPM 1.2/2.0 FIPS; CC-TCG certified
Accelerators Up to 3 × single-width 75 W GPUs
Dimensions (H × W × D) 42.8 mm × 482 mm × 809 mm (without bezel); 822.84 mm (with bezel)
Maximum Weight 21.2 kg (46.7 lb)
Bezel Optional LCD bezel or security bezel
