Dell PowerEdge R430 Server — Product Resource List
Product Overview

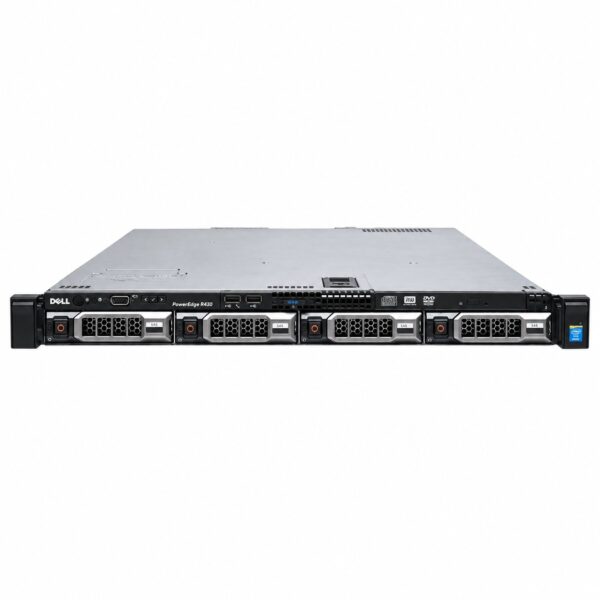

The Dell PowerEdge R430 is a dual-socket 1U rack server designed for entry-level to mid-range enterprise workloads. It delivers exceptional performance, configuration flexibility, high availability, and intuitive management within a space-saving, shallow-depth chassis (24 inches). The R430 is ideal for high-performance computing (HPC), web technologies, and infrastructure scale-out, while also serving well as a collaboration and productivity application server, monitoring and site security server, or dedicated backup/development server.
Powered by the latest Intel Xeon processor E5-2600 v4 product family, the R430 accelerates performance across a wide range of workloads. It supports up to 12 DDR4 DIMM slots, up to 10 high-IOPS hard drives, and 2 PCIe 3.0 I/O slots, driving up to 2x data throughput compared to previous generations. The system is virtualization-ready and supports high-availability clustering, making it adaptable to changing workload conditions.
System management is provided through the integrated Dell Remote Access Controller 8 (iDRAC8) with Lifecycle Controller, which automates deployment, configuration, and updates to reduce time-to-production and improve ROI. The Dell OpenManage portfolio further simplifies and automates essential server lifecycle management tasks.
Technical Specifications
Processor
| Specification | Detail |
|---|---|
| Form Factor | 1U rack server |
| Processor Socket | 2 sockets |
| Supported CPU Families | Intel Xeon processor E5-2600 v3 or E5-2600 v4 product family |
| Chipset | Intel C610 |
| Internal Interconnect | Up to 9.6 GT/s |
| Cache | 2.5 MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 20 |
Memory
| Specification | Detail |
|---|---|
| DIMM Slots | 12 DDR4 DIMM slots |
| Memory Type | DDR4 Registered DIMM (RDIMM) and Load-Reduced DIMM (LRDIMM) |
| Supported Frequencies | 1866 MT/s, 2133 MT/s, 2400 MT/s |
| DIMM Capacities | 4 GB single-rank (RDIMM); 8 GB, 16 GB, or 32 GB dual-rank (RDIMM) |
| Maximum RAM (Single Processor) | Up to 256 GB |
| Maximum RAM (Dual Processor) | Up to 384 GB |
| Memory Channel Organization | Processor 1: Channel 0 (A1, A5), Channel 1 (A2, A6), Channel 2 (A3, A7), Channel 3 (A4, A8); Processor 2: B1, B2, B3, B4 |
Hard Drives and Storage
| Specification | Detail |
|---|---|
| Supported Drive Types | SAS, SATA, Nearline SAS, SSD |
| 10-Drive System | Up to 10 x 2.5″ hot-swappable SATA HDDs or SATA SSDs |
| 8-Drive System | Up to 8 x 2.5″ hot-swappable SAS, SATA, SATA SSD, or Nearline SAS drives |
| 4-Drive System | Up to 4 x 3.5″ cabled HDDs; or up to 4 x 3.5″ hot-swappable SAS/SATA HDDs/SATA SSDs; or up to 4 x 2.5″ hot-swappable SAS/SATA HDDs/SATA SSDs |
| Optical Drive | One optional slim SATA DVD-ROM or DVD+/-RW drive (supported on 4-drive and 8-drive systems) |
| Note | SSD/SAS/SATA hard drives cannot be mixed in a system |
Storage Controllers
| Controller Type | Supported Models |
|---|---|
| Internal Controllers | PERC S130 (software RAID), PERC H330, PERC H730, PERC H730P |
| External HBA (RAID) | PERC H830 |
PCIe Expansion Cards
| Riser Type | Slot | Processor | Link Width | Slot Width | Height | Length |
|---|---|---|---|---|---|---|
| PCIE_G3_X8 (Butterfly) | Right – Slot 1 | 1 | x8 | x16 | Full height | Half length |
| PCIE_G3_X8 (Butterfly) | Left – Slot 2 | 1 | x8 | x16 | Half height | Half length |
| PCIE_G3_X16 (Left or Right) | Right riser – Slot 1 | 1 | x16 | x16 | Half height | Half length |
| PCIE_G3_X16 (Left or Right) | Left riser – Slot 2 | 1 | x16 | x16 | Half height | Half length |
Note: Expansion cards are not hot-swappable and require an expansion-card riser for installation. The system supports Generation 1, Generation 2, and Generation 3 cards.

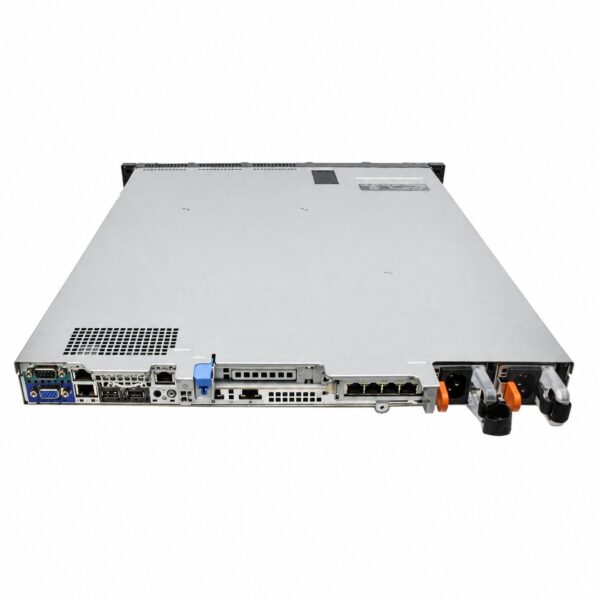

Ports and Connectors
| Connector | Quantity / Specification |
|---|---|
| NIC Ports | 4 x 10/100/1000 Mbps (rear panel) |
| USB (Front) | 2 x 4-pin, USB 2.0-compliant |
| USB (Rear) | 1 x 9-pin, USB 3.0-compliant; 1 x 4-pin, USB 2.0-compliant |
| USB (Internal) | 1 x 9-pin, USB 3.0-compliant |
| Serial | 1 x 9-pin, DTE, 16550-compliant (rear panel) |
| VGA | 2 x 15-pin (one front, one rear) |
| Internal Dual SD Module | 2 optional flash memory card slots (one dedicated for redundancy) |
| Video Controller | Matrox G200 with 16 MB capacity |
Power Supplies
| Specification | Detail |
|---|---|
| Power Supply Options | 450 W AC and 550 W AC |
| Redundancy | Up to two AC redundant power supply units (PSUs); one AC cabled PSU also supported |
Chassis Dimensions and Weight
| Specification | Measurement |
|---|---|
| Height | 42.8 mm (1.68 inches) |
| Width (with rack latches) | 482.4 mm (18.99 inches) |
| Width (without rack latches) | 434.0 mm (17.08 inches) |
| Depth (with bezel) | 677.3 mm (26.66 inches) |
| Depth (without bezel) | 662.4 mm (26.07 inches) |
| Maximum Weight (fully configured) | 19.9 kg (43.87 lbs) |
Supported Operating Systems
| Operating System |
|---|
| Microsoft Windows Server |
| Red Hat Enterprise Linux |
| SUSE Linux Enterprise Server |
| VMware ESXi |
| Microsoft Windows Server with Hyper-V |
