Dell EMC PowerEdge R230 Server — Product Resource List

Product Overview

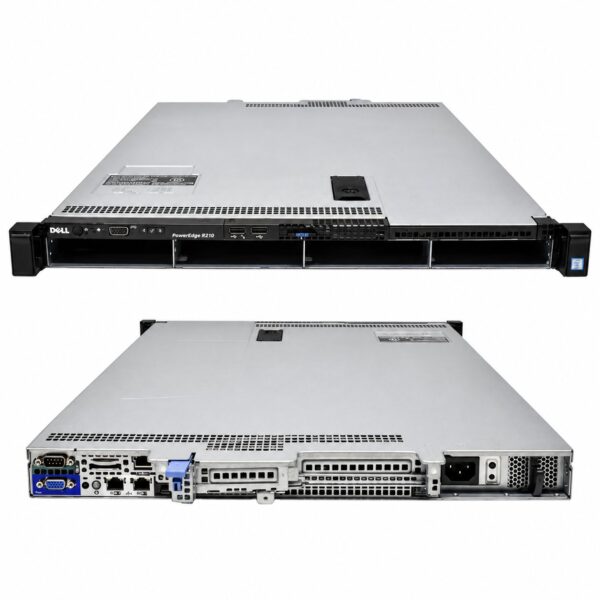

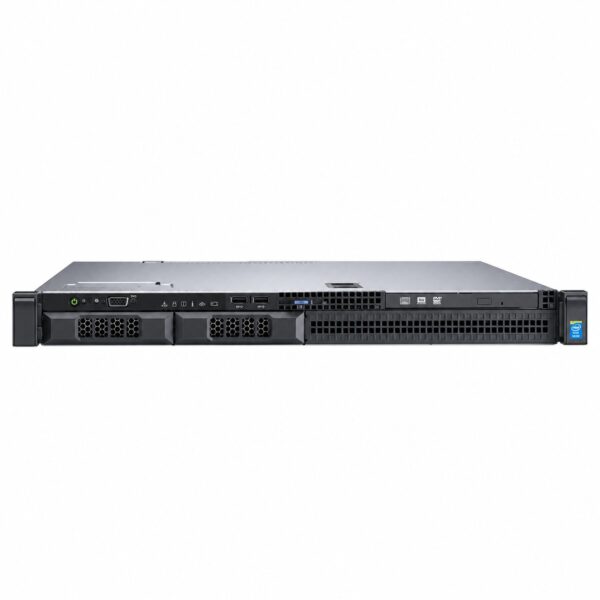

The Dell EMC PowerEdge R230 is a single-socket 1U rack server designed for small and medium businesses (SMB) and remote office/branch office (ROBO) environments. It serves as an excellent first server or replacement server for driving common business applications.

Compared to its predecessor, the PowerEdge R220, the R230 delivers greater memory capacity, more hard drive options, and additional I/O slots. It accelerates data throughput and IOPS performance with support for PCIe 3.0 expansion slots and PERC9 storage controllers. The R230 supports up to four DDR4 DIMM slots with a maximum memory capacity of 64GB, driving application performance and fast response times. With support for up to four internal 3.5-inch cabled or hot-plug hard drives, it accommodates data growth over time.

Remote monitoring and control of the R230 is provided by the integrated Dell Remote Access Controller (iDRAC8) with Lifecycle Controller, making it well-suited for remote deployments. The system is virtualization-ready, supporting Microsoft Windows Server with Hyper-V and VMware vSphere ESXi.

Technical Specifications

Processor

Specification Detail
Socket Single socket
Supported CPU Families Intel Xeon E3-1200 v5 and v6 series; Intel Core i3 6100 series; Intel Celeron G3900 series; Intel Celeron G3930; Intel Pentium G4500 series; Intel Pentium G4600 series

Memory

Specification Detail
DIMM Slots 4 DDR4 DIMM slots
Memory Type Unbuffered DDR4 ECC DIMMs (UDIMM)
Maximum Capacity 64GB
Memory Speeds 1600 MT/s, 1866 MT/s, 2133 MT/s, 2400 MT/s
Channel Organization Channel 0: slots A1, A3; Channel 1: slots A2, A4
Sample Configurations 4GB (1×4GB), 8GB (2×4GB or 1×8GB), 16GB (4×4GB or 2×8GB or 1×16GB), 32GB (4×8GB), 64GB (4×16GB)

Hard Drives and Storage

Specification Detail
Supported Drive Types SAS, SATA, Nearline SAS HDDs, and SSDs
4-Drive System Options Up to 4 × 3.5″ cabled HDDs; up to 4 × 2.5″ hot-swap SATA or Nearline SAS in 3.5″ adapters; up to 4 × 3.5″ hot-swap SATA or Nearline SAS
2-Drive System Option Up to 2 × 3.5″ cabled HDDs
Optical Drive One optional slim SATA DVD-ROM or DVD+/-RW drive

Storage Controllers

Controller Type Supported Models
Internal RAID Controllers PERC H330, PERC H730, PERC H730P, PERC H830
External Controllers 12Gbps SAS HBA
Software RAID S130

PCIe Expansion Cards

Slot Height Length Link Width Slot Width
PCIe Slot 1 Half height Half length x4 x8
PCIe Slot 2 Full height Half length x8 x16

Note: Expansion cards are not hot-swappable. The PERC H730 (full height) is assigned the highest installation priority in Slot 2 .

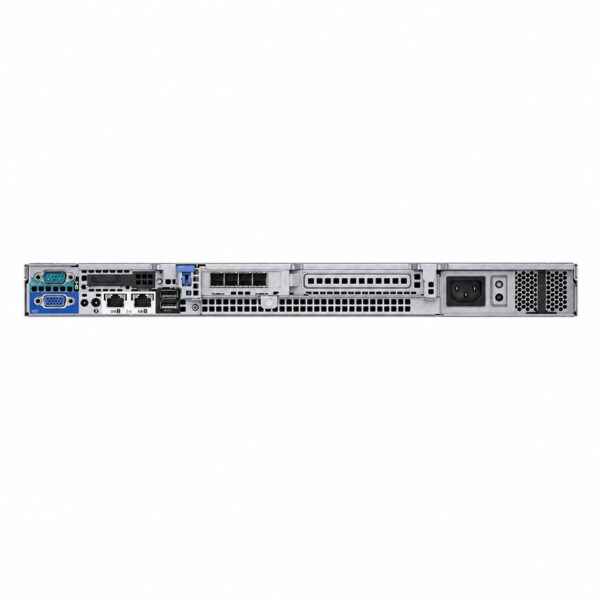

Ports and Connectors

Connector Quantity / Specification
NIC Ports 2 × 10/100/1000 Mbps (rear panel)
USB (Front) 2 × 4-pin, USB 2.0 compatible
USB (Rear) 2 × 9-pin, USB 3.0 compatible
USB (Internal) 1 × 9-pin, USB 3.0 compatible
Serial 1 × 9-pin, DTE, 16550 compatible
VGA 2 × 15-pin (one front, one rear)
iDRAC8 Enterprise Port 1 × dedicated GbE Ethernet (optional)
SD vFlash 1 × SD vFlash memory card (optional, requires iDRAC8 Enterprise license)

Video

Specification Detail
Controller Integrated Matrox G200 with iDRAC8 and 16 MB application memory
