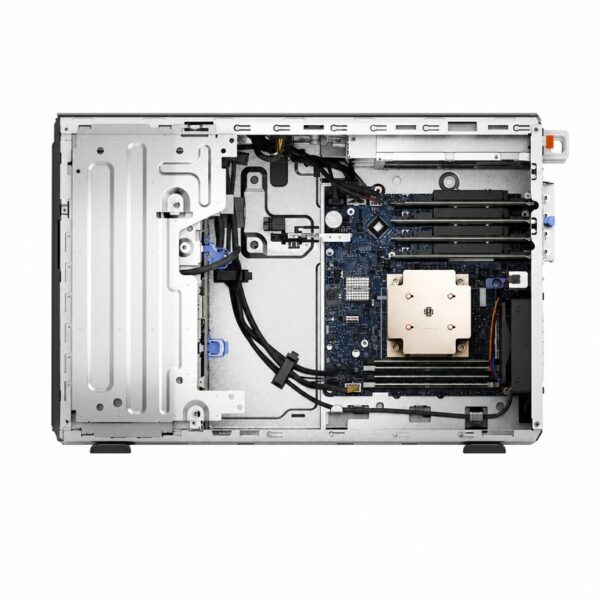

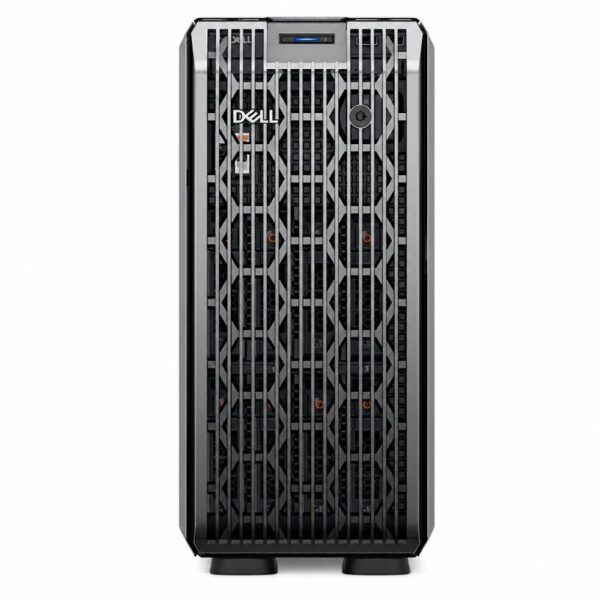

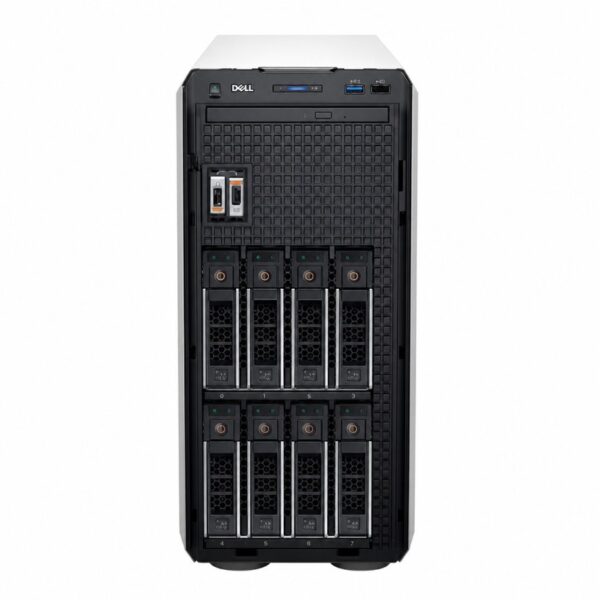

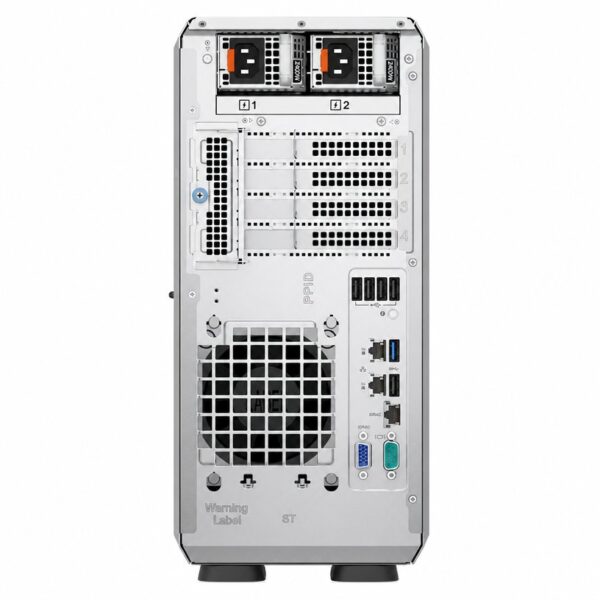

Dell PowerEdge T350 Tower Server
Dell PowerEdge T350 Tower Server
Enterprise stock · tested · export documentation available
Dell PowerEdge T350 Tower Server – Product Overview & Specifications
Product Overview
The Dell PowerEdge T350 is a single-socket tower server engineered for small to mid-sized businesses, remote office/branch office (ROBO) environments, and organizations seeking enterprise-class features in an affordable, easy-to-manage form factor. Powered by Intel Xeon E-2300 series processors (or Intel Pentium for entry-level configurations), the T350 delivers increased performance for productivity and data-intensive workloads such as database management, point-of-sale transactions, file/print services, and collaboration applications.
The system supports DDR4 UDIMM memory at speeds up to 3200 MT/s with a maximum capacity of 128 GB, enabling efficient handling of memory-intensive workloads. PCIe Gen 4 support provides substantial throughput improvements over previous generations, while the 4.5U tower chassis design reduces physical footprint by approximately 37% compared to predecessor models without compromising functionality.
Key design priorities include high availability through hot-plug redundant power supplies, hot-plug drive bays, and hot-plug BOSS (Boot Optimized Storage Subsystem). Built-in security features include UEFI Secure Boot, Silicon Root of Trust, and System Lockdown, providing a cyber-resilient architecture from silicon to firmware.
Specifications
| Feature | Technical Specification |
|---|---|
| Processor | One Intel Xeon E-2300 series processor with up to 8 cores, or one Intel Pentium processor with up to 2 cores |
| Chipset | Intel C256 series chipset |
| Memory | 4 DDR4 DIMM slots, UDIMM only (non-registered ECC DDR4 DIMMs), up to 128 GB maximum capacity, speeds up to 3200 MT/s Note: Pentium processors support maximum memory speed of 2666 MT/s |
| Memory Slots | 4 x 288-pin DIMM slots (not hot-pluggable) |
| Storage Controller – Internal | PERC H755, PERC H355, PERC H345, HBA355i, S150 (software RAID) |
| Storage Controller – External | HBA355e (non-RAID) |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS-S2): HWRAID with 2 x M.2 SSD (240 GB or 480 GB); internal dual SD module; or internal USB 3.0 |
| Drive Bays (Front) | Up to 4 x 3.5″ SAS/SATA HDD/SSD (maximum 64 TB) Up to 8 x 3.5″ SAS/SATA HDD/SSD (maximum 128–160 TB) Note: 2.5″ drives supported in 3.5″ hybrid drive carriers |
| PCIe Slots | Slot 1: PCIe Gen 4, full height, half length, x4 link in x8 slot (processor 1) Slot 2: PCIe Gen 4, full height, full length, x16 (processor 1) Slot 3: PCIe Gen 3, full height, half length, x1 (PCH) Slot 4: PCIe Gen 3, full height, half length, x4 link in x8 slot (PCH) Note: Slot 1 disabled with Intel Pentium processors |
| Network Options | 2 x 1 GbE LOM (LAN on Motherboard); Broadcom 5720 Dual Port 1Gb On-Board LOM |
| Front Ports | 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.0 |
| Rear Ports | 5 x USB 2.0 1 x USB 3.0 1 x serial 1 x iDRAC Ethernet 1 x VGA |
| Internal Ports | 1 x USB 3.0 (optional) |
| Video | 1 x VGA port |
| Power Supply | 450 W Bronze AC/100–240 V (cabled) 600 W Platinum AC/100–240 V 600 W DC/240 V |
| Cooling | Air cooling; one system fan (non-hot-plug, cabled) |
| Form Factor | 4.5U Tower Server |
| Dimensions | Height: 369.5 mm (14.54 in) without feet; 382.5 mm (15.06 in) with feet Width: 175 mm (6.88–6.89 in) Depth: 581.12 mm (22.87–22.88 in) with bezel |
| Weight | 25.34 kg (55.86 lb) |
| Embedded Management | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module |
| Security | Cryptographically signed firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 1.2/2.0 FIPS/CC-TCG certified, TPM 2.0 NationZ (China) |
| OpenManage Software | OpenManage Enterprise, OpenManage Power Manager plug-in, OpenManage SupportAssist plug-in, OpenManage Update Manager plug-in |
| Supported Operating Systems | Canonical Ubuntu Server LTS, Citrix Hypervisor, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi |
