Dell PowerEdge R740XD Server — Product Data Sheet
Product Overview

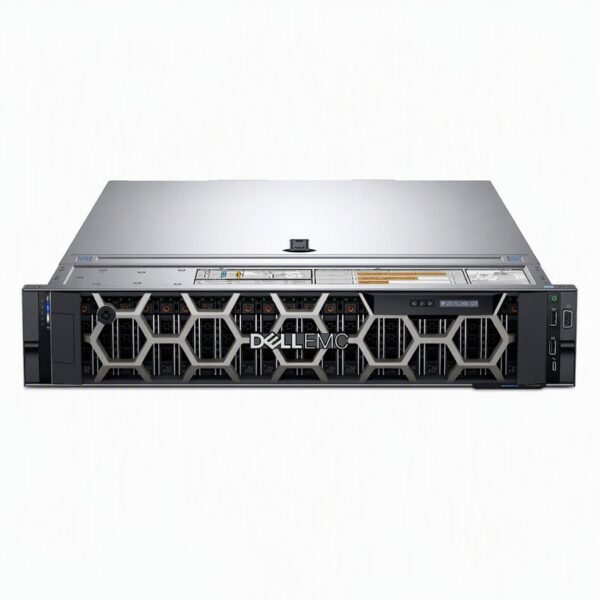

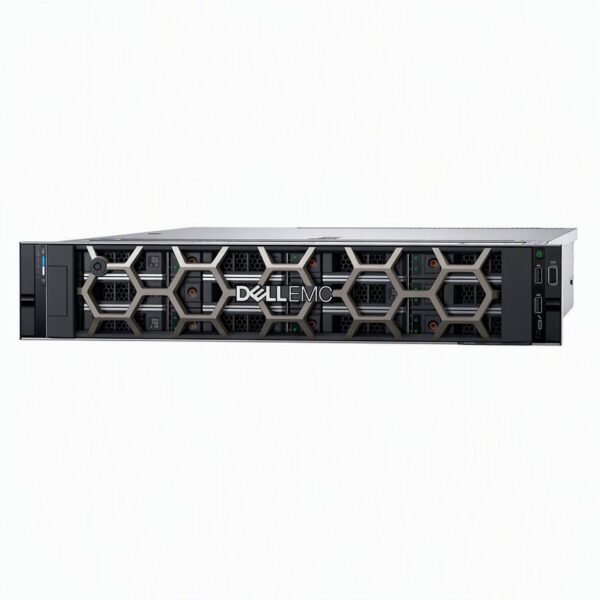

The Dell PowerEdge R740XD is a 2U, dual-socket rack server engineered to deliver a perfect balance between storage scalability and performance. It is the “XD” (eXtreme Density) variant of the R740 platform, designed specifically for storage-intensive workloads that demand high drive counts and flexible configuration options.
The R740XD supports up to 24 front-accessible NVMe drives and a total of up to 32 x 2.5-inch or 18 x 3.5-inch drives across front, mid, and rear bays. This makes it an ideal platform for software-defined storage (SDS), virtual desktop infrastructure (VDI), service providers, and database applications that require both high capacity and high-performance storage.
The system’s versatile architecture allows mixing NVMe, SSD, and HDD drive types within the same chassis to create the optimal configuration for performance, capacity, or both. With support for up to three 300W double-wide GPUs or six 150W single-wide GPUs, the R740XD can also accelerate graphics-intensive and compute-heavy workloads.
Technical Specifications
Processor
| Specification | Details |
|---|---|
| Processor Type | 2nd Generation Intel Xeon Scalable Processors |
| Socket Count | Up to 2 |
| Max Cores per Processor | Up to 28 cores |
| Note | Processor sockets are not hot-pluggable |
Memory
| Specification | Details |
|---|---|
| DIMM Slots | 24 x DDR4 DIMM slots |
| Memory Types | RDIMM, LRDIMM, NVDIMM-N, DCPMM (Intel Optane DC Persistent Memory) |
| Max Speed | Up to 2933 MT/s |
| Max Capacity (RDIMM) | Up to 1.53 TB |
| Max Capacity (LRDIMM) | Up to 3 TB |
| Max Capacity (NVDIMM-N) | 192 GB (up to 12 modules) |
| Max Capacity (DCPMM) | Up to 6.14 TB (up to 7.68 TB with LRDIMM) |
| ECC Support | Registered ECC DDR4 DIMMs only |
| Note | NVDIMM-N requires minimum two CPUs |
Storage — Drive Bays
| Bay Location | Drive Configuration Options |
|---|---|
| Front Bays | Up to 24 x 2.5″ SAS/SSD/NVMe (max 184 TB) or Up to 12 x 3.5″ SAS/SATA HDD |

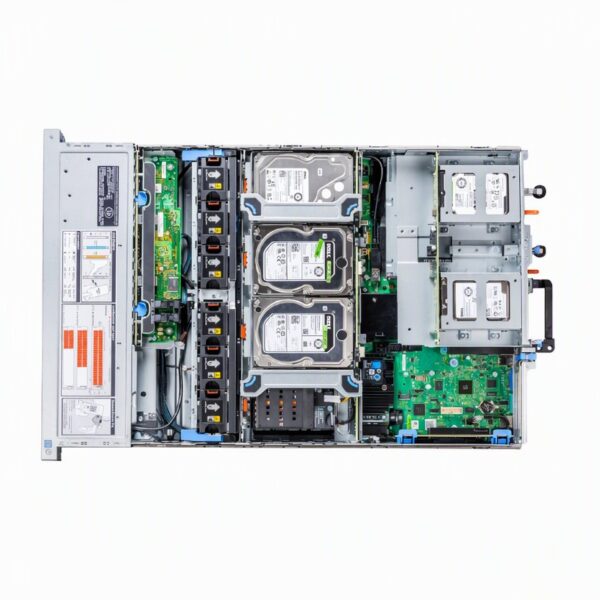

| Mid Bays | Up to 4 x 3.5″ SAS/SATA (max 64 TB) or Up to 4 x 2.5″ SAS/SSD/NVMe |
| Rear Bays | Up to 4 x 2.5″ SAS/SSD/NVMe (max 30.72 TB) or Up to 2 x 3.5″ SAS/SATA HDD |
Storage Controllers
| Category | Available Controllers |
|---|---|
| Internal Controllers | PERC H330, H730P, H740P, HBA330 |
| Software RAID | S140 |
| External PERC (RAID) | H840 |
| External HBAs (Non-RAID) | 12 Gbps SAS HBA |
| Boot Optimized Subsystem | HWRAID with 2 x M.2 SSDs (120 GB or 240 GB) |
PCIe Expansion & Accelerators
| Specification | Details |
|---|---|
| PCIe Slots | Up to 8 x Gen3 slots (up to 4 x16) |
| GPU Support | Up to 3 x 300W double-wide or 6 x 150W single-wide |
| FPGA Support | Up to 3 x double-wide or 4 x single-wide |
| GPU/FPGA Note | Available only on 24 x 2.5″ drive chassis; up to 2 GPUs on NVMe configurations |
Network Options
| Specification | Details |
|---|---|
| Network Daughter Card (NDC) | 4 x 1 GbE or 2 x 10 GbE + 2 x 1 GbE or 4 x 10 GbE or 2 x 25 GbE |
Power Supplies
| Wattage | Class / Type |
|---|---|
| 495 W | Platinum |
| 750 W | Platinum, Titanium, or 240 VDC |
| 1100 W | Platinum, 380 VDC, or -48 VDC Gold |
| 1600 W | Platinum |
| 2000 W | Platinum |
| 2400 W | Platinum |
| Note | Hot-plug with full redundancy option; up to 6 hot-plug fans with full redundancy |
Dimensions & Weight
| Specification | Details |
|---|---|
| Form Factor | 2U Rack |
| Height | 86.8 mm (3.42 inches) |
| Width | 482.0 mm (18.98 inches) |
| Max Depth | 715.5 mm (28.17 inches) |
| Weight (2.5″ drives) | 28.1 kg (61.95 lb) |
| Weight (3.5″ drives) | 33.1 kg (72.91 lb) |

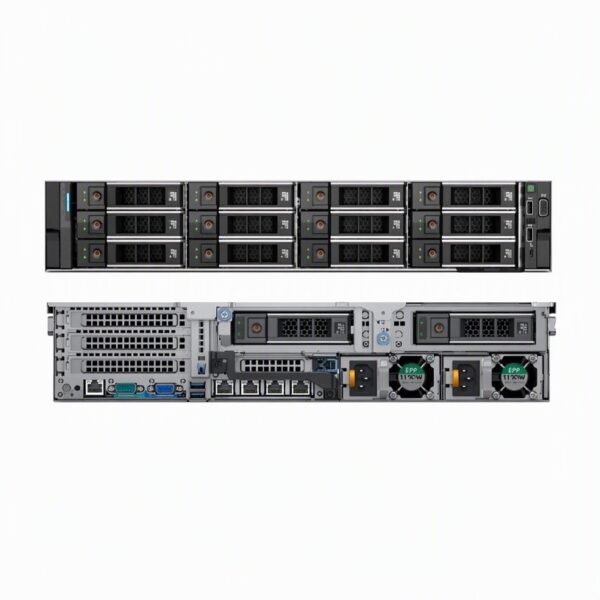

Ports & Connectors
| Location | Ports |
|---|---|
| Front | 1 x VGA, 2 x USB 2.0, 1 x micro USB iDRAC Direct |
| Rear | 1 x VGA, 1 x Serial, 2 x USB 3.0, 1 x dedicated iDRAC network port |
Embedded Management
| Specification | Details |
|---|---|
| Remote Management | iDRAC9 with Lifecycle Controller (Express, Enterprise) |
| APIs | iDRAC RESTful API with Redfish |
| Wireless | Quick Sync 2 BLE/wireless module (optional) |
| Systems Management | OpenManage Enterprise, OpenManage Essentials, OpenManage Power Center |
| Integrations | Microsoft System Center, VMware vCenter, BMC Truesight |
Supported Operating Systems
| Operating System |
|---|
| Canonical Ubuntu Server LTS |
| Citrix Hypervisor |
| Microsoft Windows Server with Hyper-V |
| Red Hat Enterprise Linux |
| SUSE Linux Enterprise Server |
| VMware ESXi |
