Huawei CloudEngine CE6863H-48S6CQ-K Data Center Switch – Product Documentation

Name: Huawei CloudEngine CE6863H-48S6CQ-K - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6863H-48S6CQ-K

Product Overview

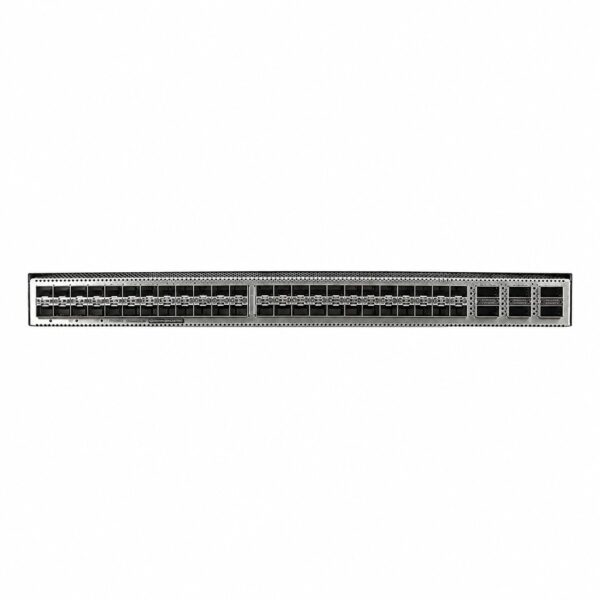

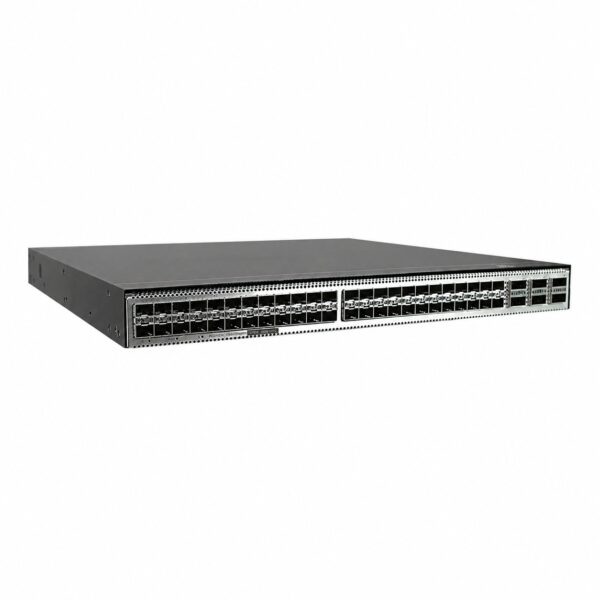

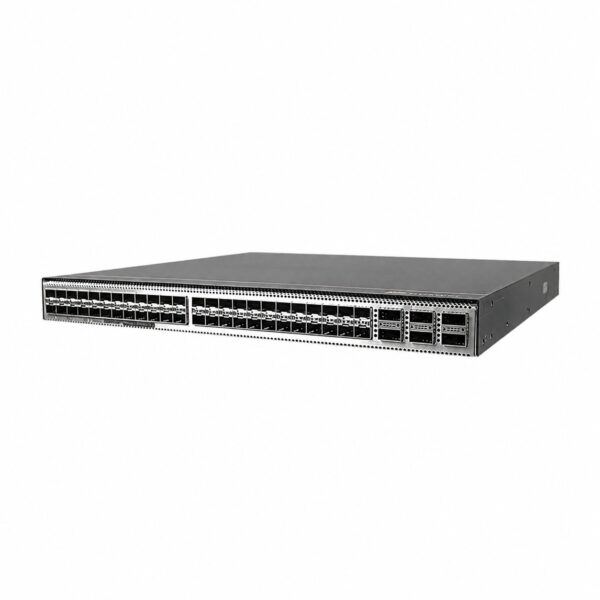

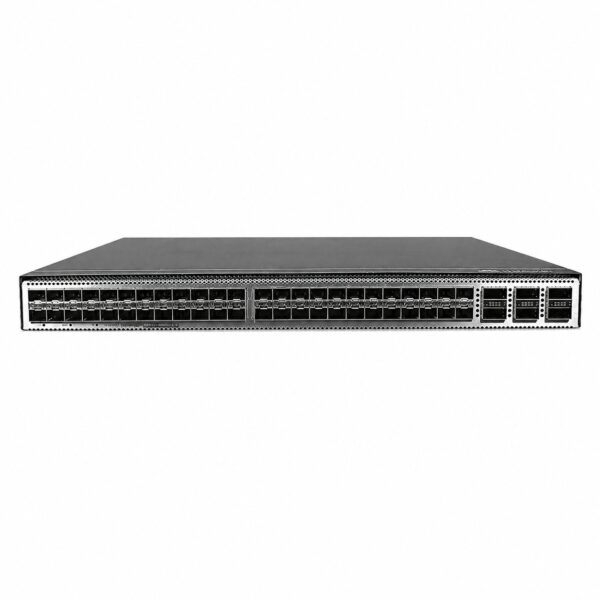

The Huawei CloudEngine CE6863H-48S6CQ-K is a next-generation, high-density 25GE access switch purpose-built for modern data center networks (DCNs). As part of the CloudEngine 6800 series, it leverages Huawei’s YunShan platform to deliver high performance, flexible deployment, and robust programmability . This switch is designed to serve as a top-of-rack (ToR) access layer device, providing 48 × 25GE SFP28 downlink ports and 6 × 100GE QSFP28 uplink ports, enabling enterprises and carriers to build elastic, virtualized, and high-quality 100GE fully-connected networks for the cloud computing era . Beyond data center deployments, it can also function as a core or aggregation switch in large campus networks .

The CE6863H-48S6CQ-K supports extensive data center features including VXLAN routing and bridging, BGP-EVPN for control plane simplification, and M-LAG for multi-device link aggregation, ensuring high reliability and seamless workload mobility . Its open programmability system (OPS) and NetConf/YANG support facilitate integration with mainstream cloud platforms and SDN controllers like Huawei’s iMaster NCE-Fabric, enabling automated operations and intelligent network management .

Product Specifications

Category	Specification
Model	CE6863H-48S6CQ-K
Part Number	02354VTA
First Supported Version	V300R022C00
Description	CE6863H-48S6CQ-K switch (48 × 25GE SFP28, 6 × 100GE QSFP28, without fan and power modules)
Downlink Ports	48 × 10GE/25GE SFP28 Ethernet optical ports
Uplink Ports	6 × 40GE/100GE QSFP28 Ethernet optical ports
Switching Capacity	4.8 Tbps/96 Tbps
Forwarding Rate	2,000 Mpps
CPU	Quad-core, 1.4 GHz
Memory	DRAM: 4 GB; NAND Flash: 4 GB; NOR Flash: 64 MB
Chassis Height	1 U
Dimensions (without packaging) (H × W × D)	Basic: 43.6 × 442.0 × 420.0 mm (1.72 × 17.40 × 16.54 in)
Weight (without packaging, full configuration)	7.8 kg (17.2 lb) (including AC power modules and fan modules, excluding optical modules)
Power Supply Mode	AC pluggable, DC pluggable, HVDC pluggable
Typical Power Consumption	226 W (100% throughput)
Airflow Design	Standard front-to-back or back-to-front airflow (configurable)
Operating Temperature	0°C to 40°C (0m to 1800m)
Storage Temperature	-40°C to +70°C
Relative Humidity	5% RH to 95% RH, non-condensing
Console Port	RJ45
USB Port	Supported (for log backup and USB-based deployment)
Management Port	1 × ETH management port (RJ45)

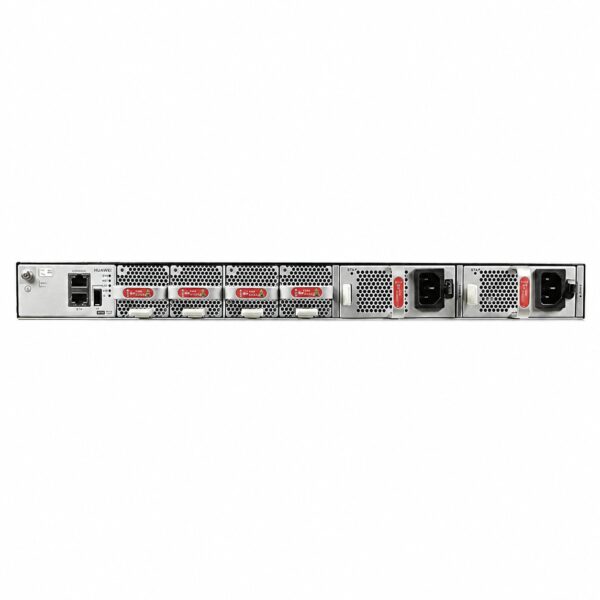

Fan Slots	4 (N+1 redundant, hot-swappable)
Power Supply Slots	2 (1+1 redundant, hot-swappable)
Device Virtualization	M-LAG (Multi-chassis Link Aggregation)
Network Virtualization	VXLAN routing and bridging, BGP-EVPN, QinQ access VXLAN
SDN Compatibility	iMaster NCE-Fabric, OpenFlow protocol
Programmability	OPS (Open Programmability System), NetConf/YANG
Network Fusion	RDMA, RoCE v1 and RoCE v2
Traffic Analysis	NetStream, Telemetry
IPv4/IPv6 Routing	RIP, OSPF, ISIS, BGP; RIPng, OSPFv3, ISISv6, BGP4+
High Availability	Hardware BFD (minimum 3.3ms interval), VRRP, ISSU
Security & AAA	802.1x, RADIUS, HWTACACS, MAC address filtering, port isolation
O&M Features	VXLAN OAM (ping/tracert), ERSPAN, path detection
