Huawei CloudEngine CE6820H-48S6CQ-K Switch – Product Documentation

Name: Huawei CloudEngine CE6820H-48S6CQ-K - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6820H-48S6CQ-K

Product Overview

The Huawei CloudEngine CE6820H-48S6CQ-K is a next-generation, high-performance 10GE access switch purpose-built for modern data center and high-end campus network environments . As part of the CloudEngine 6800 series, this 1RU switch delivers high port density and advanced features to support the demanding requirements of cloud computing and virtualized data centers .

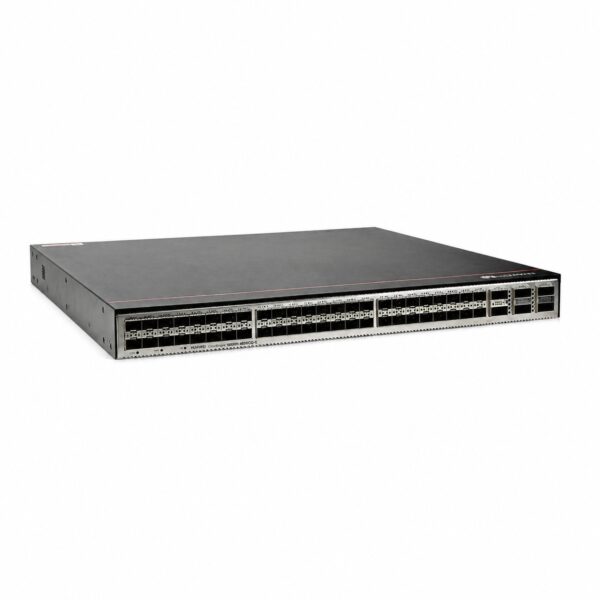

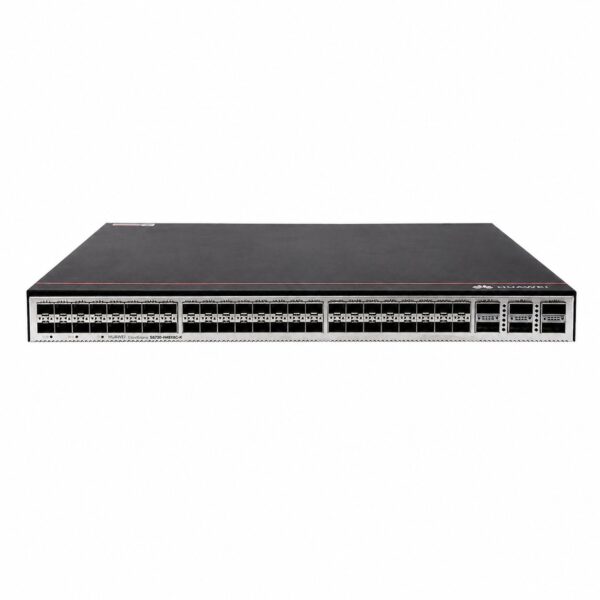

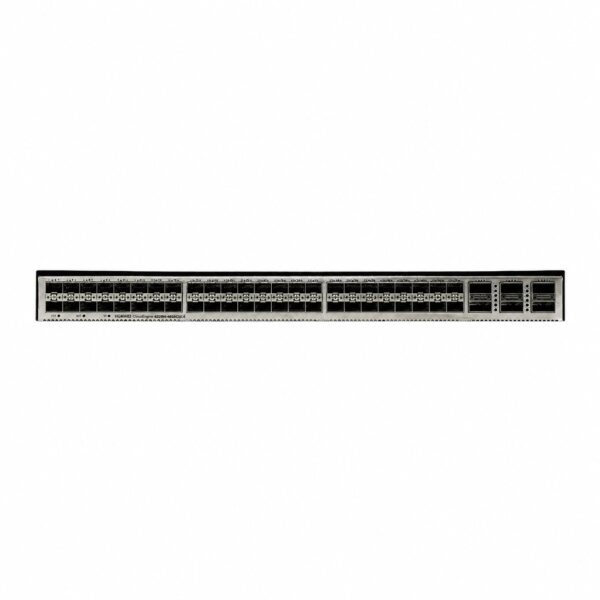

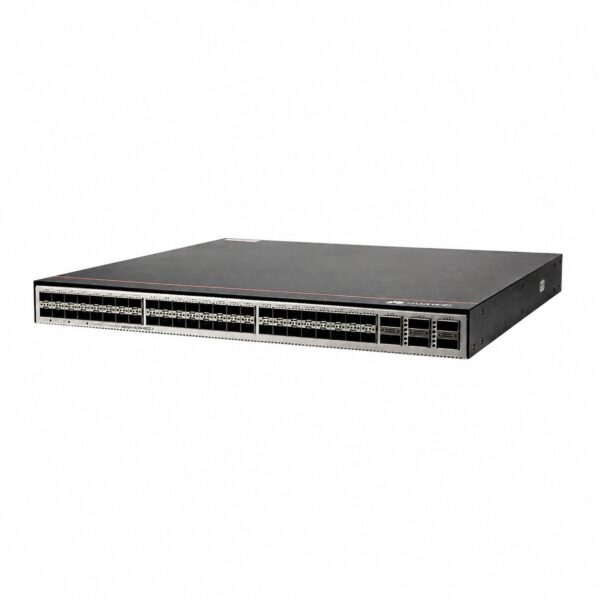

The switch provides 48 x 10GE SFP+ downlink ports and 6 x 40/100GE QSFP28 uplink ports, offering flexible connectivity options for high-bandwidth applications . Its advanced hardware architecture supports strict front-to-back or back-to-front airflow designs, which isolate cold and hot air channels to improve heat dissipation efficiency—making it well-suited for data center equipment rooms .

With support for M-LAG (Multi-Chassis Link Aggregation Group), the CE6820H-48S6CQ-K enables active-active redundancy across switches, ensuring seamless failover and uninterrupted service during network disruptions . The switch is also SDN-ready, supporting OpenFlow 1.3, NETCONF, VXLAN, and EVPN, allowing for automated network provisioning and simplified management through integration with OpenStack, VMware, and Huawei Agile Controller .

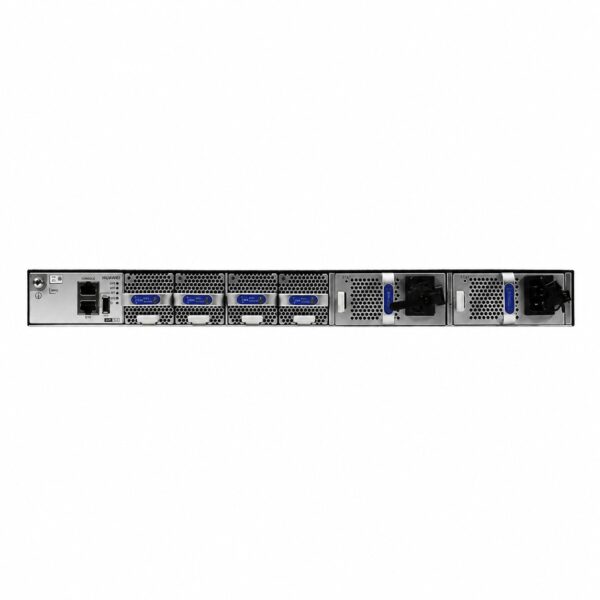

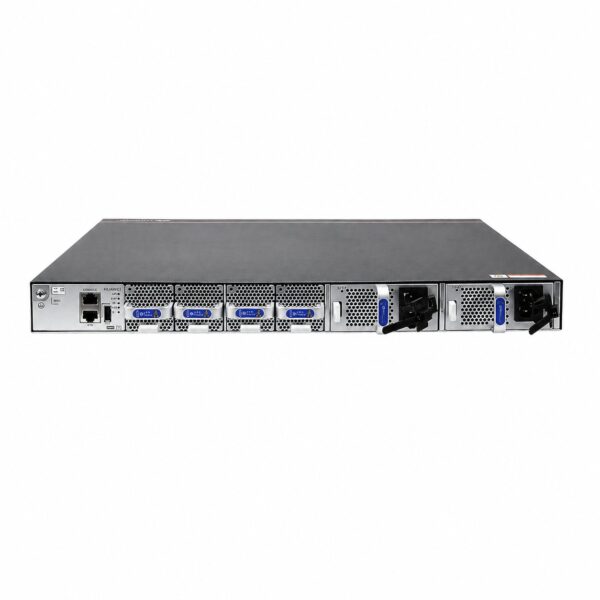

The CE6820H-48S6CQ-K is designed with enterprise-grade reliability in mind, featuring redundant, hot-swappable power modules and fan modules with 1+1 power redundancy and 3+1 fan redundancy . It can work in conjunction with CE16800 or CE12800 series core switches to build elastic, virtualized, and high-quality 40GE/100GE full-mesh networks .

Product Specifications

Category	Parameter	Details
General Information	Model	CE6820H-48S6CQ-K
	Part Number	02354VTE
	Short Name	CE6820H-K
	Product Type	Data Center Switch
	First Supported Version	V300R022C00
	Switching Capacity	2.56 Tbps / 40.96 Tbps
	Forwarding Rate	1080 Mpps
	Packet Buffer	21 MB
	CPU	4-core, 1.4 GHz
	Memory (DRAM)	4 GB
	NOR Flash	64 MB
	NAND Flash	2 GB
	Latency	< 3 μs (cut-through)
Port Configuration	Downlink Ports	48 x 10GE SFP+
	Uplink Ports	6 x 40/100GE QSFP28
	Console Port	RJ45
	Management Port	ETH management port (RJ45)
	USB Port	1 x USB (log backup and USB-based deployment)
Power Specifications	Power Supply Mode	AC pluggable, DC pluggable, HVDC pluggable
	Number of Power Modules	2
	Power Redundancy	1+1 backup
	Maximum Power Consumption	282 W
	Typical Power Consumption	162 W (100% throughput, high-speed cables) / 196 W (100% throughput, optical modules)
	Static Power Consumption	102 W
	Maximum Heat Dissipation	962 BTU/hour
	Typical Heat Dissipation	553 BTU/hour (high-speed cables) / 669 BTU/hour (optical modules)
	Static Heat Dissipation	348 BTU/hour
	Rated Input Voltage	AC 600W: 100V-240V, 50/60Hz; DC 1000W: -48V to -60V; HVDC 1200W: 240V-380V
	Input Voltage Range	AC: 90V-290V, 45-65Hz; DC: -38.4V to -72V; HVDC: 190V-400V
	Surge Protection	AC: 6kV common mode, 6kV differential mode; DC: 4kV common mode, 2kV differential mode
Cooling	Number of Fan Modules	4
	Fan Redundancy	3+1 hot-swappable
	Cooling Method	Air cooling
	Airflow Direction	Front-to-back or back-to-front (fan and power module dependent)
	Noise (Normal Temperature 27°C)	Front-to-back: < 55 dB(A); Back-to-front: < 56 dB(A)
	Noise (High Temperature 40°C)	Front-to-back: < 71 dB(A); Back-to-front: < 72 dB(A)
Physical Dimensions	Dimensions without packaging (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (basic) / 43.6 mm x 442.0 mm x 446.1 mm (max)
	Dimensions with packaging (H x W x D)	175 mm x 650 mm x 550 mm
	Weight	7.7 kg
Environmental Specifications	Long-term Operating Temperature	0°C to 40°C (0-1800m altitude); derates by 1°C per 220m above 1800m up to 5000m
	Storage Temperature	-40°C to 70°C
	Long-term Operating Humidity	5% to 95% RH, non-condensing
	Long-term Operating Altitude	≤ 5000 m
Reliability	Availability	0.99999618
	MTBF	45.48 years
Features & Protocols	SDN Support	OpenFlow 1.3, NETCONF, REST API
	Virtualization	VXLAN, EVPN, M-LAG
	High Availability	M-LAG, LACP, hardware-based BFD
	QoS	8 queues per port; supports PQ, DWRR, PQ+DWRR scheduling; WRED congestion avoidance
	VLAN	Access, Trunk, Hybrid, default VLAN, QinQ
	Security	802.1x authentication, ACL, port isolation, MACsec
	Management	CLI, SNMP, Web-based GUI, Telemetry, NetFlow, sFlow, ERSPAN+
	Stacking	Reserved function (not enabled)
Certifications	Safety, EMC, Environmental	Compliant with applicable standards
