Huawei CloudEngine CE6810-48S4Q-EI – Product Documentation

Name: Huawei CloudEngine CE6810-48S4Q-EI - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6810-48S4Q-EI

Product Overview

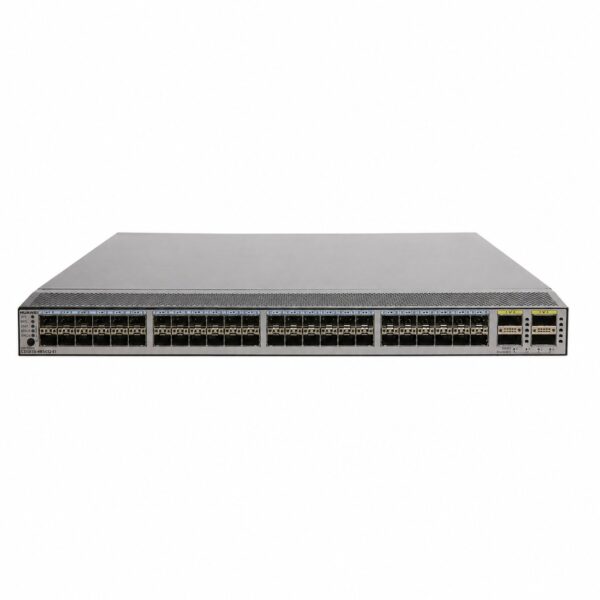

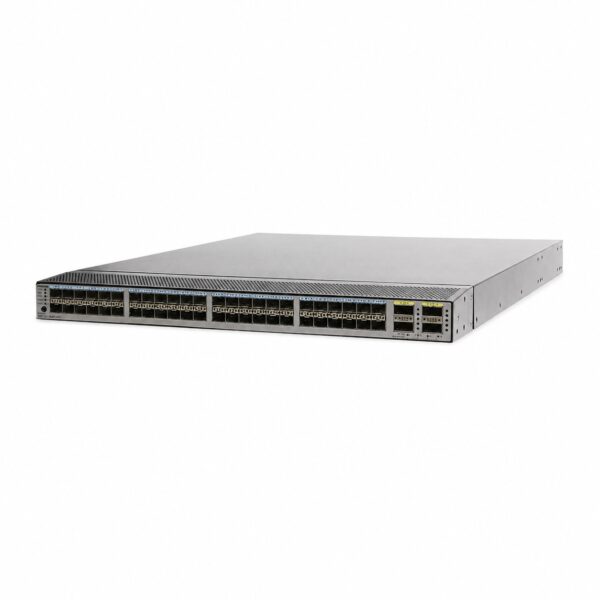

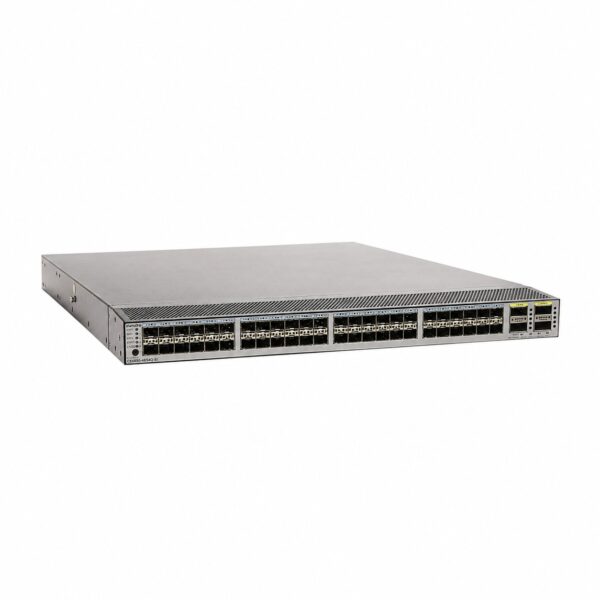

The Huawei CloudEngine CE6810-48S4Q-EI is a high-performance, high-density 10GE top-of-rack (ToR) data center switch designed for cloud computing and enterprise data center environments. It belongs to the CloudEngine 6800 series and provides 48 x 10GE SFP+ downlink ports and 4 x 40GE QSFP+ uplink ports, with a switching capacity of 1.28 Tbit/s and a forwarding rate of 960 Mpps.

The switch supports advanced data center features including TRILL for large-scale Layer 2 networks, FCoE for network convergence of storage and data traffic, and iStack for device virtualization stacking of up to 16 units. It is also SDN-ready with support for OpenFlow and the Open Programmability System (OPS), enabling flexible network automation and integration with cloud platforms.

Key highlights of the CE6810-48S4Q-EI include:

High-density 10GE access: 48 SFP+ ports with 4 x 40GE QSFP+ uplinks, supporting 40GE-to-4x10GE breakout
Flexible airflow design: Supports both front-to-back and back-to-front airflow for data center hot/cold aisle deployment
Comprehensive virtualization: iStack, SVF (as leaf node), TRILL, and VXLAN support
Network convergence: FCoE with DCBX, PFC, and ETS for lossless Ethernet
Programmability and automation: OPS, Python scripting, ZTP (Zero Touch Provisioning), and Puppet/OVSDB plugin support

Technical Specifications

Category	Specification
Part Number	02358856 (base unit) / 02359247 (with 2x600W AC PSU)
Fixed Ports

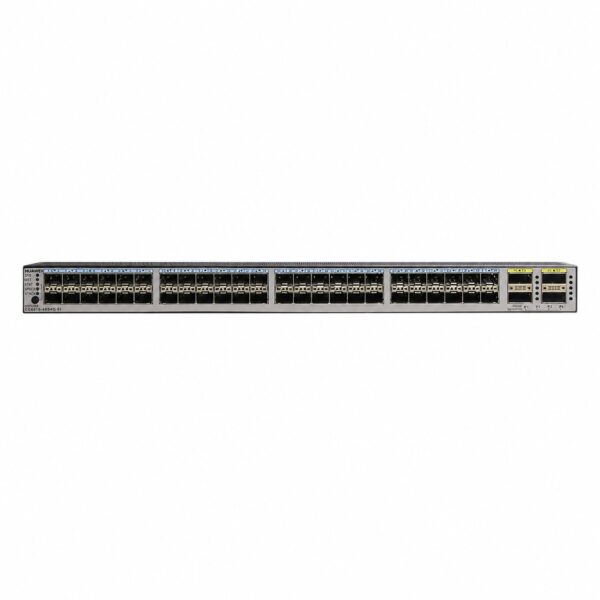

10GE SFP+ Ports	48
40GE QSFP+ Ports	4 (each can be split into 4 x 10GE ports)
Management Ports	1 x Console port (RJ45), 1 x ETH management port (RJ45), 1 x USB port
Performance
Switching Capacity	1.28 Tbit/s
Forwarding Rate	960 Mpps
MAC Address Table	64k (maximum)
ARP Table	4k (maximum)
IPv4 FIB	16k (maximum)
IPv6 FIB	8k (maximum)
Multicast FIB	2k (maximum)
ACL Entries	Ingress: 2,250 / Egress: 1,000
Power Specifications
Power Supply Type	AC or DC (depending on PSU module selection)
AC Input Voltage	100 V AC to 240 V AC, 50/60 Hz (rated); 90 V AC to 290 V AC (maximum)
DC Input Voltage	-38.4 V DC to -72 V DC
Maximum Power Consumption	≤ 238 W
Typical Heat Dissipation	344 BTU/hr (100% traffic load with 32 QSFP+ cables, dual PSUs)

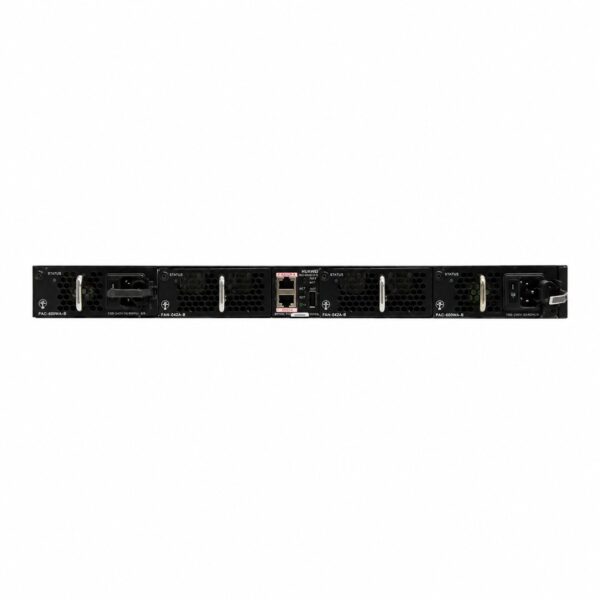

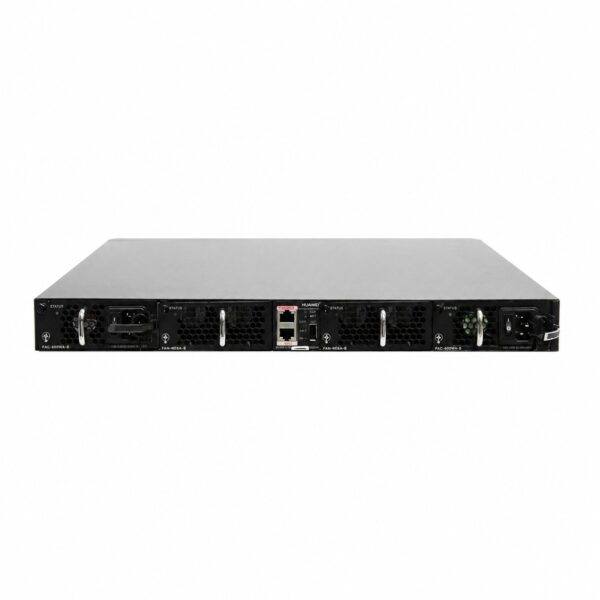

Power Module Slots	2 (1+1 redundancy supported)
Physical Specifications
Dimensions (W x D x H)	442.0 mm x 600.0 mm x 43.6 mm (1U height)
Weight (fully loaded)	10.4 kg (22.9 lb)
Rack Mounting	Standard 19-inch rack
Airflow Direction	Front-to-back or back-to-front (field-selectable)
Fan Module Slots	2 (hot-swappable, dual-fan redundancy)
Environmental Specifications
Operating Temperature	0°C to 40°C (32°F to 104°F) at 0–1,800 m altitude
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Operating Humidity	5% RH to 95% RH, non-condensing
Altitude Range	0 m to 5,000 m (16,404 ft)
Noise (Sound Pressure)	< 56 dBA (at 27°C)
Software & Protocols
Supported Software Version	V100R003C00 and later
Device Virtualization	iStack (stacking up to 16 switches); SVF (as leaf node)
Network Virtualization	TRILL, VXLAN
Network Convergence	FCoE, DCBX, PFC, ETS
SDN/Programmability	OpenFlow; OPS (Open Programmability System); Python scripting; Puppet/OVSDB plugins
IPv4 Routing	RIP, OSPF, ISIS, BGP
IPv6 Routing	RIPng, OSPFv3, ISISv6, BGP4+
Multicast	IGMP, PIM-SM, MSDP, MBGP; IGMP Snooping; IGMP Proxy
Reliability	STP/RSTP/MSTP, BPDU/Root/Loop Protection, SmartLink, DLDP, ERPS (G.8032), VRRP + BFD, BFD for BGP/IS-IS/OSPF/Static Route
QoS	Traffic classification (Layer 2/3/4); ACL/CAR/Remark/Scheduling; PQ/WRR/DRR scheduling; WRED congestion avoidance; Traffic shaping
VLAN	Access/Trunk/Hybrid; Default VLAN; QinQ; MUX VLAN; GVRP
Security	Port isolation; Sticky MAC; IP-MAC-port-VLAN binding; AAA/RADIUS/HWTACACS; 802.1x; DoS/ARP/ICMP attack defense
Management & O&M	Console/Telnet/SSH; SNMPv1/v2c/v3; FTP/TFTP; RMON; ZTP; 802.3az EEE; NetStream; sFlow; User operation logs; Hot patches
