Huawei CloudEngine S6735-S48X6C Product Documentation

Name: Huawei CloudEngine S6735-S48X6C - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S6735-S48X6C

Product Overview

The Huawei CloudEngine S6735-S48X6C is a high-performance, full 10GE Ethernet switch designed for next-generation enterprise network architectures. It belongs to the CloudEngine S6735-S series, which serves as a standard-type 10GE switch for the enterprise network market .

This model features 48 x 10GE SFP+ ports and 6 x 40GE/100GE QSFP28 uplink ports, delivering wire-speed forwarding across all ports with a switching capacity of 2.56/25.6 Tbps and a packet forwarding rate of 1620 Mpps . The switch is purpose-built for campus network core and aggregation layers, as well as data center access scenarios .

Key capabilities include comprehensive VXLAN support with BGP-EVPN for network virtualization, enabling multi-service convergence on a single network infrastructure. Telemetry-based intelligent O&M provides real-time network status collection and analysis, facilitating rapid fault identification and diagnosis . The switch also supports SVF (Super Virtual Fabric) for simplified network management, allowing it to operate as a parent node to manage downstream access switches and APs in a virtualized architecture .

The S6735-S48X6C comes in a compact 1U form factor with redundant, hot-swappable power supplies and fans, supporting a wide operating temperature range of -5°C to +45°C at altitudes up to 1800m .

Product Specifications

Category	Parameter	Specification
Model	Product Model	CloudEngine S6735-S48X6C
	Part Number	98011879
	Minimum Software Version	V200R021C00SPC600

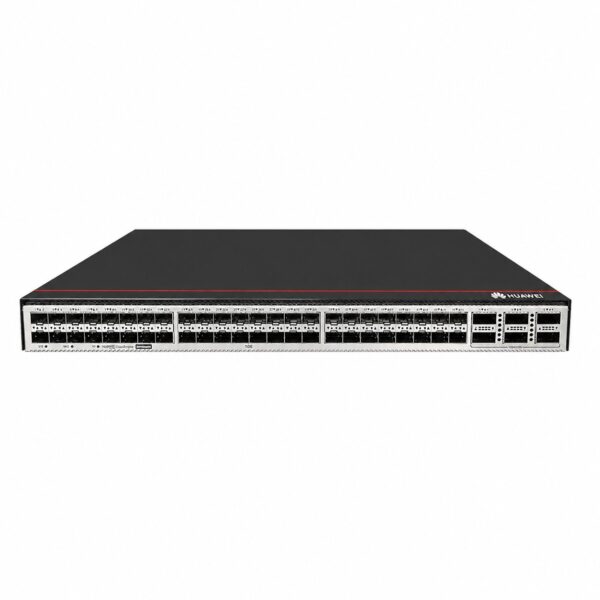

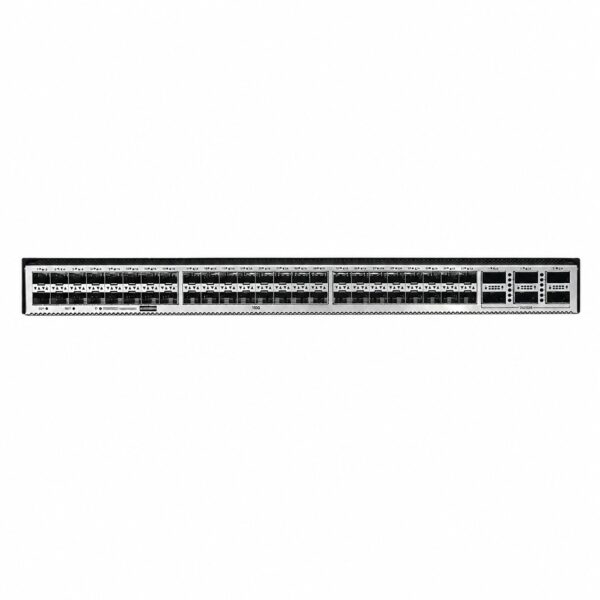

Ports	Fixed Ports	48 x 10GE SFP+ ports; 6 x 40GE/100GE QSFP28 ports
	Management Ports	1 x ETH management port (RJ45); 1 x Console port (RJ45)
	USB	1 x USB 2.0 Type A
Performance	Switching Capacity	2.56 Tbps / 25.6 Tbps
	Packet Forwarding Rate	1620 Mpps
	MAC Address Table	Supports automatic learning, aging, static, dynamic, and blackhole MAC entries
Physical Specifications	Form Factor	1U Rack-mountable
	Dimensions (W x D x H, base)	442.0 mm x 420.0 mm x 43.6 mm
	Dimensions (W x D x H, max)	442.0 mm x 446.0 mm x 43.6 mm
	Weight (without packaging)	6.24 kg
	Weight (with packaging)	8.0 kg
Power	Power Supply Slots	2 (1+1 redundancy support)
	Rated Input Voltage (AC)	100V AC ~ 240V AC; 50/60Hz
	Rated Input Voltage (DC)	-48V DC ~ -60V DC
	Rated Input Voltage (HVDC)	240V DC
	Input Voltage Range (AC)	90V AC ~ 290V AC; 45Hz ~ 65Hz
	Input Voltage Range (DC)	-38.4V DC ~ -72V DC
	Typical Power Consumption	168W
	Maximum Power Consumption	318W
	Typical Heat Dissipation	573.23 BTU/hour
	Maximum Heat Dissipation	1085.05 BTU/hour
Environmental Specifications	Long-term Operating Temperature	-5°C to +45°C (0m to 1800m altitude)
	Storage Temperature	-40°C to +70°C
	Long-term Operating Humidity	5% RH to 95% RH, non-condensing
	Operating Altitude	0m to 5000m
	Storage Altitude	0m to 5000m
	Ingress Protection	IP20

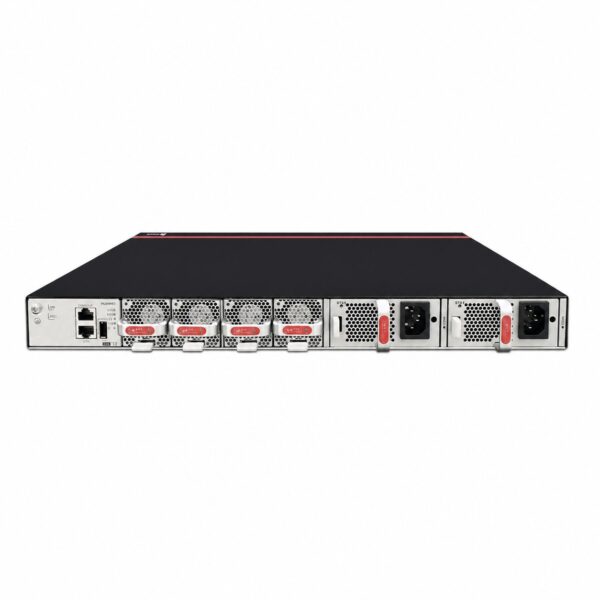

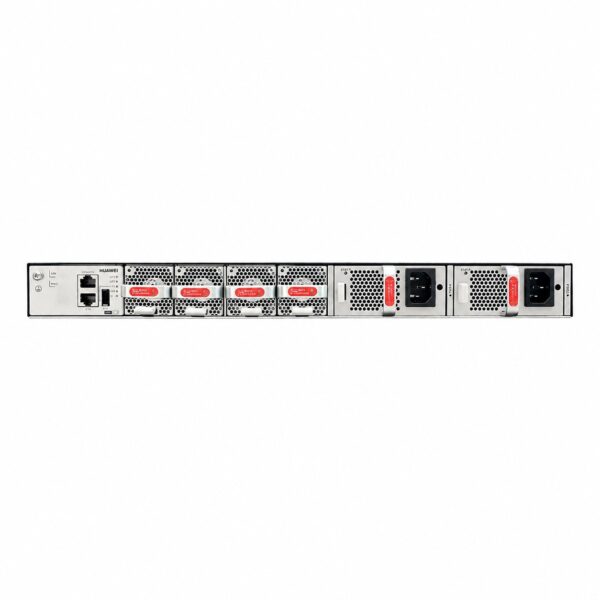

Cooling	Fans	4 x hot-swappable fan modules
	Airflow Direction	Front-to-back airflow
	Cooling Method	Air-cooled with intelligent speed regulation
Noise	Acoustic Noise (Sound Pressure)	48.4 dB(A)
Memory	System Memory	4GB
	Flash Memory	8GB physical space
Key Features	Layer 3 Routing	Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, ECMP, ISIS, ISISv6, BGP, BGP4+, VRRP, VRRP6
	VXLAN	VXLAN L2/L3 gateway, BGP-EVPN, Netconf configuration
	SVF	Supports Parent role for managing downstream switches and APs
	Security	DoS attack prevention, DHCP snooping, ARP anti-spoofing, 802.1X/MAC/Portal authentication
	QoS	8 priority queues per port, SP/WRR/DRR+SP scheduling, WRED congestion avoidance
	Management	SNMPv1/v2/v3, RMON, Web management, Telemetry, SFlow, Netconf/YANG
Interoperability	VBST	Interoperable with PVST/PVST+/RPVST
	LNP	Link Type Negotiation Protocol (similar to DTP)
	VCMP	VLAN Centralized Management Protocol (similar to VTP)
