Huawei CloudEngine S5735-S48T4X Switch – Product Documentation

Name: Huawei CloudEngine S5735-S48T4X - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S5735-S48T4X

Product Overview

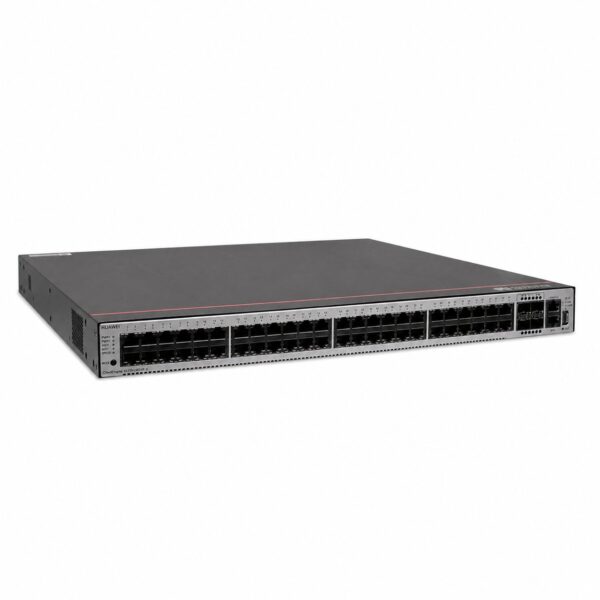

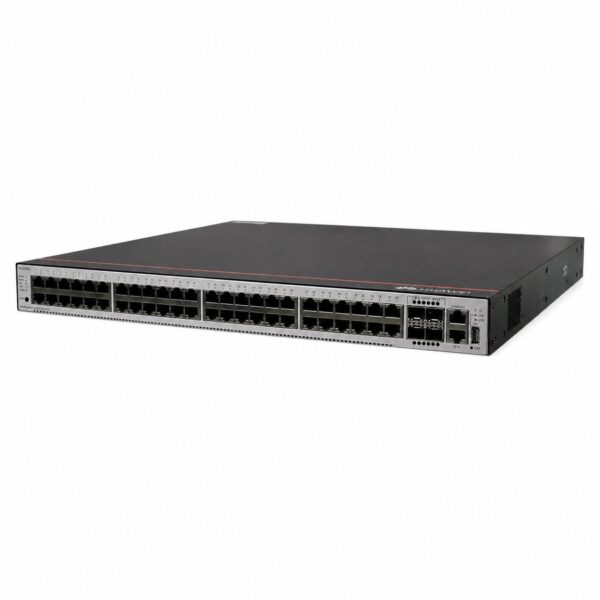

The Huawei CloudEngine S5735-S48T4X is a high-performance, next-generation Layer 3 Gigabit Ethernet switch designed for enterprise campus networks, high-density access scenarios, and data center access deployments . Built on the mature Huawei Versatile Routing Platform (VRP) with next-generation high-performance hardware, this switch delivers robust L3 capabilities, flexible Ethernet networking, and comprehensive IPv6 support .

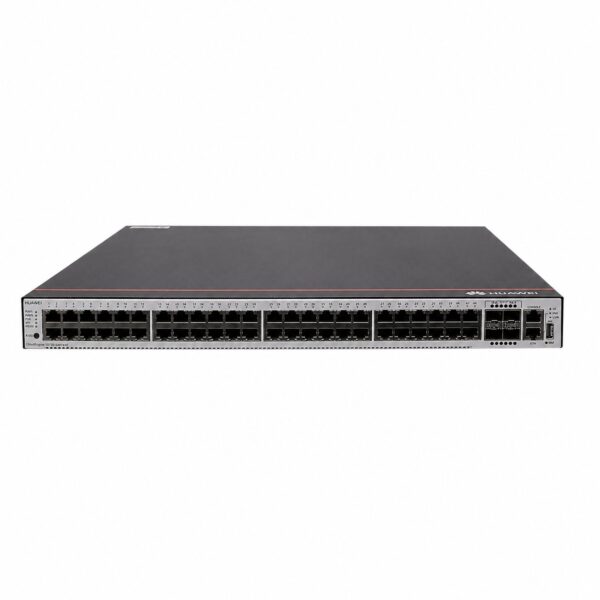

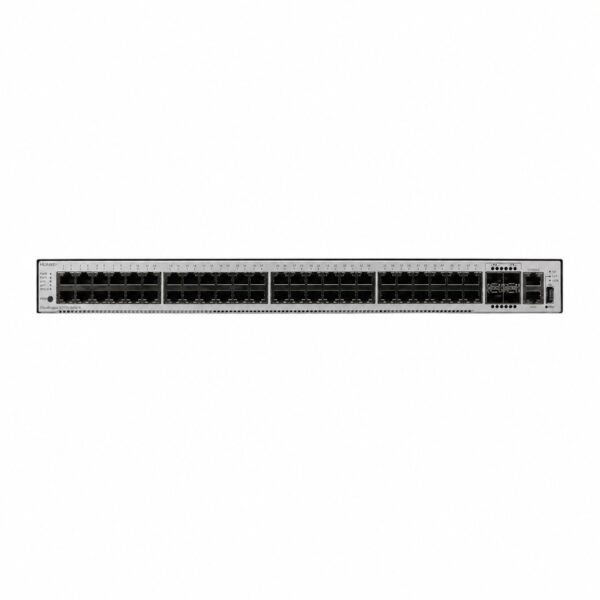

The S5735-S48T4X features 48 x 10/100/1000BASE-T downlink ports and 4 x 10 GE SFP+ uplink ports, providing extensive connectivity options for demanding environments . With a switching capacity of up to 432 Gbps and a forwarding rate of 132 Mpps, the switch ensures efficient data handling even under heavy loads .

Advanced features include intelligent stacking (iStack) supporting up to 9 units, Super Virtual Fabric (SVF) for simplified network architecture, comprehensive security mechanisms including 802.1X authentication and MAC address filtering, and energy-efficient design with intelligent fan speed adjustment . The switch also supports 1+1 power supply redundancy for enhanced reliability .

Typical deployment scenarios include campus network access and aggregation, enterprise office networks, high-density wired access environments, and metro Ethernet access .

Product Specifications

Category	Specification
Model	CloudEngine S5735-S48T4X
Fixed Ports	48 × 10/100/1000BASE-T Ethernet ports, 4 × 10 GE SFP+ ports
Switching Capacity	176 Gbps / 432 Gbps
Forwarding Performance	132 Mpps

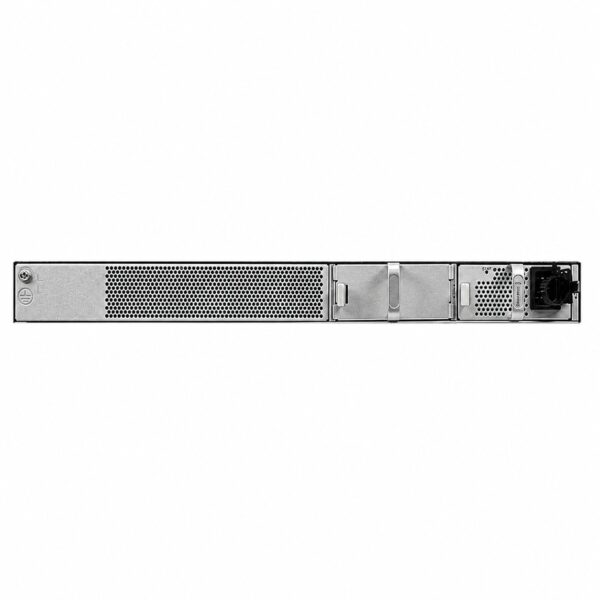

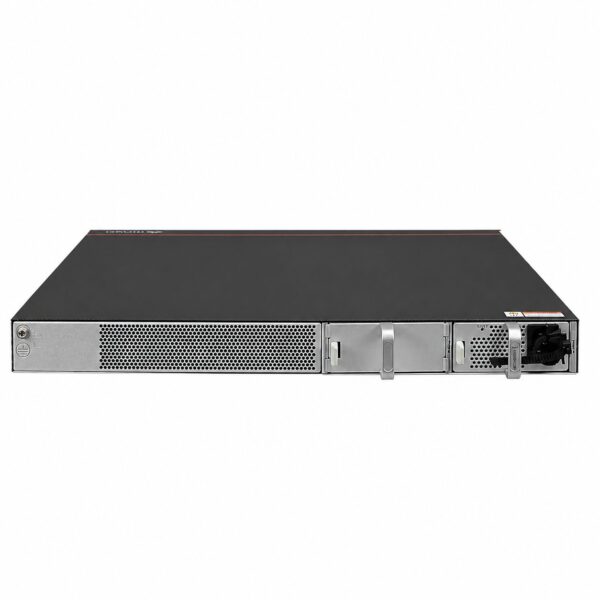

Power Supply	1+1 power supply backup (AC/DC optional), supports mixed AC/DC modules
Power Supply Types	60 W AC; 180 W DC; 1000 W DC
Rated Voltage Range	AC: 100 V to 240 V, 50/60 Hz; DC: -48 V to -60 V
Maximum Power Consumption	59 W (100% throughput)
Typical Power Consumption	40 W (30% traffic load, EEE enabled)
PoE Support	Not supported

Category	Specification
MAC Address Table	Supports IEEE 802.1d; MAC address auto-learning and aging; static, dynamic, and blackhole MAC entries; source MAC address-based packet filtering
VLAN Features	4,094 VLANs; Guest VLAN and Voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC, protocol, IP subnet, policy, and port; 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6
IPv6 Features	IPv6 host, IPv6 static routes, OSPFv3, BGP4+, IS-ISv6, IPv6 over IPv4 tunnels (manual, 6-to-4, ISATAP)
Stacking	iStack (intelligent stacking) – supports up to 9 switches in a stack
SVF (Super Virtual Fabric)	Plug-and-play SVF clients; automatic software/package loading; one-click service configuration delivery; independent SVF client operation

Category	Specification
Interoperability Protocols	VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP)
Security Features	802.1X authentication; MAC address filtering; DHCP snooping; ARP inspection; port isolation; Sticky MAC; DOS/ARP attack prevention; ICMP attack prevention
QoS	8 queues per port; SP, WRR, and SP+WRR scheduling algorithms
Management	Web-based management; CLI; Telnet; SNMP v1/v2/v3; RMON; SSH v2.0; NCE-Campus; eSight
O&M Features	Telemetry; sFlow; eMDI (enhanced Media Delivery Index); Smart Link; Ethernet OAM (IEEE 802.3ah/802.1ag)

Category	Specification
Chassis Height	1U
Dimensions (W × D × H)	442 mm × 420 mm × 43.6 mm
Weight	≤ 7.69 kg
Operating Temperature	-5°C to +50°C (altitude 0–1800 m)
Storage Temperature	-40°C to +70°C
Memory	RAM: 1 GB; Flash: 512 MB (306 MB user-available)
CPU	4-core, 1000 MHz
MTBF	74.7 years
Availability	> 0.99999
