Huawei CloudEngine S5735-S48P4X Product Documentation

Name: Huawei CloudEngine S5735-S48P4X - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S5735-S48P4X

Product Overview

The Huawei CloudEngine S5735-S48P4X is a high-performance standard Gigabit Ethernet access switch designed for enterprise campus networks, data center access, and metropolitan area network deployments. Built on next-generation high-performance hardware and the Huawei Versatile Routing Platform (VRP), this switch delivers enhanced Layer 3 functionality, simplified operations and maintenance (O&M), and flexible Ethernet networking capabilities .

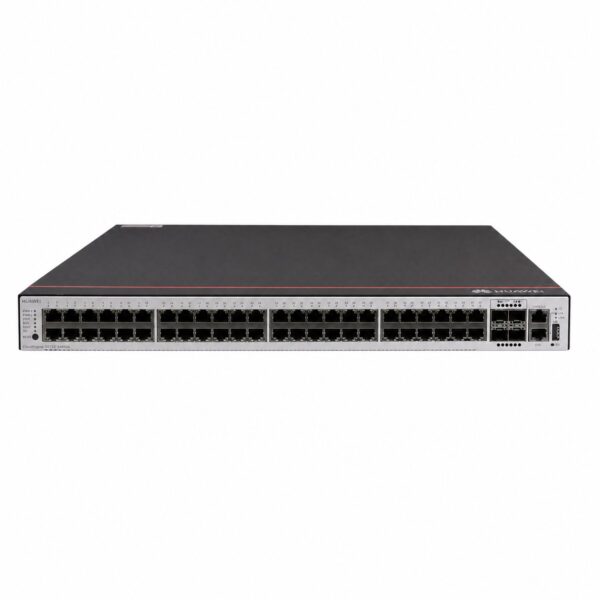

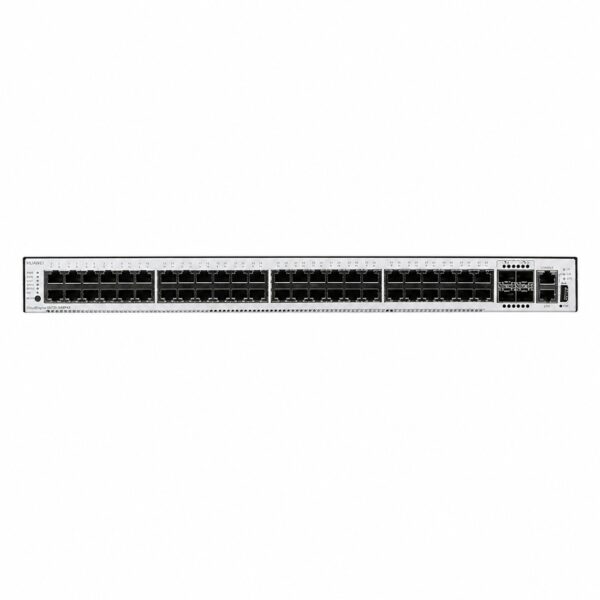

The switch features 48 x 10/100/1000BASE-T PoE+ ports and 4 x 10 GE SFP+ uplink ports, making it ideal for high-density access scenarios requiring Power over Ethernet support. With a switching capacity of up to 432 Gbps and a forwarding rate of 132 Mpps, the S5735-S48P4X efficiently handles demanding enterprise traffic loads .

Key capabilities include mature IPv6 support, comprehensive security mechanisms (MAC authentication, 802.1x authentication, Portal authentication, DoS attack prevention), and intelligent stacking (iStack) that allows up to 9 switches to be managed as a single logical device . The switch also supports Super Virtual Fabric (SVF) technology, enabling plug-and-play client deployment and simplified centralized management .

Product Specifications

Category	Parameter	Specification
Model	Product Model	CloudEngine S5735-S48P4X
Ports	Fixed Downlink Ports	48 x 10/100/1000BASE-T PoE+ ports
	Uplink Ports	4 x 10 GE SFP+ ports
	Management Port	ETH management port (RJ45)
	Console Port	RJ45 console port
	USB Port	USB 2.0 port
Performance	Switching Capacity	176 Gbit/s / 432 Gbit/s
	Forwarding Performance	132 Mpps
Memory & Storage	RAM	1 GB
	Flash Memory	512 MB (306 MB user-accessible)
	CPU	4-core, 1000 MHz
PoE Capabilities	PoE Standard	IEEE 802.3af / 802.3at (PoE+)
	PoE Power Budget	Up to 1600 W (with dual power modules)
	PoE Ports	All 48 GE ports support PoE+

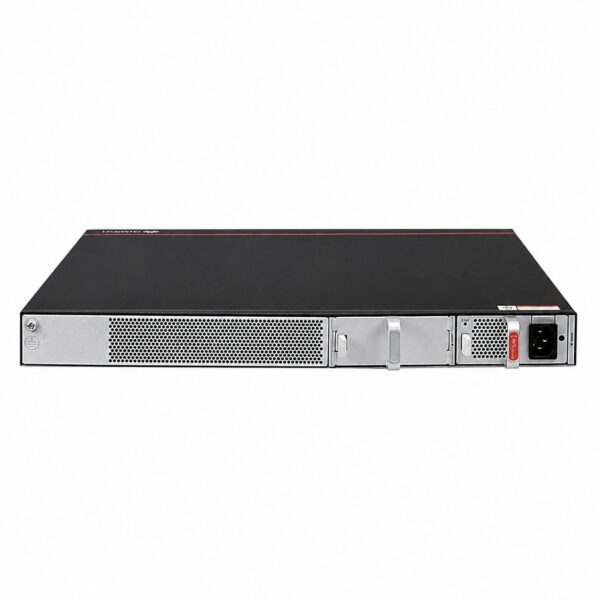

Power Supply	Power Module Type	Dual pluggable AC/DC modules, 1+1 redundancy
	Rated Input Voltage (AC)	100 V AC to 240 V AC, 50/60 Hz
	Maximum Input Voltage (AC)	90 V AC to 290 V AC, 45 Hz to 65 Hz
	High-Voltage DC Input	190 V DC to 290 V DC
	Maximum Input Current	8 A
Power Consumption	Without PoE Load	77 W
	Full PoE Load	~1661 W (PD consumption up to 1600 W)
	30% Traffic Load	59 W
	100% Traffic Load	68 W
Physical Specifications	Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm (1U)
	Weight	≤ 7.64 kg
	Mounting Type	Rack-mountable (1U)
Environmental	Operating Temperature	-5°C to 50°C
	Storage Temperature	-40°C to 70°C
MAC Features	MAC Address Table Size	64K entries
	MAC Features	IEEE 802.1d compliance; MAC address auto-learning and aging; Static, dynamic, and black hole MAC entries; Source MAC-based packet filtering
VLAN Capabilities	VLAN Quantity	4094 VLANs
	VLAN Types	Guest VLAN, Voice VLAN, MUX VLAN
	VLAN Assignment Methods	Based on MAC addresses, protocols, IP subnets, policies, and ports
	VLAN Mapping	1:1 and N:1 VLAN mapping
IP Routing	Routing Protocols	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6
QoS	Queue Support	8 queues per port
	Scheduling Algorithms	SP, WRR, SP+WRR
Management	Management Interfaces	Web-based, CLI (console/Telnet), SNMP v1/v2/v3, RMON, SSHv2
Stacking	Stacking Technology	iStack (Intelligent Stack)
	Maximum Stack Members	Up to 9 switches
SVF	Super Virtual Fabric	Supports SVF client role for plug-and-play and centralized management
Interoperability	Interoperability Protocols	VBST (compatible with PVST/PVST+/RPVST), LNP (similar to DTP), VCMP (similar to VTP)
