Huawei CloudEngine S5735-S24P4XE-V2 – Product Information Sheet
Product Overview
The Huawei CloudEngine S5735-S24P4XE-V2 is a next-generation, enterprise-class Layer 3 Gigabit Ethernet switch designed for high-performance campus and branch network deployments. Built on Huawei’s advanced hardware architecture and unified software platform, this switch delivers enhanced Layer 3 features, intelligent operations and maintenance (O&M), flexible Ethernet networking, and mature IPv6 capabilities .

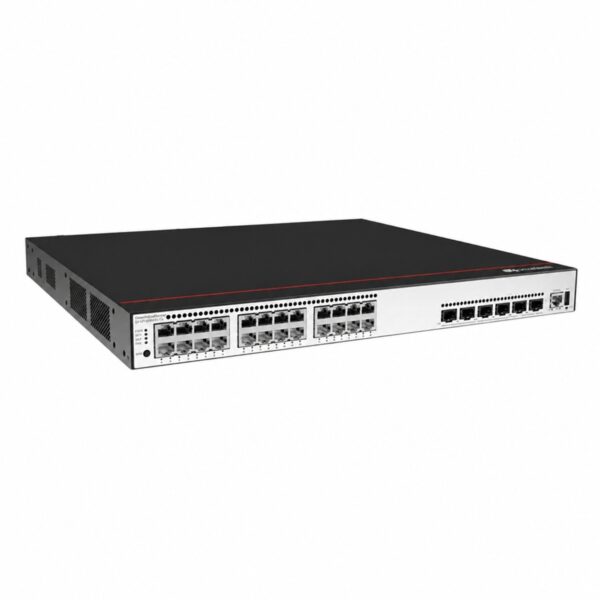

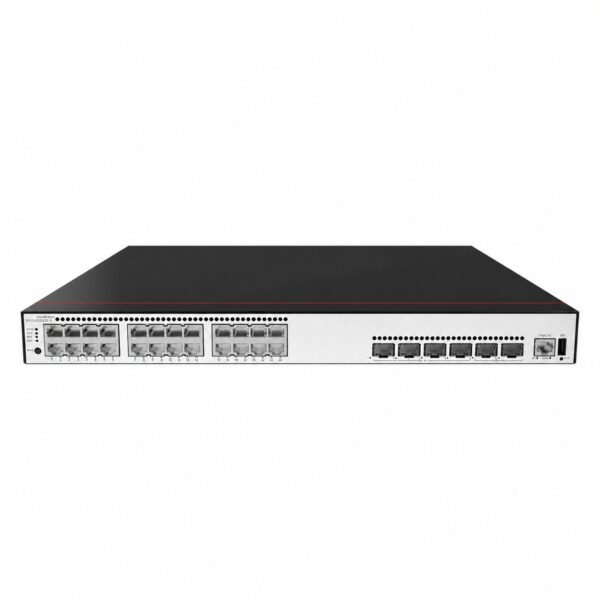

The switch is equipped with 24 x 10/100/1000BASE-T PoE+ ports for powering end devices such as IP cameras, wireless access points, and VoIP phones, along with 4 x 10 GE SFP+ uplink ports for high-speed backbone connectivity. It also features 2 dedicated 12GE stack ports for simplified network scalability via Huawei’s iStack technology . With support for N+1 power supply redundancy (up to 3 power modules) and a robust set of Layer 2 and Layer 3 protocols (including OSPF, BGP, and VRRP), this switch provides reliable, secure, and scalable connectivity in medium to large enterprise networks, data center access layers, and metropolitan area networks .
Technical Specifications
| Category | Specifications |
|---|---|
| Model | CloudEngine S5735-S24P4XE-V2 |
| Product Type | Enterprise-Class Layer 3 Gigabit Switch |
| Fixed Ports | • 24 x 10/100/1000BASE-T PoE+ ports • 4 x 10 GE SFP+ uplink ports • 2 x 12GE dedicated stack ports |
| Switching Capacity | 176 Gbps / 520 Gbps (device/system) |
| Forwarding Performance | 132 Mpps |
| Chassis Height | 1 U |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Weight | 7.74 kg (device only) |

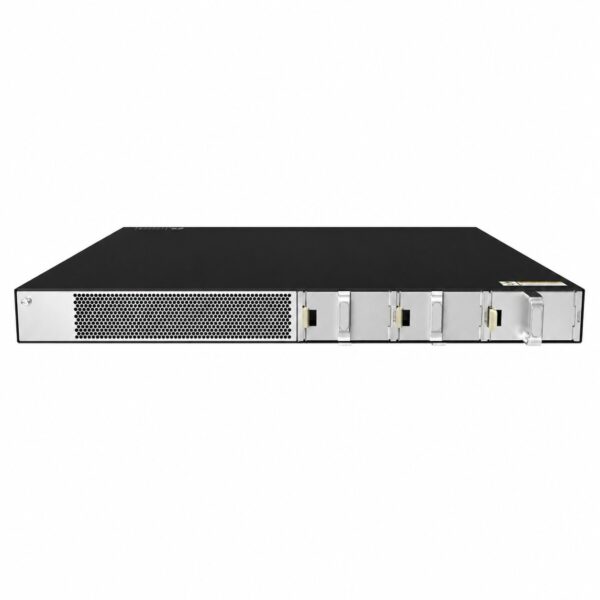

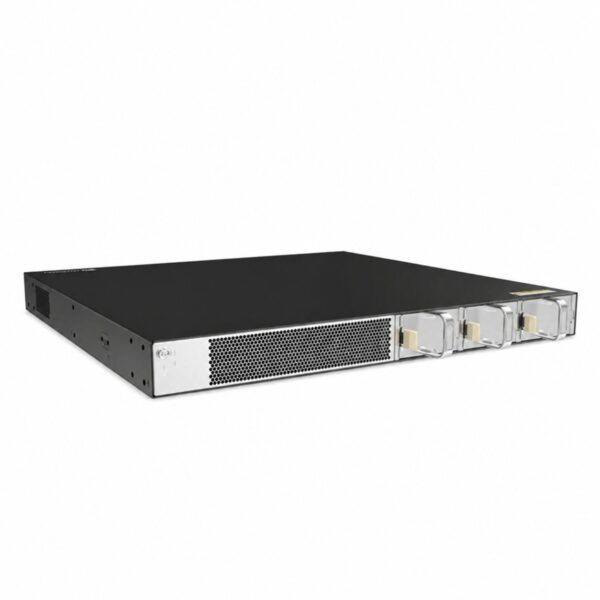

| Power Supply Types | • 600 W AC PoE • 1000 W AC PoE • 1000 W DC PoE |
| Power Supply Redundancy | 3 power supplies, N+1 backup |
| Rated Voltage Range | • AC: 100 V to 130 V, 200 V to 240 V, 50/60 Hz • High-Voltage DC: 240 V DC • DC: -48 V to -60 V DC |
| Max Voltage Range | • AC: 90 V to 290 V, 45 Hz to 65 Hz • High-Voltage DC: 190 V to 290 V DC • DC: -38.4 V to -72 V DC |
| Maximum Power Consumption | • Without PD: ~87.5 W • With PD: 1023.22 W (PoE: 840 W) |
| PoE Power Budget | 840 W |
| PoE Standards | PoE+ (IEEE 802.3at), backward compatible with IEEE 802.3af |
| Heat Dissipation | Air-cooled, intelligent speed adjustment |
| Noise (Sound Power) | • Normal temperature: 48.8 dB(A) • High temperature: 60.9 dB(A) |
| Surge Protection (Service Port) | ±7 kV common mode |
| Surge Protection (Power Port) | • AC: ±6 kV differential mode, ±6 kV common mode • DC: ±2 kV differential mode, ±4 kV common mode |
| Long-term Operating Temperature | • 0–1800 m altitude: -5°C to +50°C • 1800–5000 m altitude: decreases by 1°C per 220 m rise |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| VLAN Features | Supports up to 4094 VLANs, Voice VLAN, MUX VLAN, VLAN assignment based on MAC/Protocol/IP Subnet/Policy/Port, QinQ |
| IP Routing | Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, VRRP, VRRP6 |
| IPv6 Features | Mature IPv6 support, ND (Neighbor Discovery), PMTU, IPv6 Ping/Tracert/Telnet |
| Multicast | IGMP v1/v2/v3, IGMP Snooping, PIM-DM, PIM-SM, PIM-SSM |
| Management | iStack, SNMP v1/v2/v3, CLI, Web UI, SSH v2.0, HTTPS, RMON, NMS, Telemetry |
| Security | 802.1X authentication, MAC address authentication, DHCP Snooping, IP-MAC-VLAN binding, DoS/ARP/ICMP attack protection, CPU protection |
