Huawei CloudEngine S5732-H24S6Q – Product Documentation & Specifications
Product Overview

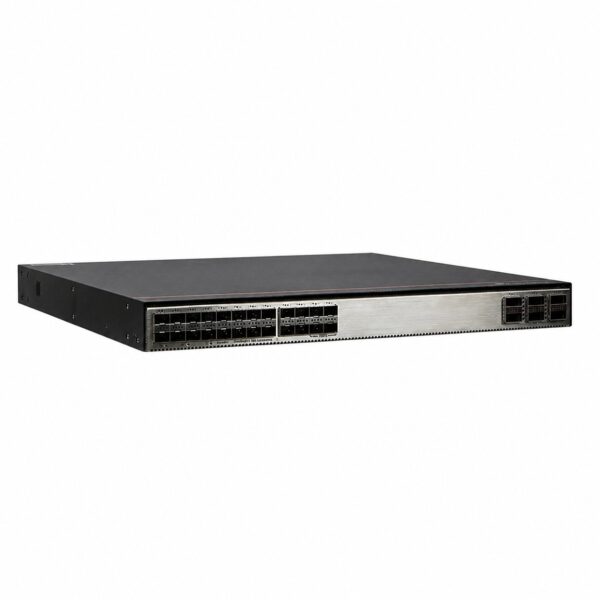

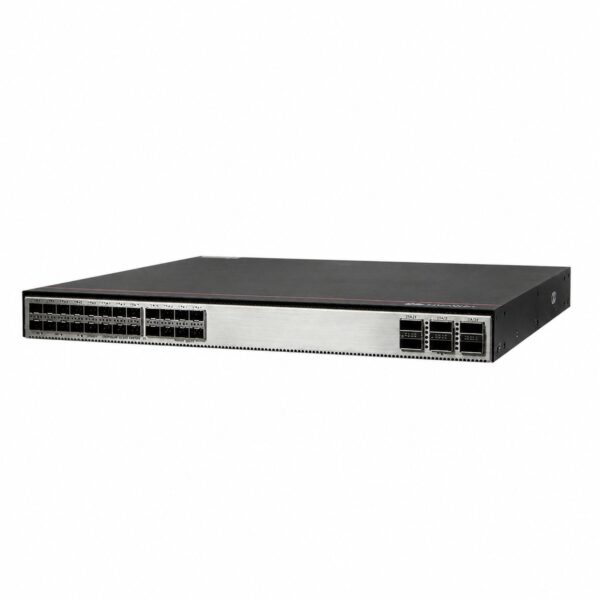

The Huawei CloudEngine S5732-H24S6Q is a next-generation enhanced all-optical Gigabit Ethernet/10GE hybrid switch from the CloudEngine S5732-H series. Built on Huawei’s unified Versatile Routing Platform (VRP), this switch integrates a comprehensive set of Intelligent Digital Network (IDN) features designed for modern campus and enterprise network deployments.

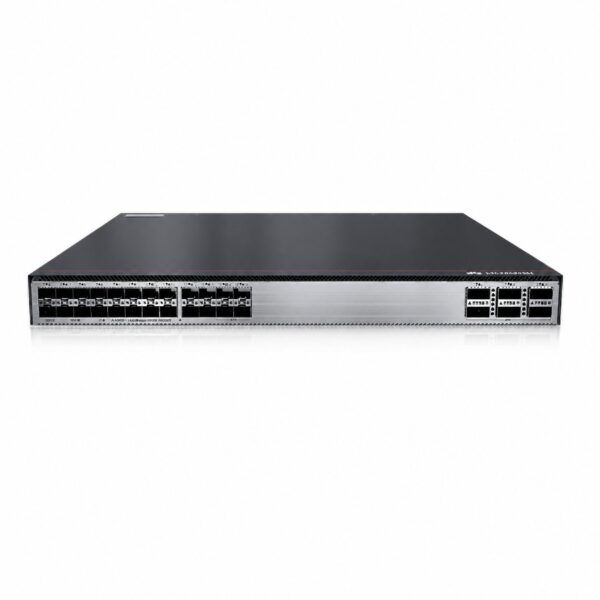

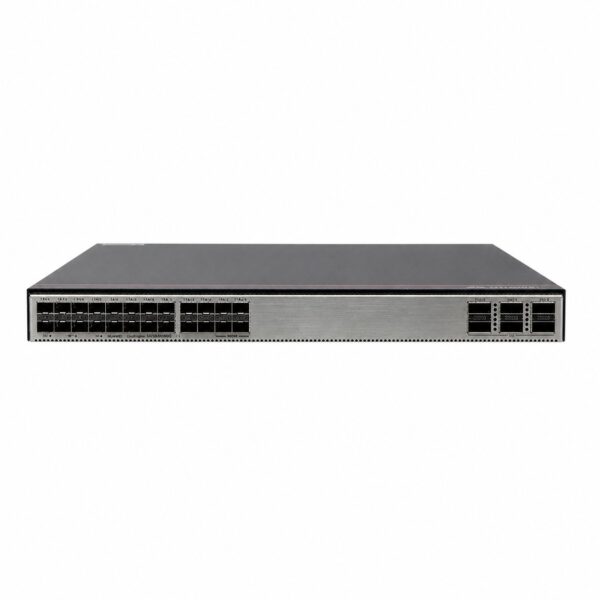

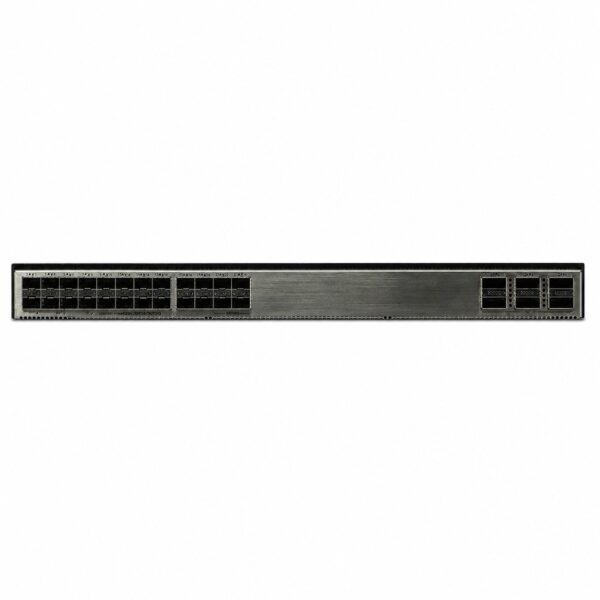

The switch delivers 20 x GE SFP ports for Gigabit fiber connectivity, 4 x 10GE SFP+ ports for 10-Gigabit uplinks or downlinks, and 6 x 40GE QSFP+ ports for high-speed uplink aggregation. It supports a forwarding performance of up to 522 Mpps and a switching capacity of 2.56/25.6 Tbps.
Key capabilities include native wireless Access Controller (AC) functionality managing up to 1,024 wireless Access Points (APs), enabling deep wired-wireless convergence. The switch supports VXLAN for network virtualization, free mobility for consistent user experience across the network, and built-in security probes for abnormal traffic detection, encrypted traffic threat analysis, and network-wide threat deception. It also features iPCA (Packet Conservation Algorithm for Internet) for real-time packet loss detection and SVF (Super Virtual Fabric) for simplified network management.
The CloudEngine S5732-H24S6Q is ideally suited for deployment as a core switch in small-sized campus networks, as an aggregation or access switch in medium- to large-sized campus networks, or as an access switch in data centers. The switch supports 1+1 power backup for enhanced reliability.
Documentation & Resources List
| Document / Resource | Description |
|---|---|
| CloudEngine S5732-H Series All-Optical Switches Datasheet | Comprehensive product datasheet covering series overview, models, technical specifications, and feature descriptions |
| CloudEngine S5732-H Series Product Brochure | Marketing brochure highlighting product positioning, key features, and application scenarios |
| CloudEngine S5732-H Series Switch Hardware Installation Guide | Hardware installation procedures, safety instructions, and site preparation guidelines |
| CloudEngine S5732-H Series Switch Configuration Guide | CLI configuration guidelines for basic and advanced features including VLAN, VXLAN, QoS, and security |
| CloudEngine S5732-H Series Switch Command Reference | Complete command reference for all supported CLI commands |
| CloudEngine S5732-H Series Switch FAQ | Frequently asked questions covering common deployment and troubleshooting scenarios |
| CloudEngine S5732-H Series Switch Safety and Compliance Information | Regulatory compliance, safety standards, and certification documentation |
| CloudEngine S5732-H Series Switch MIB Reference | SNMP MIB files and management information base documentation |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CloudEngine S5732-H24S6Q |
| Product Type | All-optical Gigabit Ethernet switch |
| Fixed Ports | 20 x GE SFP ports, 4 x 10GE SFP+ ports, 6 x 40GE QSFP+ ports |
| Forwarding Performance | 450/522 Mpps |
| Switching Capacity | 2.4/24 Tbps or 2.56/25.6 Tbps (varies by specification source) |
| MAC Address Table | 128K |
| Transmission Rate | 10/100/1000 Mbps |
| Switching Mode | Store-and-forward |
| VLAN Support | Supports up to 4K VLANs; supports Guest VLAN, Voice VLAN, MUX VLAN, VLAN Mapping, and VLAN based on MAC/Protocol/IP subnet/Policy/Port |
| Wireless Services | Manages up to 1,024 APs; AP access control, AP domain management, AP configuration template management; radio management; WLAN basic services, QoS, security, and user management; CAPWAP, tag/terminal location, spectrum analysis |
| iPCA | Real-time packet loss statistics at network and device level; supports L2/L3 network packet loss monitoring |
| SVF (Super Virtual Fabric) | Functions as Parent node to manage downstream switches and APs; supports 2-layer AS architecture; supports third-party device interoperation |
| VXLAN | VXLAN L2 and L3 gateways; centralized and distributed gateways; BGP-EVPN; NETCONF configuration |
| Security Features | Encrypted Communication Analytics (ECA); threat trap technology; network-wide security collaboration; built-in security probes |
| Interoperability | VBST (compatible with PVST, PVST+, RPVST); LNP (similar to DTP); VCMP (similar to VTP) |

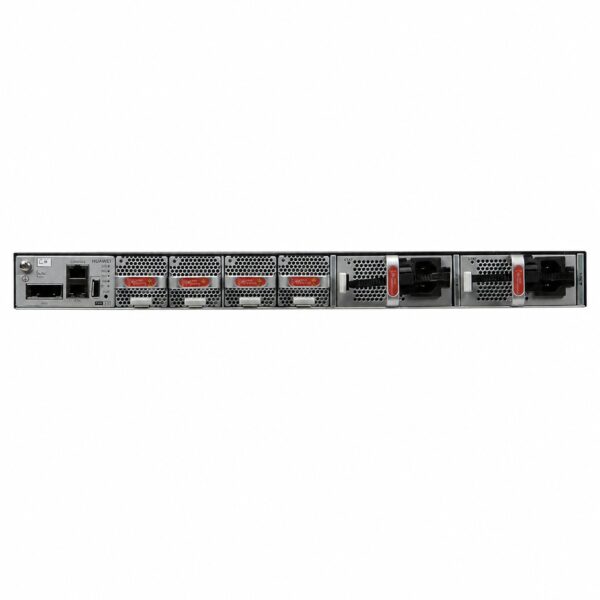

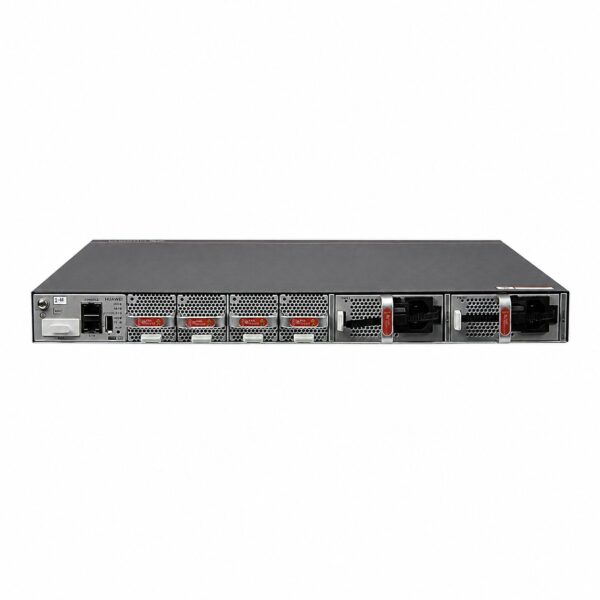

| Power Backup | 1+1 power backup support |
| Power Supply Module | PAC600S12-CB: Dimensions (H x W x D): 40 mm x 90 mm x 215 mm; Weight: 0.95 kg; Rated input: 100–240 V AC, 50/60 Hz or 240 V DC |
| Fan Module | FAN-031A-B: Dimensions (W x D x H): 40 mm x 100.3 mm x 40 mm; 1 fan; Weight: 0.1 kg; Max power consumption: 21.6 W; Max fan speed: 24,500±10% RPM; Max airflow: 31 CFM; Hot-swappable |
| Chassis Height | 1 U |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight | Approx. 7.47 kg |
| IPv6 Ready | IPv6 Ready Logo Phase-2 certified |
