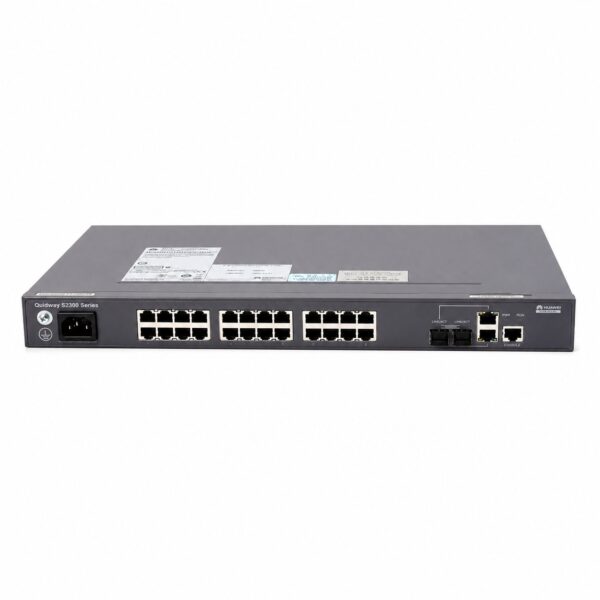

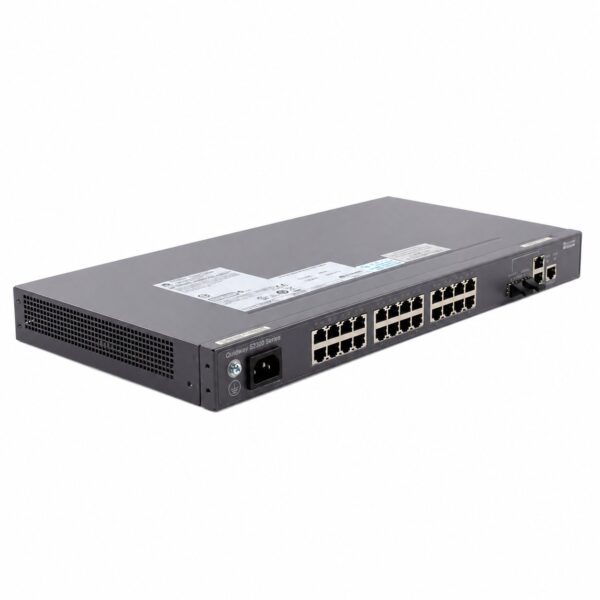

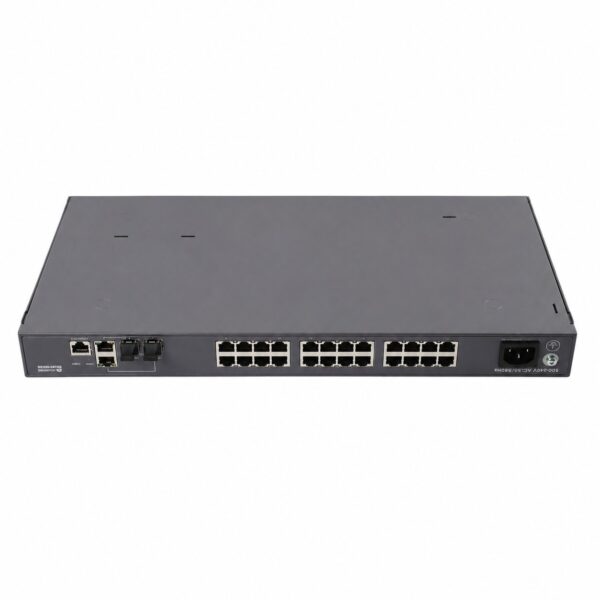

Huawei CloudEngine S2326TP-EI-AC Switch – Product Documentation
Product Overview
The Huawei CloudEngine S2326TP-EI-AC is a carrier-class, Layer 2 access switch designed for metropolitan area networks and enterprise campus networks. It is built on Huawei’s Versatile Routing Platform (VRP) software, offering a cost-effective, energy-efficient, and highly reliable solution for diverse Ethernet access scenarios .
This switch features 24 fast Ethernet ports and 2 Gigabit Combo ports, providing flexible uplink options. It supports comprehensive QoS policies, robust security features, and rich multicast functions, making it particularly suitable for IPTV services, video surveillance, and enterprise data access. The device incorporates Huawei’s patented surge protection technology, enabling all ports to withstand up to 6KV of surge current without additional protection devices, significantly enhancing reliability in harsh environments . With a 32Gbps backplane bandwidth and a forwarding rate of 6.6 Mpps, it ensures wire-speed forwarding across all ports .
Technical Specifications
| Category | Specification |
|---|---|
| Model | CloudEngine S2326TP-EI-AC |
| Product Type | Carrier-class access switch / Layer 2 Ethernet switch |
| Switching Capacity | 32 Gbit/s |
| Forwarding Performance | 6.6 Mpps |
| Switching Mode | Store-and-forward |
Ports & Interfaces
| Category | Specification |
|---|---|
| Port Structure | Fixed / Non-modular |
| Fixed Ports | 24 x 10/100Base-TX Ethernet ports |
| Uplink Ports | 2 x Gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X) |
| Total Ports | 26 |
Performance & Capacity
| Category | Specification |
|---|---|
| MAC Address Table | 8K entries |
| VLANs | Supports 4K VLANs based on IEEE 802.1Q |
| Jumbo Frame | Supported |
Standards & Protocols
| Category | Specification |
|---|---|
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q |
Feature Support
| Category | Specification |
|---|---|
| VLAN Features | Port-based VLAN, MAC-based VLAN, Basic QinQ, 1:1 VLAN switching, N:1 VLAN switching |
| QoS | Port rate limiting, 4 priority queues per port, SP/WRR/SP+WRR scheduling algorithms, traffic classification based on L2/L3/L4 headers |
| Multicast | IGMP v1/v2/v3 Snooping, multicast load balancing, port-based multicast rate limiting |
| Security | 802.1X authentication, Dynamic ARP Detection, IP Source Guard, MAC+IP+port binding, port isolation, MAC address blackhole, CPU protection |
| Management | CLI, Telnet, SNMP v1/v2/v3, RMON, HGMP v2 cluster management, SSH v2, Web-based management, automatic configuration |
| Port Mirroring | 1:1 or N:1 port mirroring, RSPAN, traffic-based mirroring |
| IPv6 Features | IPv6 host functions, static routing, IPv6 ACL, MLD v1/v2 snooping |
| Surge Protection | 6KV surge protection on all ports |
Power Specifications
| Category | Specification |
|---|---|
| Power Supply | AC 100-240V, 50/60Hz |
| Maximum Power Consumption | < 15.5W |
Physical Specifications
| Category | Specification |
|---|---|
| Dimensions (W×D×H) | 442 × 420 × 43.6 mm (1U) |
| Weight | Approx. 3 kg |
Environmental Specifications
| Category | Specification |
|---|---|
| Operating Temperature | 0°C to 50°C (long-term); –5°C to 55°C (short-term) |
| Storage Temperature | –5°C to 55°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 10% to 90% (non-condensing) |
