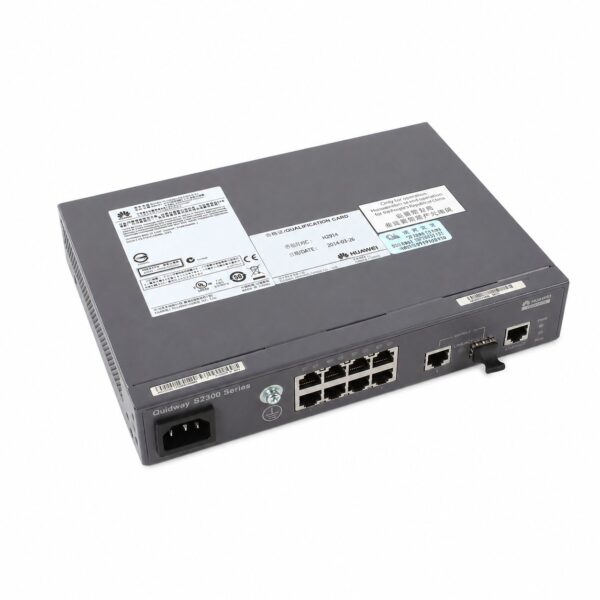

Huawei CloudEngine S2309TP-EI-AC Switch – Product Datasheet
Product Overview
The Huawei CloudEngine S2309TP-EI-AC (formerly known as the Quidway S2309TP-EI-AC) is a next-generation, carrier-class Ethernet access switch designed for IP Metropolitan Area Networks (MANs) and enterprise networks. As part of the S2300 series Enhanced Edition (EI), this device is built to meet the requirements for carrying diverse Ethernet services and provides robust, intelligent access capabilities .

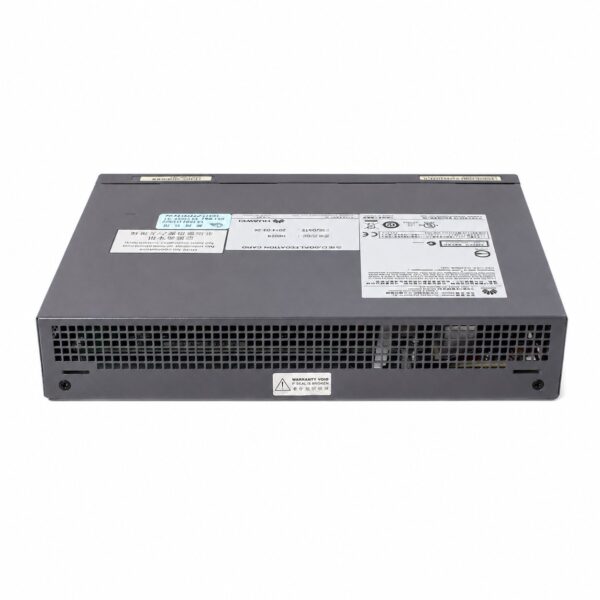

Leveraging Huawei’s Versatile Routing Platform (VRP) software and high-performance hardware, the S2309TP-EI-AC delivers a wealth of flexible features to enhance operability, manageability, and service scalability . It adopts a fanless, energy-efficient design to minimize noise and power consumption while providing strong surge protection, making it suitable for deployment in various environments, including space-constrained wiring closets .
This model is particularly well-suited for metropolitan area networks (MANs) and enterprise campus networks that require comprehensive Layer 2 features, advanced QoS policies, and robust security mechanisms for reliable access services .
Product Specifications
| Category | Specification |
|---|---|
| Product Model | LS-S2309TP-EI-AC |
| Part Number | 02351370 |
| Product Type | Carrier-class Access Switch |
| Application Layer | Layer 2 |
| Switching Capacity | 32 Gbit/s (Backplane) / 3.6 Gbit/s (Port) |
| Forwarding Performance | 2.7 Mpps |
| MAC Address Table | 8K entries |

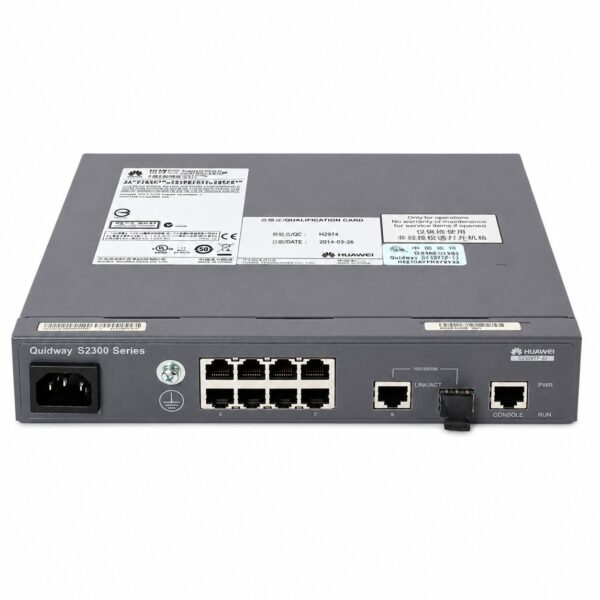

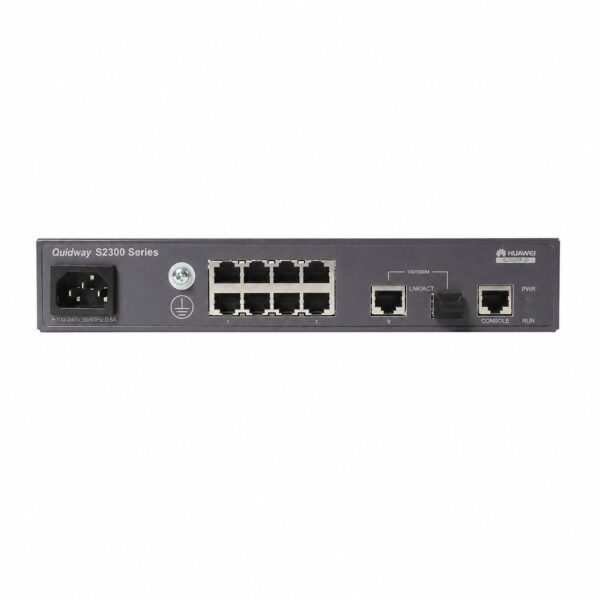

| Port Configuration | • 8 x 10/100BASE-TX ports (RJ45) • 1 x Gigabit Combo port (10/100/1000BASE-T RJ45 or 100/1000BASE-X SFP) |
| Console Port | 1 x Console port (RJ45) |
| Network Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q |
| VLAN Features | • Supports IEEE 802.1Q (up to 4094 VLANs) • Port-based and MAC-based VLAN • Basic QinQ • 1:1 and N:1 VLAN switching |
| QoS Features | • Port-based and flow-based rate limiting • 4 priority queues per port • Queue scheduling: SP, WRR, SP+WRR • Traffic classification based on MAC/IP, Layer-4 ports, VLAN, CoS, etc. • Priority marking and packet redirection |
| IPv6 Features | • IPv6 host functions • Static route configuration • IPv6 ACL support • MLD v1/v2 snooping |
| Multicast Management | • IGMP v1/v2/v3 snooping • Multicast load balancing across bundled ports • Port-based multicast rate limiting and traffic statistics |
| Security | • 802.1x authentication & user limit per port • Dynamic ARP Inspection (DAI) & IP Source Guard • AAA, RADIUS, HWTACACS+, NAC support • IP, MAC, port, and VLAN binding • Port isolation, port security, Sticky MAC • Broadcast/multicast/unknown unicast suppression • CPU protection |
| Management | • iStack (stacking support) • Auto-configuration & Plug-and-Play • CLI & Telnet • SNMP v1/v2/v3, RMON • HGMP v2 & SSH v2 • Web-based management & GVRP |
| Port Mirroring | • 1:1 or N:1 port mirroring • Remote Switched Port Analyzer (RSPAN) |
| Surge Protection | 7 kV per port (15 kV with external protection device) |
| Power Supply | AC: 100V to 240V, 50/60Hz (Max: 90V to 264V, 50/60Hz) |
| Power Consumption | < 12.8 W |
| Dimensions (WxDxH) | 250 mm x 180 mm x 43.6 mm (1U) |
| Weight | < 1.4 kg |
| Operating Environment | • Temperature: 0°C to 50°C (long-term), -5°C to 55°C (short-term) • Humidity: 10% to 90% (non-condensing) |
