HUAWEI S3700-52P-SI-AC – Product Documentation

Name: HUAWEI S3700-52P-SI-AC Switch - SunSpike
SKU: S3700-52P-SI-AC

Product Overview

The Huawei S3700-52P-SI-AC is a Layer 3 Fast Ethernet switch from Huawei’s S3700 series, designed to deliver resilient 100 Mbit/s switching for enterprise networks. It is positioned for deployment at the access layer or aggregation layer of enterprise networks, providing large capacity, high port density, and cost-effective packet forwarding capabilities.

Built on Huawei’s VRP® (Versatile Routing Platform) software platform, the S3700-52P-SI-AC offers simple installation and maintenance, flexible VLAN deployment, rich routing functionality, and IPv6 upgrade readiness. The switch supports Layer 2 and basic Layer 3 functionality, with advanced features including comprehensive QoS policies, robust security mechanisms, and multicast management capabilities.

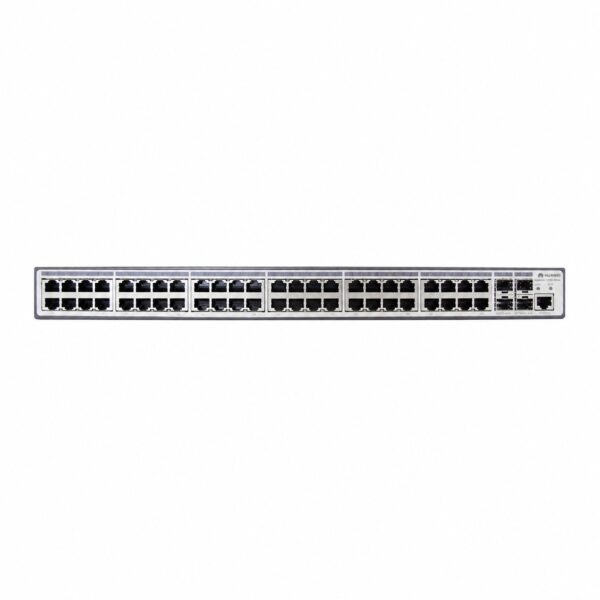

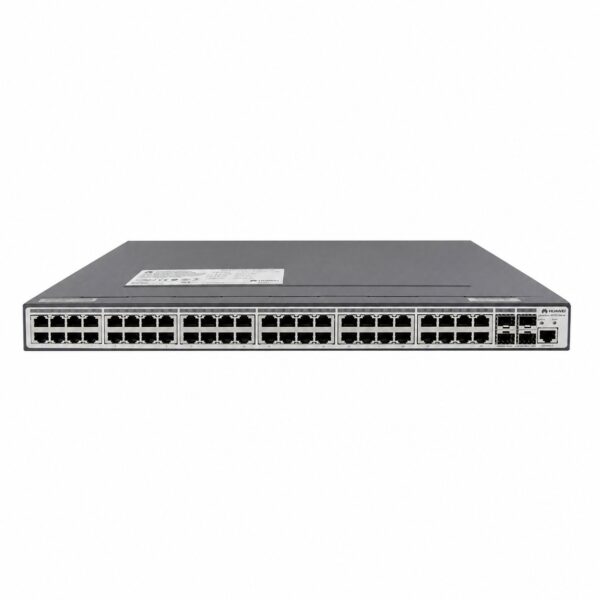

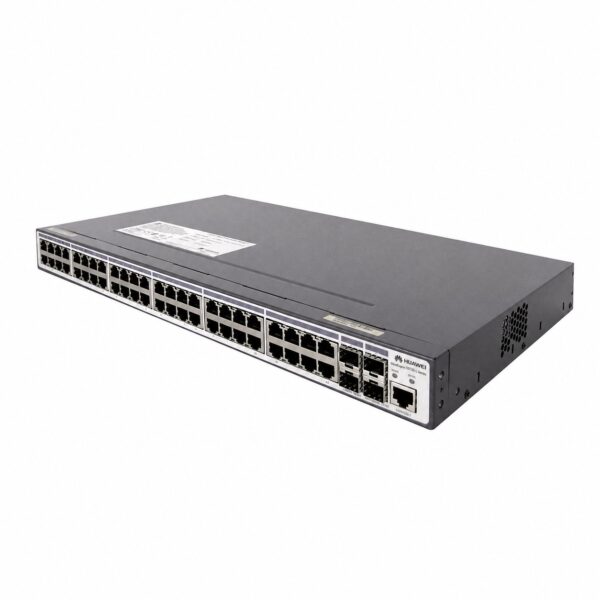

The device features 52 ports in a non-modular fixed form factor, including 48 downlink 10/100BASE-TX ports and 4 uplink Gigabit SFP ports. With a switching capacity of 64 Gbit/s and forwarding performance of 13.2 Mpps, it delivers reliable packet forwarding for small to medium-sized enterprise campus IT environments, as well as large data centers.

Key highlights include:

Fanless and silent design for energy-efficient operation
Multi-service access with excellent extensibility
Carrier-class security and powerful multicast replication
Stacking support via service port connection
Comprehensive management options including SNMP, Telnet, SSH, and web-based management

Product Specifications

Category	Specification
General
Product Model	S3700-52P-SI-AC
Product Type	Fast Ethernet Switch / Enterprise Network Switch
Application Layer	Layer 3
Form Factor	Fixed, Stackable
Switching Method	Store-and-Forward
Switching Capacity	64 Gbit/s
Forwarding Performance	13.2 Mpps
MAC Address Table	16K
Ports
Port Structure	Non-modular
Total Ports	52
Downlink Ports	48 × 10/100BASE-TX ports
Uplink Ports	2 × 100/1000BASE-X SFP ports + 2 × 1000BASE-X SFP ports
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
PoE Support	Non-PoE
Network Standards
IEEE Compliance	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1d, 802.1X
VLAN
VLAN Quantity	Supports 4K VLANs
VLAN Features	Guest VLAN, Voice VLAN, Super VLAN; MAC/protocol/IP subnet-based VLAN; QinQ; Flexible QinQ; 1:1 VLAN switching; N:1 VLAN switching
QoS / ACL
Traffic Policing	Port-based traffic policing; two-rate three-color CAR
Queue Scheduling	WRR, DRR, SP, WRR+SP, DRR+SP
Priority Marking	802.1p and DSCP priority re-marking
Packet Filtering	Layer 2–4 filtering based on source/destination MAC, source/destination IP, port, protocol, VLAN
Queue Support	8 priority queues per port
Multicast
Multicast Groups	Supports 1K multicast groups
IGMP Support	IGMP v1/v2/v3 Snooping; fast leave mechanism
Multicast Features	Multicast VLAN; cross-VLAN multicast replication; trunk port multicast load balancing; controllable multicast; port-based multicast traffic statistics
Network Management
Management Protocols	MFF; Telnet remote configuration; Virtual Cable Test; Ethernet OAM; Port Mirroring; RSPAN
SNMP	SNMP v1/v2/v3
RMON	Supported
VLAN Management	MUX VLAN; GVRP protocol
Management Interfaces	iManager NMS; Web-based management; Auto-configuration; HGMP cluster management
Secure Management	SSH V2; system logs; hierarchical alarms
Security
User Management	User privilege management and password protection
Attack Defense	DoS attack defense; ARP attack defense; ICMP attack defense
Access Control	IP, MAC, port, VLAN binding; port isolation; port security; Sticky MAC
MAC Security	Blackhole MAC addresses; MAC address learning limit
Authentication	IEEE 802.1X; per-port user limit; AAA; RADIUS; HWTACACS+; NAC
Additional Security	SSH v2.0; HTTPS; CPU protection; blacklist/whitelist
IP Routing
Routing Protocols	Static routing; RIPv1; RIPv2; ECMP; OSPF; IS-IS; BGP
IPv6 Features
IPv6 Support	Neighbor Discovery (ND); Path MTU (PMTU); IPv6 ping/tracert/Telnet
IPv6 ACLs	Based on source/destination IPv6 address, Layer 4 ports, protocol type
IPv6 Tunneling	6to4 tunnel; ISATAP tunnel; manually configured tunnel
MLD	MLD v1/v2 snooping
Reliability
Ring Protection	RRPP ring topology; RRPP multi-instance
Link Protection	Smart Link tree topology; Smart Link multi-instance; millisecond-level protection switchover
Spanning Tree	STP; RSTP; MSTP
Protection Mechanisms	BPDU protection; root protection; loop protection
Stacking	Supported; service port connection
Power
Power Supply	Built-in AC power module
Voltage	AC 100–240V, 50/60Hz
Power Consumption	< 38W
Physical
Dimensions (W × D × H)	442 × 420 × 43.6 mm (17.4 × 16.5 × 1.7 in)
Weight	< 3 kg (6.6 lbs)
Installation	Rack mounting; desk mounting
300-mm Deep Cabinet	Not supported
Environmental
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	–5°C to 55°C
Storage Humidity	10% to 90% (non-condensing)
