HUAWEI S5700-28C-EI-24S – Product Documentation

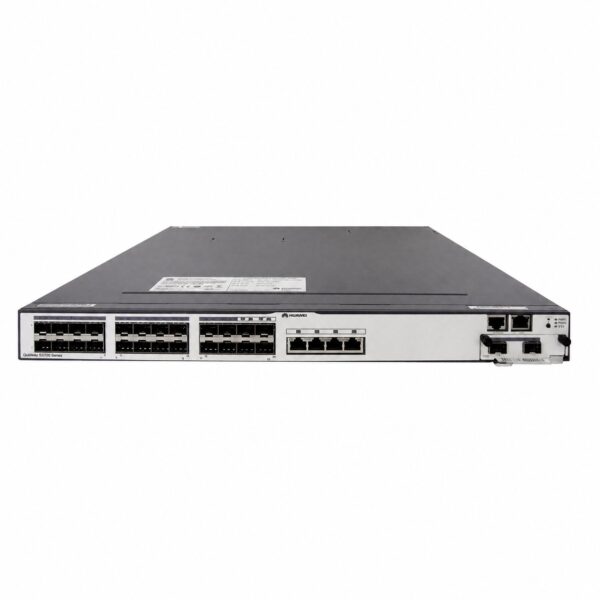

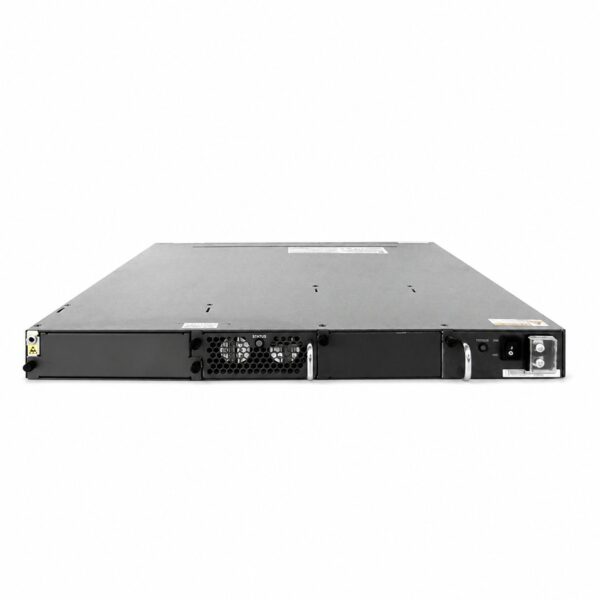

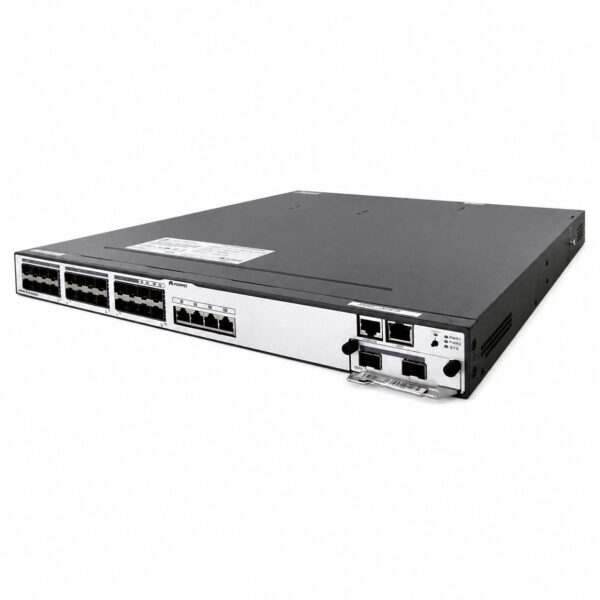

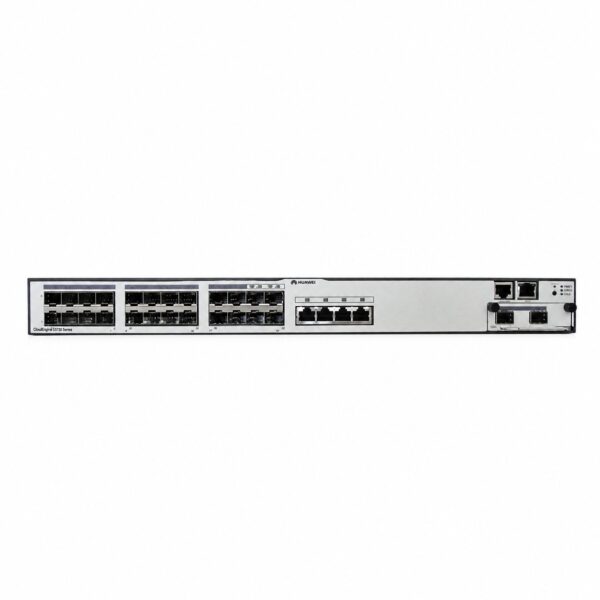

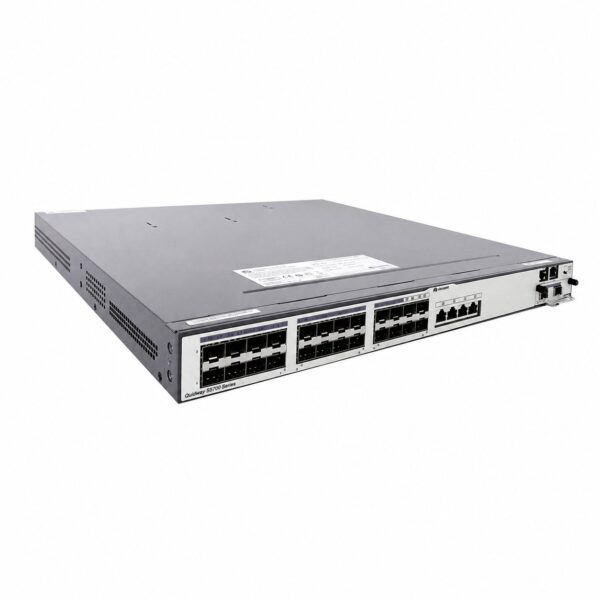

Name: HUAWEI S5700-28C-EI-24S Switch - SunSpike
SKU: S5700-28C-EI-24S

Product Overview

The Huawei S5700-28C-EI-24S is a high-performance, energy-efficient Gigabit Ethernet switch from the S5700-EI series, designed for enterprise campus networks, data centers, and carrier-grade access and aggregation scenarios. Built on Huawei’s next-generation switching technology and the versatile VRP (Versatile Routing Platform) software platform, this switch delivers robust Layer 3 routing capabilities, flexible VLAN deployment, comprehensive security policies, and advanced QoS control.

The switch features 24 x 100/1000BASE-X SFP ports for fiber connectivity, plus 4 x combo ports (10/100/1000BASE-T + 100/1000BASE-X) that provide deployment flexibility for both copper and fiber uplinks. With a switching capacity of 256 Gbps and a forwarding rate of 96 Mpps, the S5700-28C-EI-24S ensures wire-speed performance for demanding network environments.

Supporting modular dual power supplies, hot-swappable fan modules, and stacking capabilities, this switch offers high availability and scalability. It also features front and rear card slots for flexible uplink expansion, including support for 2 x 10GE SFP+, 4 x GE SFP, and 4 x 10GE SFP+ line cards. The S5700-28C-EI-24S is an ideal solution for enterprises requiring high-density Gigabit fiber access, robust security, and intelligent network management.

Technical Specifications

Category	Specification
Product Type	Gigabit Ethernet Switch
Application Level	Layer 3
Transmission Rate	10/100/1000 Mbps
Switching Capacity	256 Gbps
Packet Forwarding Rate	96 Mpps
Switching Mode	Store-and-Forward
MAC Address Table	32K
Port Structure	Non-modular
Total Port Count	28 ports
Fixed Ports	24 x 100/1000BASE-X SFP ports
Combo Ports	4 x 10/100/1000BASE-T + 100/1000BASE-X combo ports
Uplink Expansion	Supports 4 x 1000BASE-X SFP, 2 x 10GE SFP+, 4 x 10GE SFP+ line cards
Card Slots	1 x front card slot, 1 x rear card slot
Fan Slots	1 x fan slot (hot-swappable fan module supported)
Power Module Slots	2 x slots (dual modular power supplies supported)
Console Port	1 x console port
Management Port	1 x ETH management port
Stacking	Supported
VLAN	Supports 4K VLANs; Guest VLAN, Voice VLAN; MAC/protocol/IP subnet/policy/port-based VLAN; 1:1 and N:1 VLAN switching
QoS	Port rate limiting; packet redirection; port-based traffic policing with dual-rate three-color CAR; 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling; 802.1p and DSCP priority re-marking; L2–L4 packet filtering; queue-based rate limiting and port shaping
Multicast Management	IGMP v1/v2/v3 snooping with fast leave; VLAN multicast forwarding; multicast multi-VLAN replication; multicast load balancing across aggregated ports; controllable multicast; port-based multicast traffic statistics; IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM
Network Management	Stacking; MFF (MAC Forced Forwarding); Virtual Cable Test; port mirroring and RSPAN (remote port mirroring); Telnet remote configuration and maintenance; SNMP v1/v2/v3; RMON; Web NMS; HGMP cluster management; system logs and hierarchical alarms; GVRP; MUX VLAN
Security Management	User分级 management and password protection; DOS, ARP, and ICMP attack prevention; IP/MAC/port/VLAN binding; port isolation, port security, Sticky MAC; blackhole MAC addresses; MAC address learning limit; IEEE 802.1X authentication with per-port user limit; AAA authentication with RADIUS, TACACS+, NAC; SSH V2.0; HTTPS; CPU protection; blacklist and whitelist
Network Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1d, 802.1X
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Input Voltage	AC: 100 V to 240 V, 50/60 Hz
Maximum Power Consumption	< 63 W
Dimensions (W x D x H)	250 x 180 x 43.6 mm (9.84 x 7.09 x 1.72 in)
Weight	< 1.4 kg (3.09 lb)
Operating Temperature	0°C to 50°C (long term)
Short-term Operating Temp.	-5°C to 55°C
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	-5°C to 55°C
