Huawei S3700-28TP-EI-MC-AC Switch – Product Documentation

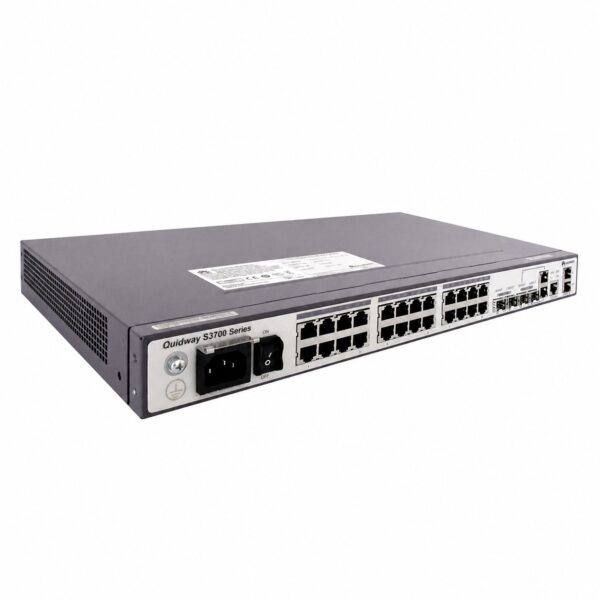

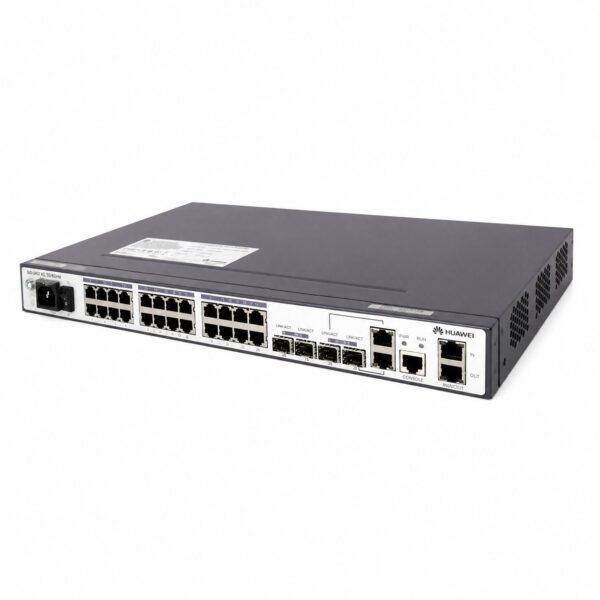

Name: Huawei S3700-28TP-EI-MC-AC Switch - SunSpike
SKU: S3700-28TP-EI-MC-AC

Product Overview

The Huawei S3700-28TP-EI-MC-AC is a next-generation, energy-efficient Layer 3 intelligent Fast Ethernet access switch designed for enterprise customers. Built on Huawei’s Versatile Routing Platform (VRP®) software platform, this switch combines flexible VLAN deployment, comprehensive security mechanisms, advanced QoS control policies, and green energy-saving technologies to meet the requirements of Ethernet multi-service承载 and access.

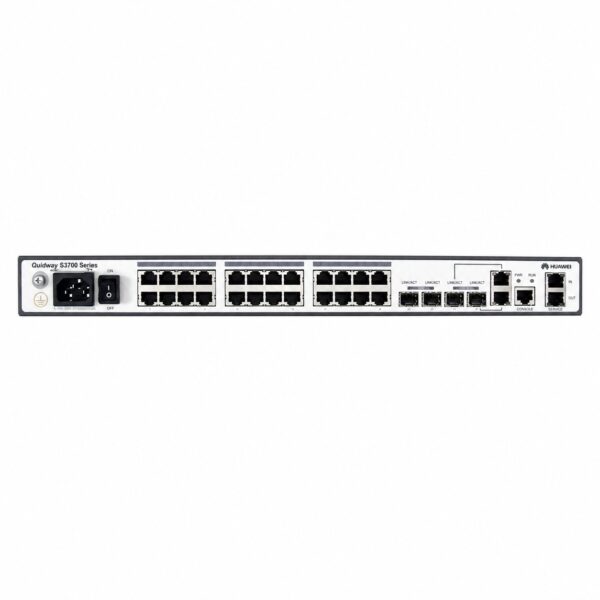

This switch is particularly suited for small to medium-sized enterprises, providing simple and convenient installation and maintenance while delivering robust performance for various application scenarios. It offers 24 Ethernet 10/100 ports, 2 Gigabit SFP uplink ports, and 2 dual-purpose 10/100/1000 or SFP Combo ports, along with 2 monitoring control (MC) ports. With a switching capacity of 64 Gbps and a forwarding performance of 9.6 Mpps, the S3700-28TP-EI-MC-AC delivers reliable, high-performance connectivity for enterprise access networks.

Technical Specifications

Category	Specification
Product Code	S3700-28TP-EI-MC-AC
Part Number	02352374
Product Type	Enterprise-class switch / Routing switch
Application Level	Layer 3
Switching Capacity	64 Gbps
Forwarding Performance	9.6 Mpps
Switching Mode	Store-and-forward
MAC Address Table	16K
Port Structure	Non-modular
Total Ports	28
Downlink Ports	24 × 10/100Base-TX Ethernet ports
Uplink Ports	2 × 1000Base-X SFP ports + 2 × Gigabit Combo ports (10/100/1000Base-T or 100/1000Base-X)
Monitoring Ports	2 MC ports
VLAN Support	4K VLANs; Guest VLAN, Voice VLAN, Super VLAN; MAC/protocol/IP subnet-based VLAN; QinQ, Flexible QinQ; 1:1 and N:1 VLAN mapping
Reliability	RRPP (sub-50ms protection switchover); Smart Link (millisecond-level protection); STP/RSTP/MSTP; BPDU/Root/Loop protection; SEP; BFD for OSPF/IS-IS/VRRP/PIM
IP Routing	Static routing, RIPv1, RIPv2, ECMP; OSPF, IS-IS, BGP
IPv6 Features	Neighbor Discovery (ND); Path MTU (PMTU); IPv6 ping/tracert/Telnet; 6to4 tunnel; ISATAP tunnel; IPv6-based ACLs; MLD v1/v2 snooping
Multicast	1K multicast groups; IGMP v1/v2/v3 snooping; IGMP fast leave; Multicast VLAN; Cross-VLAN multicast replication; Trunk port multicast load balancing; Controllable multicast; Port-based multicast traffic statistics
QoS/ACL	Interface rate limiting; Packet redirection; Port-based traffic policing; Two-rate three-color CAR; 8 priority queues per port; WRR/DRR/SP/WRR+SP/DRR+SP scheduling; 802.1p and DSCP re-marking; L2–L4 packet filtering (source/destination MAC/IP, port, protocol, VLAN)
Network Management	MFF; Telnet; Virtual Cable Test; Ethernet OAM; Port mirroring and RSPAN; SNMP v1/v2/v3; RMON; MUX VLAN; GVRP; iManager NMS; Web management; Auto-configuration; HGMP cluster management; SSH v2; Syslog; Hierarchical alarms
Security	User privilege management and password protection; DoS/ARP/ICMP attack defense; IP-MAC-port-VLAN binding; Port isolation, port security, Sticky MAC; Blackhole MAC; MAC address learning limit; 802.1X authentication; AAA/RADIUS/HWTACACS+/NAC; SSH v2.0; CPU protection; Blacklist and whitelist
Surge Protection	6KV surge protection on service ports
Stacking	Supported (via service port connection)
Power Supply	Built-in AC power module
Power Voltage	AC 100–240V, 50–60Hz
Power Consumption	< 20W
Heat Dissipation	Natural heat dissipation
Installation	Rack mounting, desk mounting, wall mounting; supports 300-mm deep cabinets
Dimensions (W × D × H)	442 × 420 × 43.6 mm (17.4 × 16.5 × 1.7 in)
Weight	< 2.4 kg
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
