Huawei S5700-52C-SI – Product Datasheet

Name: Huawei S5700-52C-SI Switch - SunSpike
SKU: S5700-52C-SI

Product Overview

The Huawei S5700-52C-SI is a gigabit Layer 3 Ethernet switch belonging to the S5700-SI series. Built on Huawei’s next-generation high-performance hardware architecture and the Versatile Routing Platform (VRP), this switch delivers high-density GE interfaces with 10GE uplink capabilities.

Designed for medium to large enterprise networks, the S5700-52C-SI serves effectively as an access or aggregation switch in campus networks, as well as an access switch in data center environments. The switch integrates advanced technologies across reliability, security, and energy efficiency, featuring a simple and convenient installation and maintenance approach that helps reduce operational and administrative costs.

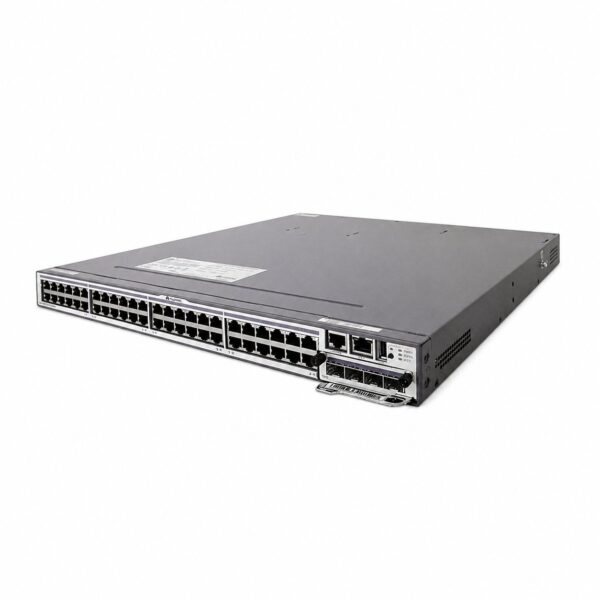

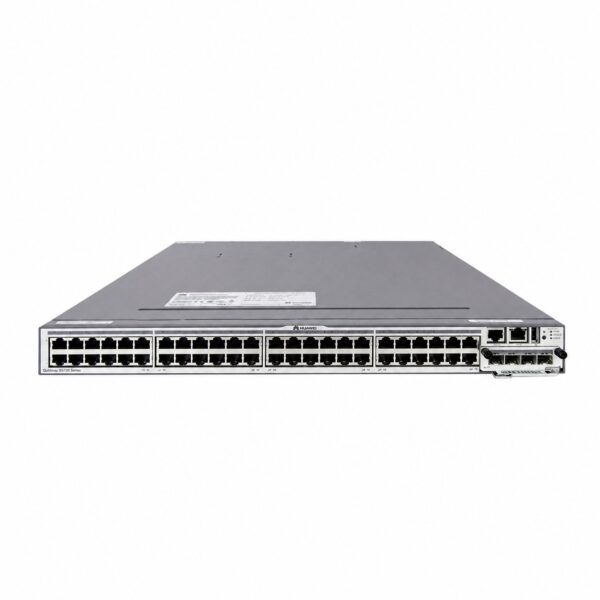

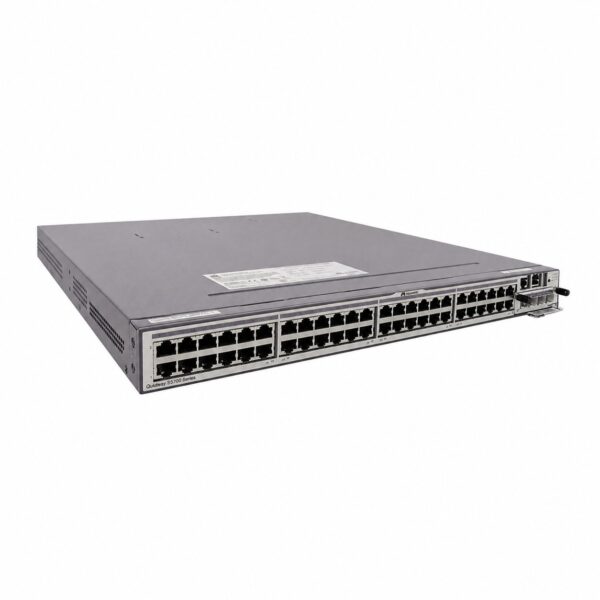

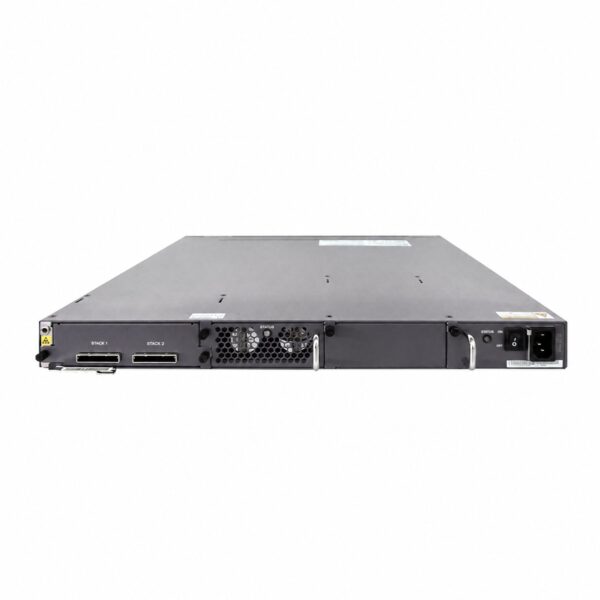

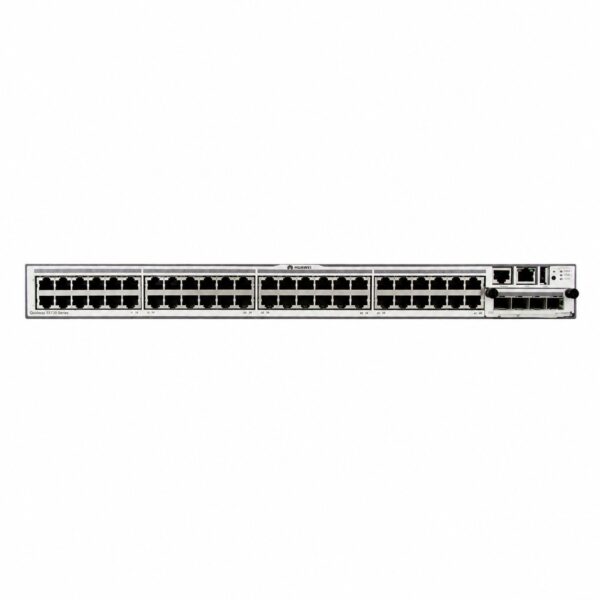

The switch comes in a compact 1U rack-mountable form factor with 48 fixed 10/100/1000BASE-T ports, two expansion slots for uplink subcards and stacking cards, and support for dual hot-swappable power supplies. It offers a switching capacity of 256 Gbps and a forwarding performance of 132 Mpps, making it well-suited for bandwidth-intensive applications. With comprehensive Layer 2/Layer 3 features, robust security protocols, IPv6 forwarding capabilities, and intelligent traffic management, the S5700-52C-SI provides a reliable, scalable, and energy-conscious networking solution for enterprise customers building next-generation IT infrastructures.

Technical Specifications

Category	Specification
Model	S5700-52C-SI
Part Number	02352356
Product Type	Gigabit Layer 3 Ethernet Switch
Switching Capacity	256 Gbps
Forwarding Performance	132 Mpps
MAC Address Table	16K
Fixed Interfaces	48 × 10/100/1000BASE-T Ethernet ports
Subcards Supported	4 × 1000BASE-X SFP subcard, 2 × 10GE SFP+ subcard, 4 × 10GE SFP+ subcard
Expansion Slots	2 extended slots (one for uplink subcard, one for stack card)
Port Structure	Non-modular
Console Port	1 × console port
ETH Management Port	1 × ETH management port
USB Port	1 × USB port
Memory (RAM)	256 MB
Flash Memory	32 MB
Stacking	Stackable (via dedicated stacking cards)
Redundant Power Supply (RPS)	Not supported
PoE	Not supported
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz; -48 V DC to -60 V DC
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz; -36 V DC to -72 V DC
Maximum Power Consumption	78 W (100% throughput, full fan speed)
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 420.0 mm (1.72 in. × 17.4 in. × 16.5 in.)
Weight (Empty)	≤ 5 kg (11.02 lb)
Weight (Fully Configured)	≤ 8.5 kg (18.74 lb)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	5% to 95%, non-condensing
Operating Altitude (AC Power)	0–5000 m (0–16404 ft.)
Operating Altitude (DC Power)	0–2000 m (0–6562 ft.)
Noise (Normal Temp, Sound Power)	< 41 dB(A)
Availability	> 0.99999
MTBF	51.3 years (with 2-port 10GE interface card); 70.3 years (with 4-port GE front card); 28.58 years (with 4×10GE front card)
MTTR	2 hours
Service Port Surge Protection	Common mode: ±2 kV
Power Supply Surge Protection	AC: ±6 kV differential mode, ±6 kV common mode; DC: ±1 kV differential mode, ±2 kV common mode
