Huawei S1720-52GWR-4P-E-AC Switch – Product Documentation

Name: Huawei S1720-52GWR-4P-E-AC Switch - SunSpike
SKU: S1720-52GWR-4P-E-AC

Product Overview

The Huawei S1720-52GWR-4P-E-AC is a managed Ethernet access switch from the S1700 series, designed for deployment at the access layer of enterprise networks to deliver cost-effective packet switching capabilities. The switch provides multi-service access, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security, and can be used to build ring topologies of high reliability.

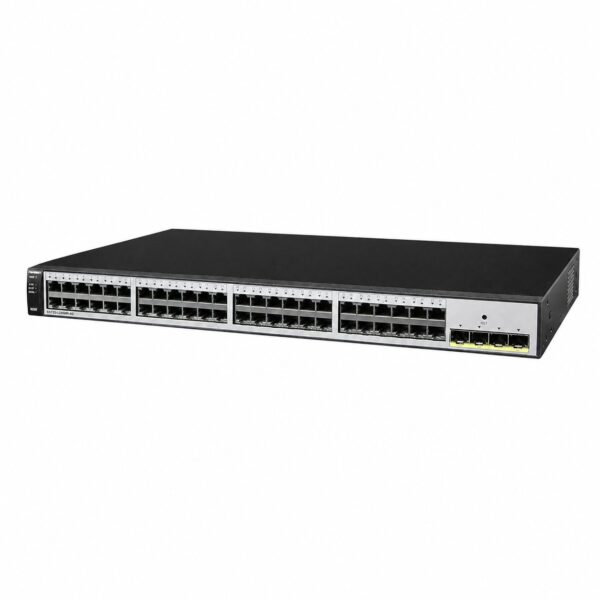

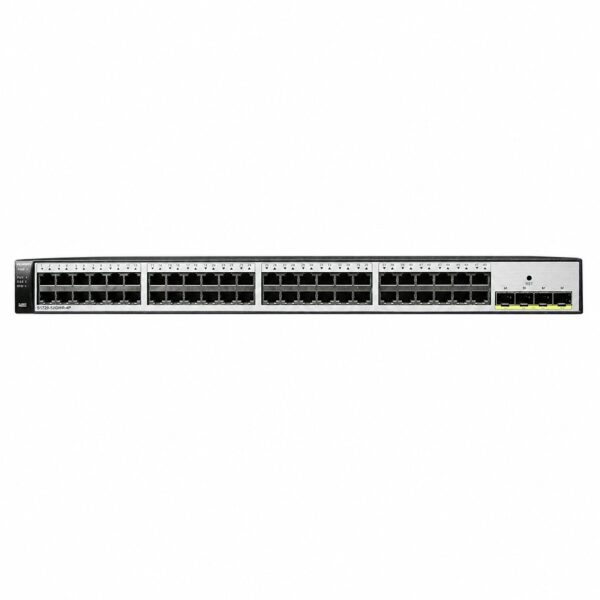

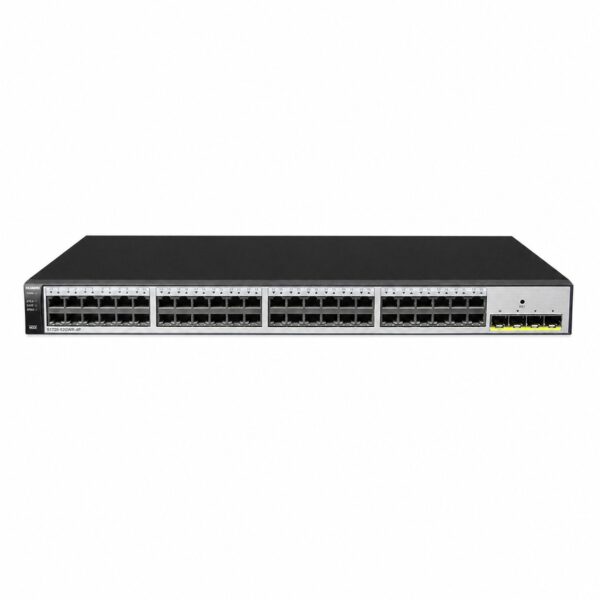

Equipped with 48 10/100/1000BASE-T ports and 4 Gigabit SFP ports, the S1720-52GWR-4P-E-AC offers “copper + fiber” GE uplink flexibility, allowing convenient client access while significantly improving cost-effectiveness. All ports provide Layer 2 wire-speed switching capability, ensuring non-blocking packet forwarding across all ports. The switch also supports Layer 3 static routing with both IPv4 and IPv6 protocol stacks.

The S1720-52GWR-4P-E-AC features a built-in fixed AC power supply and a fanless design with natural heat dissipation, making it suitable for small to medium-sized enterprises, Internet cafes, hotels, schools, and other Ethernet access scenarios.

Product Specifications

Category	Specification
Model	S1720-52GWR-4P-E-AC
Product Type	Managed Ethernet access switch
Switching Capacity	336 Gbit/s
Forwarding Performance	78 Mpps
Fixed Ports	48 × 10/100/1000BASE-T Ethernet ports + 4 × GE SFP ports
Total Port Count	52 ports
Port Structure	Non-modular
Switching Mode	Store-and-forward
Memory (RAM)	512 MB
Flash Memory	240 MB
VLAN	4K VLANs; VLAN assignment based on access, trunk, and hybrid ports; Management VLAN; Voice VLAN
MAC Address Table	16K
STP	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
Multicast	IGMP snooping; maximum 1K multicast groups; Fast leave
Routing Features	IPv4 and IPv6 static routing
Link Aggregation	64 LAGs; maximum 8 ports per LAG; Static LACP
Port Mirroring	Port-based bi-directional flow mirroring; Configurable trunk as mirrored interface
Bandwidth Control	Rate limiting for incoming/outgoing packets; granularity of 8 kbit/s
Broadcast Storm Suppression	Interface rate-based suppression; Alarm notification at threshold
Security Features	Hardware ACL; MAC address filtering; MAC address authentication; Port-based 802.1x authentication; RADIUS authentication; Portal authentication; Port isolation; Storm suppression; Attack defense (broadcast, ARP, ICMP, TCP, worm viruses, DoS); DHCP snooping
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1p, SNMP
QoS	PQ and WRR; Eight queues per port; Queue scheduling based on 802.1p or DSCP priorities
Device Management	SNMP; Web-based management system
Power Supply	Built-in fixed AC power module (non-pluggable)
Input Voltage	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
PoE Support	Not supported
Dimensions (W × D × H)	442 × 310 × 43.6 mm (1U)
