Name: Huawei S1720-10GW-2P-E-AC Switch - SunSpike
SKU: S1720-10GW-2P-E-AC

Product Overview

The Huawei S1720-10GW-2P-E-AC is a web-managed Gigabit Ethernet access switch from the Huawei S1700 series enterprise switch family. The S1700 series is deployed at the access layer of enterprise networks to deliver cost-effective packet switching capability, multi-service access capabilities, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security, and can be used to build ring topologies of high reliability. The S1720-10GW-2P-E-AC is applicable to various scenarios, for example, Gigabit Ethernet access to enterprise networks and Gigabit-to-desktop, building future-oriented IT networks for enterprises. It is ideal for small to medium-sized businesses, Internet cafes, hotels, schools, and other Ethernet access scenarios.

The S1720-10GW-2P-E-AC has the same hardware structure as the S1720-10GW-2P. The main distinguishing feature of the “-E” model is that it is a bundle version that includes a license for full management capabilities. Depending on management types, S1700 series switches are classified into unmanaged switches, web-managed switches, and fully-managed switches. The S1720-10GW-2P-E supports various management and maintenance methods, such as web, SNMP, and command line interface (CLI).

Complete Technical Specifications

Parameter Category	Parameter	Specification / Value
General	Product Model	S1720-10GW-2P-E-AC
	Product Family	S1700 Series Enterprise Access Switch
	Management Type	Fully-managed (bundle with license)
	Switching Capacity	68 Gbit/s
	Forwarding Performance	15 Mpps
	MAC Address Table	16K entries
	RAM	512 MB
	Flash Memory	240 MB (customer-available)
	Mean-Time-To-Repair (MTTR)	2 hours
	Energy Efficient Ethernet (EEE)	Supported
Ports	Downlink Ports	8 × 10/100/1000BASE-T Ethernet ports
	Uplink Ports	2 × Gigabit SFP (1000BASE-X) ports
	Total Ports	10 ports
	SFP Module Support	GE optical (max 40 km), GE copper transceivers, GPON (V200R012C00+)
Physical	Chassis Height	1U
	Weight (including packaging)	1.3 kg (2.87 lb)
Electrical	Rated Input Voltage	100 – 240 V AC, 50/60 Hz
	Maximum Input Voltage Range	90 – 264 V AC, 47 – 63 Hz

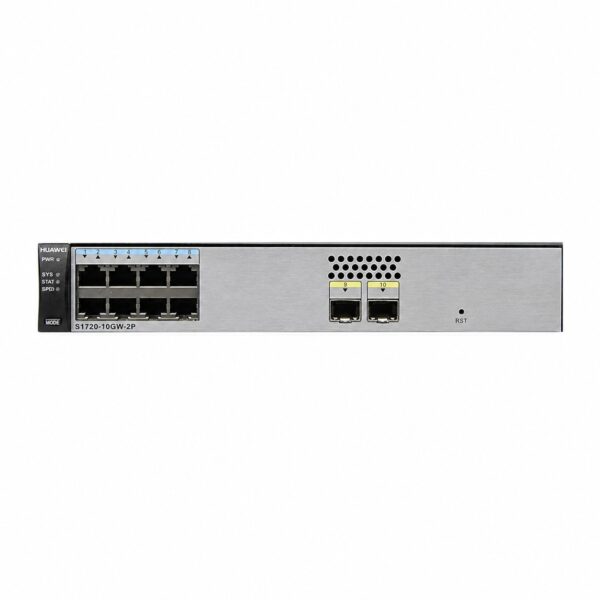

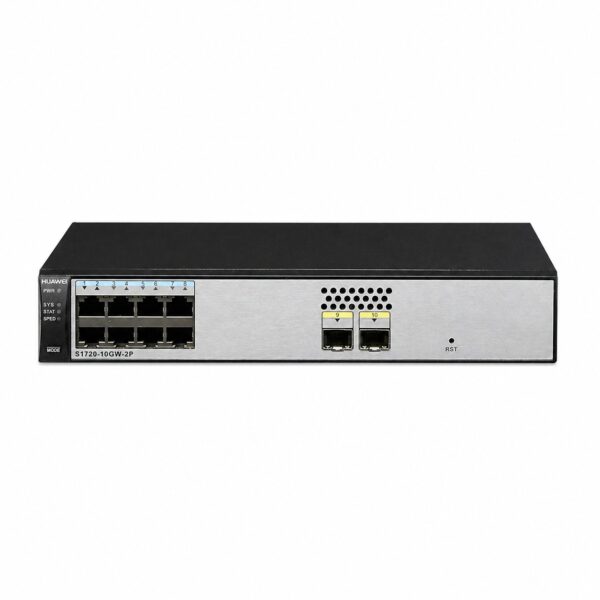

Front Panel	Mode Switching Button	Cycles indicator display modes (Speed → Default); auto-returns after 45s idle
	Reset Button	Short press: reset switch; hold ≥6s: restore factory settings (without resetting)

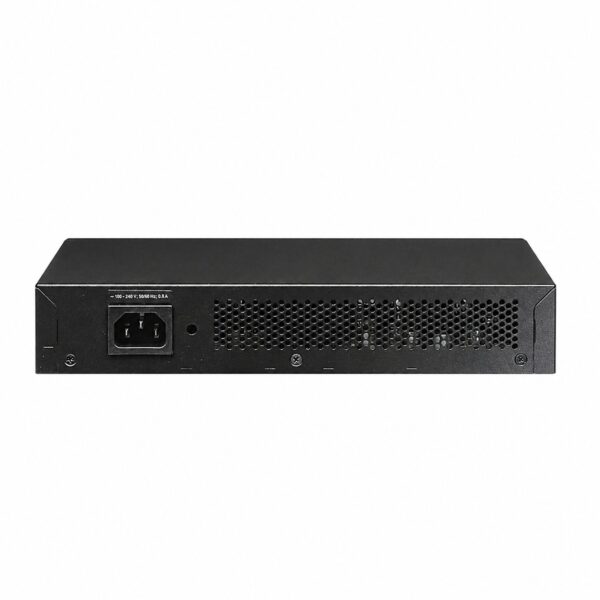

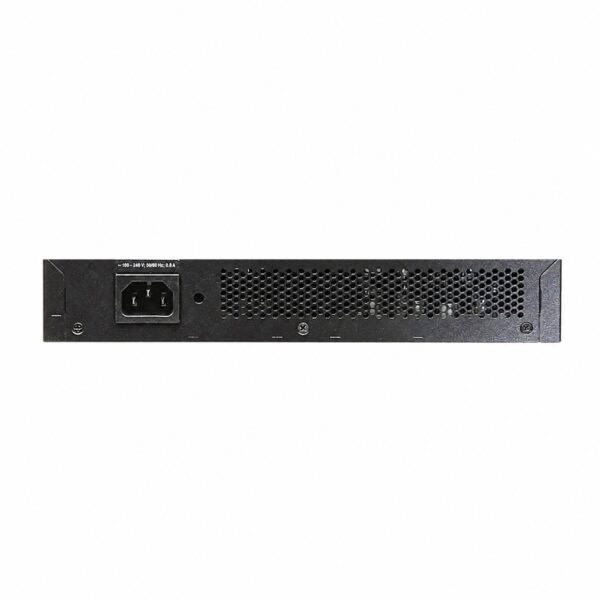

Rear Panel	AC Power Socket	Standard AC power socket
	Power Cable Locking Strap Jack	Reserved (strap not included)
Feature Support	VLANs	4K VLANs; access/trunk/hybrid ports; management VLAN; voice VLAN
	QoS	PQ and WRR; eight queues per port; 802.1p/DSCP-based scheduling
	STP	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
	Multicast	IGMP snooping; max 1K multicast groups; fast leave
	Routing	IPv4 and IPv6 static routing; RIP, RIPng, OSPF (S1720-E series)
	Link Aggregation	64 LAGs; max 8 ports per LAG; static LACP
	Port Mirroring	Port-based bi-directional flow mirroring; trunk as mirrored interface
	Bandwidth Control	Rate limiting (ingress/egress); granularity 8 kbit/s
	Broadcast Storm Suppression	Interface-rate based; alarm on traffic threshold
	Security Features	Hardware ACL MAC filtering, MAC authentication, port-based 802.1X, RADIUS, Portal authentication, port isolation, storm suppression, attack defense, DHCP snooping
Device Management	Management Interfaces	SNMP, Web (HTTPS), CLI
	Additional Management	DHCP client, user password protection, one-key restoration
Device Maintenance	Maintenance Tools	RMON, system log, Ping, traceroute, VCT, LLDP
Ordering	Product Code (PN)	98010753
	Warranty	Up to 36 months
