Huawei CloudEngine CE8855-32CQ4BQ Data Center Switch – Documentation List & Full Specifications

1. Reference Materials List

#	Document / Source	Description
1	Huawei Enterprise – CloudEngine 8855-32CQ4BQ Data Center Switch Datasheet	Official product datasheet covering overview, port configuration, features, and high-density 40GE/100GE access capabilities with 200GE uplink ports
2	Huawei Support – CloudEngine 9800, 8800, and 6800 Series Switches Hardware Description (V300)	Official hardware description document covering chassis, power modules, fan modules, components, and part numbers for CE8855-32CQ4BQ
3	Huawei Enterprise – CloudEngine 8800 Series Switches Product Page	Product series overview with specifications comparison table including CE8855-32CQ4BQ parameters (ports, switching capacity, buffer, power consumption)
4	Huawei Support – OceanStor Dorado 8000 and Dorado 18000 V700R001 Product Description	Product description for CE8855-32CQ4BQ as a data switch for storage controller enclosure connectivity
5	Huawei Support – Configuration Precautions for EAI – CloudEngine 9800, 8800, and 6800 V300R025C00	Configuration precautions document listing CE8855-32CQ4BQ among supported models
6	Huawei Support – Configuration Precautions for Data Plane Fault Awareness – CloudEngine 9800, 8800, and 6800 V300R025C00	DPCF configuration guide covering CE8855-32CQ4BQ
7	Huawei Support – Configuration Precautions for Smart Link – CloudEngine 9800, 8800, and 6800 V300R025C00	Smart Link configuration guide with CE8855-32CQ4BQ support
8	Huawei Support – 报文过滤配置注意事项 – CloudEngine 9800, 8800, 6800 V300R025C00 配置指南-QoS	QoS configuration guide covering CE8855-32CQ4BQ
9	Huawei Info-Finder (Online Tool)	Online hardware compatibility and 3D model tool for CloudEngine series switches

2. Product Overview (Full English)

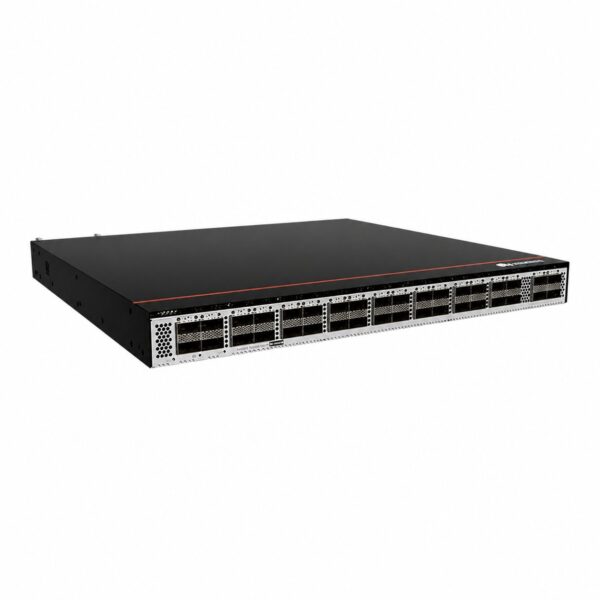

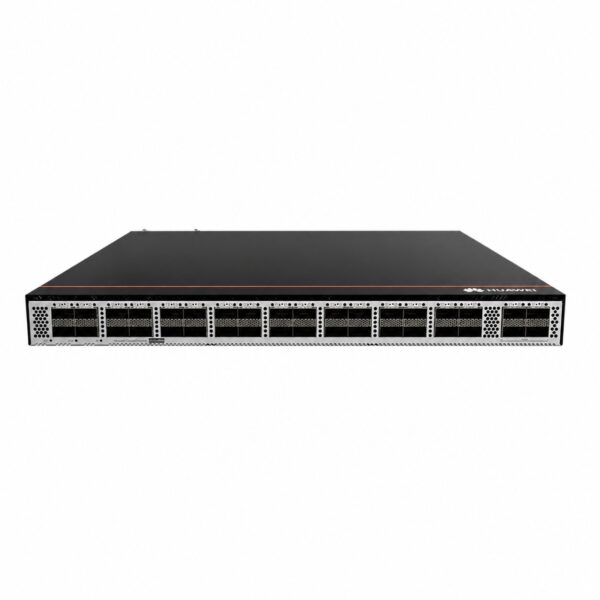

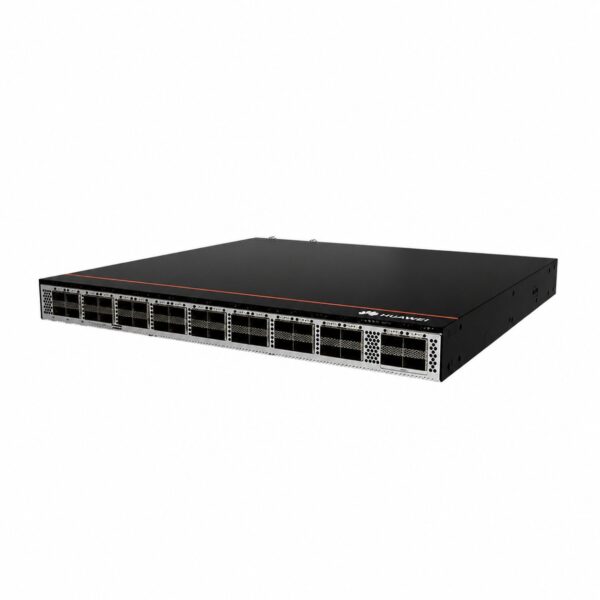

The Huawei CloudEngine CE8855-32CQ4BQ is a next-generation, high-performance, high-density 40GE/100GE access switch designed for modern data centers (DCs), providing 200GE uplink ports. As part of Huawei’s CloudEngine 8855 series, this switch is purpose-built for cloud-era data center networks and can also serve as a core or aggregation switch in high-end campus networks.

High-density port configuration – The switch features 32× 40GE/100GE QSFP28 ports and 4× 200GE QSFP56 uplink ports. Each 200GE QSFP56 port can automatically adjust its rate to 40 or 100 Gbit/s. Each 100GE QSFP28 port can be used as one 40GE QSFP+ port or split into four 25GE SFP28 ports or four 10GE SFP+ ports, providing exceptional flexibility in networking.

Key capabilities of the CE8855-32CQ4BQ include:

High switching capacity – Delivers 8 Tbps switching capacity and 2400 Mpps packet forwarding performance
Extensive data center features – Full support for VXLAN routing and bridging, BGP-EVPN as the VXLAN control plane, and M-LAG (Multichassis Link Aggregation Group) for device-level link reliability
Intelligent lossless network – Supports PFC (Priority Flow Control), AI ECN (Explicit Congestion Notification), and DCBX for lossless Ethernet fabric
Comprehensive O&M – Features Telemetry, Netstream, ERSPAN+, and iFIT Packet Event for proactive network health monitoring and troubleshooting

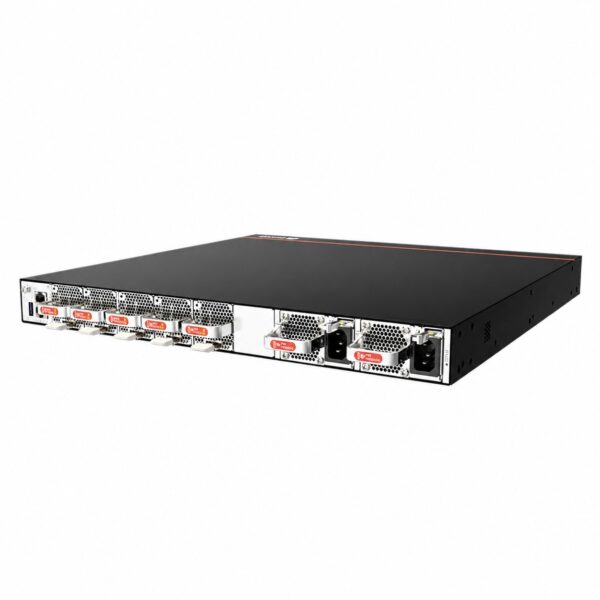

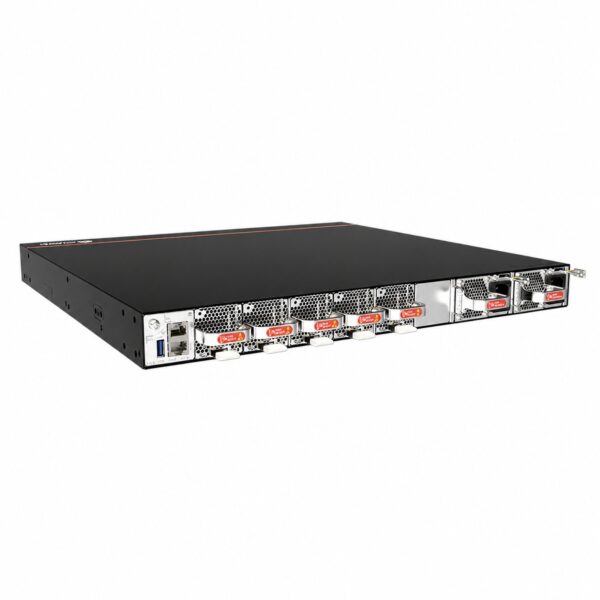

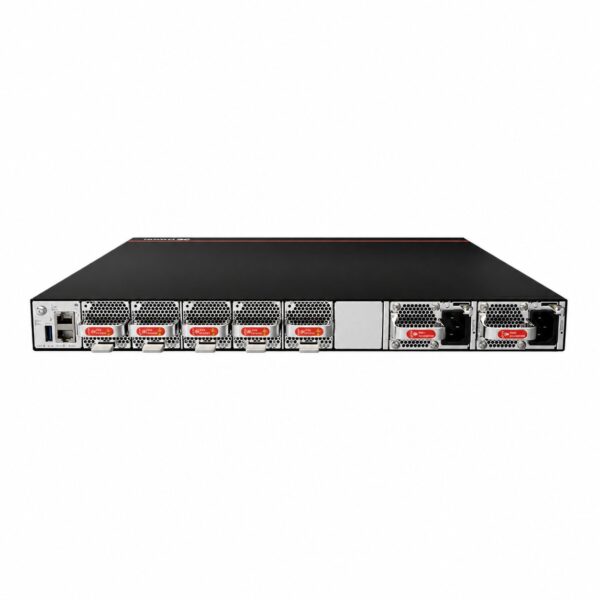

Flexible airflow design – Supports both port-side intake and port-side exhaust with 5 hot-swappable fan modules

The CE8855-32CQ4BQ employs an advanced hardware architecture with a component-based system platform that supports separation of process and kernel, as well as independent maintenance and upgrade of components. The switch can work with CloudEngine 16800, 16800-X, or 8800 DC core switches to build an elastic, virtualized, high-quality, and fully-connected 200GE data center network, meeting the network requirements of data centers in the cloud era. With its high-density 40GE/100GE access and 200GE uplink capabilities, the CE8855-32CQ4BQ helps enterprises and carriers build scalable data center network platforms for the cloud computing era.

3. Technical Specifications (Parameter Table)

Category	Parameter	Details
General	Product Type	Data Center Ethernet Access Switch
	Model	CE8855-32CQ4BQ
	Part Number (base)	02355KUD (switch without fan and power modules)
	Alternate P/Ns	02355KUE (with 2×AC PSU, 5×fans, port-side intake); 02355KUF (with 2×AC PSU, 5×fans, port-side exhaust); 02356DKV / 02356DKW (license bundles)
	Short Name	CE8855
	Series	CloudEngine 8800 Series
	Device Type	Fixed 1U Data Center Switch
	Installation Type	1U rack-mounted
	First Supported Version	V300R023C00
Performance	Switching Capacity	8 Tbps / 128 Tbps
	Packet Forwarding Rate	2400 Mpps
	Buffer	36 MB
Ports	Total Ports	36
	Downlink Ports	32× 40GE/100GE QSFP28
	Uplink Ports	4× 200GE QSFP56
	Port Breakout	100GE QSFP28 ports: 4×25GE, 4×10GE, or 1×40GE; 200GE QSFP56 ports: 100GE or 40GE
Processor & Memory	CPU	4-core, 1.4 GHz
	DRAM	8 GB
	NOR Flash	64 MB
	SSD Flash	4 GB
Management	Console Port	1× RJ45 console
	ETH Management Port	1× RJ45 Ethernet management
	USB Port	1× USB 2.0
Physical Dimensions	Chassis Fan Slots	5
	Power Supply Slots	2
	Dimensions (W×D×H)	442 mm × 600 mm × 43.6 mm (1U)
	Weight – with packaging	~12.58 kg
Power	Input Voltage	AC: 90 V ~ 290 V; HVDC: 190 V ~ 290 V; DC: –38.4 V to –72 V (‑48V DC) or +38.4 V to +72 V (+48V DC)
	Power Supply Type	1200W AC & 240V DC pluggable modules; supports 1+1 hot-swappable redundancy
	Maximum Power Consumption	541 W
	Typical Power Consumption	~378 W
Cooling	Fan Modules	5 hot-swappable fan modules
	Airflow Direction	Flexible: port-side intake or port-side exhaust
Environmental	Operating Temperature	0°C to 40°C
	Storage Temperature	-40°C to +70°C
	Relative Humidity	5% RH to 95% RH, non-condensing
VLAN	VLAN Modes	Access, Trunk, Hybrid
QoS	Features	ACL, CAR, Remark, Schedule; PQ, DRR, PQ+DRR queue scheduling; WRED and tail-drop congestion avoidance; traffic shaping; 1588v2 (PTP)
	Queue Count	8 queues per port
Multicast	Protocols	IGMP Snooping, IGMP Proxy, IGMP, PIM-SM, PIM-DM
Security	Features	802.1x authentication, RADIUS, HWTACACS; MACsec support
IPv4 Routing	Protocols	RIP, OSPF, ISIS, BGP
IPv6 Routing	Protocols	RIPng, OSPFv3, ISISv6, BGP4+
Reliability	Features	LACP; Hardware-based BFD (BFD for BGP, IS-IS, OSPF, static routes, and VXLAN); M-LAG (Multichassis Link Aggregation Group); DPFR (Data Plane Fault Recovery); MoFRR
Data Center Features	Protocols	VXLAN routing and bridging; BGP-EVPN; M-LAG; PFC (Priority Flow Control); AI ECN (Explicit Congestion Notification); DCBX; 1588v2
Intelligent O&M	Features	Telemetry; Netstream; ERSPAN+; iFIT Packet Event (packet loss and ultra-long latency visibility); sFlow
Virtualization	Support	VXLAN hardware gateway; supports up to 16 million tenants
Stacking	Support	Not supported
