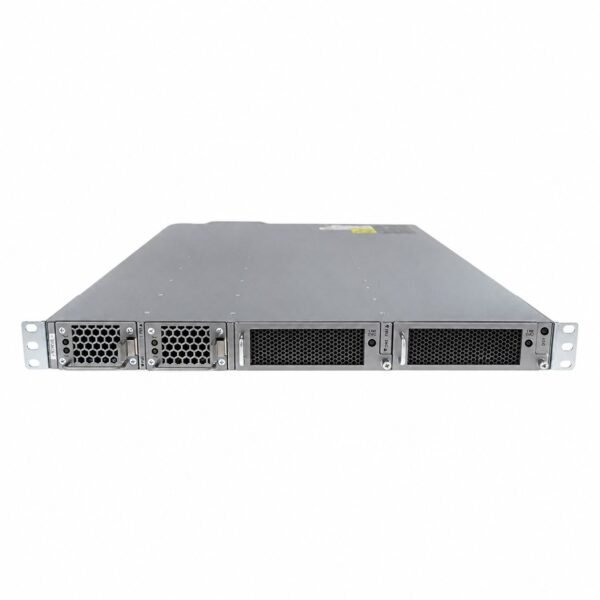

Name: Cisco Nexus 5010 switch - SunSpike
SKU: N5K-C5010P

Product Overview

The Cisco Nexus 5010 switch (model N5K-C5010P-BF) is a 1RU, line-rate, low-latency 10 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), and Fibre Channel switch designed for data center applications. It provides more than 520-Gbps throughput and is built for environments transitioning to 10 Gigabit Ethernet or deploying a unified fabric to consolidate LAN, SAN, and cluster networks. This switch has been discontinued since October 06, 2022.

Key Features

Cut-Through Architecture: Supports line-rate 10 Gigabit Ethernet on all ports with consistently low latency, independent of packet size or enabled services.
Unified Fabric Support: Supports FCoE and IEEE Data Center Bridging (DCB) to consolidate LAN, SAN, and cluster traffic over a single lossless Ethernet link, protecting existing Fibre Channel storage investments.

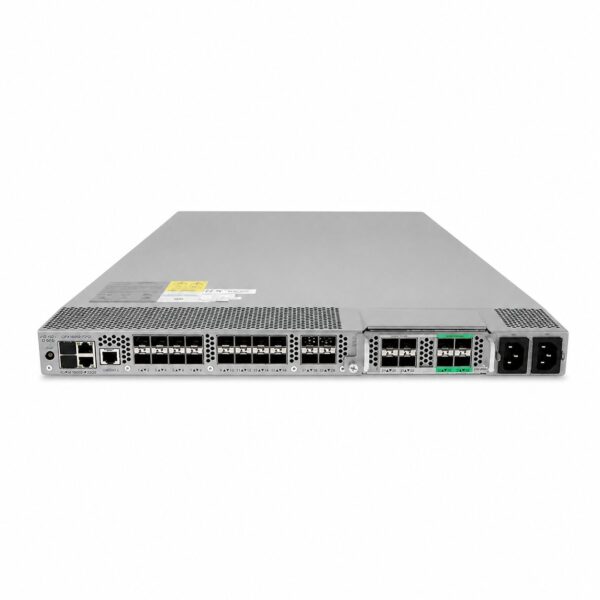

Flexible Connectivity: Features 20 fixed SFP+ ports. The first 8 ports support dual speed (1/10 Gigabit Ethernet). An expansion module slot allows for additional ports (e.g., 6 additional 10GE ports, 8 4Gbps Fibre Channel ports, or a combination).
High Availability: Powered by 1+1 redundant, hot-pluggable power supplies and 1+1 redundant, hot-pluggable fan modules for front-to-back cooling.

Technical Specifications

Category	Specification
Device Type	Managed Switch – 20 ports
Enclosure Type	Desktop / Rack-mountable – 1U
Subtype	10 Gigabit Ethernet
Ports	20 x SFP+ (first 8 ports are dual-speed 1/10 GbE)
Throughput	Up to 520 Gbps switching capacity; 386.9 mpps forwarding rate
MAC Address Table	16,000 entries
Jumbo Frame Support	Up to 9216 bytes
Expansion Slots	1 x expansion module slot
Management	1 x console RJ-45 port; 1 x 10/100/1000-Mbps Ethernet management port
Remote Management	SNMP 1, 2, 3, RMON, Telnet, SSH-2, SMI-S
Compliant Standards	IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1ab (LLDP), 802.3ad (LACP), 802.3ae, 802.3x
Redundant Power	Supported (1+1, with optional power supplies)
Power Consumption	450 W (operational)
Width x Depth x Height	17.3 in x 30.0 in x 1.72 in (43.9 cm x 76.2 cm x 4.4 cm)
Weight	35.0 lbs (15.86 kg)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Operating Humidity	5% to 95% (non-condensing)
