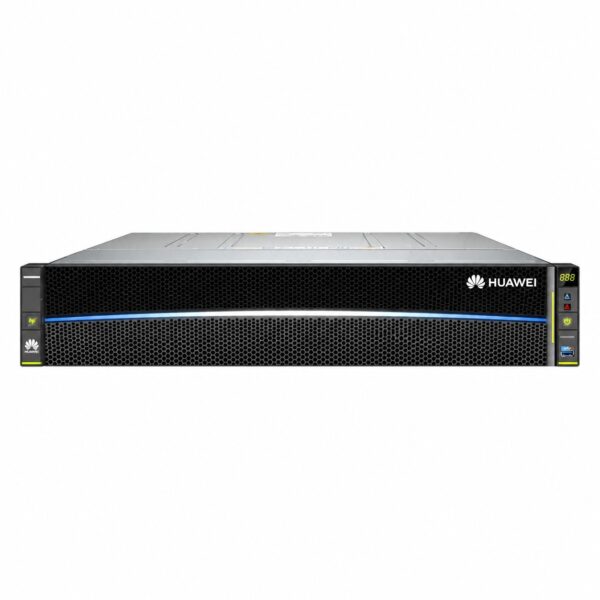

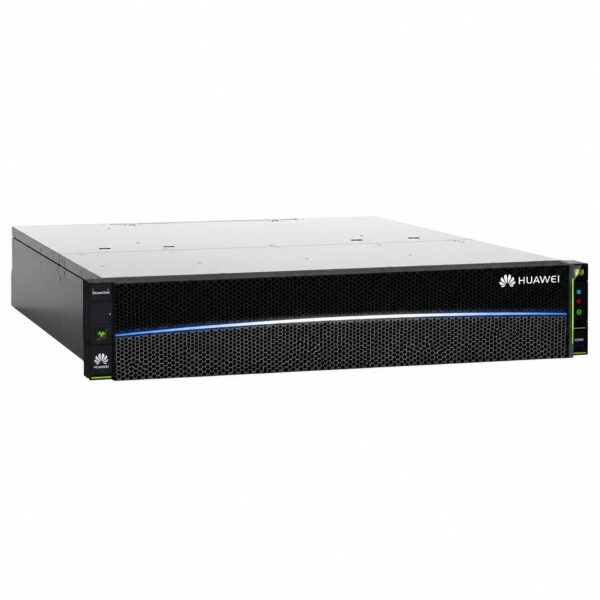

Huawei OceanStor 5300 V3
Huawei OceanStor 5300 V3
Enterprise stock · tested · export documentation available
Huawei OceanStor 5300 V3 Product Documentation List & Specifications
Document List
| No. | Document Title | Content Coverage |
|---|---|---|
| 1 | OceanStor 5300 V3 Product Overview | Positioning, architecture, key capabilities |
| 2 | OceanStor 5300 V3 Technical Specifications | Hardware, protocols, capacity, software features |
| 3 | OceanStor 5300 V3 Software Feature Descriptions | Hyper series, Smart series, management tools |
| 4 | OceanStor 5300 V3 Deployment Guide | Installation, configuration, cabling |
| 5 | OceanStor 5300 V3 Administrator Guide | Daily operations, pool management, troubleshooting |
| 6 | OceanStor 5300 V3 Command Reference | CLI commands and parameter descriptions |
| 7 | OceanStor 5300 V3 Performance Tuning Guide | Optimization best practices |
| 8 | OceanStor 5300 V3 Compatibility Matrix | Supported hosts, OS, virtual platforms |
| 9 | OceanStor 5300 V3 Security Configuration Guide | Access control, data encryption, secure deletion |
| 10 | OceanStor 5300 V3 Error Code Reference | Alarm and event handling |
Product Overview
The Huawei OceanStor 5300 V3 is a mid-range unified hybrid storage system designed for enterprise-class workloads, delivering convergence of SAN and NAS services on a highly scalable platform. Built on a cloud-oriented storage operating system and a next-generation hardware platform, it combines high-performance hardware with intelligent management software to address demanding application scenarios including large OLTP/OLAP databases, file sharing, and cloud computing across government, finance, telecom, energy, and media industries.
The system employs a dual-controller active-active architecture in a 2U chassis, with scale-out expansion supporting up to eight controllers. It achieves latency lower than 1 ms when configured with all SSDs and delivers a complete suite of smart management capabilities. The platform supports mixed drive deployments across SSD, SAS, and NL-SAS media types, enabling performance and cost optimization through intelligent tiering and data movement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Architecture | Dual-controller active-active; scale-out to 8 controllers |
| Controller Enclosure | 2U, 86.1 mm × 447 mm × 750 mm |
| Cache Memory | 32 GB–128 GB per controller |
| Processor | Intel multi-core processor (12-core per controller) |
| Max Drives (2 controllers) | 500 |
| Drive Types | SSD, SAS, NL-SAS |
| Max Raw Capacity | Up to 1,800 TB (all-SSD) |
| Max Front-End Ports per Controller | 12 |
| Max I/O Modules per Controller | 2 |
| Storage Protocols | Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, FTP |
| Front-End Port Types | 1 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 16 Gbit/s Fibre Channel, 56 Gbit/s InfiniBand |
| Back-End Port Type | SAS 3.0 (4 × 12 Gbit/s per port) |
| RAID Levels | 0, 1, 3, 5, 6, 10, 50 |
| Max LUNs | 2,048 |
| Max Snapshots (LUN) | 256 |
| Max Snapshots per File System | 2,048 |
| Max Single File Capacity | 256 TB |
| Power Supply | AC: 100–127 V / 200–240 V; DC: 192–288 V or -48 to -60 V |
| Operating Temperature | 5°C to 40°C (below 1,800 m) |
| Operating Humidity | 5%–90% RH |
| Weight (Controller Enclosure) | ≤ 37 kg |
Software Features
| Category | Components |
|---|---|
| Data Protection | HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), HyperReplication (remote replication), HyperLock (WORM) |
| Mission-Critical Protection | SmartQoS (intelligent QoS control), SmartPartition (intelligent partitioning), SmartCache (intelligent SSD caching) |
| Resource Efficiency | SmartTier (intelligent storage tiering), SmartThin (thin provisioning), SmartMotion (data migration), SmartMulti-Tenant (multi-tenant), SmartMigration (LUN migration), SmartCompression (online compression), SmartDedup (online deduplication), SmartQuota (quota management), SmartErase (data destruction) |
| Storage Management | UltraPath (multipathing), Cloud Service (remote maintenance), ReplicationDirector (disaster recovery), DeviceManager (single device), eSight (multi-device management) |
| Virtualization | Heterogeneous virtualization, block virtualization; VMware VAAI support, vSphere/vCenter integration; Citrix, Hyper-V support |
