Huawei OceanStor 6800F V5
OceanStor 6800F V5
Enterprise stock · tested · export documentation available

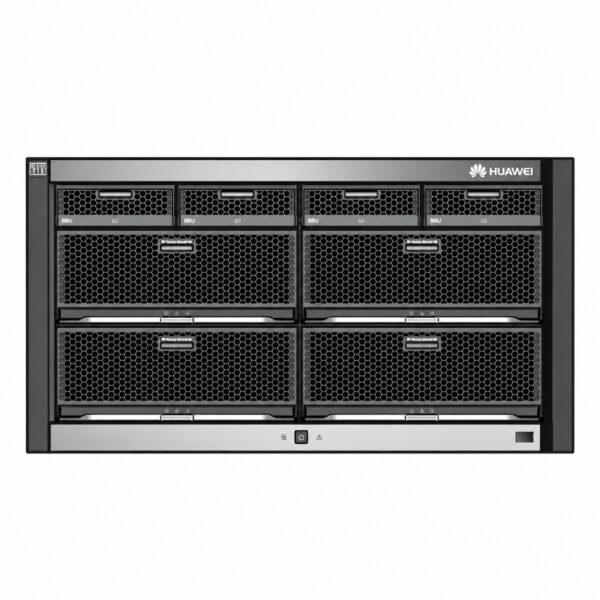

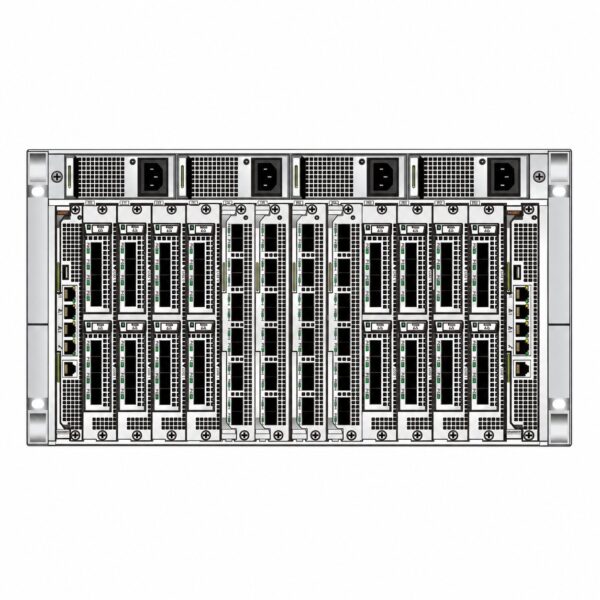

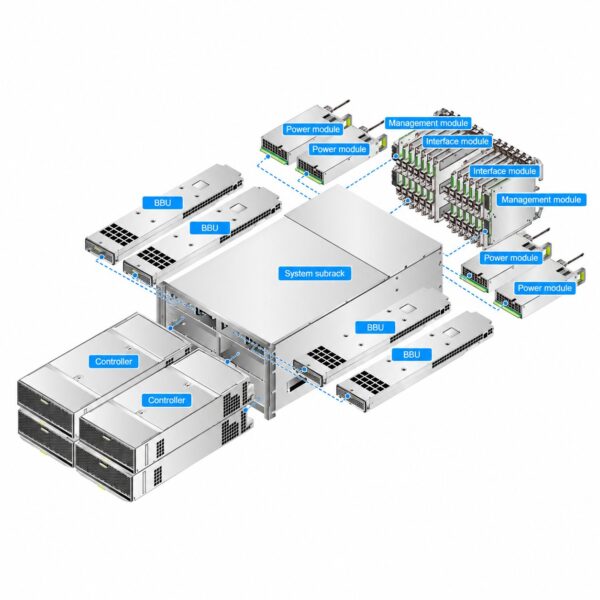

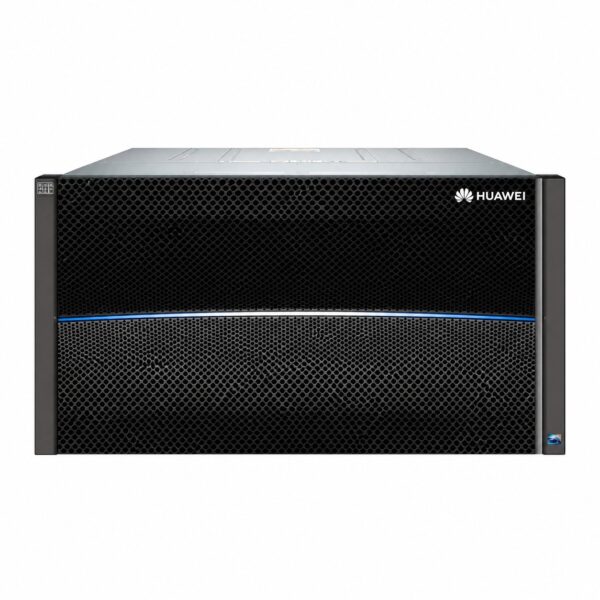

Huawei OceanStor 6800F V5 All-Flash Storage System
Product Overview
The Huawei OceanStor 6800F V5 is a high-end, mission-critical all-flash storage system designed to deliver exceptional performance, reliability, and intelligent data management for enterprise data centers . Built on the innovative SmartMatrix 2.0 architecture, it provides a maximum of 8 controllers and up to 8 TB of system cache, ensuring millions of IOPS with sub-1 ms latency . The system supports a wide range of storage protocols and is optimized for demanding applications such as large-scale OLTP/OLAP databases, server virtualization, and cloud computing . Its gateway-free active-active solution delivers 99.9999% availability, guaranteeing business continuity . With integrated intelligent management software, including the eService platform, the OceanStor 6800F V5 facilitates simplified operations and cloud transformation across its entire lifecycle .
Technical Specifications
| Category | Specification |
|---|---|
| System Architecture | SmartMatrix 2.0 All-Flash Architecture |
| Max. Controllers | 8 |
| System Cache | 512 GB to 8 TB (expandable with controllers) |
| Processors | Multi-core processors |
| Max. Disk Drives | 1,500 |
| Drive Type | Enterprise-class SSDs |
| Supported Storage Protocols | Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, FTP, and HTTP |
| External Port Types | 16 Gbit/s Fibre Channel, 8 Gbit/s Fibre Channel, 10 Gbit/s FCoE, 1/10 Gbit/s Ethernet, and 56 Gbit/s InfiniBand |
| Internal Port Types | SAS 3.0 (each port supports 4 x 12 Gbit/s) |
| Virtualization Platforms | FusionSphere, VMware, XenServer, and Hyper-V; VMware VAAI/VASA/SRM support |
Software Features
| Category | Features |
|---|---|
| Data Protection Software | HyperSnap (Snapshot), HyperClone (Clone), HyperCopy (Copy), HyperMirror (Volume Mirroring), HyperMetro (Active-Active Arrays), HyperReplication (Remote Replication), HyperLock (WORM), HyperVault (All-in-One Backup) |
| Critical Application Protection | SmartQoS (Intelligent QoS Control), SmartPartition (Intelligent Cache Partitioning) |
| Resource Efficiency Software | SmartThin (Thin Provisioning), SmartDedupe (Deduplication), SmartCompression (Compression), SmartMigration (LUN Migration), SmartVirtualization (Heterogeneous Virtualization), SmartMulti-tenant, SmartQuota, SmartMotion (Data Movement), SmartErase (Data Destruction) |
| Management Software | DeviceManager (Single Device Management), eSight (Centralized O&M Management), eService (Remote Maintenance and Management), UltraPath (Host Multipathing), BCManager (Disaster Recovery Management) |
