HUAWEI FusionServer G5200 V7
G5200 V7
Enterprise stock · tested · export documentation available
HUAWEI FusionServer G5200 V7 – Product Documentation
Product Overview
The HUAWEI FusionServer G5200 V7 is a next-generation 4U 2-socket AI server purpose-built for large-capacity storage and intensive AI workloads. Designed to excel in both training and inference scenarios, it is ideally suited for voice recognition, image analysis, video analytics, and large-scale model training.
The G5200 V7 delivers a compelling combination of robust performance, high reliability, and energy efficiency. It supports up to two 4th or 5th Generation Intel® Xeon® Scalable processors and accommodates up to four dual-width or ten single-width GPU accelerator cards, providing immense parallel computing power. Its architecture features a GPU pass-through design that eliminates the need for PCIe switches for CPU-to-GPU communication, reducing latency and maximizing data throughput.
With substantial local storage capabilities, advanced thermal management, and intelligent O&M features, the G5200 V7 is engineered to simplify deployment and reduce operational overhead in demanding data center environments.
Technical Specifications
| Category | Specification |
|---|---|
| Form Factor | 4U rack-mount AI server |
| Processor | 1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors; up to 350 W TDP per processor; also supports澜起津逮 (Montage) processors |
| Chipset | Emmitsburg PCH |
| Memory | 32 x DDR5 DIMM slots; speeds up to 5600 MT/s |

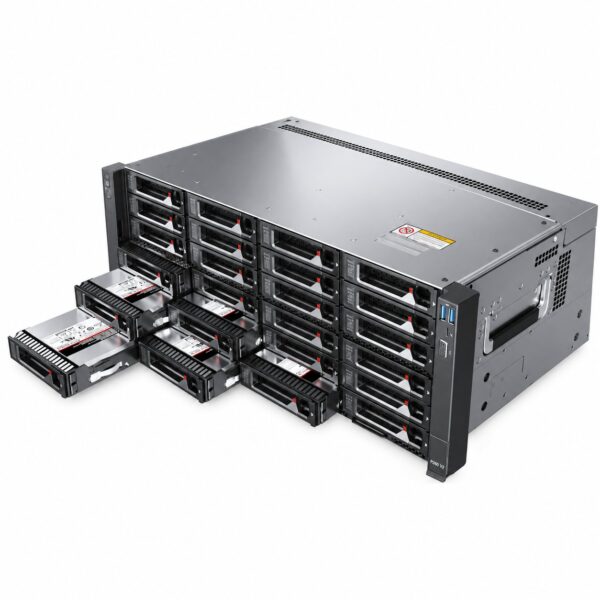

| Local Storage | Hot-swappable drive configurations: – Up to 28 x 2.5/3.5-inch SAS/SATA drives – Up to 4 x NVMe SSDs Flash storage: 2 x M.2 SSDs (Note: Some sources cite up to 32 x 3.5-inch drives for certain configurations) |
| RAID Support | Optional RAID 0, 1, 10, 1E, 5, 50, 6, 60; with supercapacitor cache protection; supports RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| GPU Accelerators | Up to 4 x dual-width or 10 x single-width GPU accelerator cards |
| Network | Up to 2 x OCP 3.0 NICs; supports orderly hot-swap and PCIe 5.0 |
| PCIe Expansion | Up to 10 x standard PCIe slots; supports PCIe 5.0 |

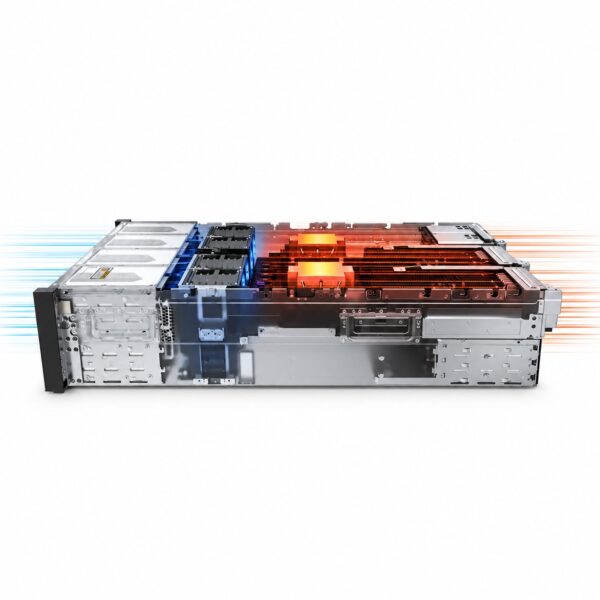

| Cooling | 8 x hot-swappable counter-rotating fan modules with N+1 redundancy |
| Power Supply Units | Hot-swappable PSUs with redundancy support (N+N/N+M): – 1500 W AC Platinum – 2000 W AC Platinum/Titanium – 3000 W AC Titanium – 1500 W 380V HVDC / 1200 W -48V DC options available |

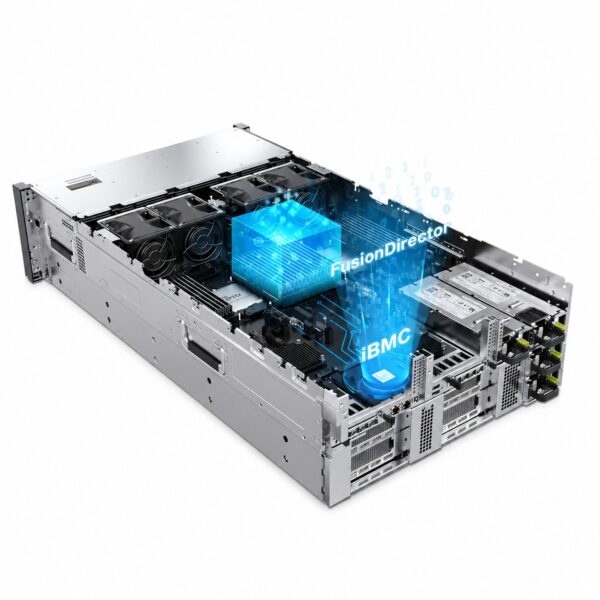

| Management | Integrated iBMC management chip with dedicated management GE port; supports Redfish, SNMP, IPMI 2.0; provides HTML5/VNC KVM-based remote management interface for out-of-band monitoring, diagnosis, and configuration. Optional FusionDirector software for advanced lifecycle management. |
| Supported OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler |
| Security Features | Power-on password, administrator password, TPM 2.0, security panel, secure boot, chassis intrusion detection |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) compliant with ASHRAE Class A1/A2/A3 |
| Product Certifications | CE, UL, CCC, FCC, VCCI, RoHS |
| Dimensions (H x W x D) | 175 mm x 447 mm x 798 mm (approx. 6.9 in x 17.6 in x 31.4 in) |
| Mounting Kit | L-type slide rails, telescopic slide rails, and rack-mounting brackets supported |
