Huawei FusionServer 5885H V7 – Product Documentation
Product Overview

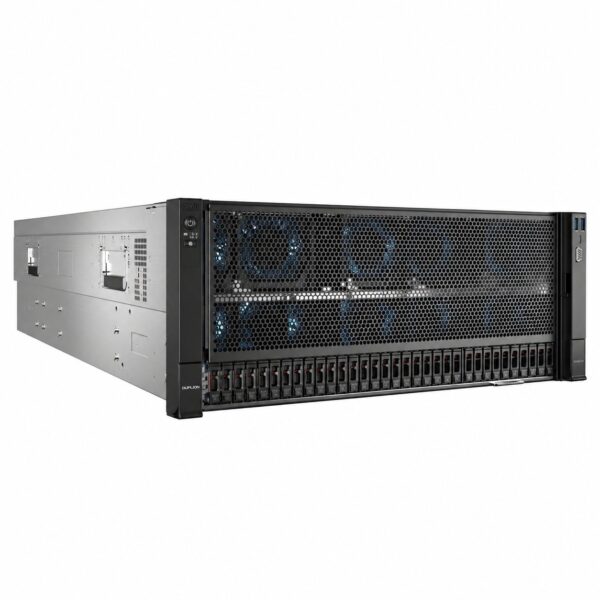

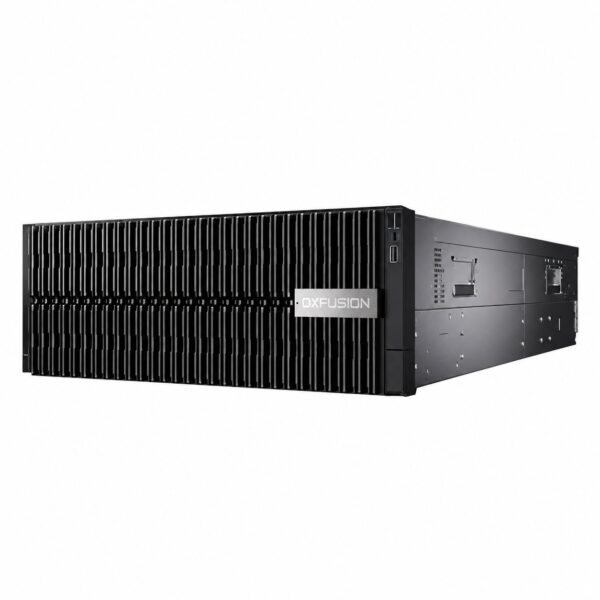

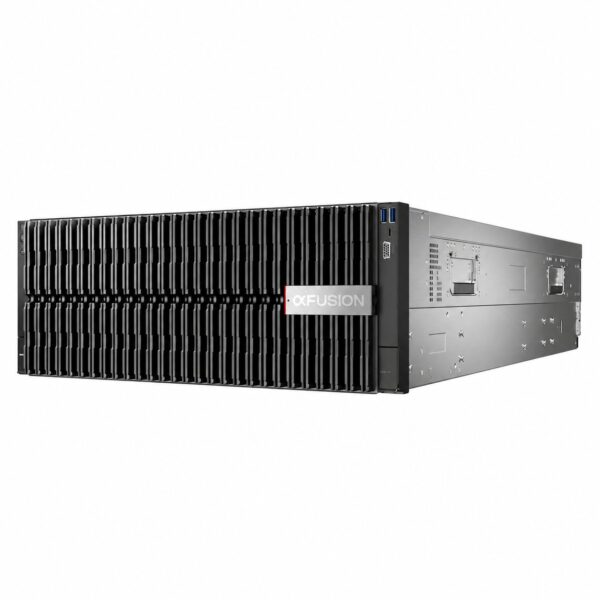

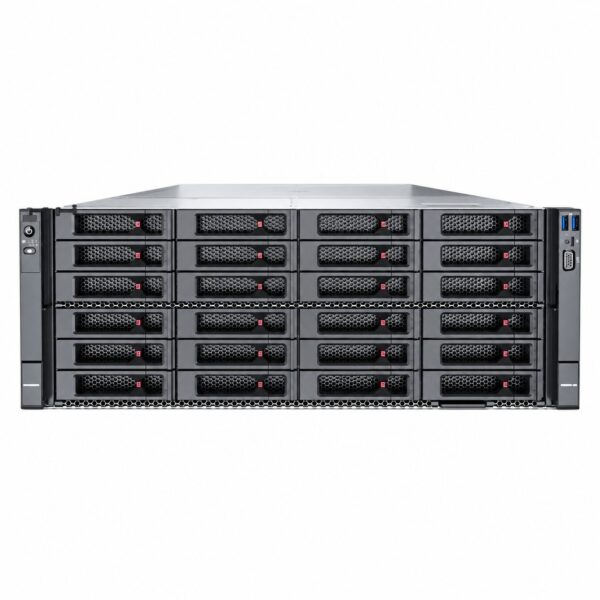

The Huawei FusionServer 5885H V7 is a 4U 4-socket rack server engineered for mission-critical enterprise workloads across Internet Data Centers (IDC), cloud computing, enterprise business, and telecommunications service applications. Powered by 2 or 4 of the 4th Generation Intel® Xeon® Scalable processors (Sapphire Rapids) with each processor supporting up to 350W TDP, this server delivers exceptional computational density within a compact 4U form factor.
The platform is ideally suited for high-performance database (OLAP/OLTP), cloud computing, virtualization, big data analytics, and in-memory computing use cases. The 5885H V7 distinguishes itself through a combination of high-performance computing capabilities, expansive storage configurations, low energy consumption, robust scalability, and simplified deployment and management. With support for up to 64 DDR5 memory DIMMs and extensive PCIe 5.0 expansion capabilities, it is built to handle the most demanding data-intensive workloads while maintaining high availability and reliability through comprehensive redundancy features.
Product Specifications
| Category | Specification |
|---|---|
| Form Factor | 4U Rack Server |

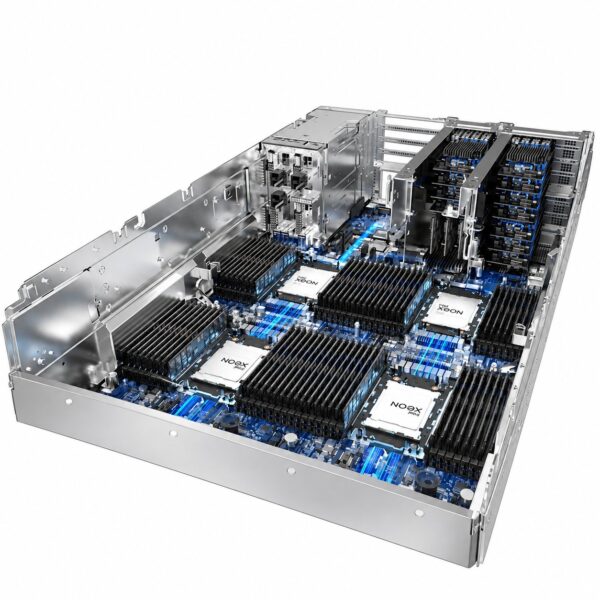

| Processor | 2 or 4 x 4th Generation Intel® Xeon® Scalable processors (Sapphire Rapids), up to 350W TDP per processor |
| Chipset | Emmitsburg PCH |
| Memory | 64 x DDR5 DIMM slots, flexible configuration options |
| Local Storage | Hot-swappable configurations: 8/24/25/50 x front 2.5″ SAS/SATA drives; 4 x front 2.5″ SAS/SATA + 8 x NVMe SSDs; 24 x front NVMe SSDs; 25 x front 2.5″ SAS/SATA + 24 x front NVMe SSDs; 36 x front E1.S SSDs; Up to 52 x 2.5″ drives total. Flash storage: 2 x M.2 SSDs with hardware RAID support |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; supercapacitor protection for cache data; RAID level migration, disk roaming, self-diagnosis, and remote web-based configuration |
| Network | Multiple network expansion capabilities; 1 x OCP 3.0 NIC supporting hot-swap and PCIe 5.0 |

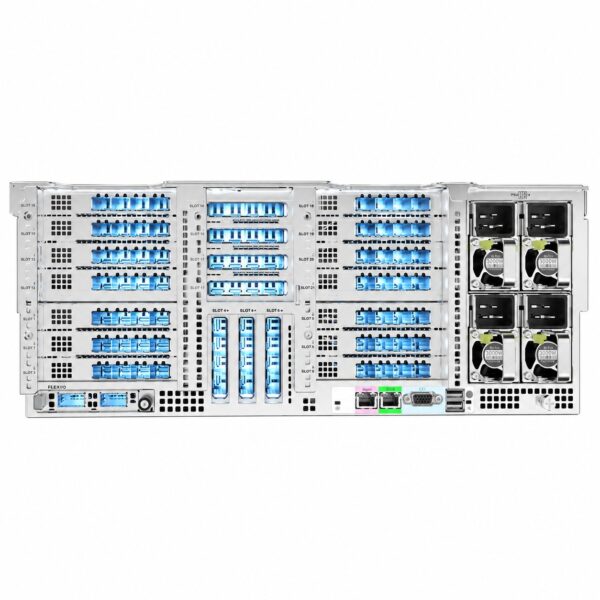

| PCIe Expansion | Up to 22 PCIe slots: 1 x FlexIO slot dedicated for OCP 3.0 NIC + 21 x standard PCIe slots |
| GPU Support | Up to 4 x dual-width GPU cards or up to 14 x single-width GPU cards |

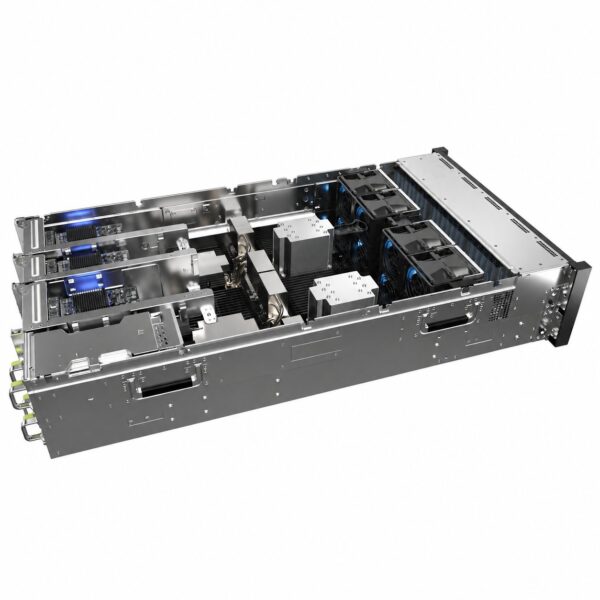

| Cooling System | 8 x hot-swappable counter-rotating fan modules with N+1 redundancy |

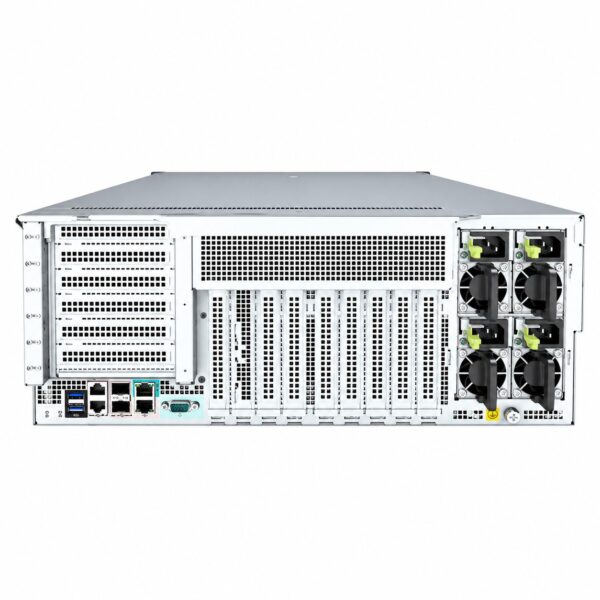

| Power Supply | Configurable with 4 x redundant hot-swappable PSUs supporting 2+2 redundancy. Options: 900W AC Platinum/Titanium (100V AC–240V AC or 192V DC–288V DC); 1500W AC Platinum; 2000W AC Titanium; 3000W AC Titanium; 1200W DC (-48V~-60V); 1500W 380V HVDC (260V DC–400V DC) |
| System Management | iBMC chip with dedicated management GE port; supports Redfish, SNMP, IPMI 2.0; HTML5/VNC KVM-based remote management; out-of-band management for monitoring, diagnostics, configuration, and remote control. Optional FusionDirector management software for intelligent lifecycle management |
| Security Features | Power-on password, administrator password, TPM 2.0, security bezel, secure boot, chassis intrusion detection |
| Operating Systems | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS |
| Dimensions (H x W x D) | 175 mm x 447 mm x 898 mm (2.5″ drive chassis) |
| Operating Temperature | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A3 and A4 |
| Installation Options | L-shaped guide rails, adjustable guide rails, holding rails |
