Huawei FusionServer 2288H V6 – Complete Documentation & Specifications

Product Overview

The FusionServer 2288H V6 is a 2U 2-socket rack server purpose-built for Internet Data Centers (IDC), cloud computing, enterprise IT, and telecommunications infrastructure. It is architected to deliver a balanced combination of compute performance, storage scalability, and energy efficiency across a broad range of workloads, including virtualization, high-performance computing (HPC), distributed storage, big data analytics, and critical business applications.

Powered by one or two 3rd Generation Intel® Xeon® Scalable processors (Ice Lake architecture) or the alternative Montage 3rd Gen Jinzhai processor, the system supports up to 40 cores per socket with a maximum core frequency of 3.6 GHz, 60 MB L3 cache, and up to three 11.2 GT/s Ultra Path Interconnect (UPI) links. The memory subsystem accommodates up to 32 DDR4 DIMM slots operating at 3200 MT/s, with a maximum capacity of 8,192 GB using RDIMM/LRDIMM, and can be further expanded to 12 TB when paired with Intel® Optane™ Persistent Memory 200 series.

Storage flexibility is a key strength, supporting up to 45 x 2.5-inch drives or 34 full-NVMe SSDs in a single chassis. The platform also offers up to 14 PCIe 4.0 expansion slots and supports up to 4 x 300W full-height full-length (FHFL) dual-width GPU accelerator cards, making it suitable for AI inference and training workloads. Integrated with patented DEMT (Dynamic Energy Management Technology) for intelligent power optimization and FusionDirector for automated full-lifecycle management, the 2288H V6 significantly reduces operational overhead while improving total cost of ownership (TCO) and return on investment (ROI).

Documentation & Resource List

Document / Resource	Description
Technical White Paper	In-depth architectural overview, feature descriptions, performance benchmarks, and component compatibility details.
Product Data Sheet	Concise summary of key specifications, configuration options, and primary use case recommendations.
Installation & Setup Guide	Step-by-step hardware assembly, rack mounting, cabling, and initial power-on procedures.
Maintenance & Service Guide	Comprehensive field-replaceable unit (FRU) replacement procedures, diagnostic flows, and system recovery instructions.
RAID Controller User Guide	Configuration, management, and troubleshooting guide for all supported RAID controllers and storage arrays.
iBMC User Guide	Full documentation for the integrated Baseboard Management Controller, covering remote access, sensor monitoring, event logs, and CLI/WebUI operations.
FusionDirector User Guide	Guide for the optional intelligent management platform, including automated deployment, firmware upgrade, asset discovery, and predictive maintenance.
Safety & Regulatory Compliance	Product safety certifications, electromagnetic compatibility (EMC) compliance, and global regulatory standards.
OS Installation Guide	Supported operating system matrices and step-by-step installation instructions for each distribution.
Compatible Components List	Validated third-party components including memory modules, storage drives, network interface cards, GPUs, and optical transceivers.

Technical Specifications Table

Category	Specification
Form Factor	2U Rack-mountable chassis
Processor	1 or 2 x 3rd Gen Intel® Xeon® Scalable (Ice Lake) – 8300/6300/5300/4300 series, up to 270W TDP; also supports Montage 3rd Gen Jinzhai processors
Chipset	Intel® C621A
Memory Slots	16 or 32 x DDR4 DIMM slots
Memory Speed	Up to 3200 MT/s
Max Memory Capacity	8,192 GB (32 x 256 GB RDIMM/LRDIMM)
Persistent Memory	Supports up to 16 x Intel® Optane™ Persistent Memory 200 series; combined max capacity up to 12 TB (must be paired with DDR4)
Drive Bays – Maximum Configurations	• Up to 45 x 2.5-inch SAS/SATA/SSD • Up to 20 x 3.5-inch SAS/SATA • Up to 34 x full-NVMe SSDs • 2 x M.2 SSDs (dedicated for Boot Speedup Storage Technology – BST)
Storage Controller	Optional RAID controllers supporting RAID 0, 1, 10, 5, 50, 6, 60; includes supercapacitor-backed cache protection; supports online migration, disk roaming, and remote web-based configuration
PCIe Slots	Up to 14 x PCIe 4.0 slots (including dedicated RAID controller slot + 2 FlexIO slots for OCP 3.0 cards + 11 standard full-height/full-length or half-height/half-length slots)
Network Interfaces – Onboard	2 x 10GbE (10Gbase-T) + 2 x 1GbE (1000base-T)
Network Interfaces – Expansion	Supports OCP 3.0 standard network adapters; 2 x FlexIO slots each accommodating 1 x OCP 3.0 card (hot-swappable)
GPU Support	• Up to 4 x 300W FHFL dual-width GPUs • Up to 8 x FHFL single-width GPUs • Up to 11 x HHHL single-width GPUs
Cooling	4 x hot-swappable counter-rotating fan modules with N+1 redundancy
Power Supply Options	1+1 redundant hot-swappable: • 900W AC Platinum/Titanium (100–240V AC / 192–288V DC) • 1500W AC Platinum (200–240V AC / 192–288V DC) • 1500W 380V HVDC (260–400V DC) • 2000W AC Platinum (200–240V AC / 192–288V DC) • 3000W AC Titanium (200–240V AC) • 1200W DC (-48V to -60V DC)
Management	• iBMC (Integrated Baseboard Management Controller) – supports Redfish, SNMP, IPMI 2.0; HTML5/VNC KVM console; agentless out-of-band management • Optional FusionDirector – full-lifecycle automation (deployment, upgrade, health monitoring, power capping, predictive failure analysis)
Security	• TPM 2.0 • Power-on password and administrator password • Secure Boot • Chassis intrusion detection and security panel • Intel® SGX and Intel® TME (Total Memory Encryption)
Physical Dimensions (H x W x D)	• 3.5-inch drive chassis: 86.1 x 447 x 748 mm (3.39 x 17.6 x 29.45 in) • 2.5-inch drive chassis: 86.1 x 447 x 708 mm (3.39 x 17.6 x 27.87 in)
Weight (Fully Configured)	Approximately 28 kg (61.7 lbs)
Operating Temperature	5°C to 45°C (41°F to 113°F); compliant with ASHRAE A3 and A4 environmental classes
Airflow Direction	Front-to-rear cooling
Supported Operating Systems	Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, and other mainstream Linux distributions

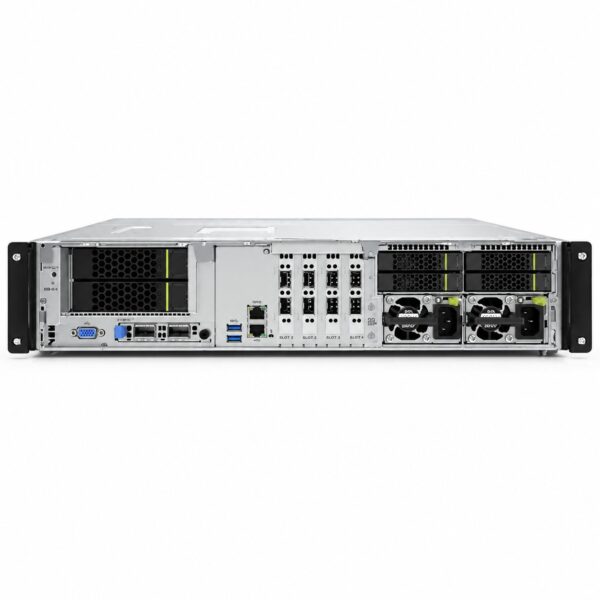

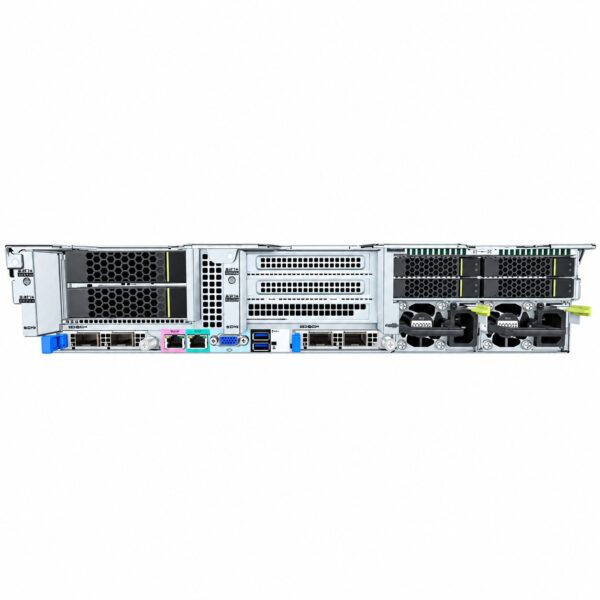

External I/O Ports	• 5 x network ports (2 x 10Gbase-T + 3 x 1000base-T, including dedicated management port) • 1 x RJ-45 serial console port • 7 x USB ports (including USB-C) • 1 x dedicated IPMI management port (1000base-T)
