Huawei FusionServer Pro 1288X V5 – Product Documentation
Product Overview

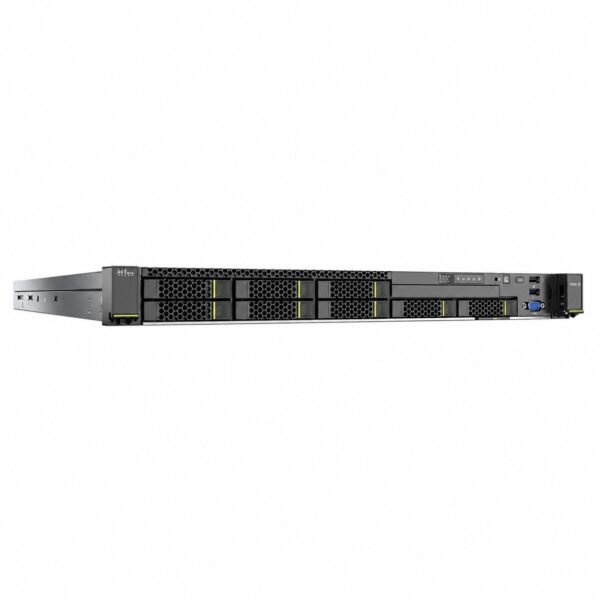

The Huawei FusionServer Pro 1288X V5 is a 1U 2-socket rack server engineered for data centers, cloud computing, enterprise workloads, and telecommunications applications . It supports 1st and 2nd generation Intel Xeon Scalable processors, delivering up to 56 cores and 112 threads per system with excellent performance for compute-intensive tasks . The server features 24 DDR4 memory slots supporting speeds up to 2933 MT/s and a maximum memory capacity of 3TB . Storage flexibility is provided through support for up to 8 x 2.5-inch SAS/SATA/SSD drives plus dual M.2 SSDs for Flash storage . The system includes onboard networking with 2 x 10GE optical ports, a dedicated management port, and offers up to 5 PCIe 3.0 expansion slots, including support for GPU acceleration cards . It is certified for multiple operating systems including Windows Server, various Linux distributions, and VMware ESXi, and is Ubuntu 20.04 LTS certified .
Product Specifications
Physical Specifications
| Parameter | Details |
|---|---|
| Form Factor | 1U Rack Server |
| Dimensions (H × W × D) | 43 mm × 447 mm × 708 mm (2.5-inch drive chassis) |
| Weight | Refer to official shipping documentation |
| Mounting Options | L-type slide rails, telescopic slide rails, cage nuts |
Processor Specifications
| Parameter | Details |
|---|---|
| CPU Type | Intel Xeon Scalable Processors (1st and 2nd Generation) |
| CPU Models Supported | 1st Gen: 3100/4100/5100/6100/8100 series, up to 205W 2nd Gen: 3200/4200/5200/6200/8200 series, up to 205W |
| Maximum CPU Count | 2 processors |
| Maximum Cores | Up to 56 cores and 112 threads per system |
| UPI Links | Up to 2 x 10.4 GT/s UPI interconnects |
| Max Turbo Frequency | 3.8 GHz (dependent on CPU model) |
Memory Specifications
| Parameter | Details |
|---|---|
| Memory Slots | 24 x DDR4 DIMM slots |
| Memory Speed | Up to 2933 MT/s |
| Memory Types | RDIMM, LRDIMM |
| Maximum Memory Capacity | Up to 1.5TB (with 64GB modules in groups of six) |
| Memory Configuration Notes | 12 slots per CPU; mixing RDIMM and LRDIMM not supported |
Storage Specifications
| Parameter | Details |
|---|---|
| Drive Interface Types | SAS, SATA, SSD |
| Drive Configuration | Up to 8 x 2.5-inch SAS/SATA/SSD drives |
| Flash Storage | Dual M.2 SSDs |
| RAID Support | Optional RAID 0, 1, 10, 5, 50, 6, 60; with cache supercapacitor protection, RAID level migration, disk roaming, self-diagnosis, web remote configuration |
| RAID Controller | Dedicated PCIe slot for RAID controller card |
I/O & Expansion
| Parameter | Details |
|---|---|
| PCIe Slots | Up to 5 PCIe 3.0 slots total: 1 dedicated for RAID card, 1 for OCP 2.0 mezzanine, 3 standard PCIe cards |
| Onboard Networking | 2 x 10GE optical ports |
| OCP Slot | 1 x OCP 2.0 slot for additional network mezzanine cards |
| GPU Acceleration | Supports 2 single-slot, half-height, half-length GPU accelerator cards |

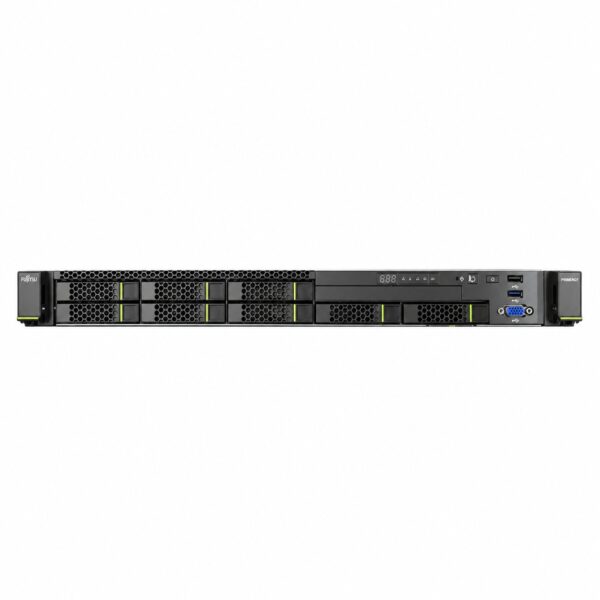

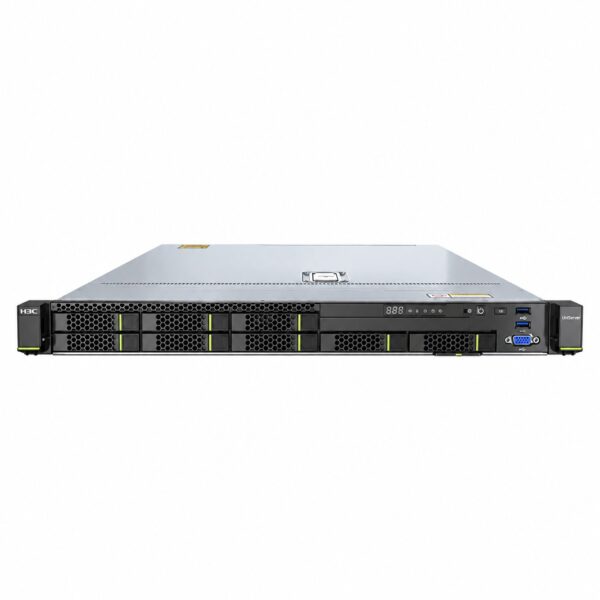

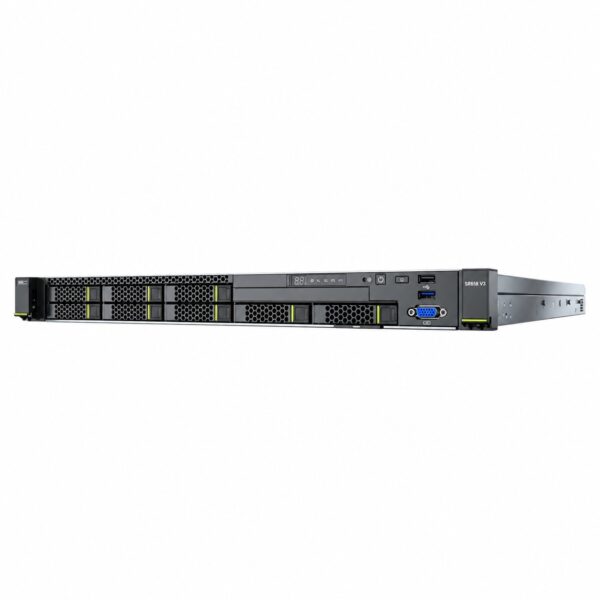

| Front Panel Ports | 1 x USB 2.0, 1 x USB 3.0, 1 x DB15 VGA port |

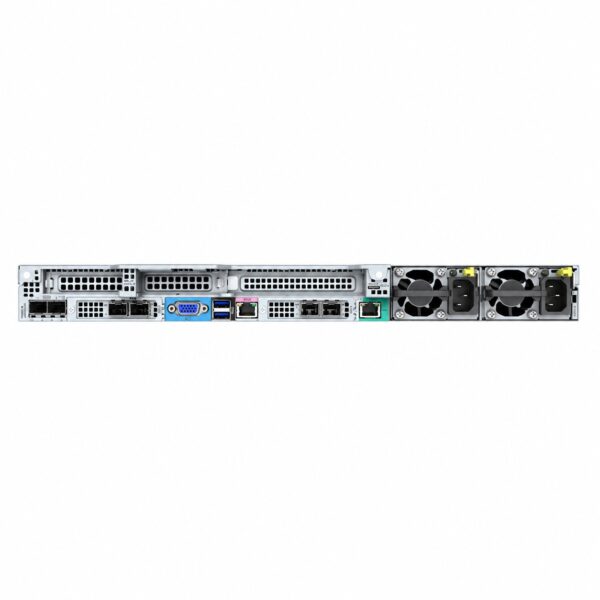

| Rear Panel Ports | 2 x USB 3.0, 1 x RJ45 serial port, 1 x RJ45 system management port, 2 x 10GE optical ports |
| Built-in Ports | 2 x SATA ports |
| Video Controller | SM750 video chip with 32MB display memory; max resolution 1920 x 1200 @ 60Hz |
Power Specifications
| Parameter | Details |
|---|---|
| Power Supply Configuration | 2 redundant hot-swappable power supplies, 1+1 redundancy |
| AC Platinum 550W | Input: 100V AC ~ 240V AC or 192V DC ~ 288V DC |
| AC Platinum/Titanium 900W | Input: 100V AC ~ 240V AC or 192V DC ~ 288V DC |
| AC Platinum 1500W | 1000W (100V AC ~ 127V AC) / 1500W (200V AC ~ 240V AC or 192V DC ~ 288V DC) |
| HVDC 1500W | Input: 260V DC ~ 400V DC (380V high-voltage DC) |
| DC 1200W | Input: -38.4V DC ~ -72V DC (-48V ~ -60V DC) |
Cooling Specifications
| Parameter | Details |
|---|---|
| Fans | 7 hot-swappable counter-rotating fans, N+1 redundancy support |
| Cooling Management | Partition speed control and PID intelligent fan speed control |
Management & Security
| Parameter | Details |
|---|---|
| Management Chip | Huawei iBMC with dedicated management GE port |
| Management Interfaces | Redfish, SNMP, IPMI 2.0 |
| Management Features | HTML5/VNC KVM remote management, CD-less deployment, Agentless management |
| Advanced Management | Optional Huawei FusionDirector management software: stateless computing, OS batch deployment, firmware auto-upgrade |
| Security Features | Power-on password, administrator password, TPM 2.0, security bezel |
| Trusted Execution | Intel Trusted Execution Technology (TXT), AES-NI, Execute Disable Bit |
Environmental & Compliance
| Parameter | Details |
|---|---|
| Operating Temperature | 5°C to 45°C (41°F to 113°F) – compliant with ASHRAE A3 and A4 standards |
| Certifications | CE, UL, FCC, CCC, RoHS |
Operating Systems Support
| Parameter | Details |
|---|---|
| Supported OS | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, VMware ESXi |
| Ubuntu Certification | Ubuntu 20.04 LTS certified |
| SUSE Certification | SUSE Linux Enterprise Server 12 SP5 certified |
