FusionServer 5288 V5 – Product Documentation

Product Overview

The FusionServer 5288 V5 is a 4U, dual-socket or single-socket rack server engineered for enterprise-grade workloads requiring massive storage capacity and balanced computing performance. Powered by 1st and 2nd Generation Intel® Xeon® Scalable processors, the system supports up to two CPUs with a thermal design power (TDP) of up to 205W per processor . The server accommodates up to 24 DDR4 memory DIMMs running at 2933 MT/s, with optional support for up to 12 Intel® Optane™ Persistent Memory modules (100 series) at 2666 MT/s .

The 5288 V5 distinguishes itself through exceptional storage flexibility, offering front, internal, and rear drive configurations that can support up to 44 3.5-inch drives plus additional 2.5-inch drives or NVMe SSDs . This makes the platform particularly well-suited for cold data storage, video surveillance, cloud storage, big data analytics, and media asset management .

For network connectivity, the server includes onboard LAN-on-motherboard (LOM) ports—typically 2 x 10GE and 2 x GE interfaces—with an additional flexible NIC slot for customized networking options such as 4 x GE, 2 x 10GE, or InfiniBand . The system is managed through an integrated BMC (iBMC) chip with a dedicated management port, supporting Redfish, SNMP, and IPMI 2.0 standards for remote administration, including HTML5/VNC-based KVM .

The chassis measures 175 mm (H) x 447 mm (W) x 748 mm (D), operates within a temperature range of 5°C to 40°C (41°F to 104°F) compliant with ASHRAE Class A3 standards, and features redundant, hot-swappable power supplies and cooling fans for high availability in data center environments .

---

Detailed Specifications

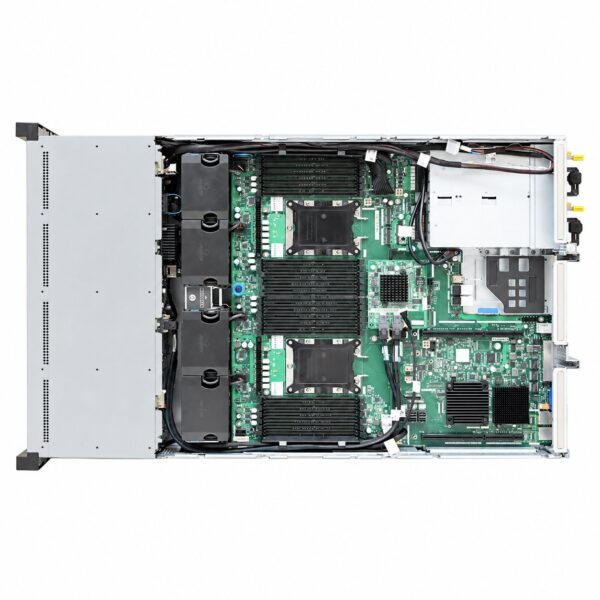

Processor

| CPU Type | 1st or 2nd Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series, 3200/4200/5200/6200/8200 series), up to 205W TDP  |
| CPU Count | 1 or 2 processors  |
| Chipset | Intel® C622  |

Memory

| Type | DDR4, up to 2933 MT/s  |
| Slots | 24 x DIMM slots  |
| Max Capacity | Up to 3 TB (with 128 GB DIMMs)  |
| Optane Support | Up to 12 x Intel® Optane™ Persistent Memory 100 series, 2666 MT/s  |

Storage

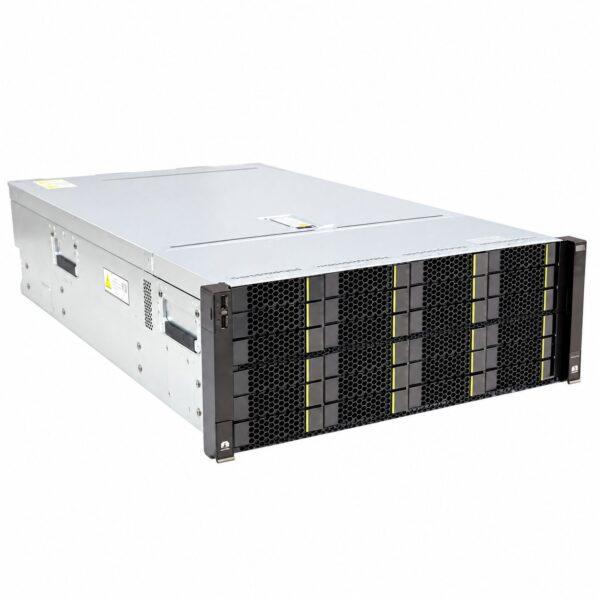

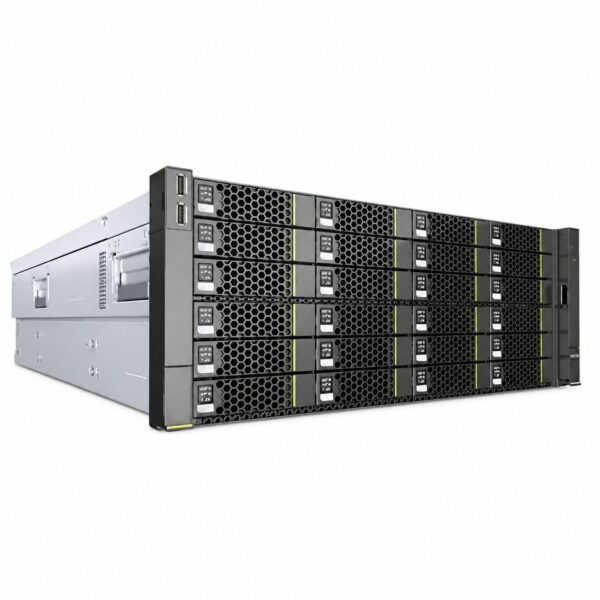

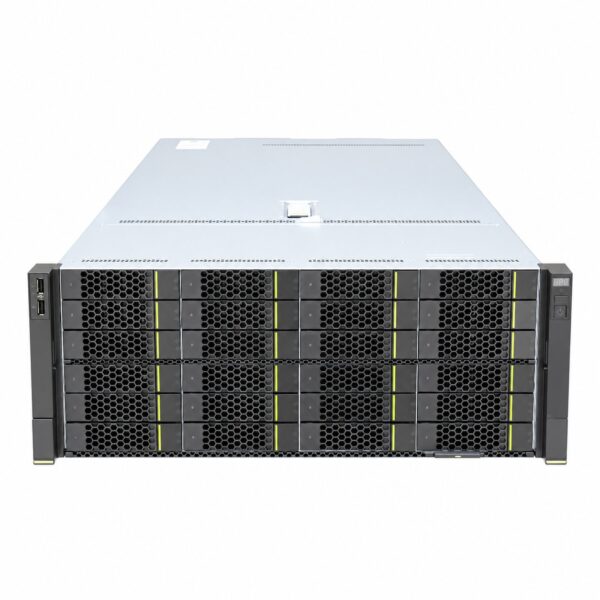

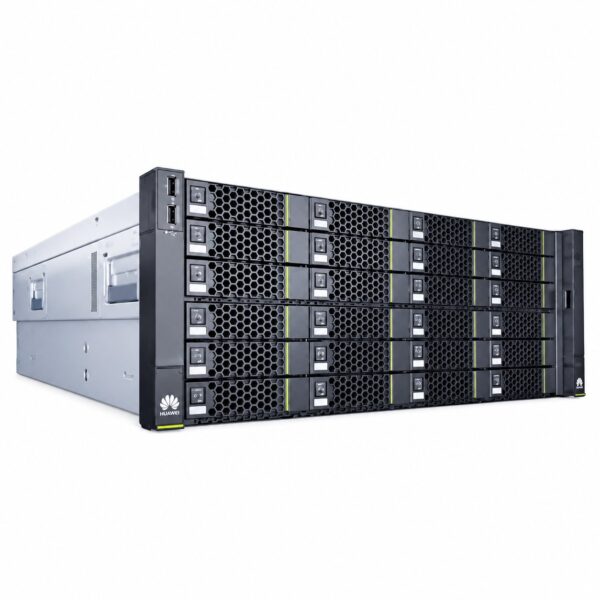

| Front Drives | 24 x 3.5-inch SAS/SATA  |
| Internal Drives | 4 x 3.5-inch SAS/SATA  |
| Rear Drives | • 16 x 3.5-inch SAS/SATA
• 16 x 3.5-inch + 4 x 2.5-inch SAS/SATA/NVMe
• 14 x 3.5-inch (NVMe model supports 4 NVMe) + 4 x 2.5-inch  |
| Max Drive Capacity | Up to 44 x 3.5-inch + 4 x 2.5-inch drives  |
| Flash Storage | 2 x M.2 SSDs (optional)  |
| Hot-swap Support | Yes, for SAS/SATA/NVMe drives  |
| RAID Controller | Optional SAS/SATA RAID controller or HBA; supports RAID 0, 1, 5, 50, 6, 60; cache supercapacitor protection  |

I/O & Expansion

| PCIe Slots | Up to 10 x PCIe 3.0 slots (1 dedicated for RAID, 1 for flexible LOM, 8 standard)  |
| Onboard Network | 2 x 10GE + 2 x GE ports (LOM)  |
| Flexible NIC | Optional: 2 x GE, 4 x GE, 2 x 10GE, or 1/2 x 56G FDR InfiniBand  |
| Front I/O | 2 x USB 2.0 ports  |

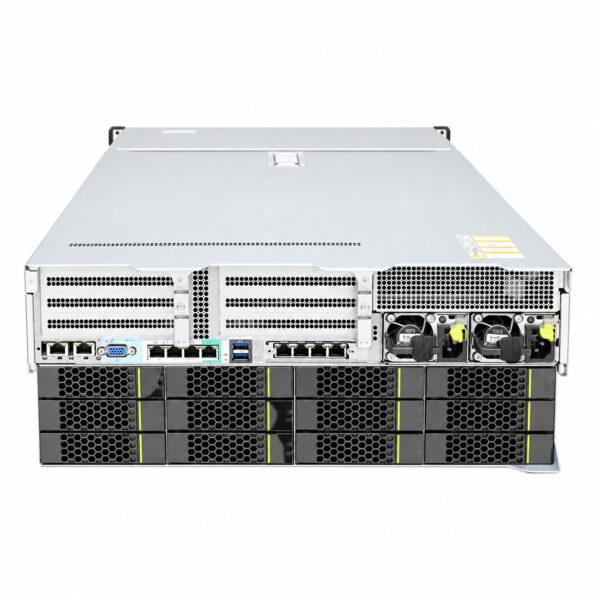

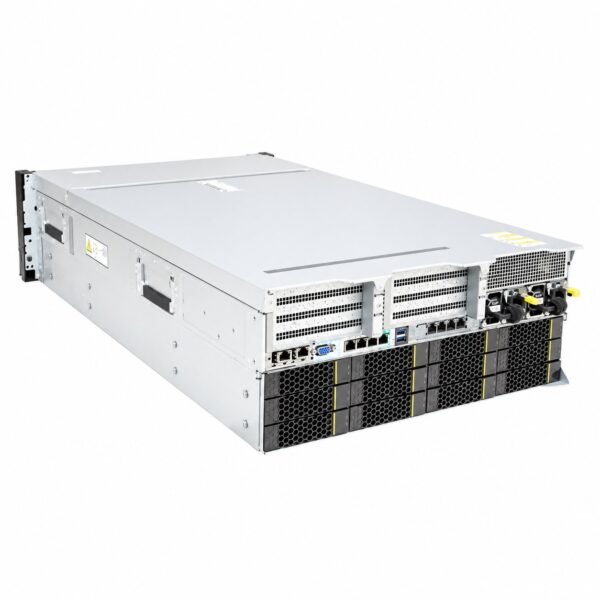

| Rear I/O | 2 x USB 3.0, 1 x DB15 VGA, 1 x RJ45 serial, 1 x RJ45 management port  |
| Internal I/O | 1 x USB 3.0, 2 x SATA  |
| Graphics | Integrated SM750 graphics chip, 32 MB VRAM, max resolution 1920×1200 @ 60Hz  |

Power & Cooling

| Power Supply | 2 x hot-swappable PSUs, 1+1 redundancy support  |
| PSU Options | 900W AC Platinum, 1500W AC Platinum  |
| Cooling | 4 x hot-swappable fan modules, N+1 redundancy support  |

Management

| Management Engine | iBMC chip with dedicated management port  |
| Management Standards | Redfish, SNMP, IPMI 2.0  |
| Remote Management | HTML5/VNC-based KVM, Agentless management, OS batch deployment  |
| Advanced Management | Optional FusionDirector / eSight for lifecycle automation  |

Environmental

| Operating Temp | 5°C to 40°C (41°F to 104°F), ASHRAE Class A3 compliant  |
| Storage Temp | -40°C to 65°C (-40°F to 149°F)  |
| Operating Humidity | 8% RH to 90% RH (non-condensing)  |
| Storage Humidity | 5% RH to 95% RH (non-condensing)  |
| Altitude | Up to 3,050 m (10,000 ft); HDDs not supported above 3,000 m  |

Certifications

| Standards | CE, UL, FCC, CCC, RoHS  |
